Solarmi MR4316AC NG MPPT inverter controller for solar water heating 4kW
XTEND Solarmi | MR4316AC NG | 8592457233336
On stock 1 pcs.
Price of goods is 267.38 €.
Weight of goods is 0.947 Kg.
Actual in cart 0 pcs.
Xtend Solarmi MR4316AC NG
The regulator for installation in the switchboard optimizes the adaptation of the resistance of the heating spiral of the boiler and the photovoltaic panels, so that the energy obtained from the panels is as efficient as possible. It is placed between the solar panel and the heating spiral of the boiler. The regulator can redirect the voltage from the panels to another appliance to the DC output for further use. It can also switch (via an external relay) the voltage from the AC output to the second consumer after disconnecting the first. It is also able to switch (via an external contactor) appliance power from the panels to the grid if there is not enough solar energy.
The output voltage at the output is alternating, thanks to which the controller can be used even with a regular boiler with a heating spiral for alternating voltage.
The regulator can be used wherever there is a need to maximize the energy gain from photovoltaic panels feeding electric heating elements (storage stoves, boilers, DHW tanks) in houses, apartments, recreational facilities, restaurants, schools and companies. The regulator uses pulse width modulation, which can cause a weak buzzing of the heating coil in the boiler, which could disturb the peace in the rooms where the boiler is located.
- Can be used with any heating device with a voltage from 10 to 320 V and an input power of up to 2.5 kW (with active cooling up to 4 kW)
- Adjustable control parameters
- Independence from the mains supply
- High energy transformation efficiency of up to 98%
- MPPS optimal working point search system (more efficient than MPPT)
- Current performance indicator
- Simple installation

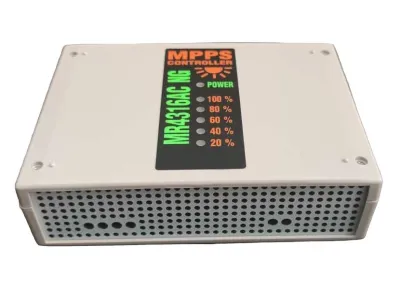

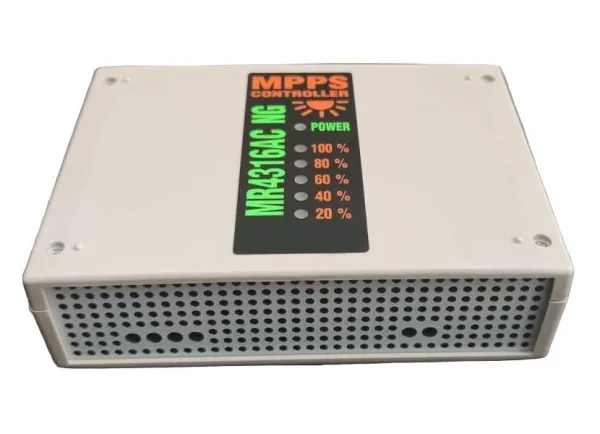

The inverter is equipped with an LED diode panel that informs the user about the current status of the inverter.
Technical parameters
- Panel testing period: adjustable from 15 s to 8 minutes
- Thermostat testing period: adjustable from 3 to 120 minutes
- AC input: MPPS + MPPT regulation, rectangular shape, PWM 0 to 86%, frequency 122 Hz
- DC output: without MPPS regulation, only switching the voltage of the panels to the output
- Power indicator: five LEDs, range 0 to 100%
Max. power: 4 hp
Input voltage: DC 60-430V
Input current: up to 16 A
Rated output voltage: AC 10-320V
Degree of protection: IP20
Dimensions: 180 x 120 x 45 mm
| Name | Value | |
|---|---|---|
| Input voltage [V] | 60 - 430 (DC) | |
| Dimension [mm] | 180 × 120 × 45 mm | |
| Output voltage [V] | 10 - 320 | |
| Maximum operating temperature [°C] | 35 | |
| Minimum operating temperature [°C] | -20 | |
| Output power [W] | 4000 | |
