Solarmi ACZ3 installed switchboard for photovoltaics circuit breaker protector 10kW 3f backup

XTEND Solarmi | SOPSMI0012 | 8594217350406

Out of stock.

Price of goods is 128.36 €.

Weight of goods is 2 Kg.

Actual in cart 0 pcs.

Product was added to your cart.

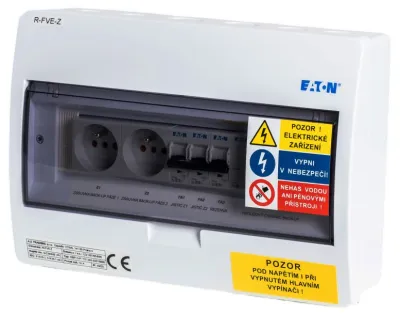

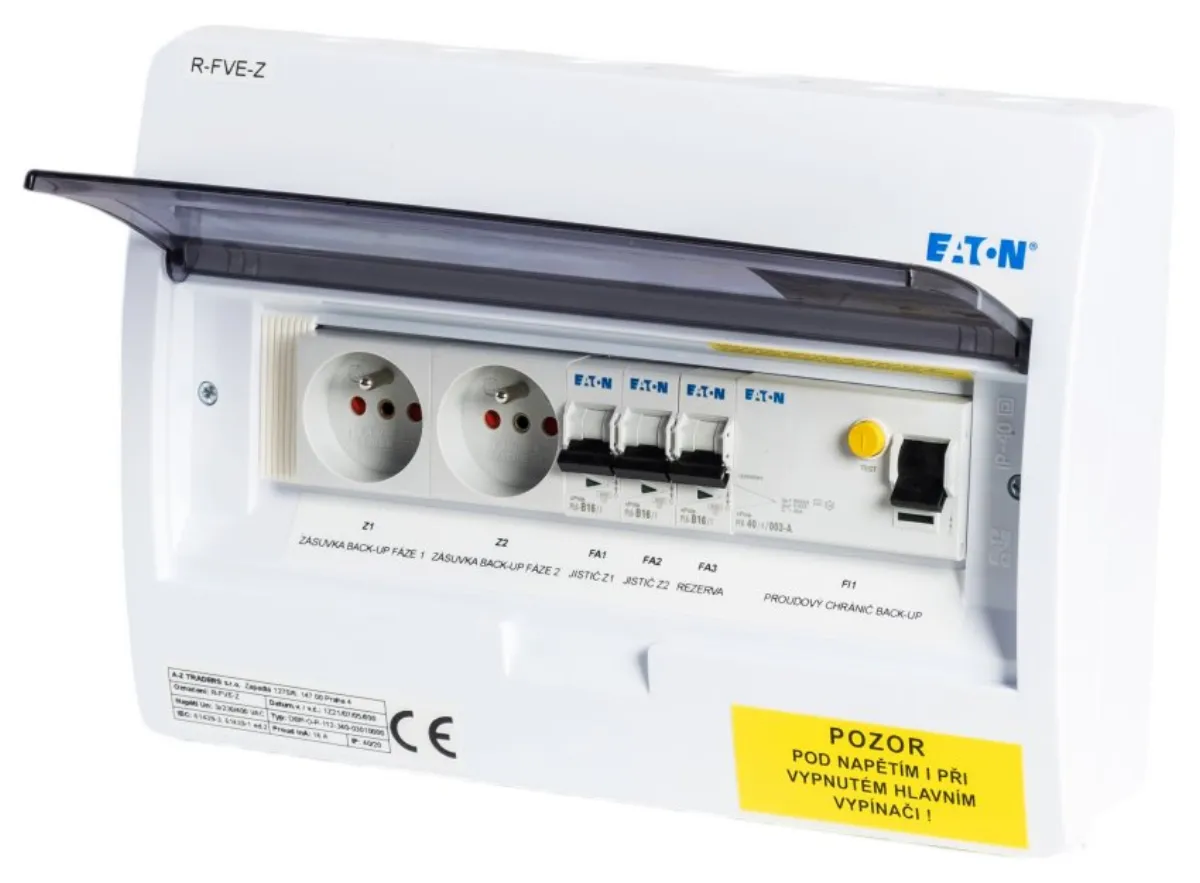

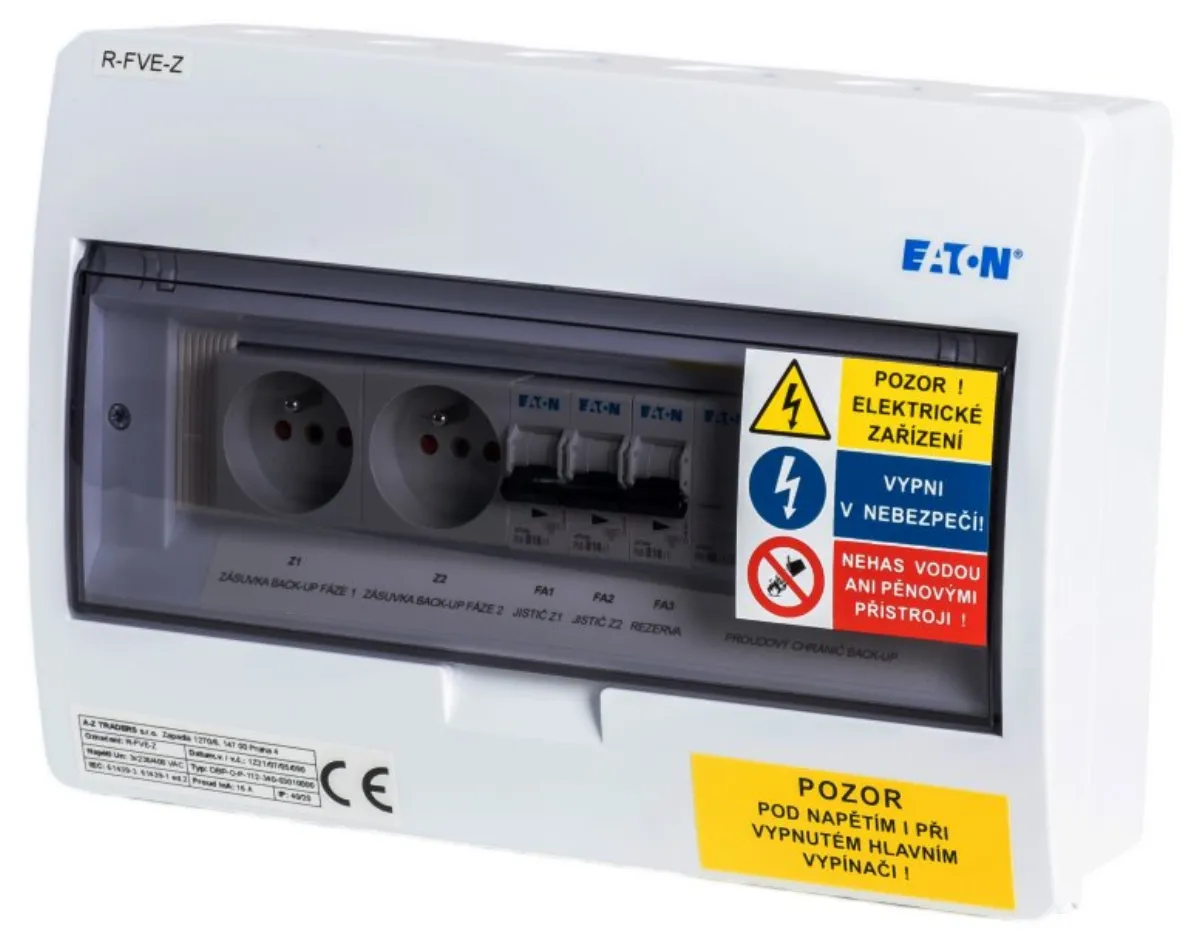

Xtend Solarmi ACZ3 mounted switchboard

AC switchboard designed for wall mounting, protection class II, IP40/20, used to serve a three-phase photovoltaic power plant (typically a Goodwe 4 to 10K-ET inverter). Ideal where it is not possible to use selected circuits for backup in the existing switchboards, but only sockets and a spare circuit breaker for selected appliances can be used. Its advantage is its compact size and the possibility of easy assembly with other AC switchboards next to each other or underneath each other. This enables installation even in spaces with limited space.

The switchboard is equipped with a B16/1 circuit breaker for protecting two sockets and one reserve for a separate consumer from the backup of the inverter and a type A circuit breaker.

Suitable to combine with the R-FVE-DC1, R-FVE-DC2 switchboard for the DC part of the installation and the R-FVE-M4 switchboard, which is intended for the inverter input.

  • Meets the standard/requirements according to ČSN EN IEC 61439-3 and 61439-1 edition 2
  • White plastic distributor + plastic door made of smoked organic glass
  • Degree of protection IP40 & Mechanical resistance IK05
  • Including N/PE terminal block
  • 1 row, 12 modules, DIN rails
  • Rated voltage 400 V AC & Rated insulation voltage 400 V AC

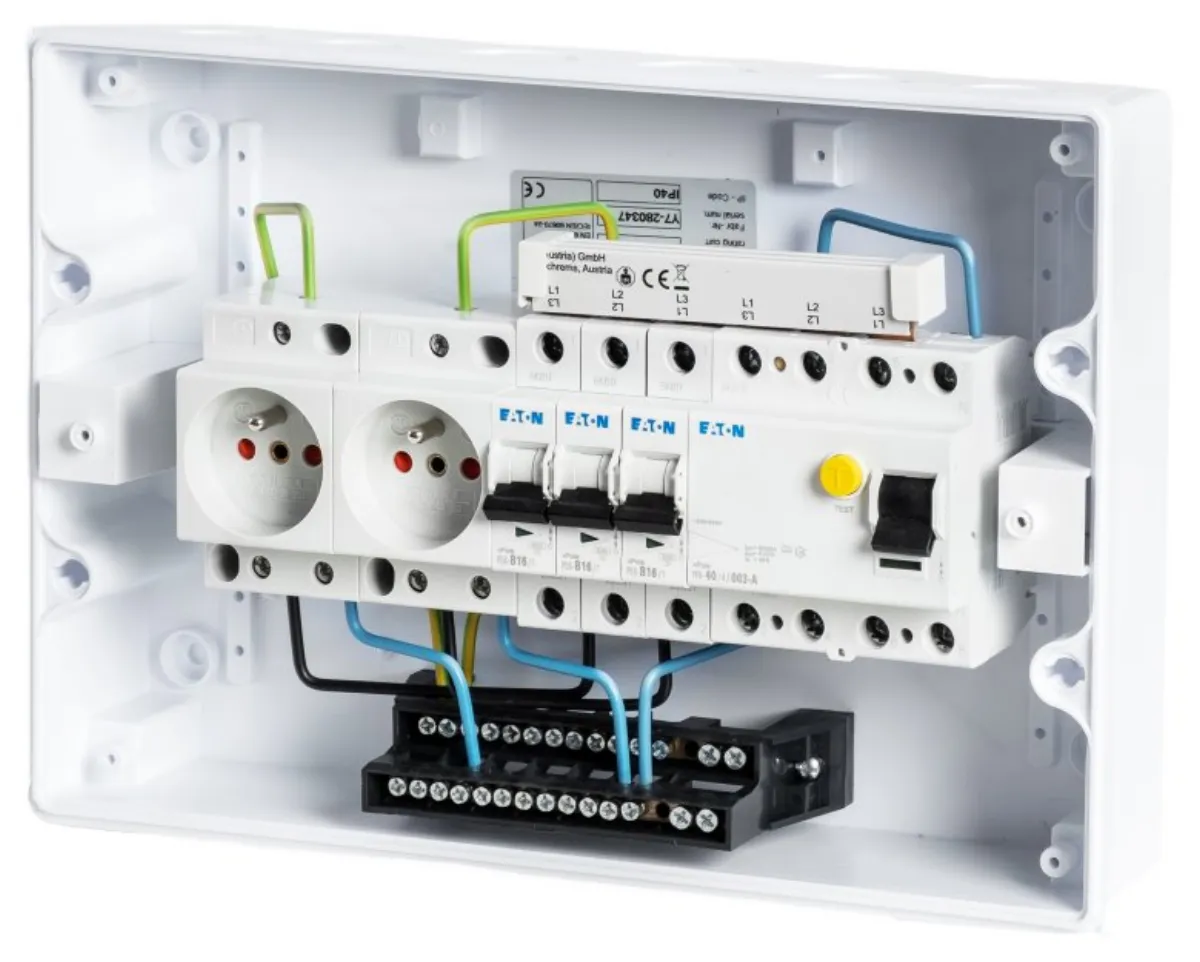

List of components

  • 1× Switchboard ON plaster, transparent plastic. door, 1 row, 12 modules
  • 1× Circuit breaker PL6, char B, 1-pole, Icn = 6 kA, In = 16 A
  • 1× Protector Ir = 250 A, type A, 4-pole, I dn = 0.03 A, In = 40 A
  • 2× DIN rail socket with shutters and pin

Intended use: for photovoltaics

Employed: yes

Material: plastic

Weight: 1.9 kg

Dimensions: 303 x 212 x 98 mm

Properties

NameValue
Weight, brutto [kg]1,9
Dimension [mm]303 × 212 × 98 mm
Rated voltage [V]400 (AC)
