Solarmi DC05 fitted switchboard for photovoltaics arrester fuse disconnector up to 500V
XTEND Solarmi | R-DC1T1 | 8594217350901
On stock 2 pcs.
Price of goods is 87.43 €.
Weight of goods is 0.788 Kg.
Actual in cart 0 pcs.

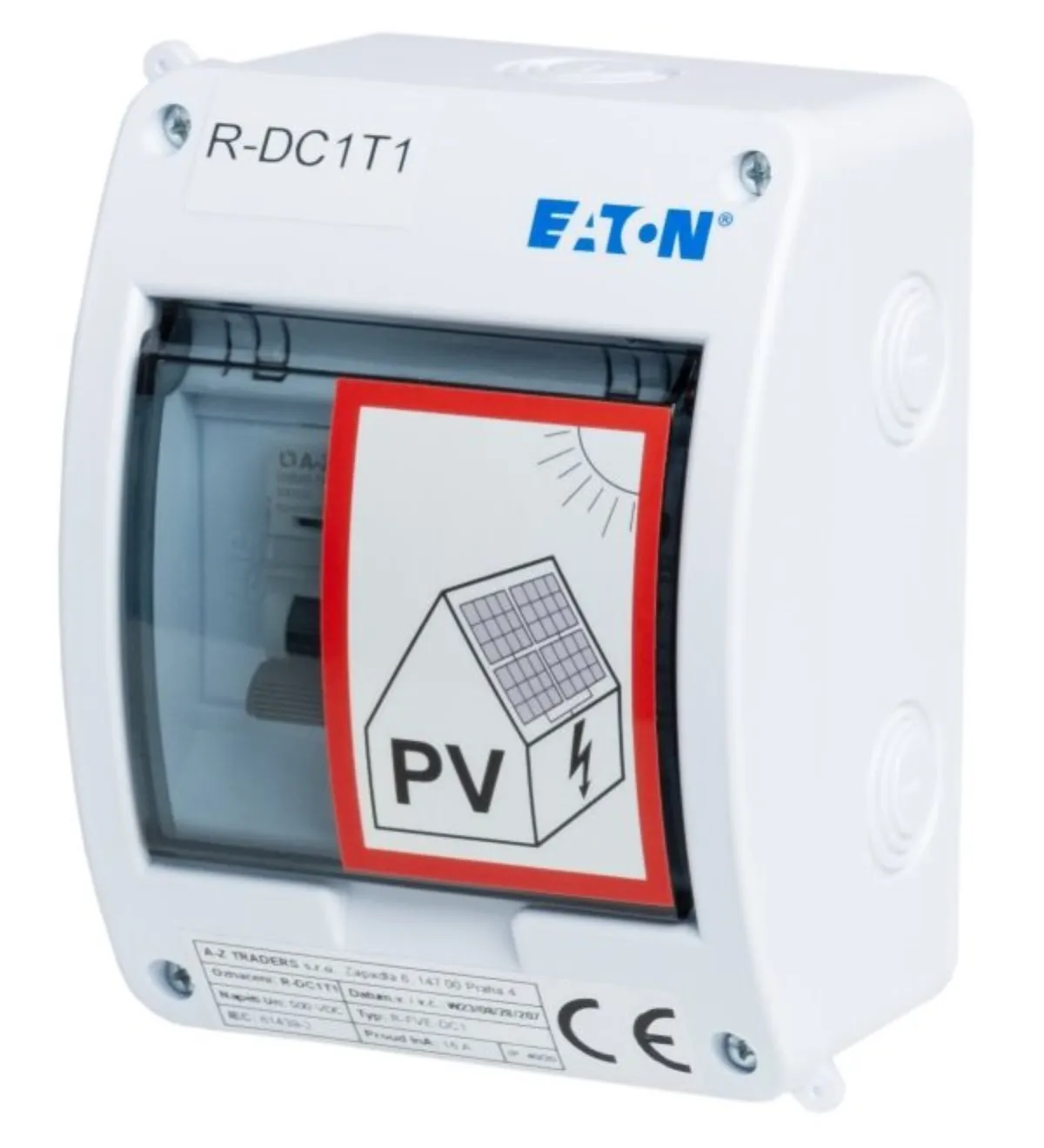

Xtend Solarmi DC05 mounted switchboard
DC05 switchboard (T1+T2), house switchboard on plaster. DC distributor intended for wall mounting, IP40/20 serving as an input distributor from photovoltaic panels (to the inverter) when using technology for heating water, or FVE chains up to 500 V.
- Meets the standard/requirements according to ČSN EN 61439-2 ed. 2:12 a.m
- Compact design, possibility of installation even in confined spaces
- White plastic distribution board + full plastic door
- Degree of protection IP40 & Mechanical resistance IK05
- Protection class II (fully insulated)
- Including N/PE terminal block
- 1 row, 5 modules, DIN rail
- Rated voltage 400 V AC & Rated insulation voltage 400 V AC

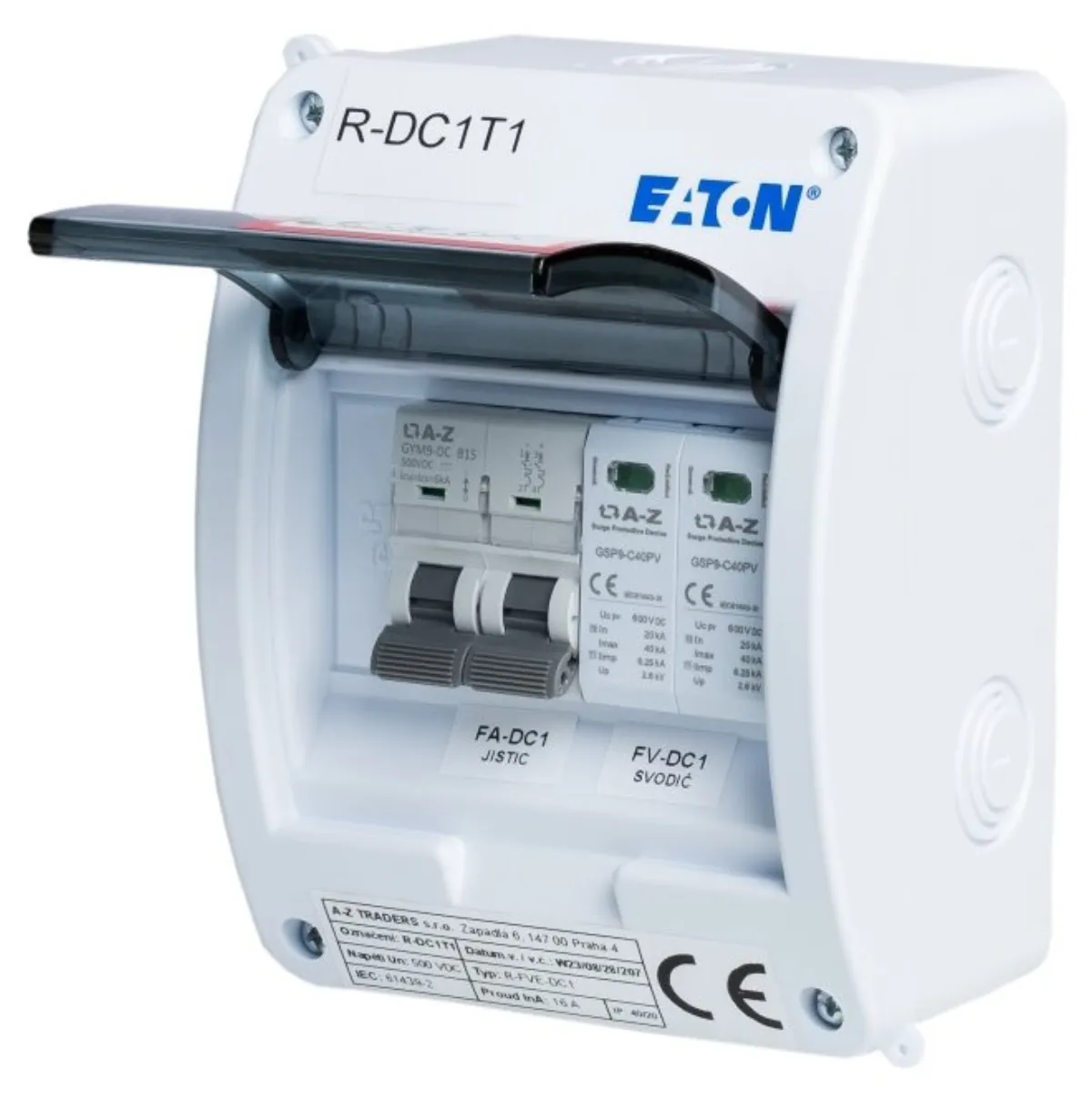

The switchboard is equipped with a T1+T2 class DC surge arrester and a two-pole DC circuit breaker to protect the DC input of the inverter.

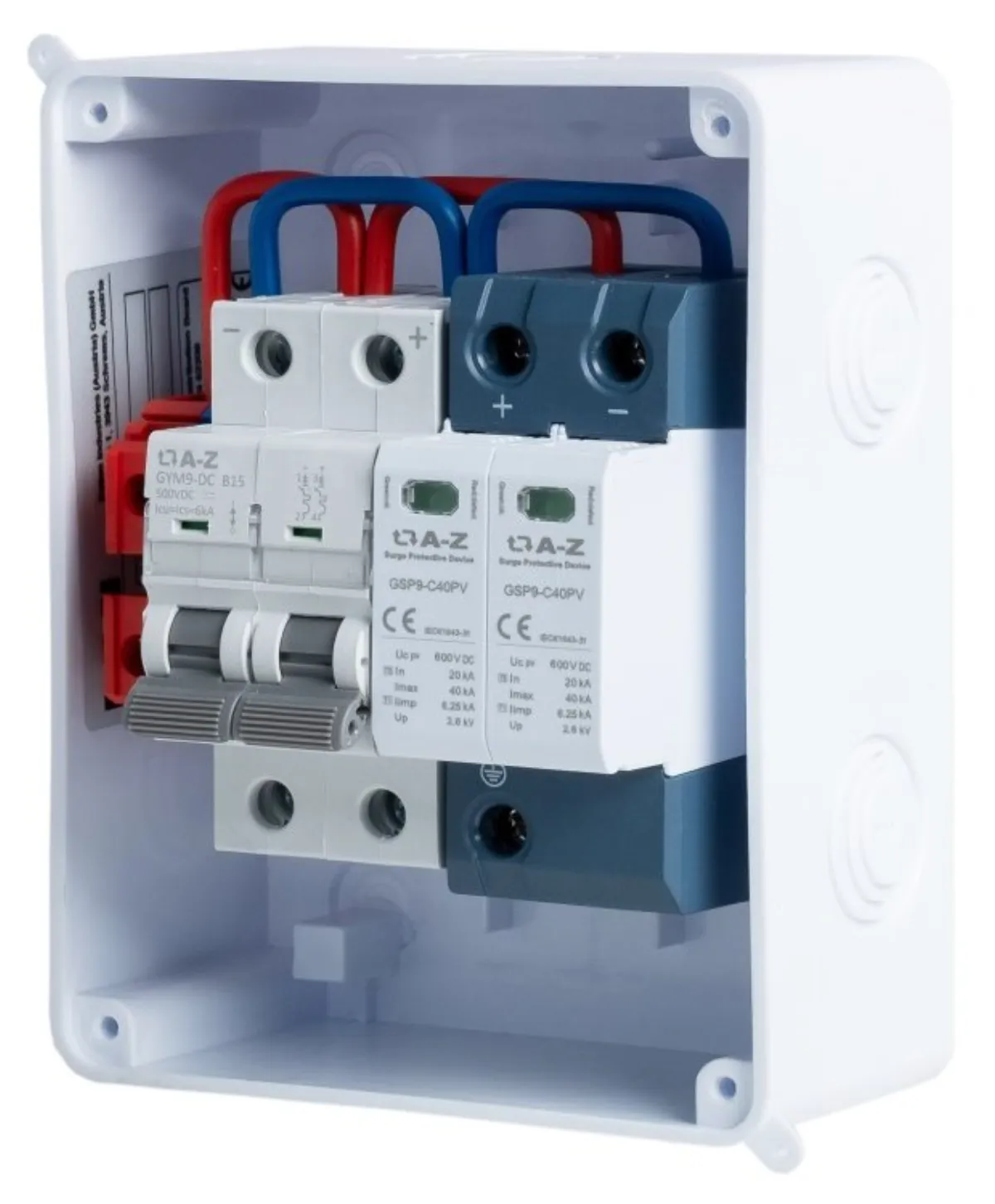

List of components
- 1× Switchboard ON plaster, transparent plastic. door, 1 row, 5 modules
- 1× Surge arrester T1+T2 (I+II, B+C), photovoltaic applications 600 V DC, In 20 kA, Imax 40 kA
- 1× Circuit breaker, photovoltaic applications, 2-pole, 500 V DC /15 A, short-circuit resistance 6 kA
Intended use: for photovoltaics
Employed: yes
Material: plastic
Dimensions: 156 x 116 x 93 mm
| Name | Value | |
|---|---|---|
| Dimension [mm] | 156 × 116 × 93 mm | |
| Rated voltage [V] | 400 (AC) | |
