Solarmi DC1T2 fitted switchboard for photovoltaics arrester fuse disconnector

XTEND Solarmi | R-FVE-DC1T2 | 4015082803476

On stock 6 pcs.

Price of goods is 84.71 €.

Weight of goods is 1.8 Kg.

Actual in cart 0 pcs.

Product was added to your cart.

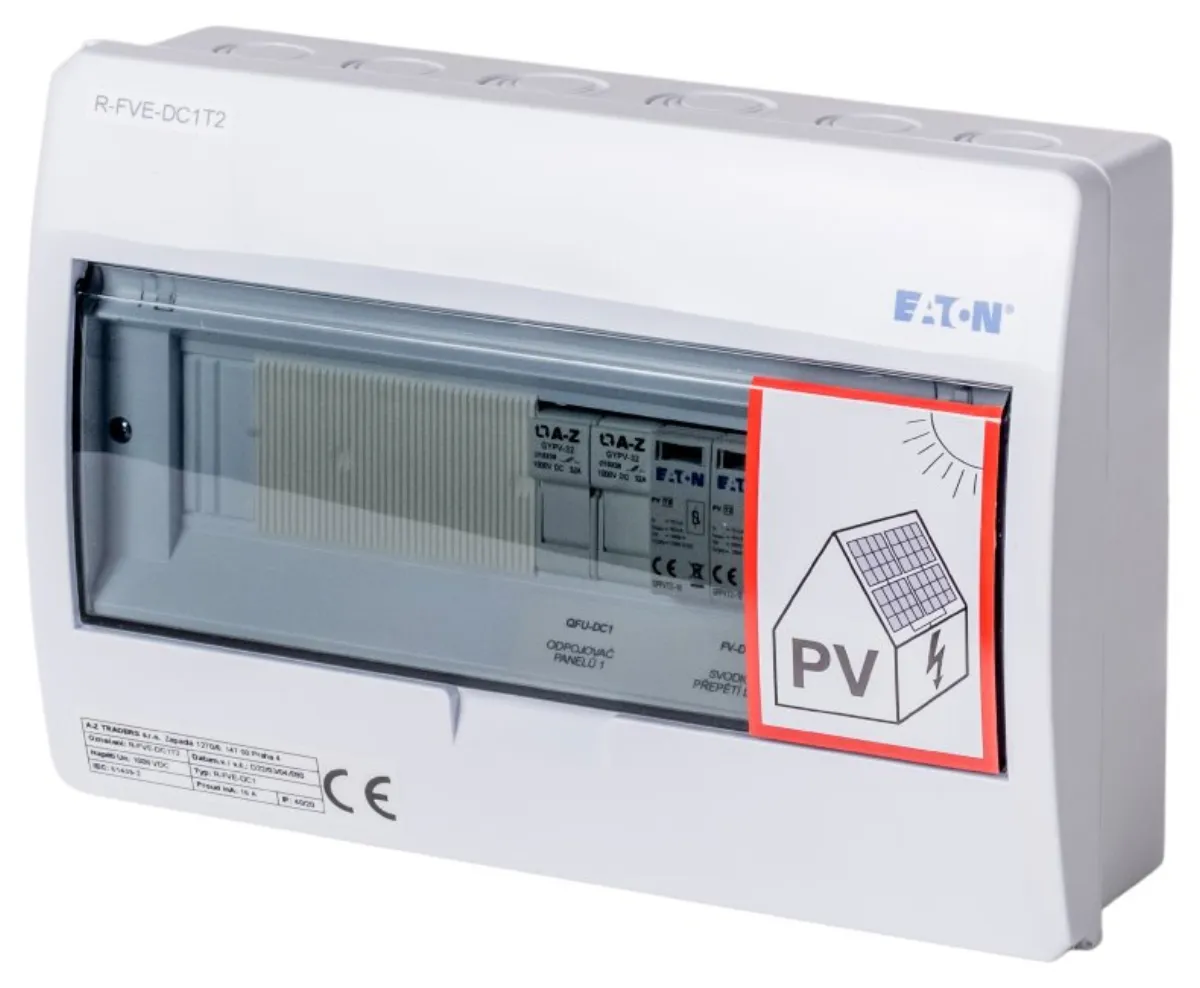

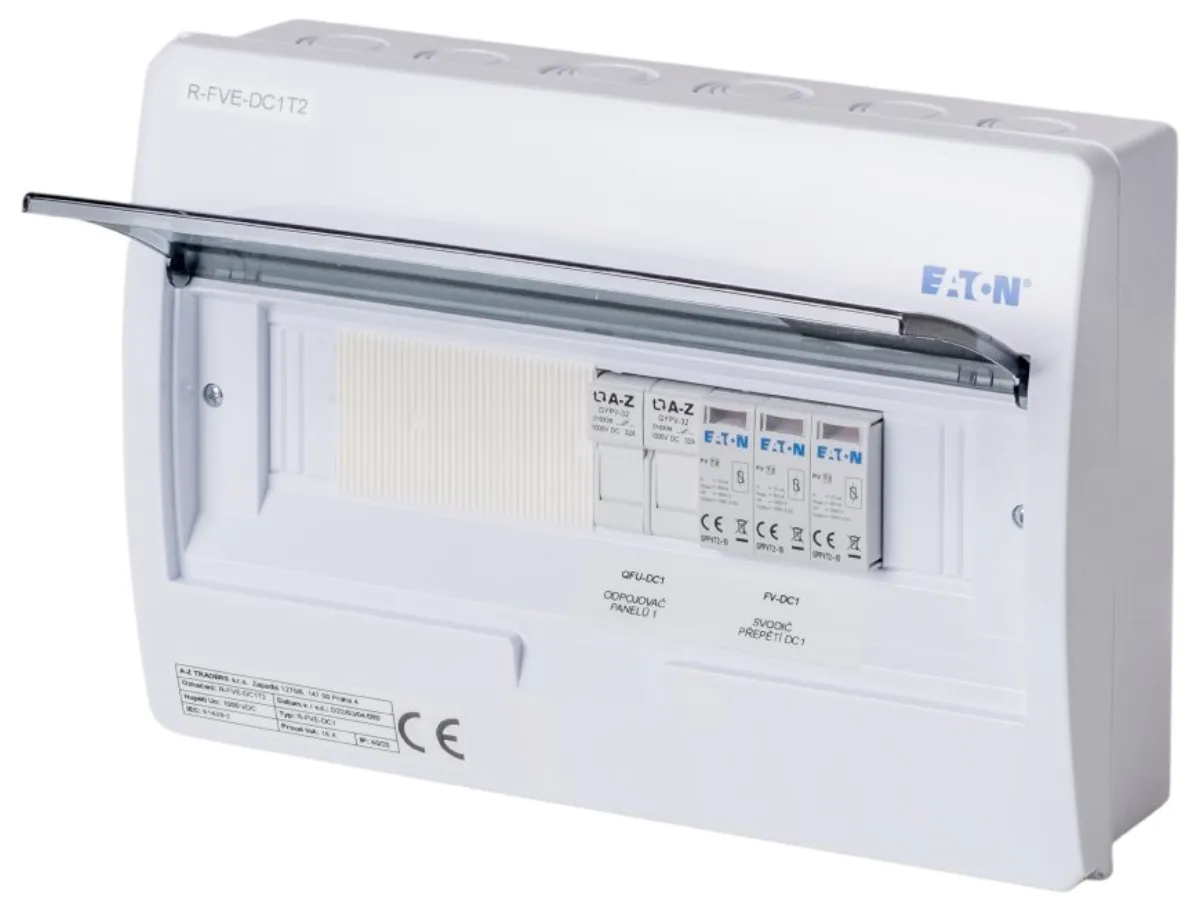

Xtend Solarmi DC1T2 mounted switchboard

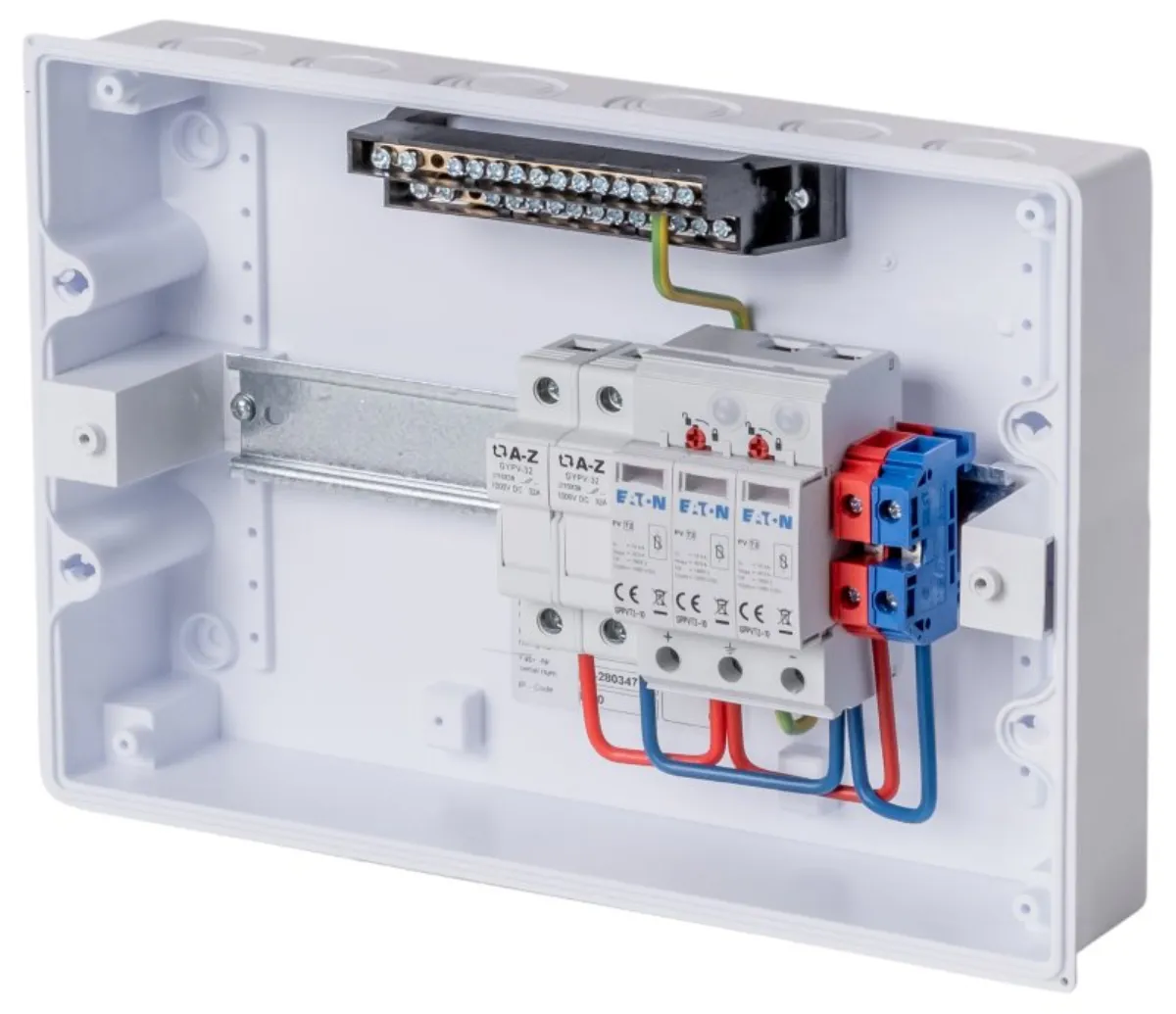

Complete certified switchboard protecting DC lines with a maximum voltage of 1000 V. Designed for surface mounting. It includes a two-pole fuse disconnector and a surge arrester to protect one string (string) of the photovoltaic system. The individual components placed on the DIN rail are already interconnected, which ensures time savings during assembly.

  • Meets the standard/requirements according to ČSN EN 61439-1 ed. 2:12 and ČSN EN 61439-2 ed. 2:12 a.m
  • White distribution box made of ABS, plastic transparent door made of polycarbonate
  • Degree of protection IP40/20 & Mechanical resistance IK05
  • Protection class II (fully insulated)
  • Short-circuit resistance 10 kA
  • 1 row, 12 modules, DIN rail
  • Nominal voltage 1000 V DC
  • Rated current 32 A

List of components

  • 1× Switchboard ON plaster, transparent plastic. door, 1 row, 12 modules
  • 1× Circuit breaker PL6, char B, 1-pole, Icn=6 kA, In=16 A
  • 2× Circuit breaker PL6, char B, 1-pole, Icn=6 kA, In=10 A
  • 1× Protector Ir=250 A, type A, 2-pole, Idn=0.03 A, In=25 A
  • 2× DIN rail socket with shutters and pin

Intended use: for photovoltaics

Employed: yes

Material: plastic

Dimensions: 303 x 212 x 98 mm

Properties

NameValue
Dimension [mm]303 × 212 × 98 mm
Rated voltage [V]1000
