Solarmi DC23 mounted switchboard for photovoltaics 2x arrester 2x fuse disconnector 1000V

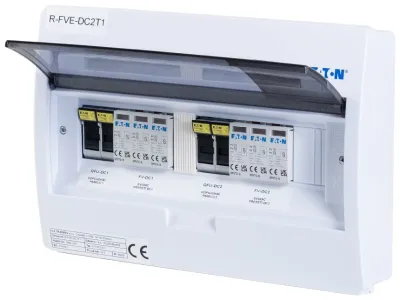

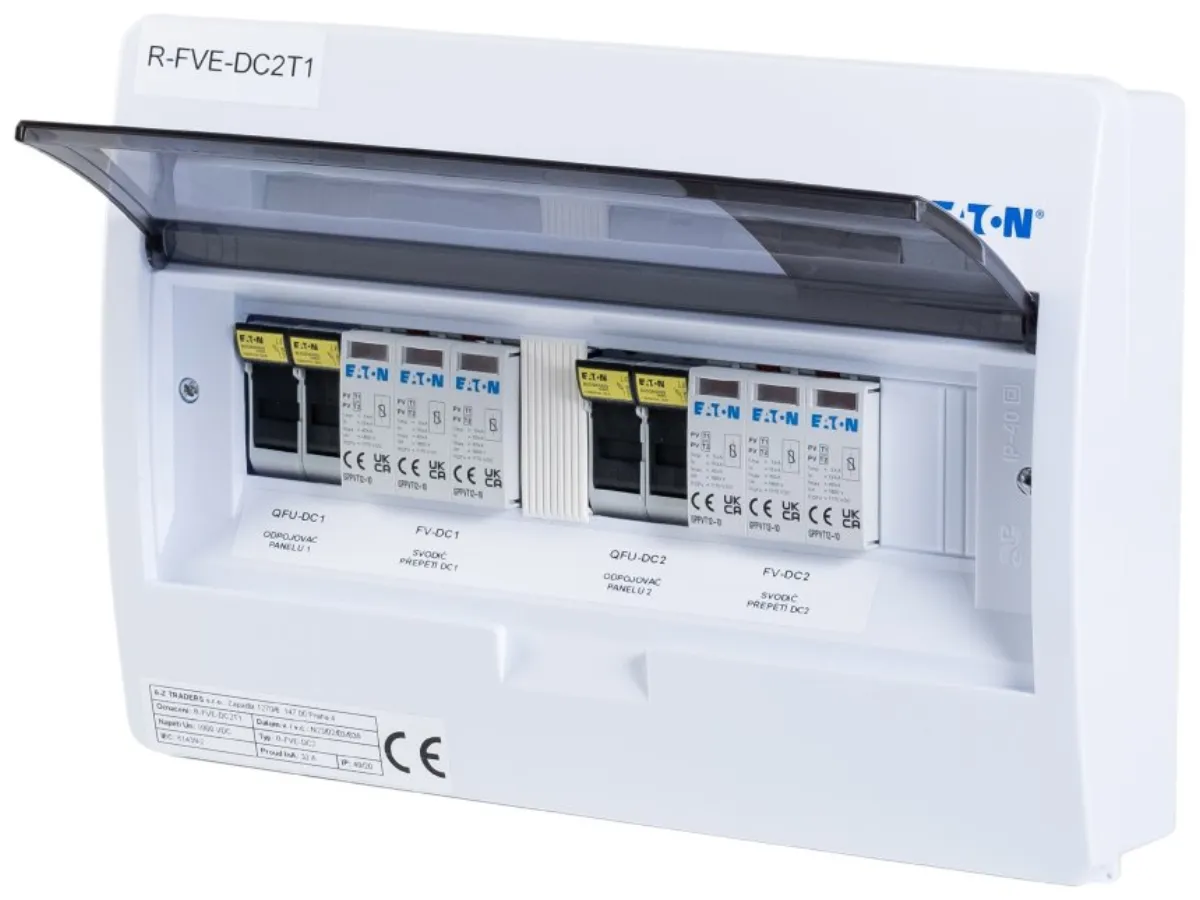

Xtend Solarmi DC23 fitted switchboard

DC switchboard designed for wall mounting, protection class I+II, IP40/20 serving as an input switchboard from photovoltaic panels (to the inverter) for the entire portfolio of photovoltaic power plants. Its advantage is its compact size and the possibility of easy assembly with other cabinets next to each other or underneath each other. This enables installation even in spaces with limited space.

• Meets the standard/requirements according to ČSN EN IEC 61439-2 ed. 3:21 am

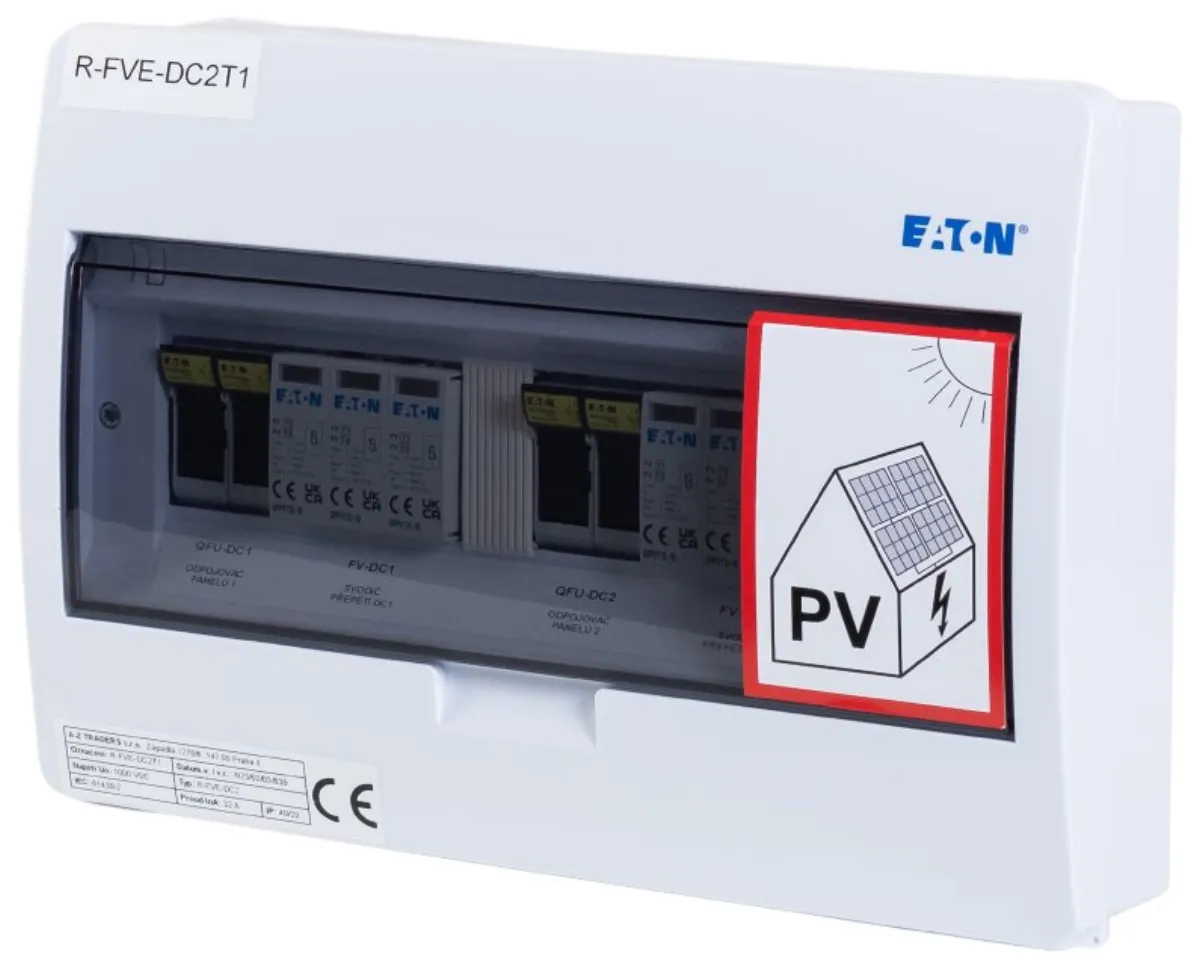

• White plastic distributor, back cover part of the switch cabinet + plastic door made of smoked organic glass
• Degree of protection IP40/20 & Mechanical resistance IK05
• Protection class I+II (fully insulated)
• Including N/PE terminal block
• 1 row, 12 modules, DIN rail
• Rated voltage 400 V AC & Rated insulation voltage 400 V AC

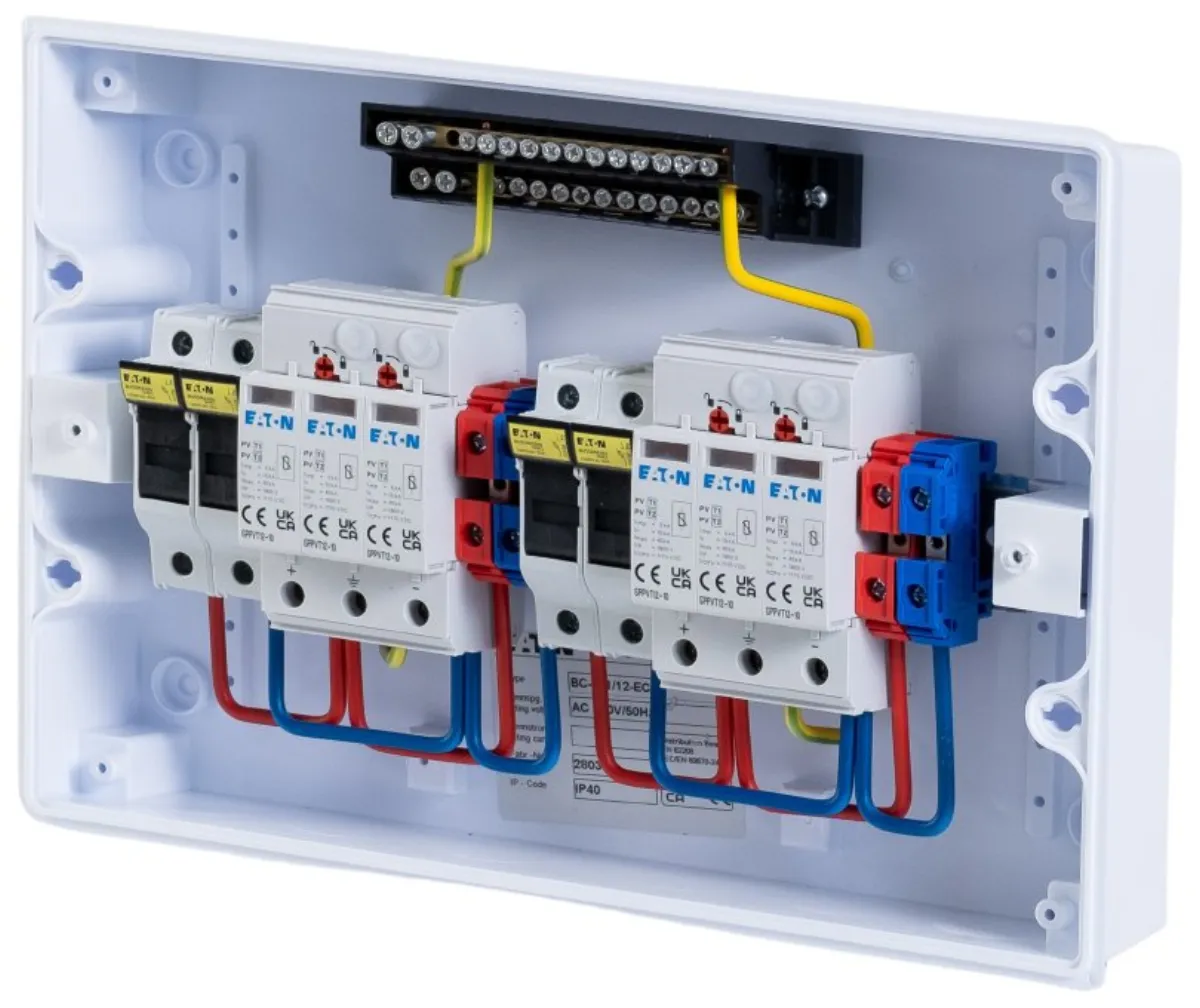

The switchboard is fitted with a DC overvoltage arrester with fuse disconnectors including gPV fuses to protect the DC input to the inverter.

List of components

• 1× Switchboard on plaster, transparent plastic. door, 1 row, 12 modules
• 2× Surge arrester T1+T2 (I+II, B+C), photovoltaic applications 1000 V DC, max. short circuit. current 1000 A
• 4× Ultra fast cylindrical fuse for photovoltaics, (UL standard), 10 x 38 mm, 1100 V DC, 15 A
• 2× Fuse disconnector, photovoltaic applications, 2-pole, 1000 V AC / 30 A, C10 (10 × 38 mm)

Intended use: for photovoltaics

Employed: yes

Material: plastic

Dimensions: 303 x 212 x 98 mm
