Solarmi DC2 fitted switchboard for photovoltaics 2x arrester 2x fuse disconnector
XTEND Solarmi | R-AZT-DC2T1 | 8594217350031
Out of stock.
Price of goods is 108.07 €.
Weight of goods is 2.075 Kg.
Actual in cart 0 pcs.

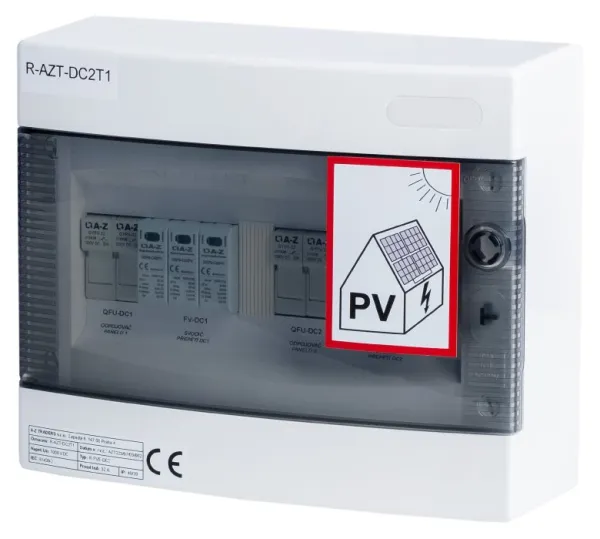

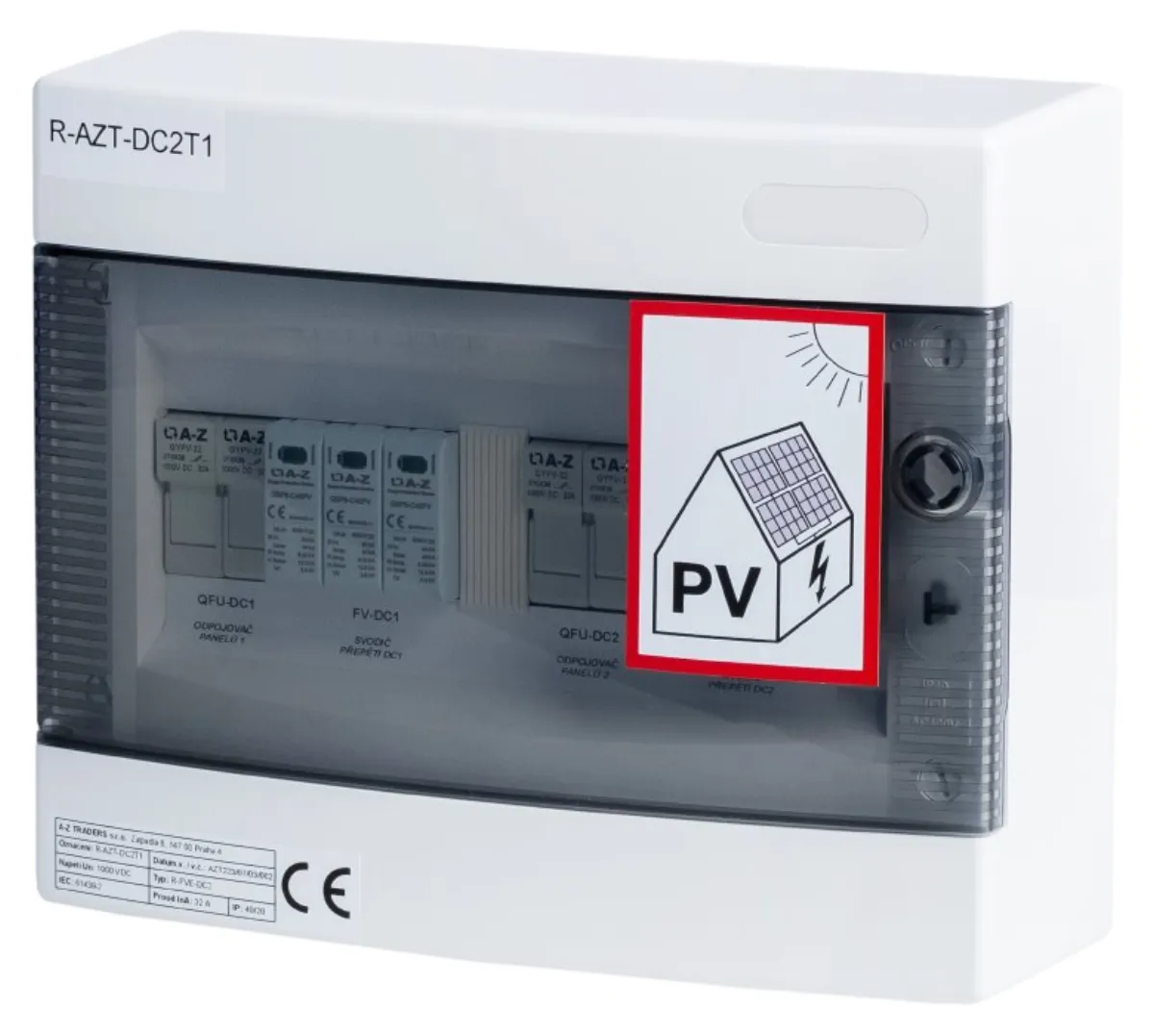

Xtend Solarmi DC2 fitted switchboard
Switchboard DC2 (T1+T2), house switchboard, PNS series
- DC switchboard intended for wall mounting, IP40 serving as an input switchboard from photovoltaic panels (to the inverter) for the entire portfolio of photovoltaic power plants.
- Meets the standard/requirements according to ČSN EN IEC 61439-2 ed. 3:21 am

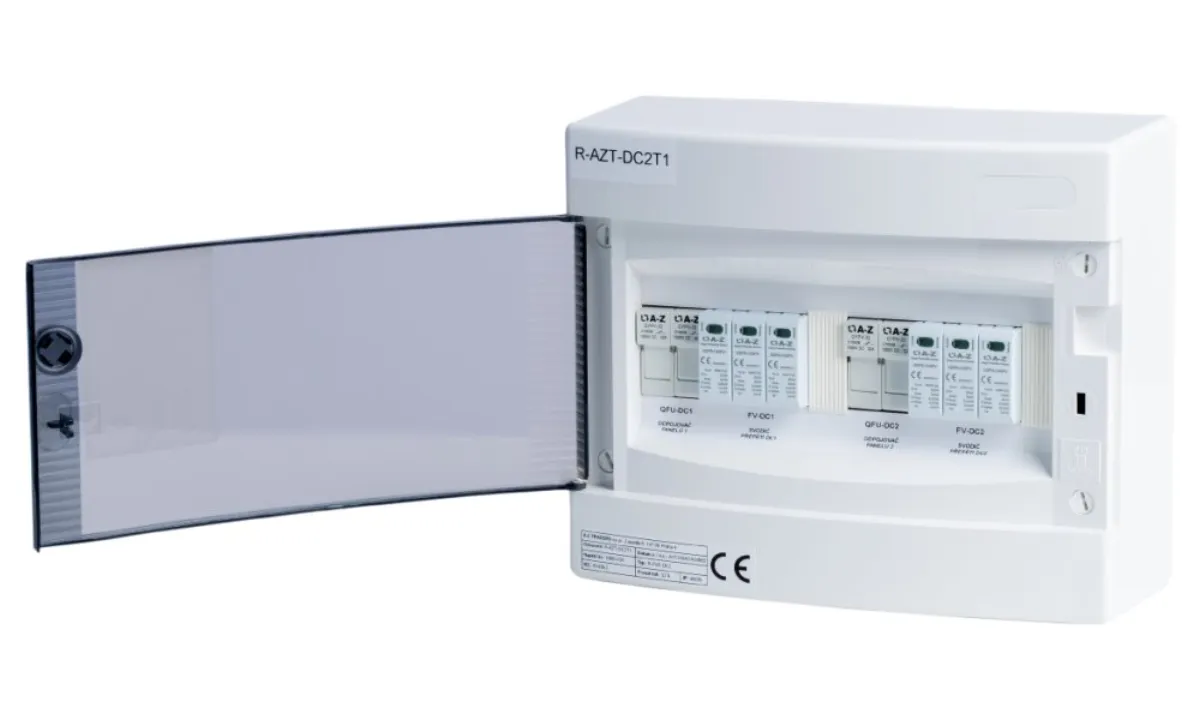

- White plastic distribution box with removable back wall + full plastic door
- Degree of protection IP40 & Mechanical resistance IK07
- Protection class II (fully insulated)
- Including N/PE terminal block
- 1 row, 12 modules, DIN rail
- Rated voltage 400 V AC & Rated insulation voltage 440 V AC

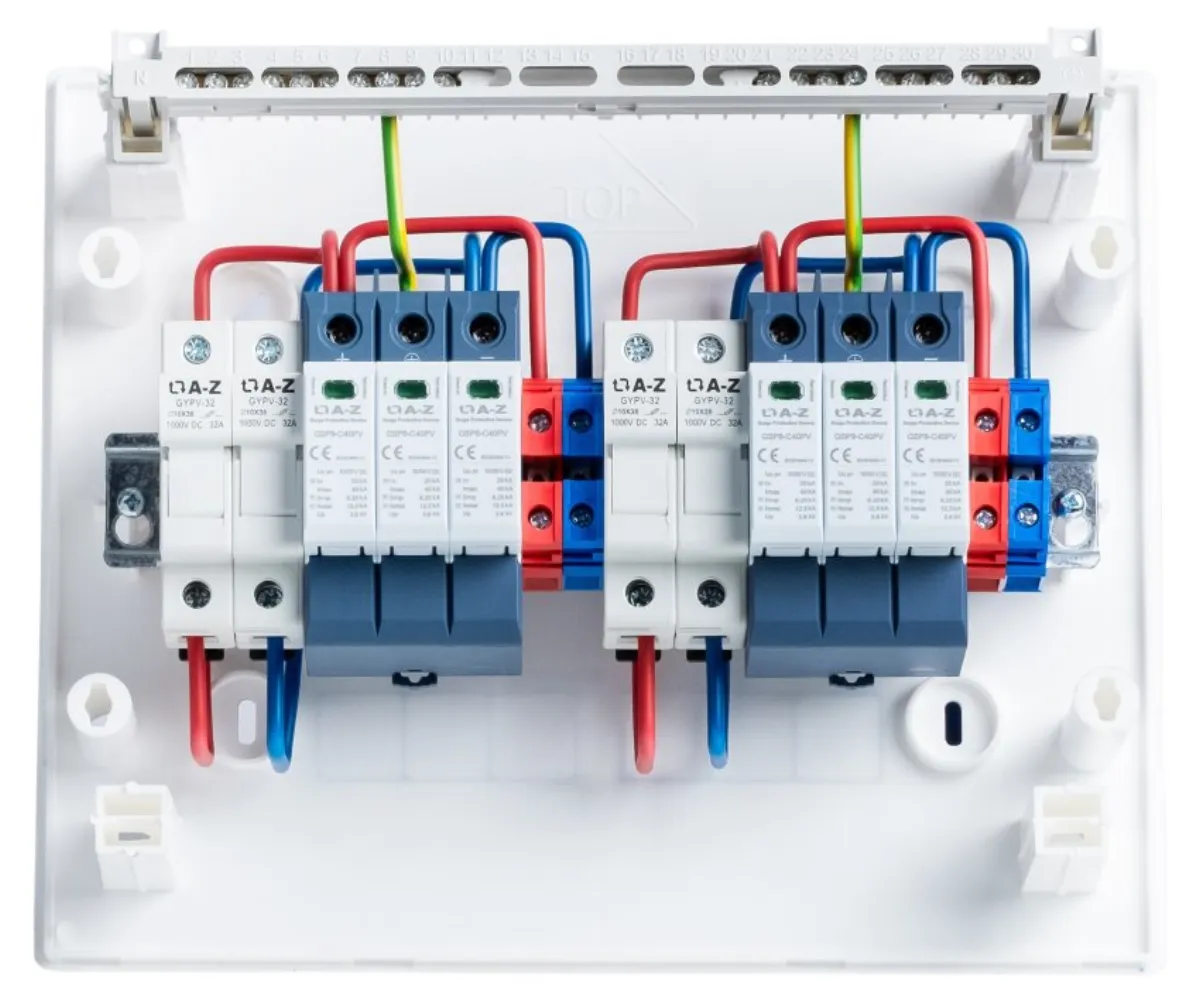

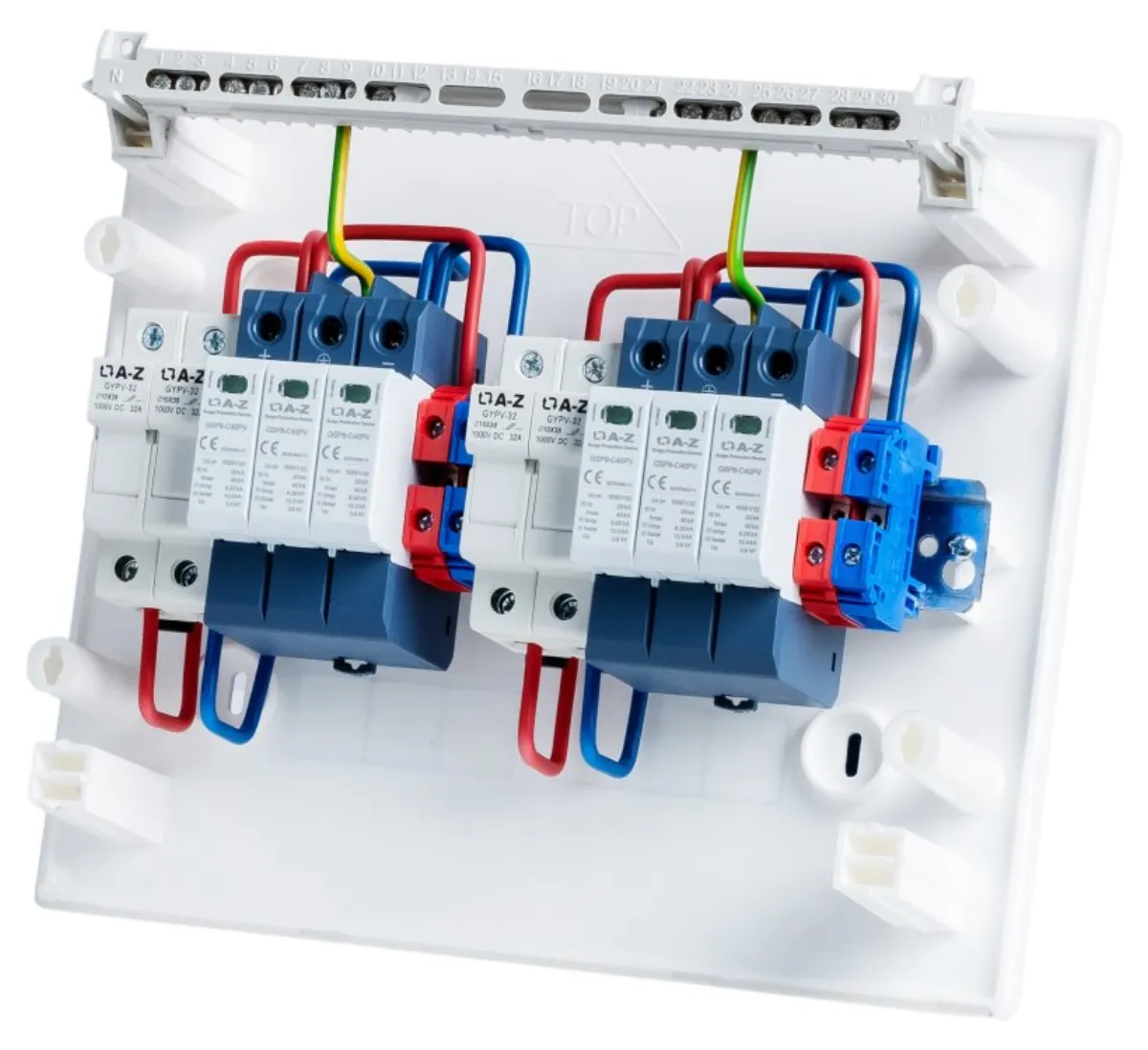

The switchboard is equipped with a DC overvoltage arrester with fuse disconnectors including gPV fuses to protect the DC input to the inverter.
List of components
- 1× IP40 Plaster Switchboard, transparent door, 1 row, 12 modules
- 2× Surge arrester T1+T2 (I+II, B+C), photovoltaic applications 1000 V DC, max. short-circuit current 1000 A
- 4x Ultra-fast cylindrical fuse for photovoltaics, UL standard, 10 x 38 mm, DC 1000 V (15 A)
- 2× Fuse disconnector, photovoltaic applications, 2-pole, AC 1000 V, 32 A, 10 × 38 mm
Intended use: for photovoltaics
Employed: yes
Material: plastic
Dimensions: 287 x 236 x 112 mm
| Name | Value | |
|---|---|---|
| Dimension [mm] | 287 × 236 × 112 mm | |
| Rated voltage [V] | 400 (AC) | |
