GIGABYTE B550 AORUS ELITE V2 AMD B550 AM4 4x DDR4 2x M.2 HDMI DP ATX

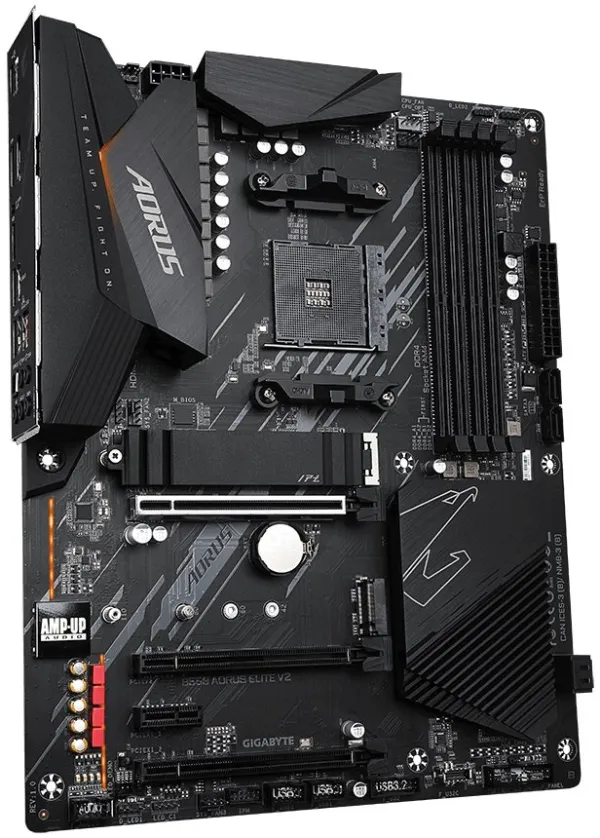

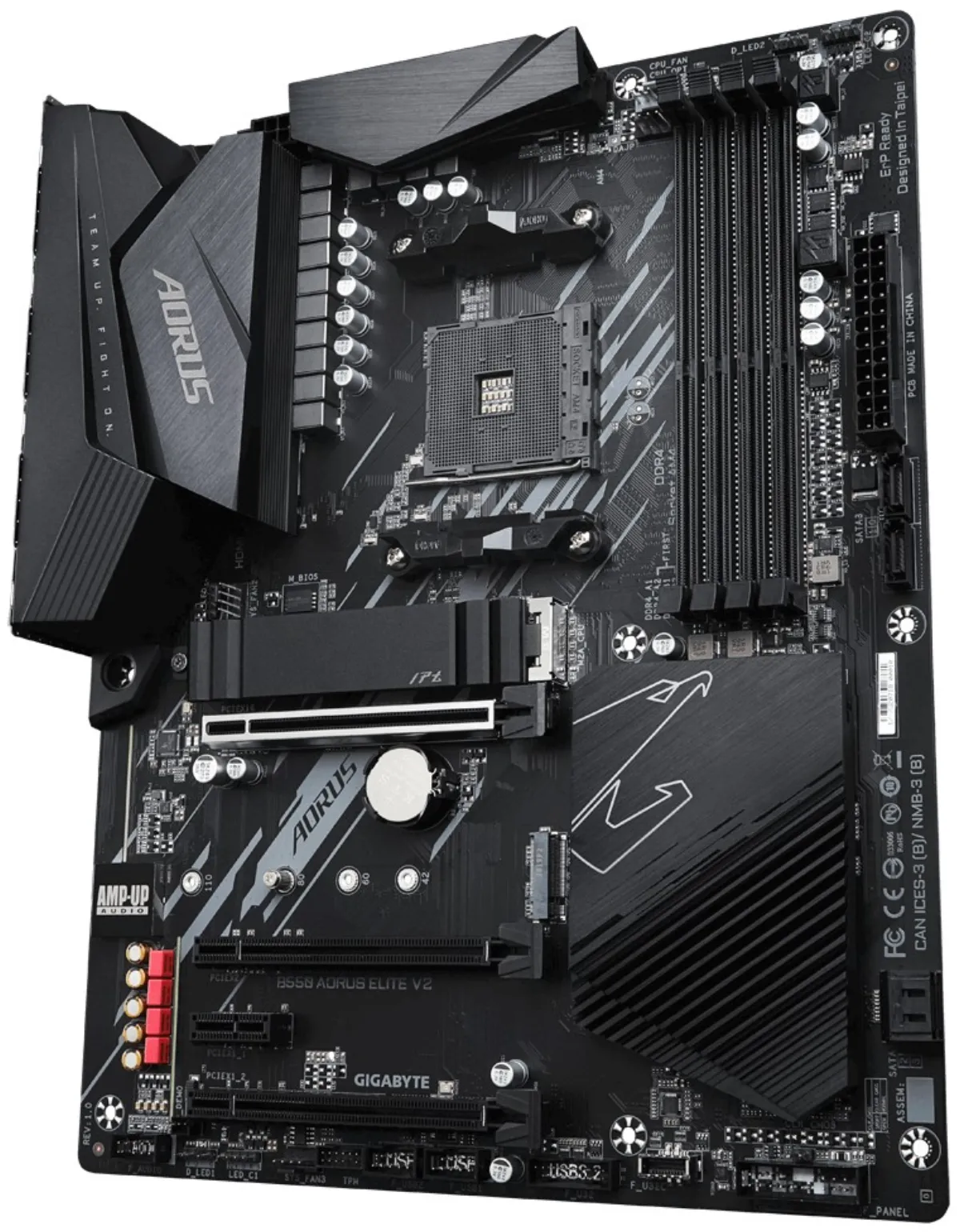

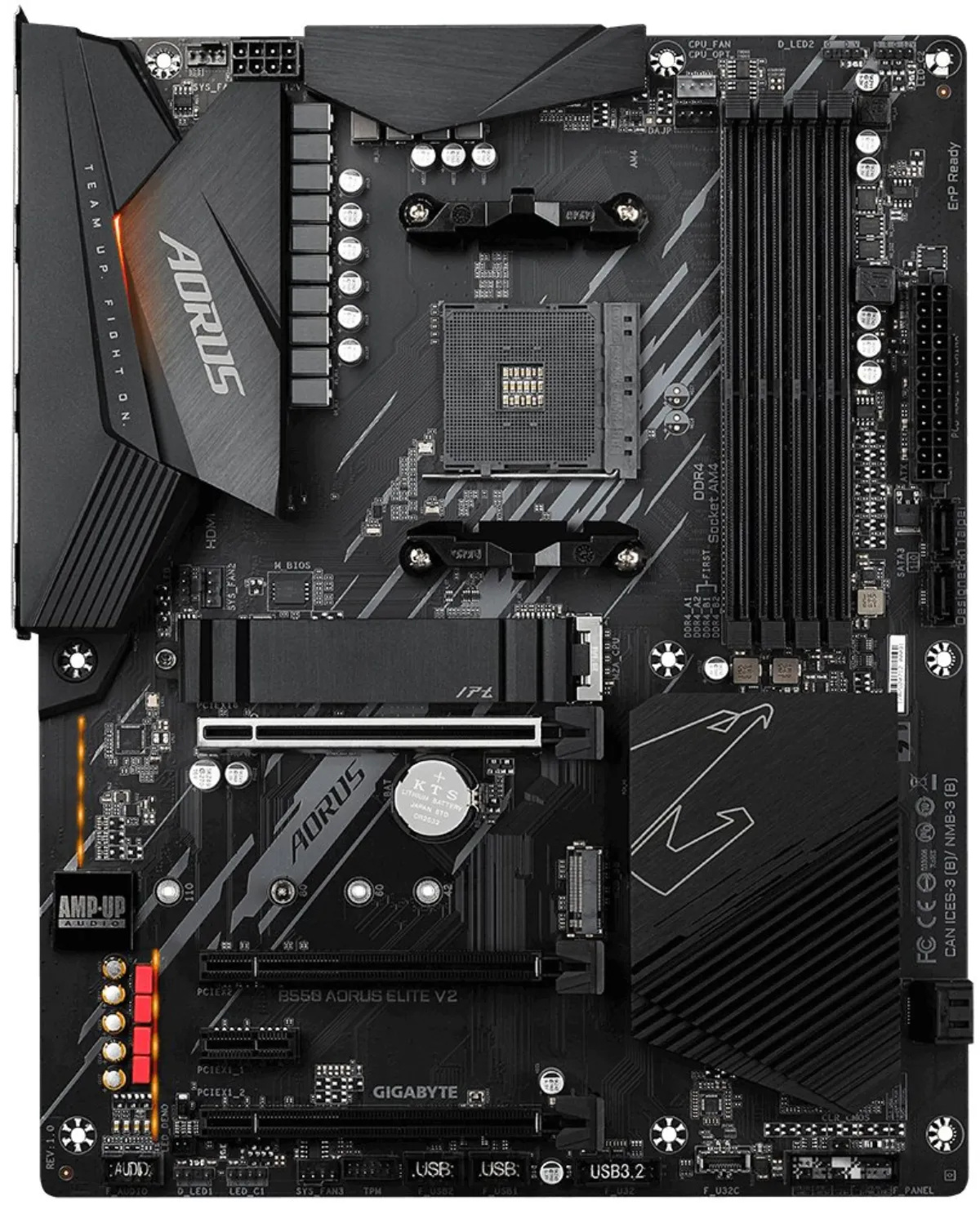

GIGABYTE B550 AORUS ELITE V2

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for AMD Ryzen 5000/ Ryzen 3 processors. gene. (socket AM4)

Chipset

• AMD B550

Memory

• 4x DDR4 memory slot, support up to 128 GB
• Support DDR4 4400 (OC)/ 4000 (OC)/ 3600 (OC)/ 3333 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz
• CPU Ryzen 3 . gene. with Radeon graphics card supports DDR4 4733 (OC)/ 4600 (OC)/ 4000 (OC)/ 3600 (OC)/ 3333 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz
• Non-ECC DIMM support, unbuffered, 1Rx8/2Rx8/1Rx16
• ECC DIMM support, unbuffered, 1Rx8/2Rx8
• Extreme Memory Profile (XMP) support
• Dual channel memory architecture

Slots

• 1x PCIe 4.0 x16 slot
• CPU Ryzen 3 . gene. with Radeon graphics card supports PCIe 3.0
• 1x PCIe 3.0 x16 slot (supports x2 mode)
• 1x PCIe 3.0 x16 slot (supports x1 mode)
• 1x PCIe 3.0 x1 slot

Graphic Design

• The graphics outputs on the board are only functional when used with AMD Ryzen processors with an integrated Radeon Vega graphics card
• 1x DisplayPort, supporting a maximum resolution of 5120 x 2880 at 60 Hz
• 1x HDMI port, supporting a maximum resolution of 4096 x 2160 at 60 Hz

Repository

• 1x M.2 slot, M Key, for 2242/2260/2280/22110 type units (SATA and PCIe 4.0 x4/x2 mode)
• CPU Ryzen 3 . gene. with Radeon graphics card supports SATA and PCIe 3.0 x4/x2 mode
• 1x M.2 slot, M Key, for 2242/2260/2280/22110 type units (SATA and PCIe 3.0 x4/x2 mode)
• 4x SATA 6 Gb/s
• RAID 0, RAID 1 and RAID 10 support

USB

• 1x USB 3.2 Gen1 type C port available via an internal USB connector
• 3x USB 3.2 Gen1 (USB 3.0) port (1 port on the back panel, 2 ports available via the internal USB connector)
• 6x USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)
• 2x USB 3.2 Gen1 (USB 3.0) port on the back panel
• 2x USB 3.2 Gen2 (USB 3.1 Gen2) port on the back panel

Audio

• Realtek ALC1200 Codec
• 2/4/5.1/7.1 channel High Definition Audio
• Support for digital S/PDIF output

HIND

• 1x Realtek 2.5Gigabit LAN controller

Internal Connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 2x M.2 slot, M Key
• 4x SATA 6Gb/s connector
• 1x CPU fan connector
• 1x water cooling fan connector
• 3x system fan connector
• 1x connector for LED on CPU cooler/ RGB LED strip
• 2x addressable LED strip connector
• 2x RGB LED strip connector
• 1x front panel connector
• 1x front panel audio connector
• 1x USB 3.2 Gen1 type C connector
• 1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 1x TPM connector
• 1x Clear CMOS jumper

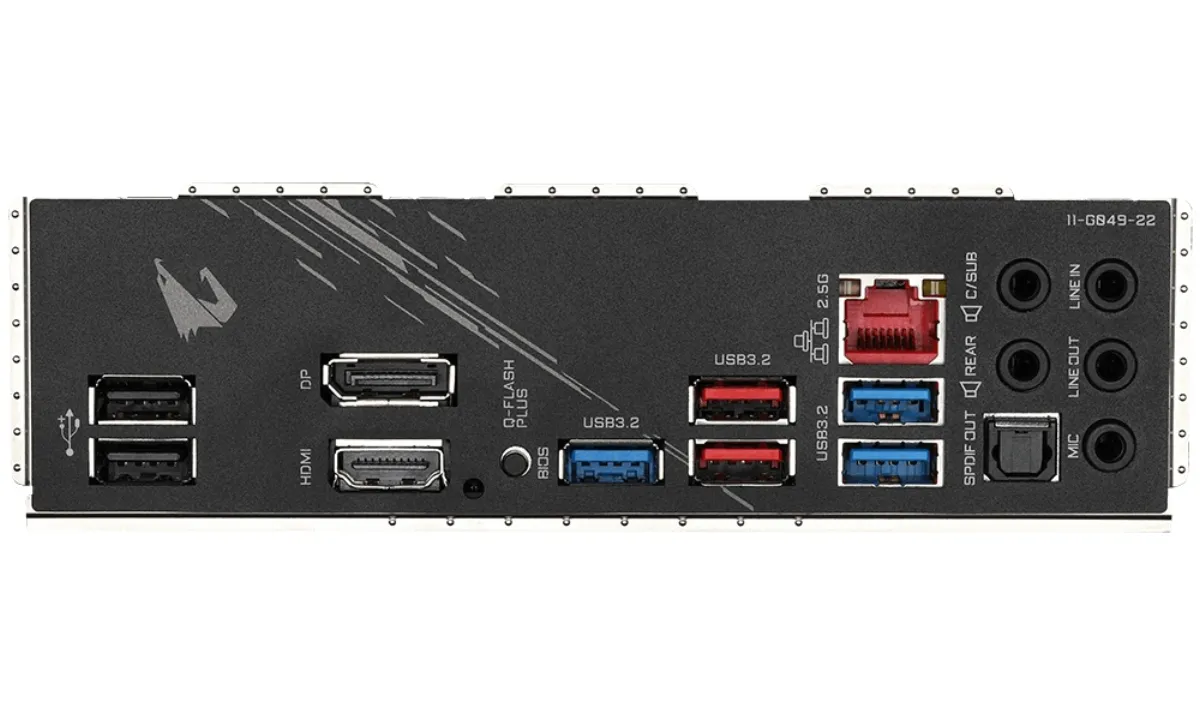

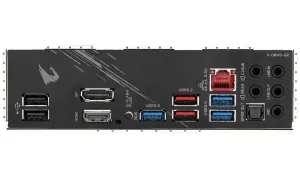

Rear Panel Connectors

• 1x HDMI
• 1 x DisplayPort
• 2x USB 3.2 Gen1 (USB 3.0)
• 3x USB 3.2 Gen2 (USB 3.1 Gen2)
• 2x USB 2.0
• 1x RJ-45
• 1x Q-Flash Plus button
• 1x optical S/PDIF output
• 5x audio jack

Dimensions

• 30.5 x 24.4 cm
• ATX format
