GIGABYTE B550 GAMING X V2 AMD B550 AM4 4x DDR4 2x M.2 DVI-D HDMI ATX

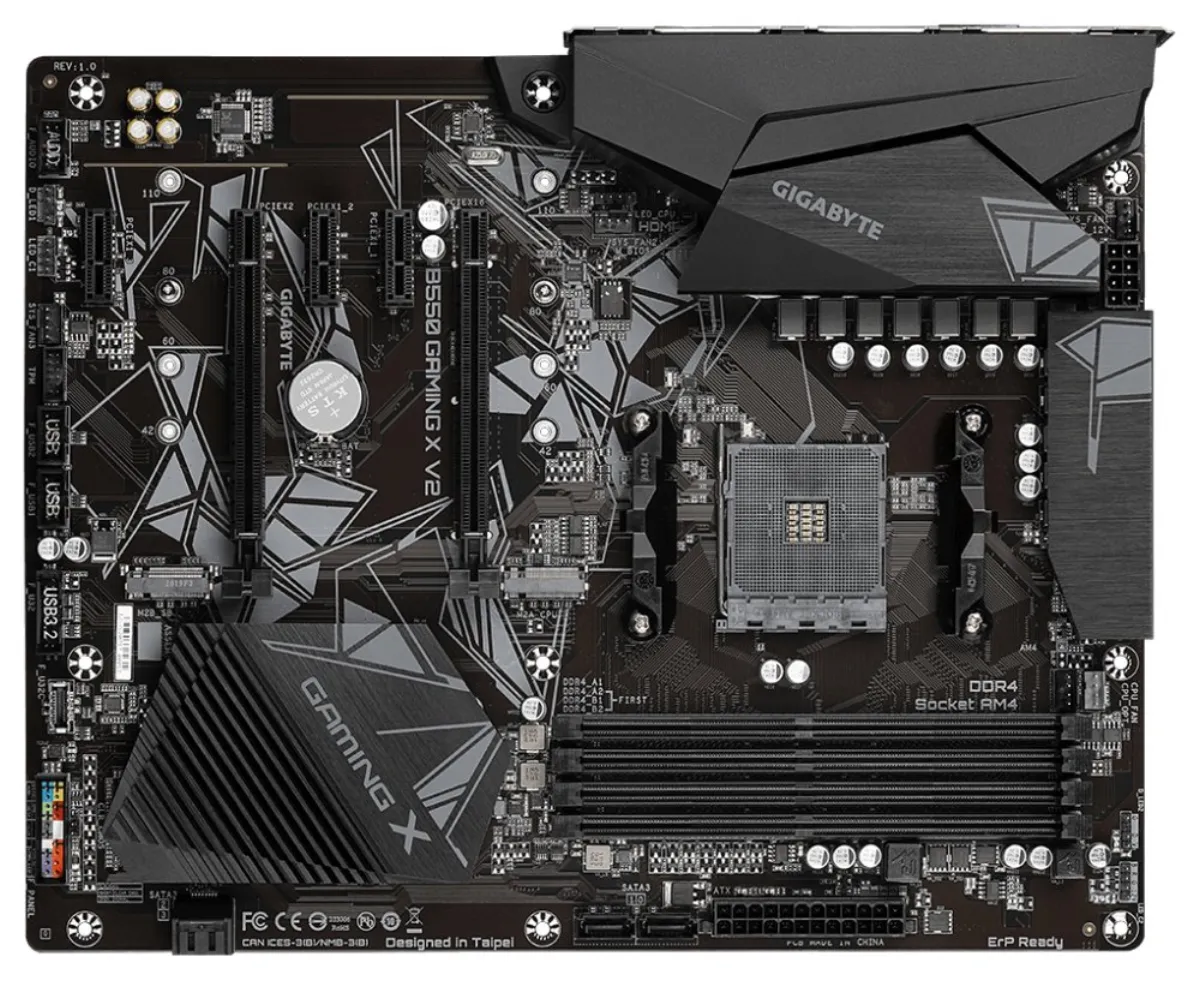

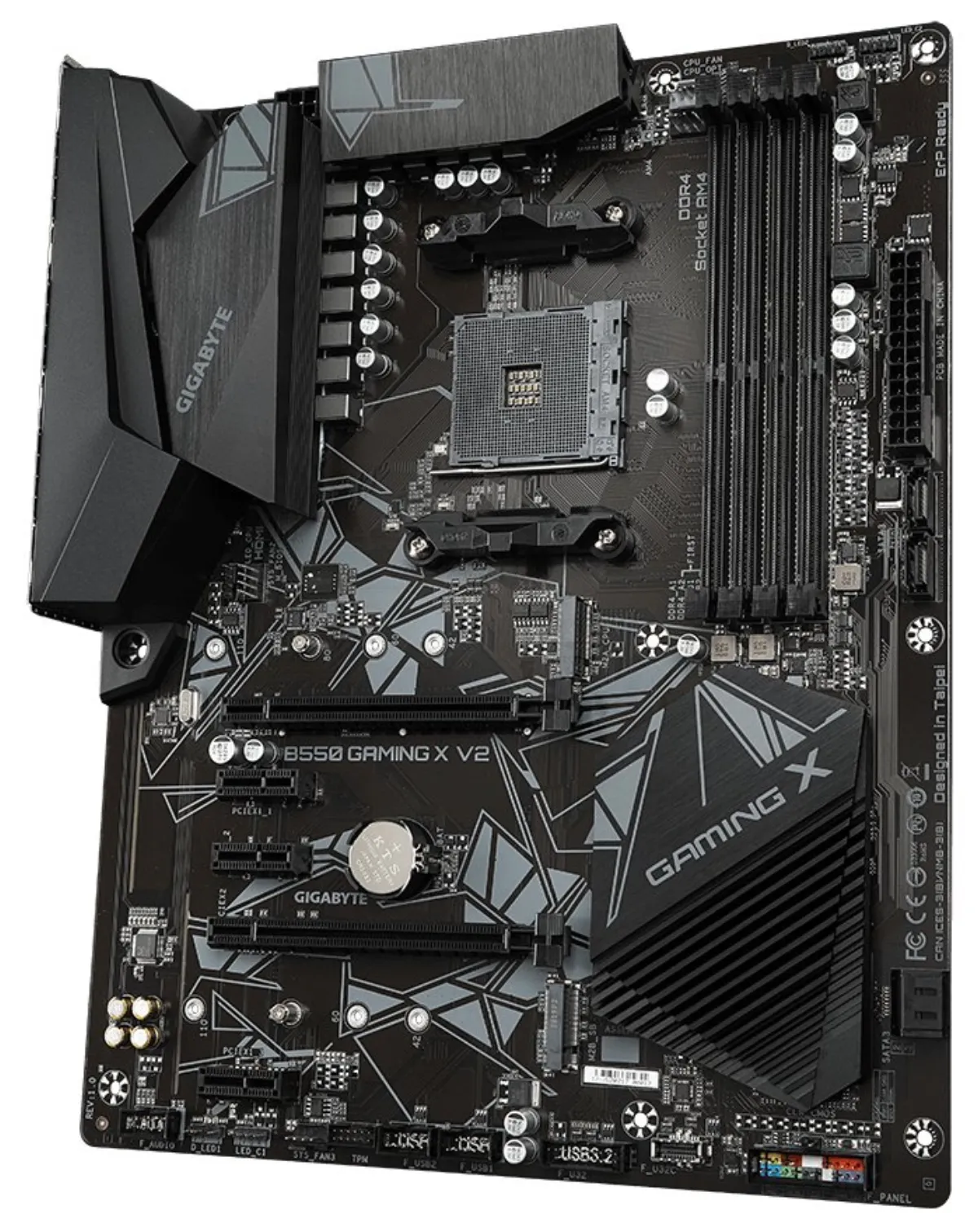

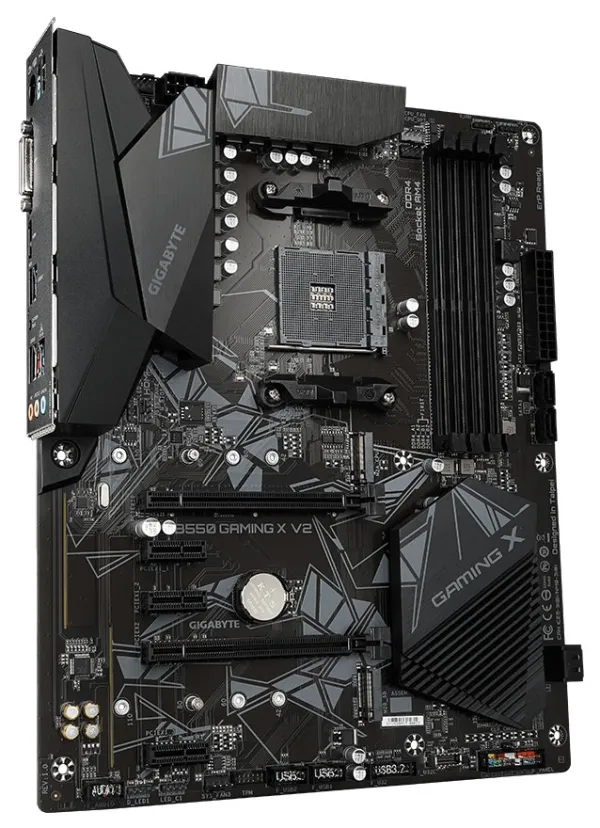

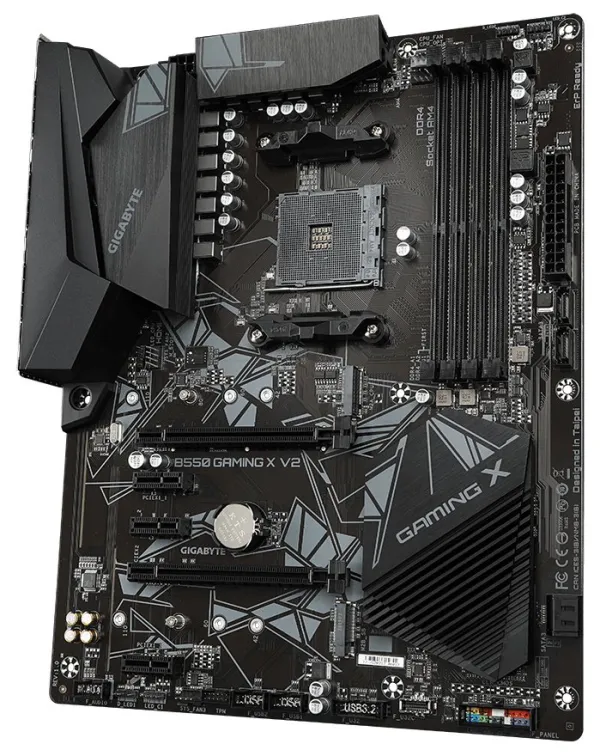

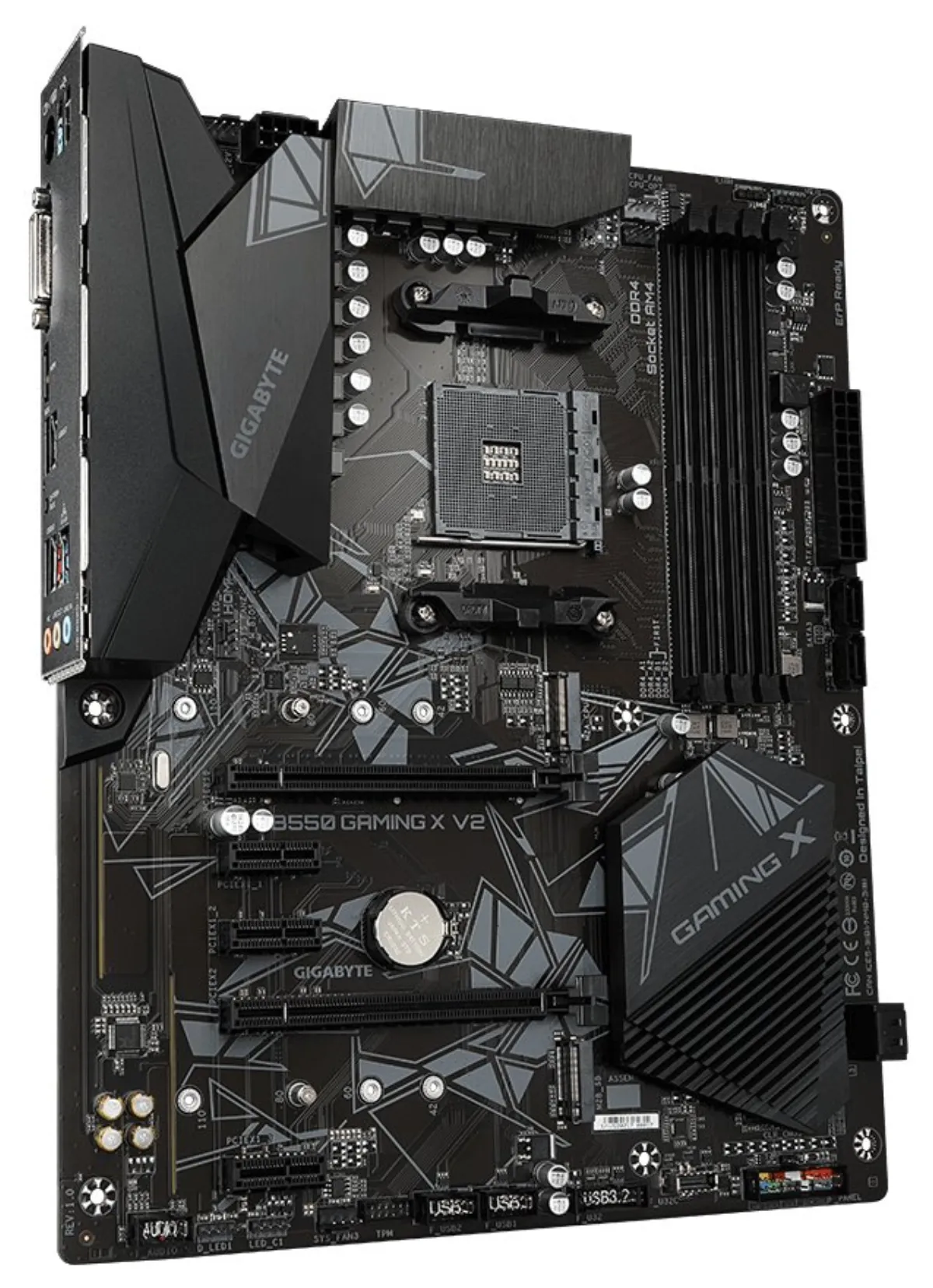

GIGABYTE B550 GAMING X V2

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for AMD Ryzen 5000/ Ryzen 3 processors. gen./ Ryzen 3 . gene. with Radeon graphics card (socket AM4)

Does not support Ryzen 5 3400G and Ryzen 3 3200G processors

Chipset

• AMD B550

Memory

• 4x DDR4 memory slot, support up to 128 GB
• Support DDR4 4733 (OC)/ 4600 (OC)/ 4400 (OC)/ 4000 (OC)/ 3600 (OC)/ 3333 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz
• CPU Ryzen 3 . gene. supports DDR4 4400 (OC)/ 4000 (OC)/ 3600 (OC)/ 3333 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz
• Ryzen 5000 CPU supports DDR4 4266 (OC)/ 4000 (OC)/ 3866 (OC)/ 3800 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3400 (OC)/ 3333 (OC)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz
• Dual channel memory architecture
• Non-ECC DIMM support, unbuffered, 1Rx8/2Rx8/1Rx16
• ECC DIMM support, unbuffered, 1Rx8/2Rx8
• Extreme Memory Profile (XMP) support

Graphic Design

• The graphics outputs on the board are only functional when used with AMD Ryzen processors with an integrated Radeon Vega graphics card
• 1x HDMI port, supporting a maximum resolution of 4096 x 2160 at 60 Hz
• 1x DVI-D port, supporting a maximum resolution of 1920 x 1200 at 60 Hz

Slots

• 1x PCIe 4.0 x16 slot
• CPU Ryzen 3 . gene. with an integrated graphics card supports PCIe 3.0
• 1x PCIe 3.0 x16 slot (supports x2 mode)
• 3x PCIe 3.0 x1 slot

Repository

• 1x M.2 slot, M Key, for 2242/2260/2280/22110 type units (SATA and PCIe 4.0 x4/x2 mode)
• CPU Ryzen 3 . gene. with integrated graphics card supports SATA and PCIe 3.0 x4/x2 mode
• 1x M.2 slot, M Key, for 2242/2260/2280/22110 type units (SATA and PCIe 3.0 x4/x2 mode)
• 4x SATA 6 Gb/s
• RAID 0, RAID 1 and RAID 10 support

USB

• 1x USB 3.2 Gen2 (USB 3.1 Gen2) port on the back panel
• 3x USB 3.2 Gen1 (USB 3.0) port on the back panel
• 1x USB 3.2 Gen1 (USB 3.0) type C port available via an internal USB connector
• 2x USB 3.2 Gen1 (USB 3.0) port available via an internal USB connector
• 6x USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek ALC887 Codec
• 2/4/5.1/7.1 channel High Definition Audio

HIND

• 1x Realtek Gigabit LAN controller

Internal Connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x CPU fan connector
• 1x water cooling fan connector
• 3x system fan connector
• 1x CPU cooler LED strip connector/ RGB LED strip
• 2x addressable LED strip connector
• 2x RGB LED strip connector
• 2x M.2 slot, M Key
• 4x SATA 6Gb/s connector
• 1x front panel connector
• 1x front panel audio connector
• 1x USB 3.2 Gen1 (USB 3.0) type C connector
• 1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 1x TPM connector
• 1x Clear CMOS jumper

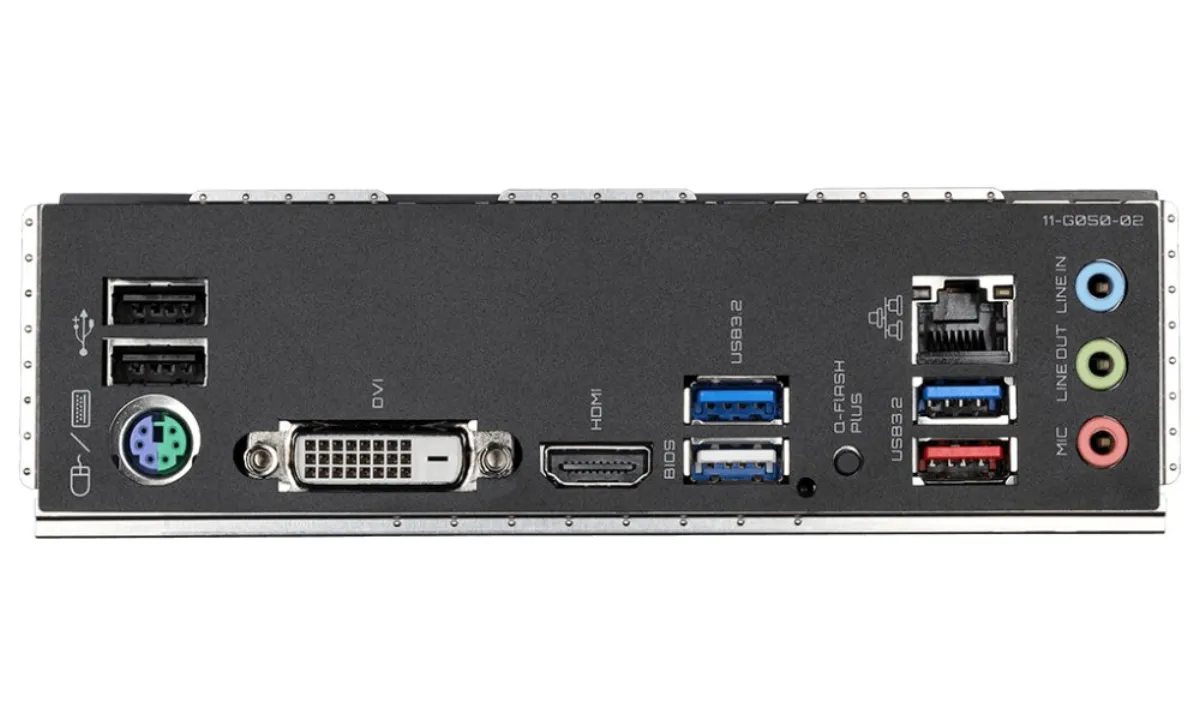

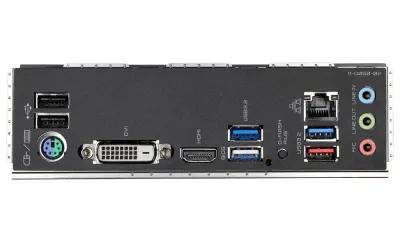

Rear Panel Connectors

• 1x PS/2 keyboard and mouse combo port
• 1x HDMI
• 1x DVI-D
• 1x USB 3.2 Gen2 (USB 3.1 Gen2)
• 3x USB 3.2 Gen1 (USB 3.0)
• 2x USB 2.0
• 1x RJ-45
• 1x Q-Flash Plus button
• 3x audio jack

Dimensions

• 30.5 x 24.4 cm
• ATX format
