HIKVISION HiWatch 4K KIT bullet 8Mpix 1x NVR HWN-4108MH-8P(D) 4x IP camera HWI-B480H(C) POE+ HDMI VGA LAN

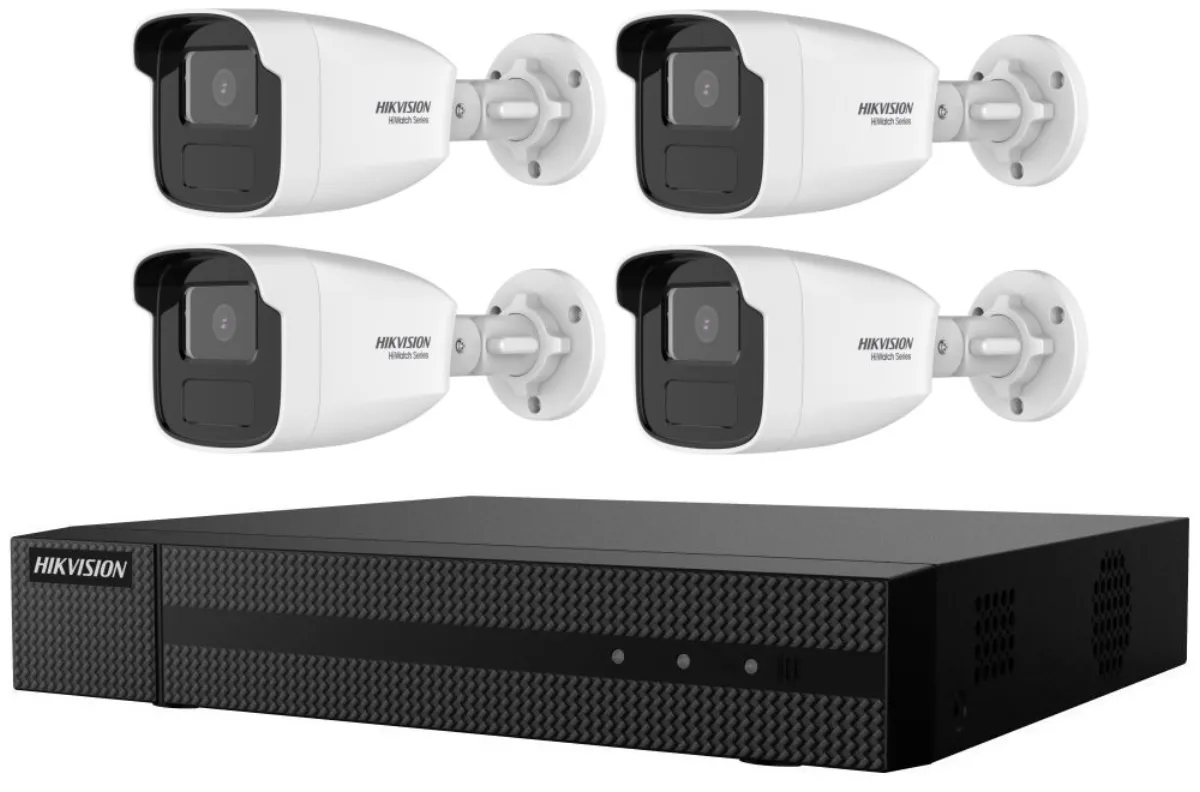

Hikvision HiWatch 4K KIT bullet

Set of recording device and four 8 Mpx cameras.

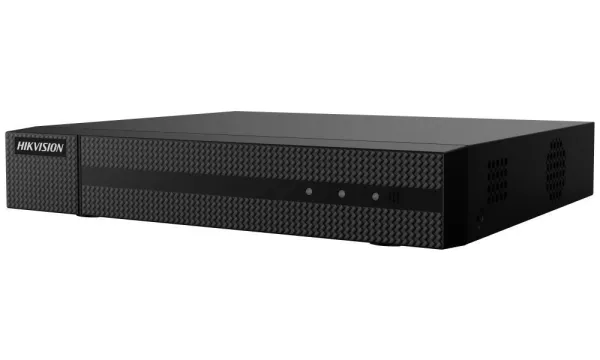

Recorder HWN-4108MH-8P(D)

Recording device for 8 IP cameras with support for PoE+ power supply (max. 75 W, IEEE 802.3af/at). Combinations of different resolutions up to 8 Mpx and data flow up to 80 Mb/s are allowed. Support live view, save and playback of connected camera. The device also supports H.265+ decoding, thanks to which you can save up to 75% of the data volume. Configurable special camera smart features such as VCA detection (motion, line crossing, intrusion, etc.). There is one slot for a SATA hard drive with a capacity of up to 8 TB.

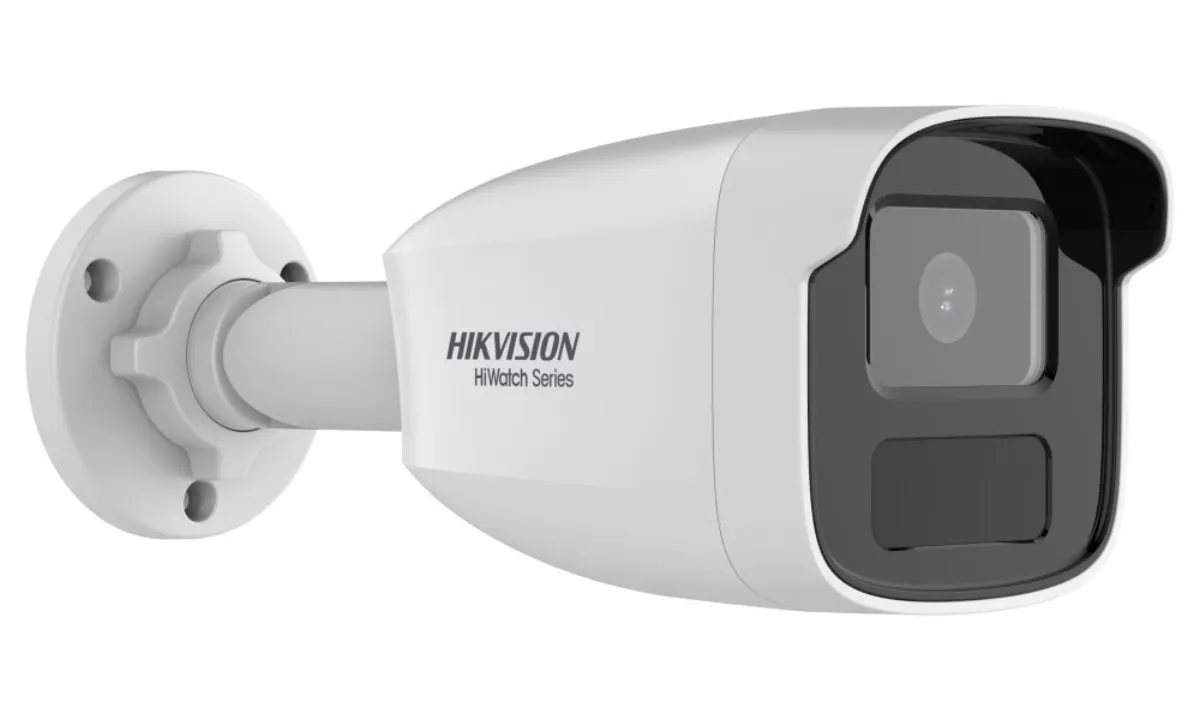

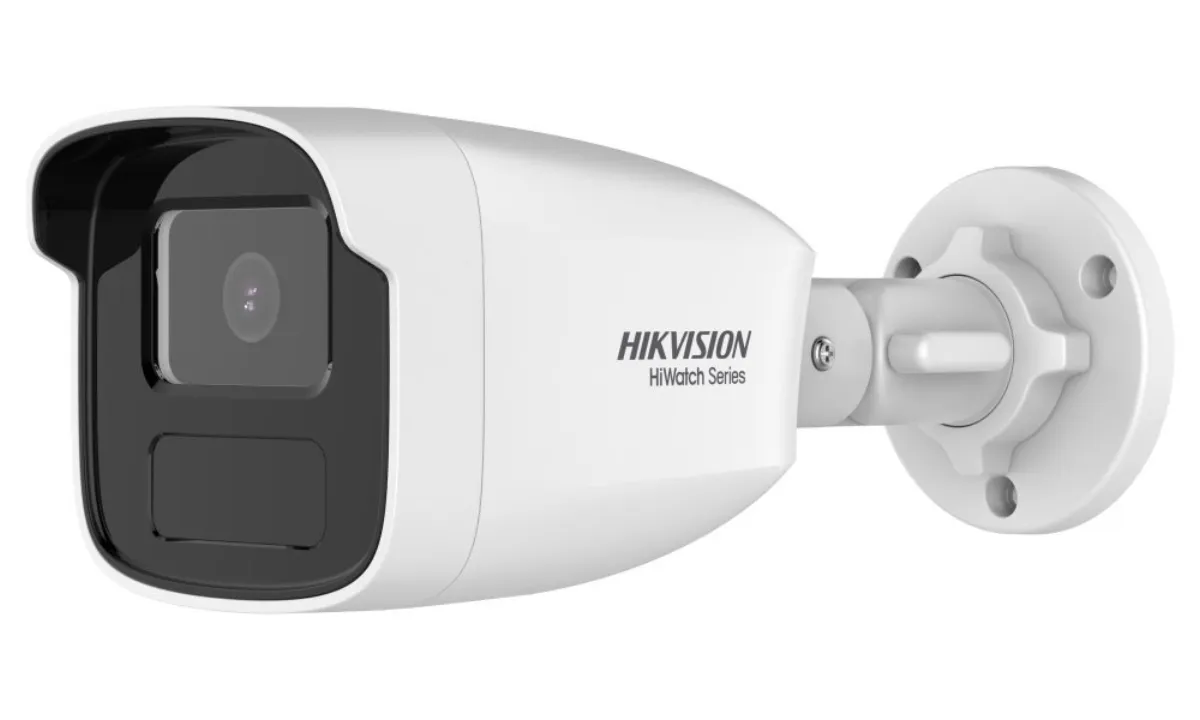

4× camera HWI-B480H(C)

8 megapixel bullet IP camera offers 1/2.8" CMOS sensor with progressive scan, resolution 3840 × 2160 at 12.5/15 fps, sensitivity 0.01 lux (color, F2.0, AGC) and support for WDR (120 dB), guaranteeing high-quality video even at night thanks to IR illumination up to 50 m easily implemented using the RJ-45 port. Thanks to the Hik-Connect application, you can monitor events 24 hours a day, 7 days a week from anywhere, and the camera is also weatherproof according to certification IP67.

Recording device

Number of channels: 8

Supported resolutions

• 8 Mpx
• 6 Mpx
• 5 Mpx
• 4 Mpx
• 3 Mpx
• 1080p
• UXGA
• 720p
• VGA
• 4CIF
• DCIF
• 2CIF
• CIF
• QCIF

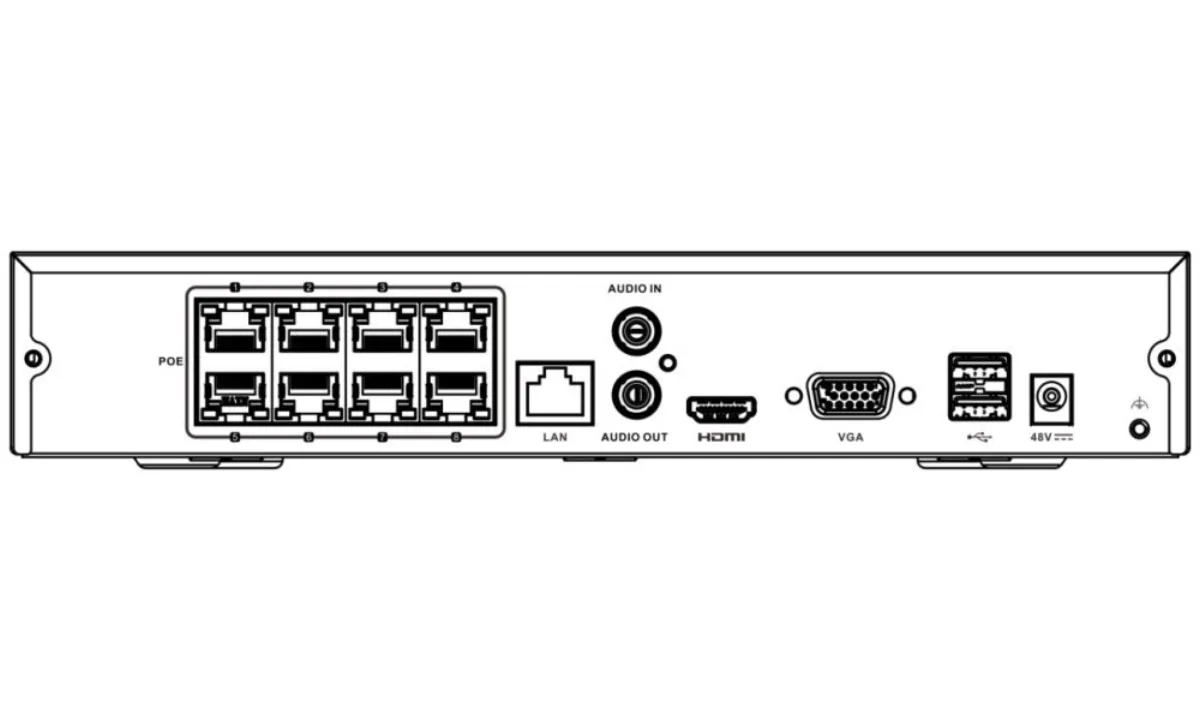

Ports

• 1x HDMI output
• 1x VGA output
• 8× RJ-45 (PoE support)
• 1x RJ-45 (10/100 Mbps)
• 2x USB 2.0
• 1× audio input (RCA)
• 1× audio output (RCA)

HDD: 1× SATA (max. 8 TB)

PoE support

• yes
• PoE 802.3af/at (max. 75 W)

Dimensions: 265 x 225 x 48 mm

Weight: ≤ 1 kg

Camera

Sensor Chip: 1/2.8" CMOS

Day/Night: yes

Integrated IR illuminator

• yes
• up to 50 m

Integrated LED backlight: no

Lens

• f = 4 mm
• solid
• angle of engagement horizontally 86°
• vertically 46°
• diagonally 102°

Maximum resolution

• 3840 x 2160 at 12.5/15 fps
• 2592 × 1944 at 20 fps
• 2688 x 1520 at 25/30 fps

Interface: 1× RJ-45

Memory card slot: no

Power supply: DC 12 V (± 25%) or PoE (802.3af) (source not included)
