HIKVISION HiWatch KIT bullet 4Mpix 1x NVR HWN-2104MH-4P(C) 4x IP camera HWI-B140H(C) POE+ HDMI VGA LAN SATA

HIKVISION HiWatch KIT bullet

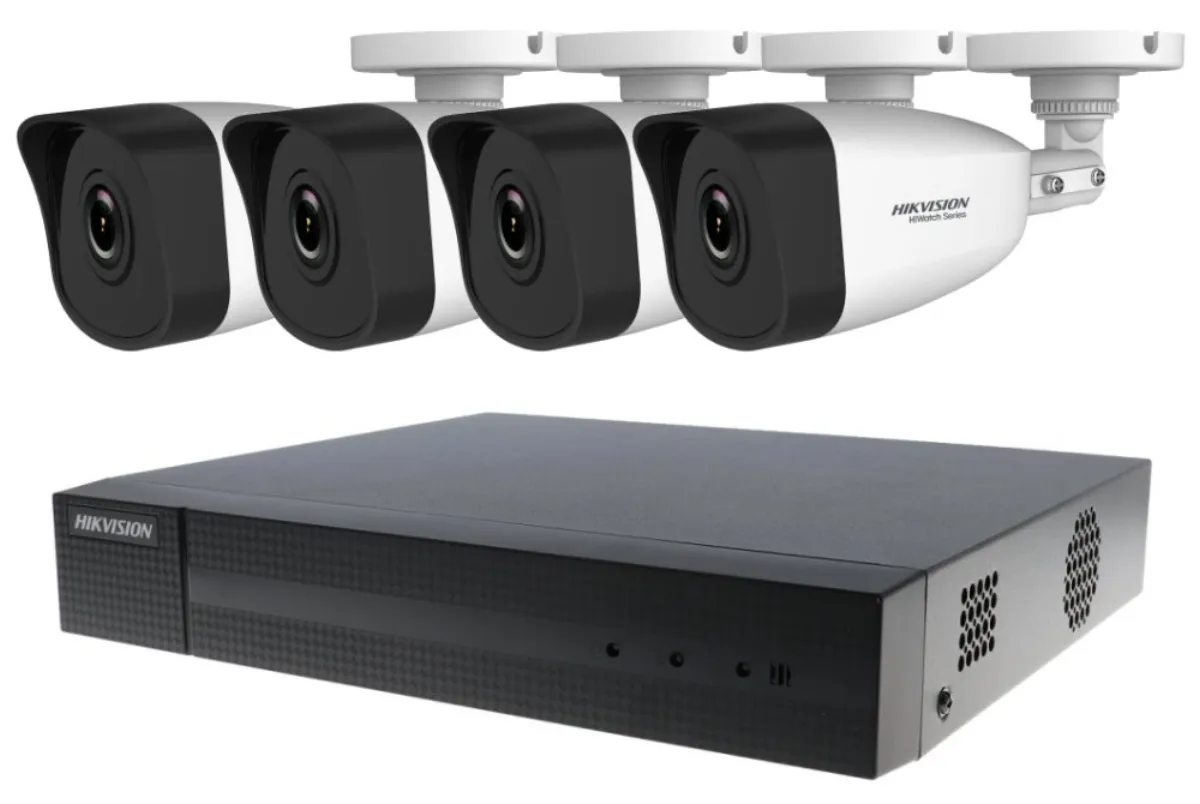

Set of recording device and four 4 Mpx cameras.

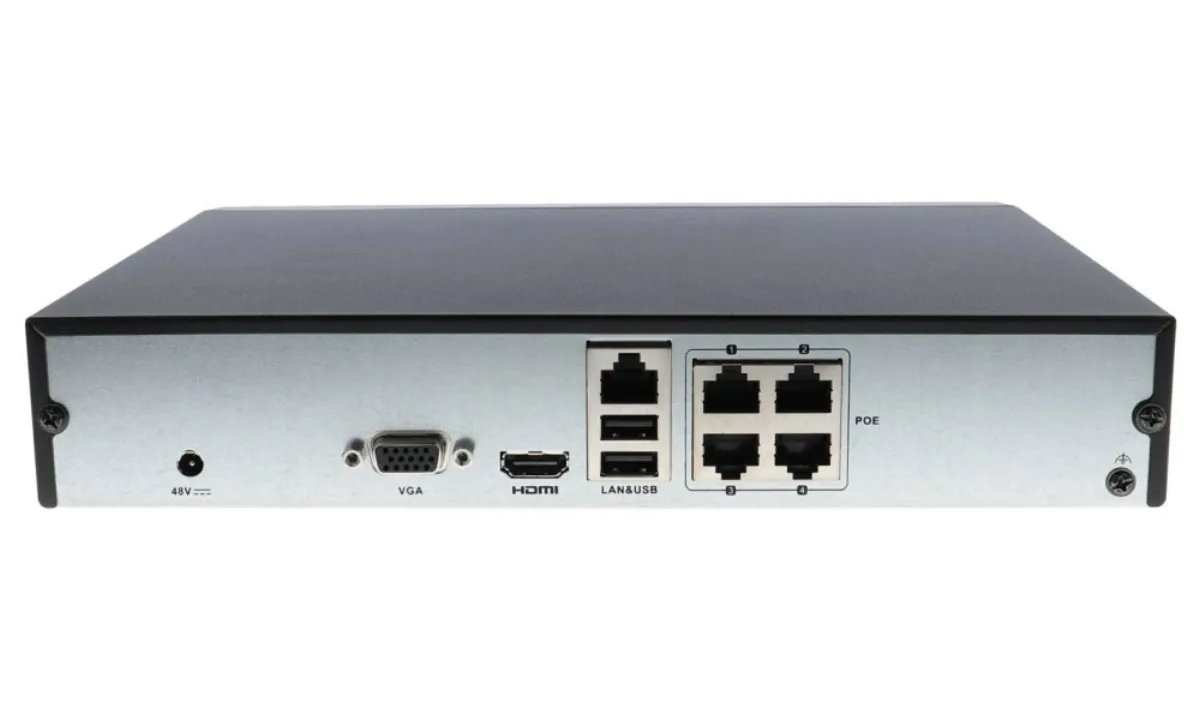

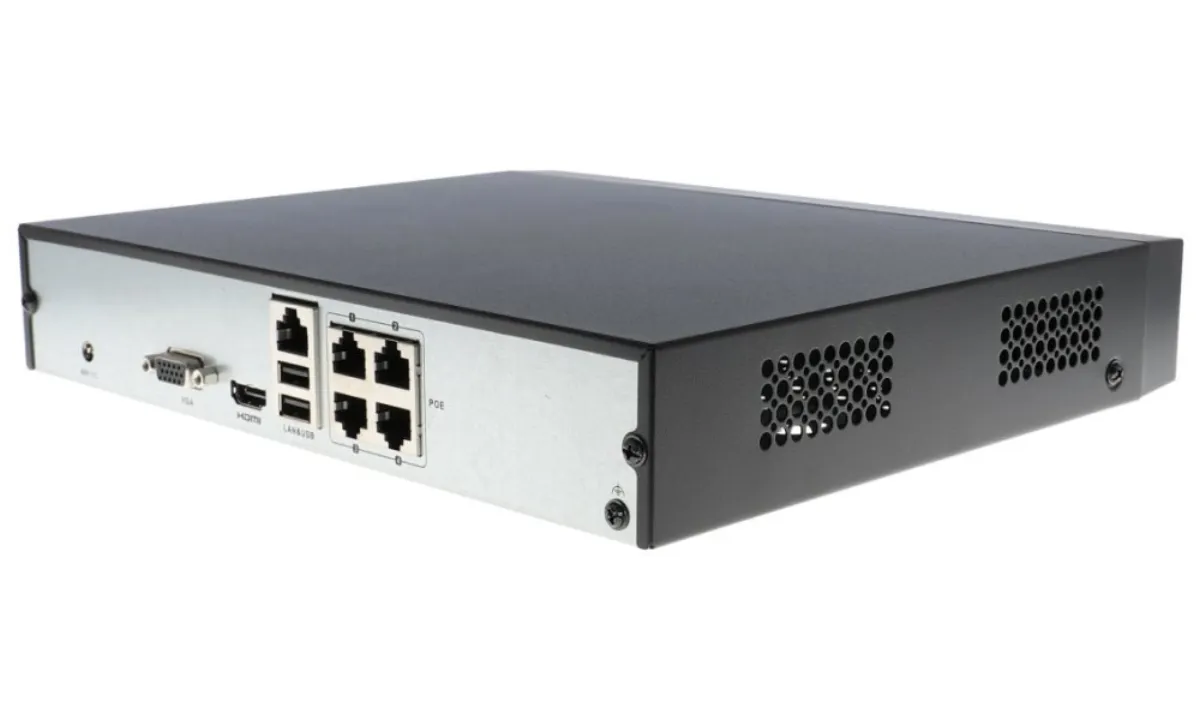

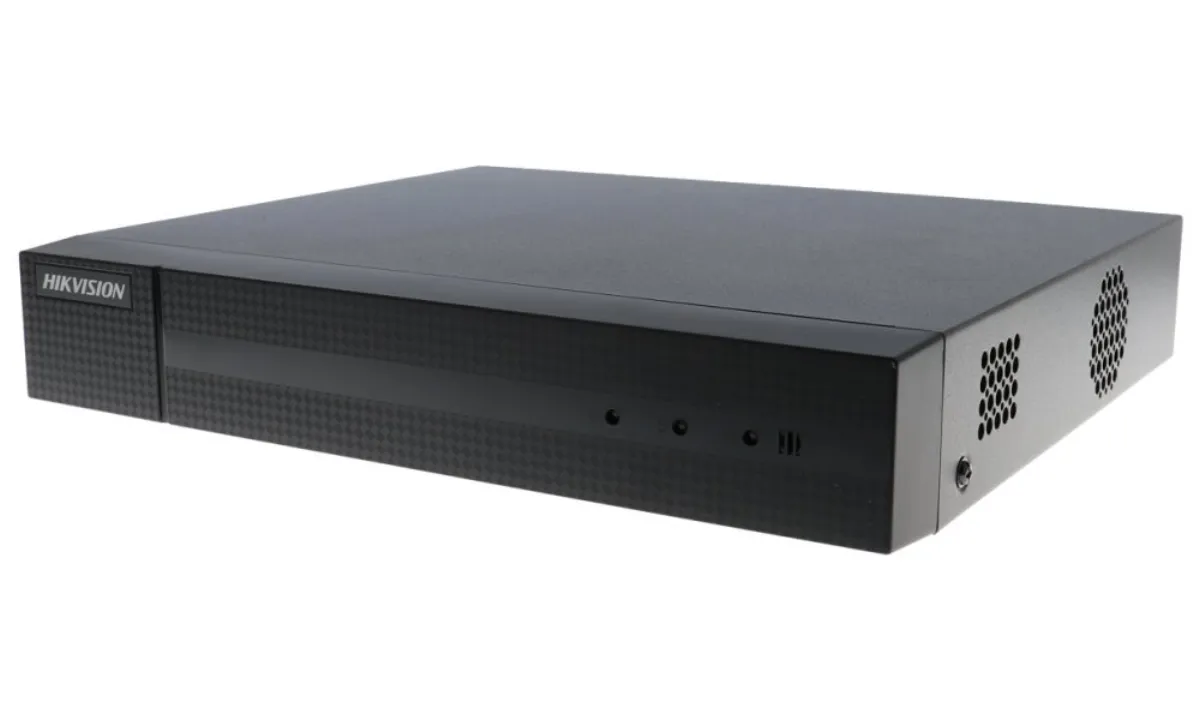

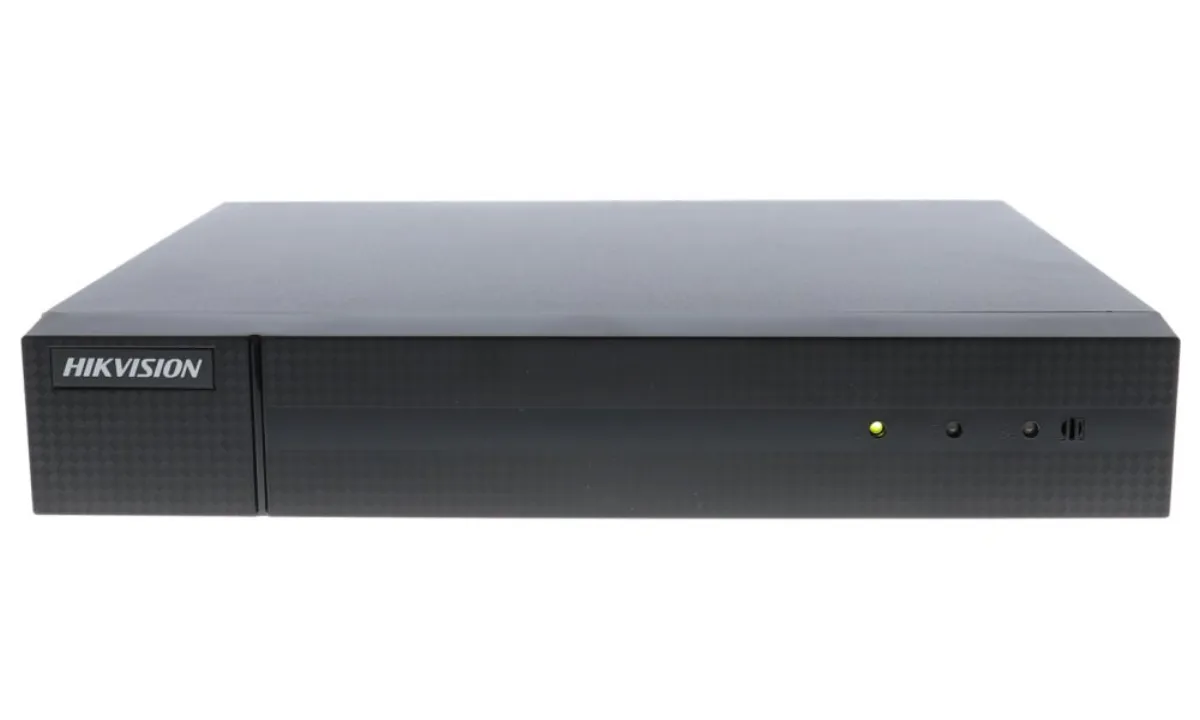

Recorder HWN-2104MH-4P(C)

Recording device for 4 IP cameras with support for PoE+ power supply (max. 36 W, IEEE 802.3af/at). Combinations of different resolutions up to 6 Mpx and data flow up to 60 Mb/s are allowed. Support live view, save and playback of connected camera. The device also supports third-party cameras and H.265+ decoding, thanks to which you can save up to 70% of data volume. There is one slot for a SATA hard drive with a capacity of up to 6 TB.

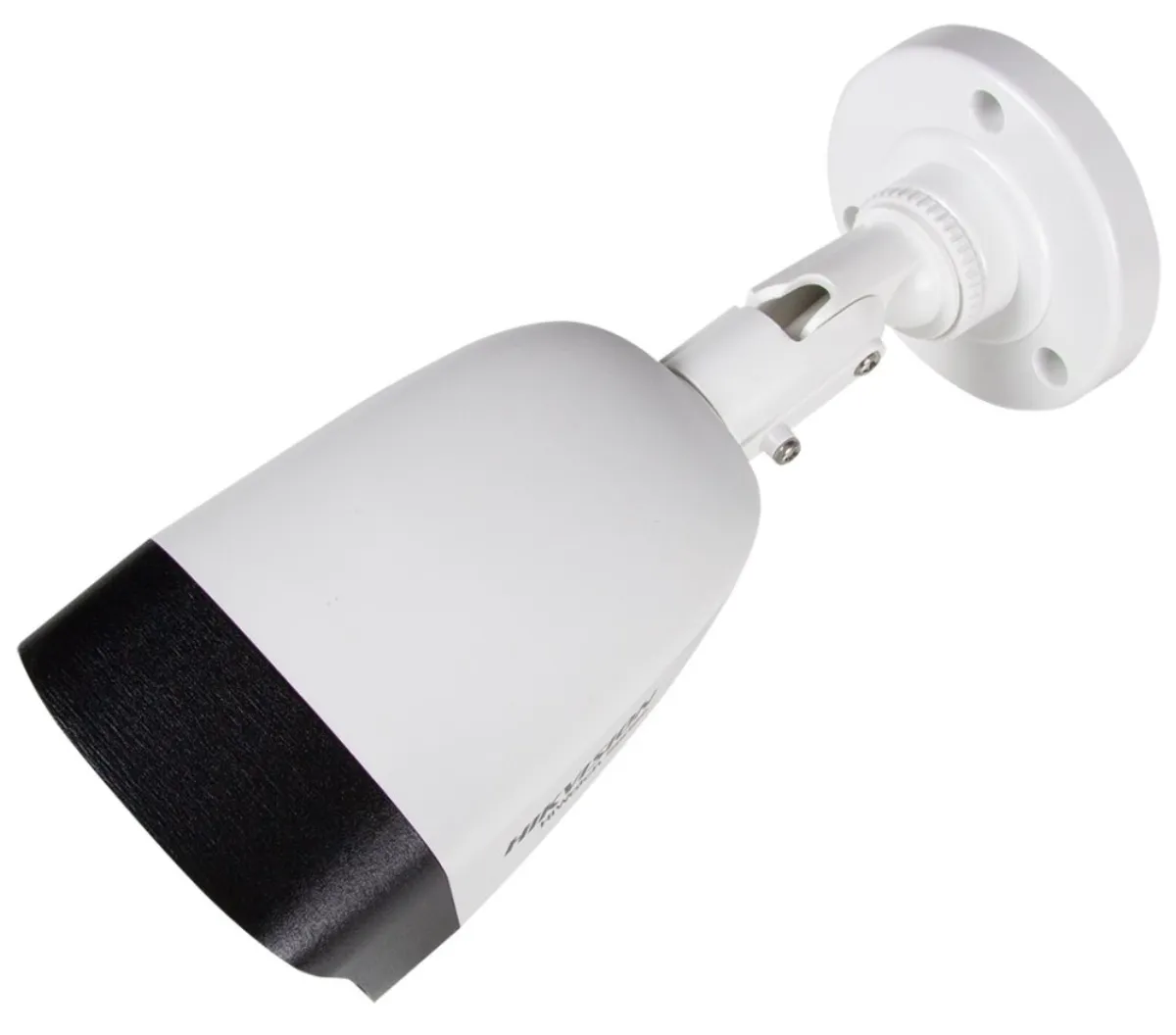

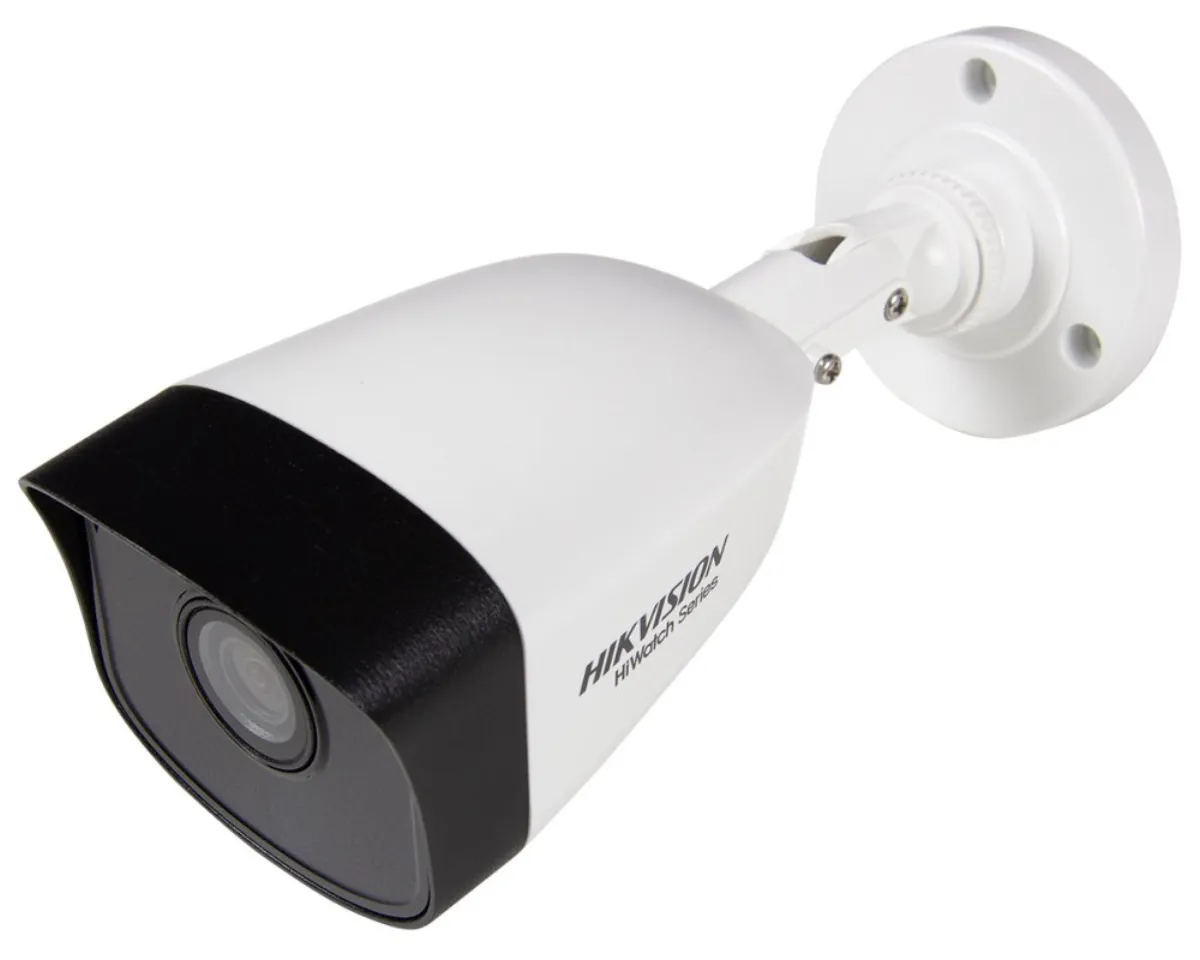

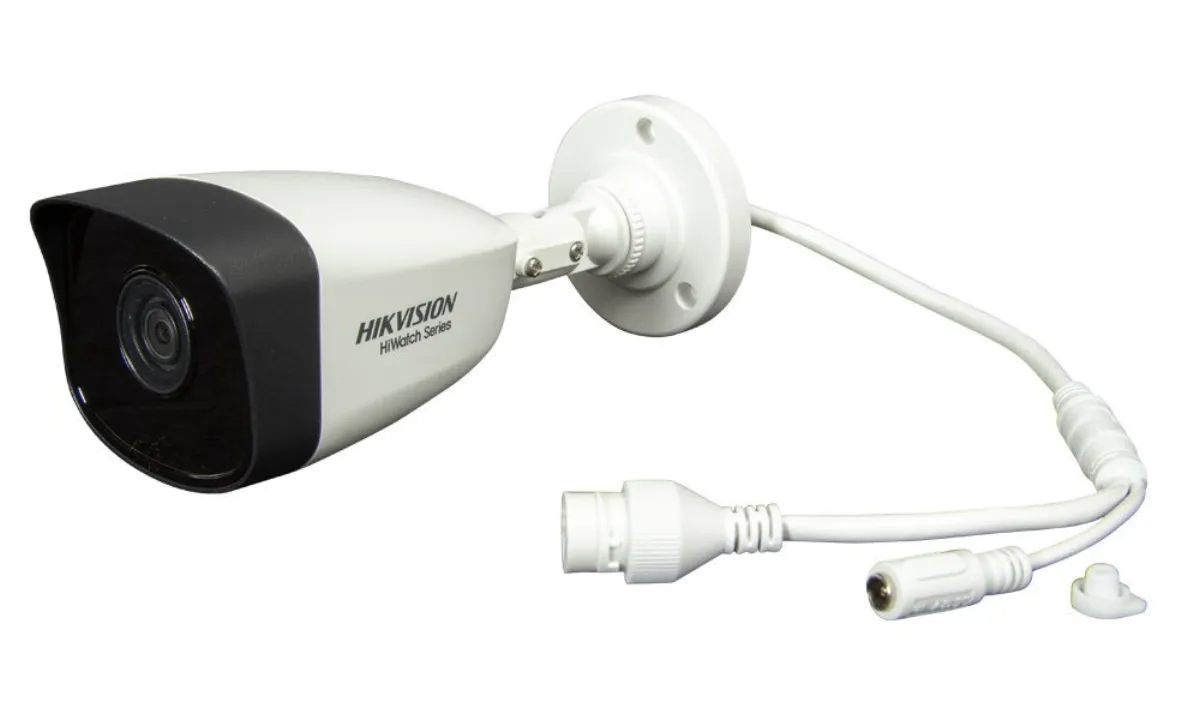

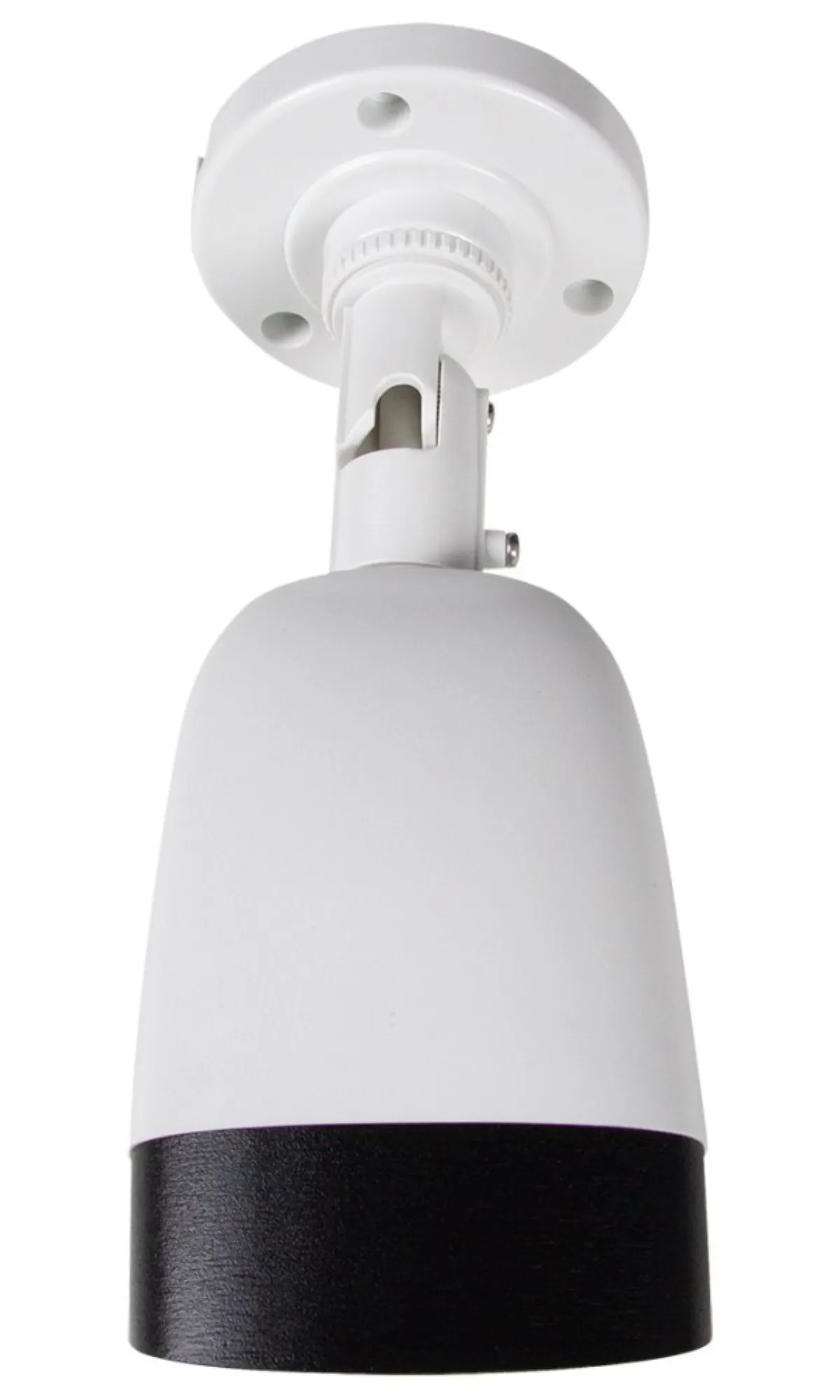

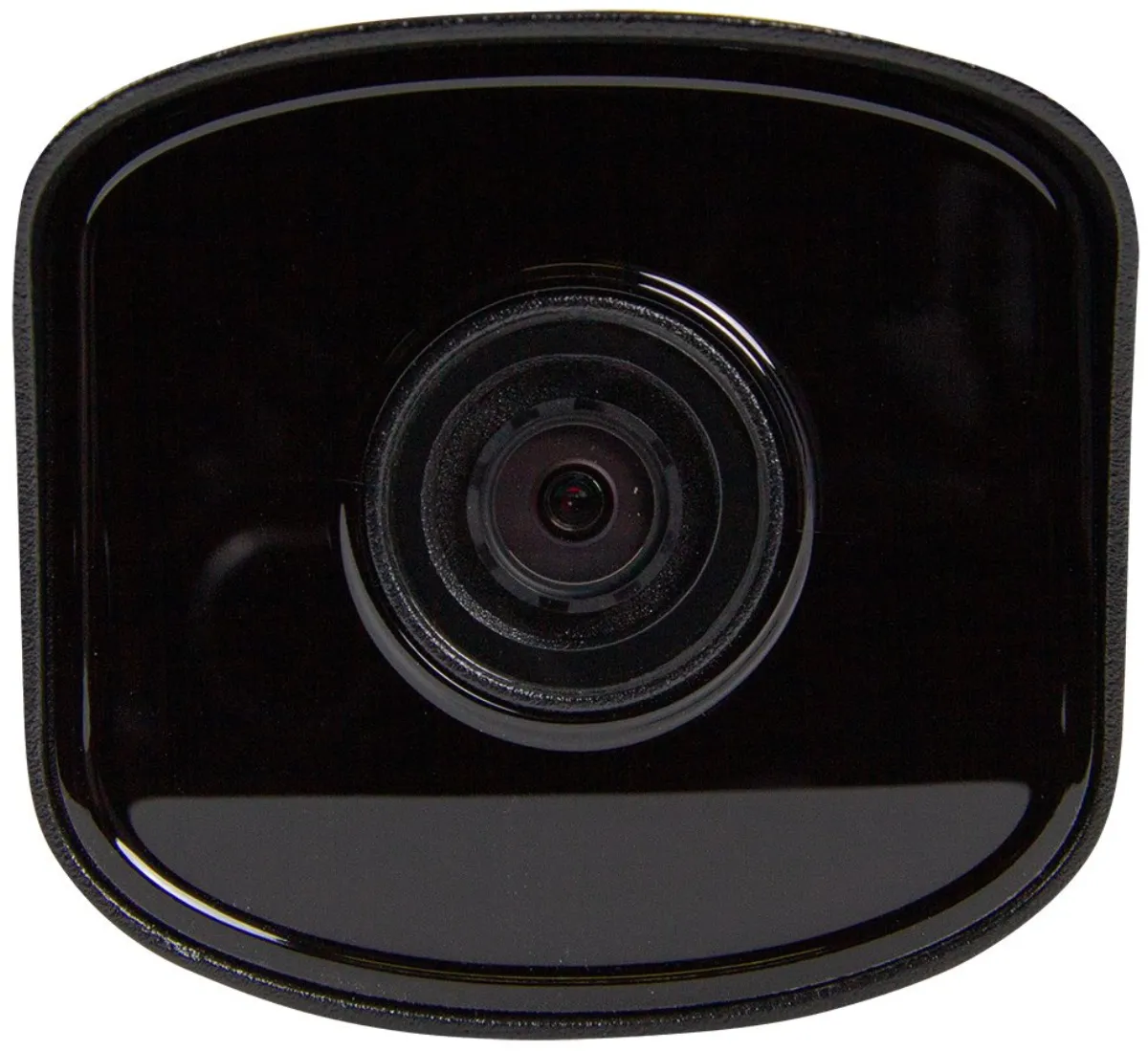

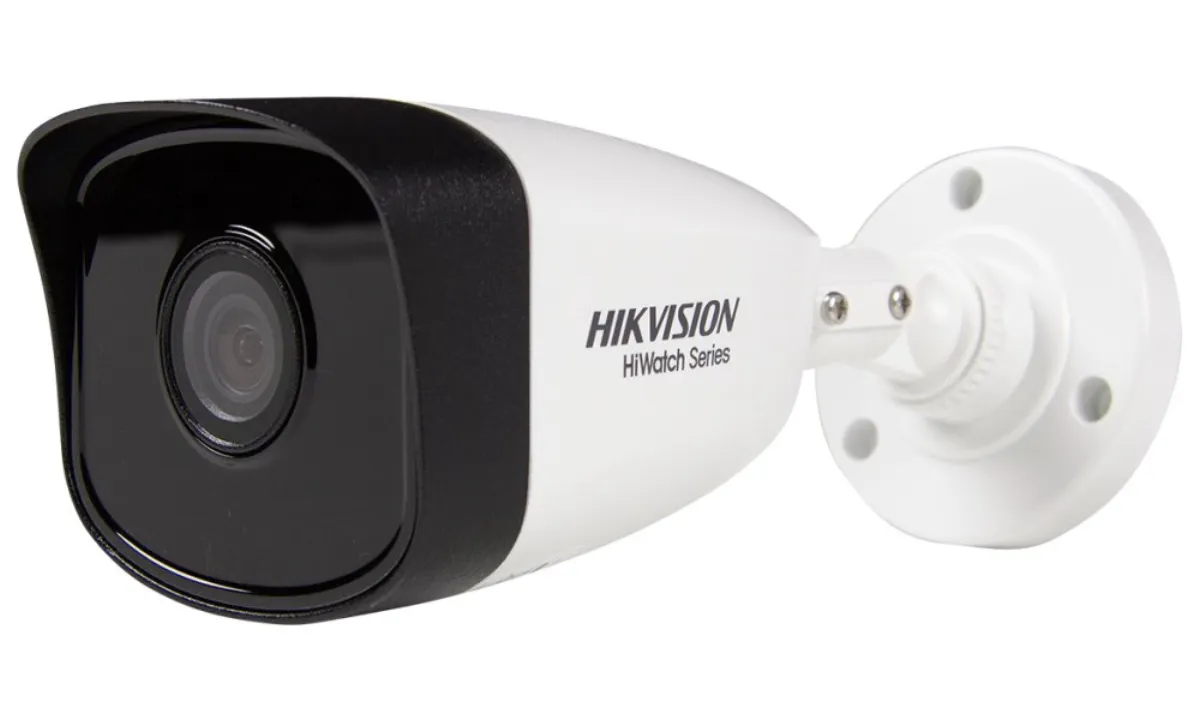

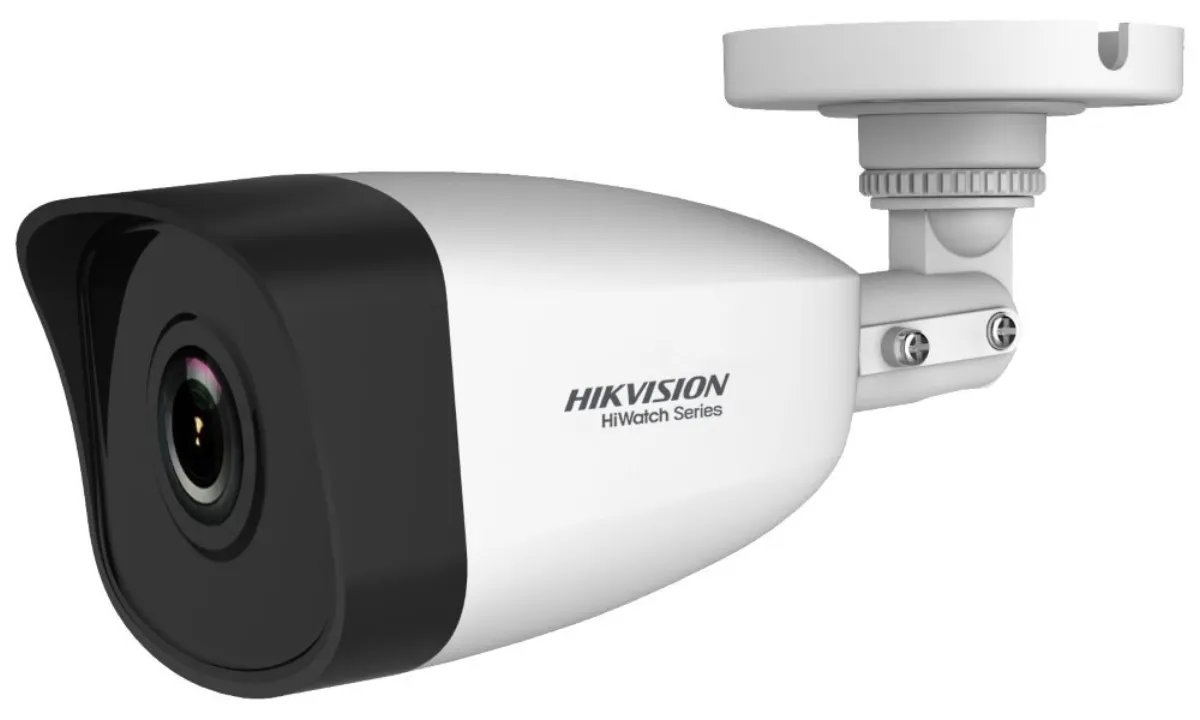

4x camera HWI-B140H(C)

The 4-megapixel IP camera of the bullet type offers a 1/3" CMOS sensor with a resolution of 2560 x 1440 pixels. It guarantees high-quality video even during night shots thanks to IR illumination at a distance up to 30 m. The connection can be easily implemented using the RJ-45 port. Thanks to the Hik-Connect application, you can monitor the events in the home 24 hours a day, 7 days a week from anywhere through your The camera is also resistant to adverse weather conditions according to IP67 certification.

Recording device

Number of channels: 4

Supported resolutions

• 6 Mpx
• 4 Mpx
• 3 Mpx
• 1080p
• UXGA
• 720p
• VGA
• 4CIF
• DCIF
• 2CIF
• CIF
• QCIF

Ports

• 1x HDMI
• 1 x VGA
• 1x RJ-45
• 4x RJ-45 (PoE support)
• 2x USB 2.0

HDD: 1x SATA (max. 6 TB)

PoE support: yes

Dimensions: 260 x 225 x 48 mm

Weight: ≤ 1 kg

Camera

Sensor chip: 1/3" CMOS

Day/Night: yes

Integrated IR illuminator

• yes
• up to 30 m

Lens

• f = 2.8 mm
• solid
• angle of engagement horizontally 100°
• vertically 55°
• diagonally 117°

Maximum resolution: 2560 x 1440 at 20 fps

Interface: 1x RJ-45

Memory card slot: no

Power supply: PoE (802.3af) or DC 12 V (source not included)
