MikroTik cAP LTE12 ax cAPGi-5HaxD2HaxD&EG12-EA Quad core 1.8 GHz 24 5GHz Wi-Fi 6 LTE12 2x GbE PoE+ in out L4

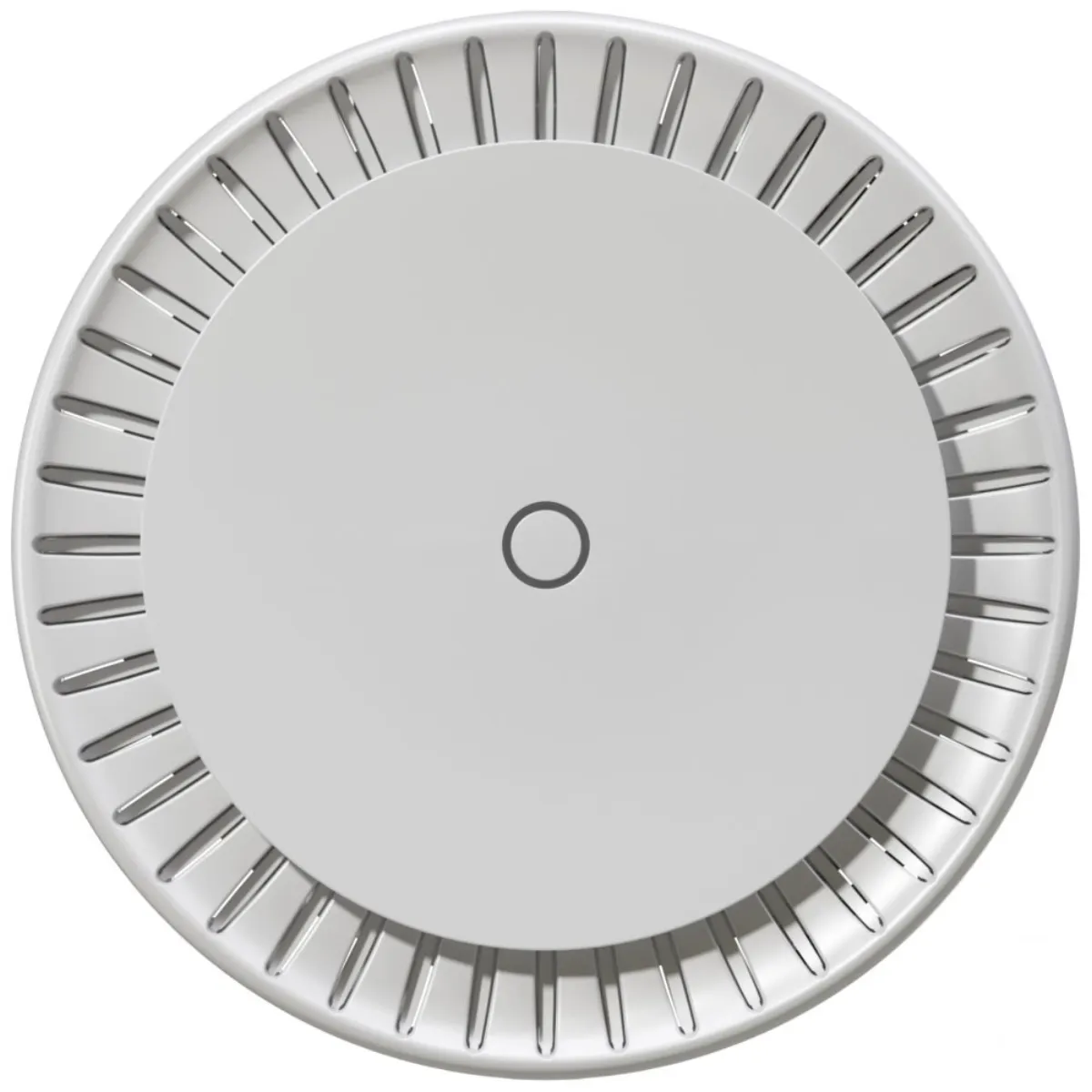

MikroTik cAP LTE12 ax

When it comes to providing reliable wireless connectivity in busy business environments, you need a solution that is both powerful and unobtrusive. Whether you run an open-air pop-up shop, a festival food stall, or a cozy cafe in the park, you need a device that can withstand the rigors of the outdoors. You need the cAP LTE12 ax - with fast, reliable mobile internet and incredible Wi-Fi 6 coverage.

cAP LTE12 ax is a powerful and versatile device designed to provide reliable connectivity in demanding, high-traffic environments. It combines fast mobile internet with incredible Wi-Fi 6 coverage, delivering up to 40% faster speeds on the 5 GHz band and 90% faster speeds on the 2.4 GHz band compared to previous generations. Wi-Fi 6 also brings improved energy efficiency and advanced security features such as OWE and WPA3 to protect against attacks. The device is designed for easy ceiling mounting, ensuring optimal signal distribution, reducing interference and minimizing the risk of theft. Flexible power options include a classic DC connector (18-57 V) and active PoE (802.3af/at; 18-57 V). The second RJ-45 port can be used as a passive PoE output (up to 57 V). With a powerful quad-core ARM processor (1.8 GHz), 1 GB of RAM and RouterOS v7 with L4 license, it supports advanced features such as firewall, VPN tunnels, IPsec encryption and WireGuard. Thanks to the CAPsMAN system, it is possible to manage hundreds of access points easily, making it an ideal choice for businesses looking for a secure, fast and easy-to-maintain network solution.

• Fast and reliable 802.11ax (Wi-Fi 6) wireless connection
• Integrated LTE modem (EG12-EA)
• Micro SIM card slots
• Modern 4-core processor with a frequency of 1.8 GHz
• 2× Gigabit Ethernet port
• PoE-in and PoE-out for powering additional devices (e.g. CCTV cameras)
• 1 GB RAM (DDR3L)
• RouterOS v7
• Various power options (PoE or DC jack)
• More advanced authentication types: OWE, WPA3-PSK, WPA3- EAP

Tip: The configurable button in the middle turns off all lights, but can be set to run any RouterOS script.

RouterOS MikroTik system information

• All RouterBoards have the same RouterOS MikroTik system.
• All devices with RouterOS MikroTik fully support IPv6, have firewall, Queues, NAT and with L4 license support CAPsMAN server.
• MikroTik can be set up via web interface, via mobile application, or with the winbox program, which can be downloaded from mikrotik.com.
• MikroTik has "Quick Set", i.e. quick setup option. There are several preset profiles to choose from.

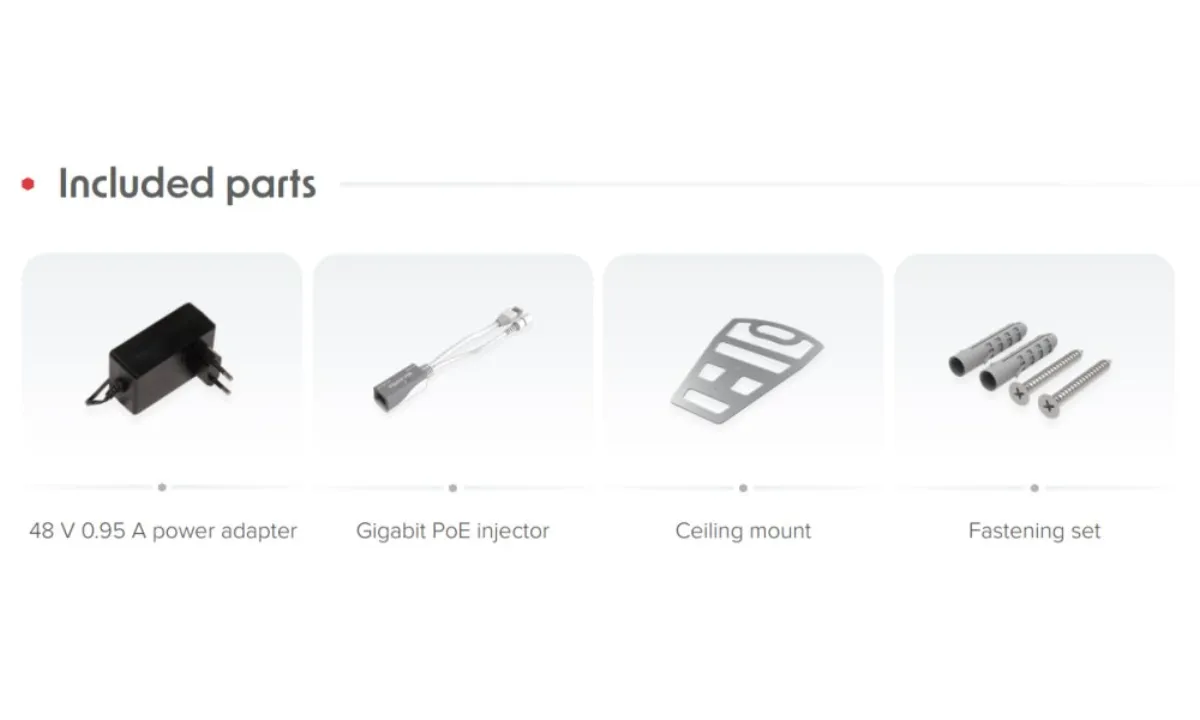

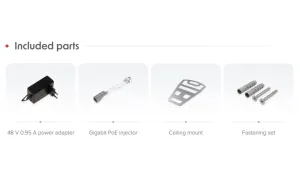

The package includes a gigabit PoE injector, a power adapter, a set of screws and dowels, and a ceiling mount.

Supported Bands:

LTE (FDD): 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz)

LTE (TDD)

• 38 (2600 MHz)
• 40 (2300 MHz)
• 41 (2500 MHz)

3G

• 1 (2100 MHz)
• 3 (1800 MHz)
• 5 (850 MHz)
• 8 (900 MHz)

Mobile Connection: LTE Category 16 (600/150 Mbps)

Wi-Fi Standard: 802.11a/b/g/n/ac/ax

Frequency Band: 2.4 GHz and 5 GHz

Processor

• Qualcomm IPQ-6010 (1.8 GHz

• 4-core)

Antenna

• internal

• 6 dBi (2.4 GHz)

• 5.5 dBi (5 GHz)

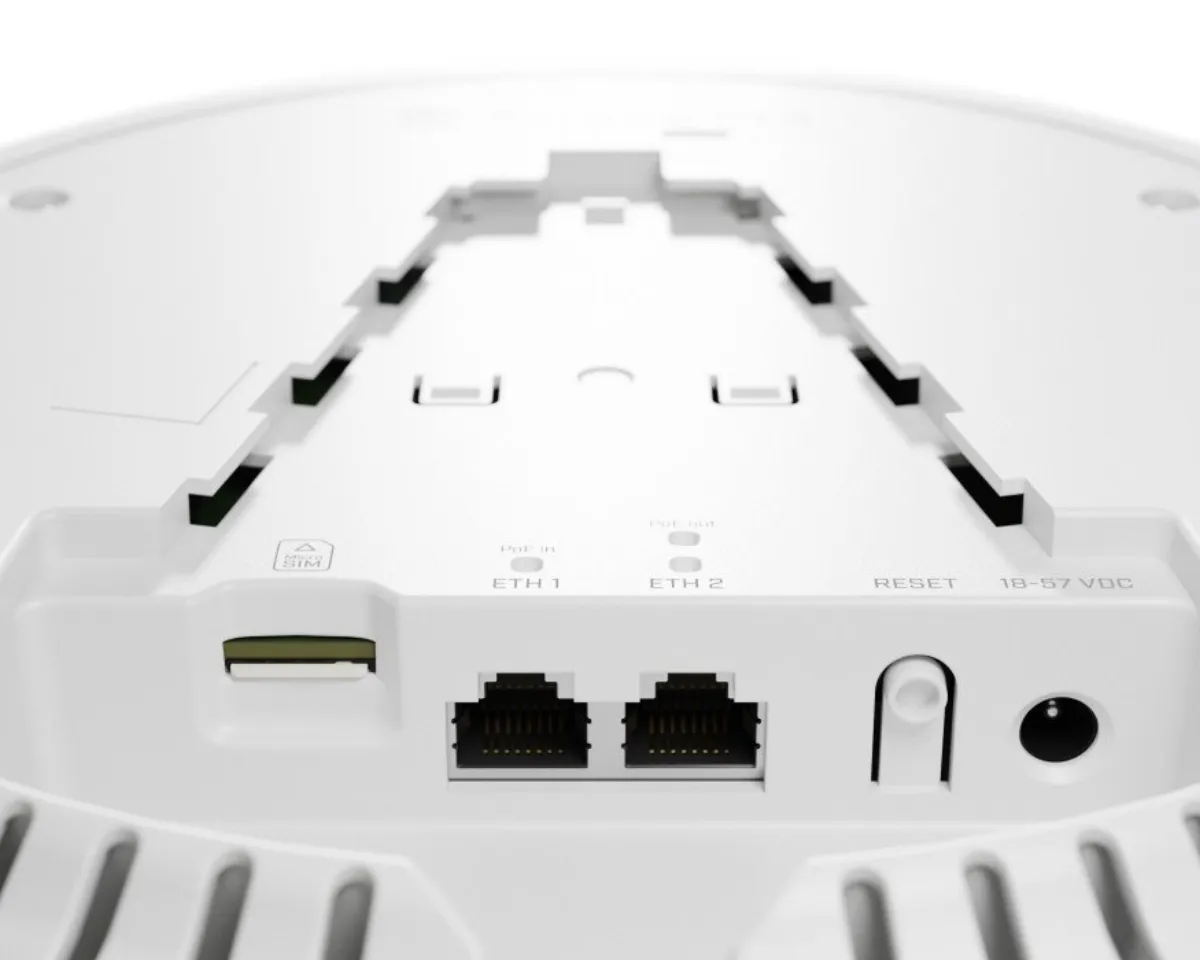

Connectivity

• 2× GbE RJ-45

• 1× SIM slot (micro)

PoE support

• yes

• PoE/PoE+ 802.3af/at input

• passive PoE output (up to 57 V)

Operating system: RouterOS v7 (Level 4 license)

Power supply: DC 48 V adapter or PoE/PoE+ 802.3af/at (18-57 V)
