MikroTik C53UiG+5HPaxD2HPaxD hAP ax3 4x 1G LAN 1x 2.5G LAN 2.4+5GHz 802.11a b g n ac ax USB 3.0 ROS L6 USB PSU

MIKROTIK | C53UiG+5HPaxD2HPaxD | 4752224007940

On stock 49 pcs.

Price of goods is 124.79 €.

Weight of goods is 1.113 Kg.

Actual in cart 0 pcs.

Product was added to your cart.

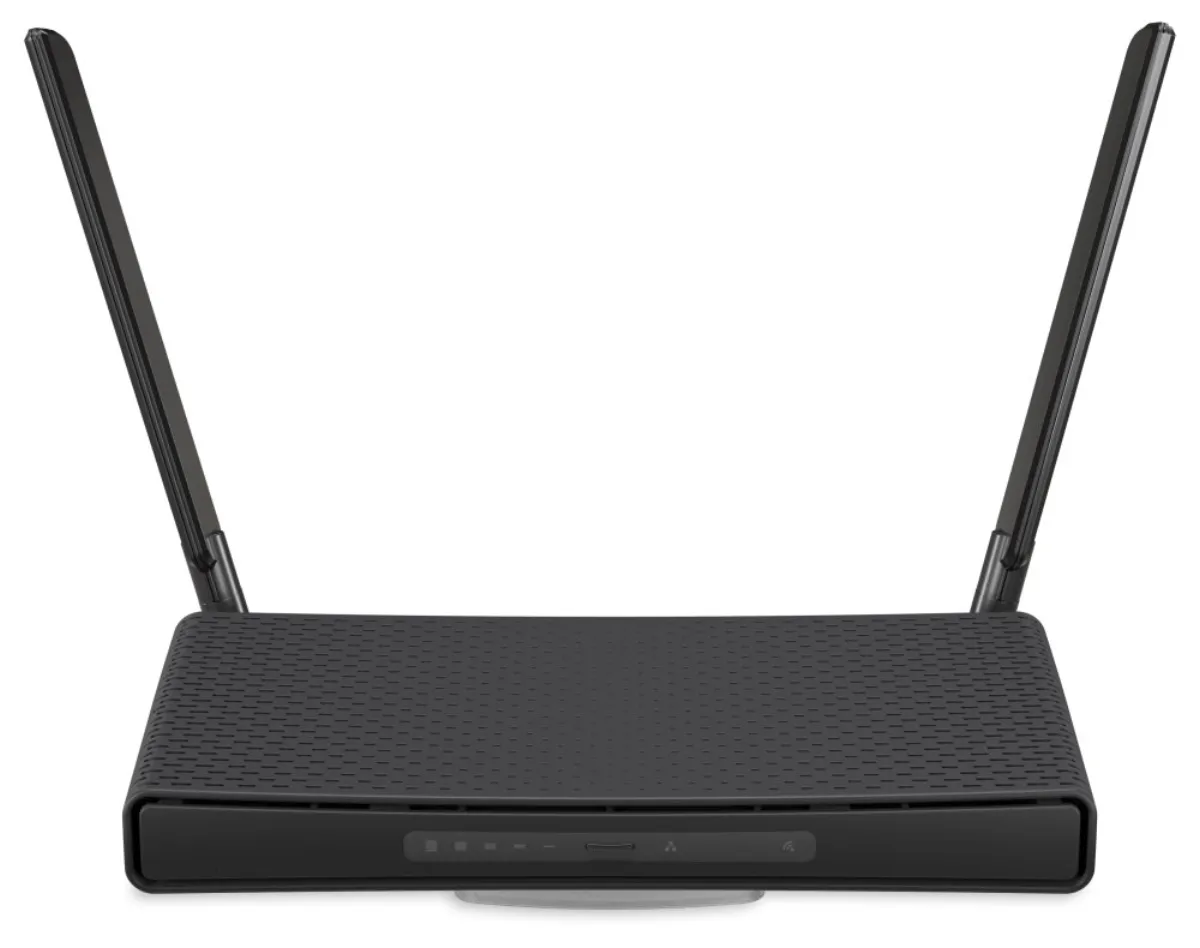

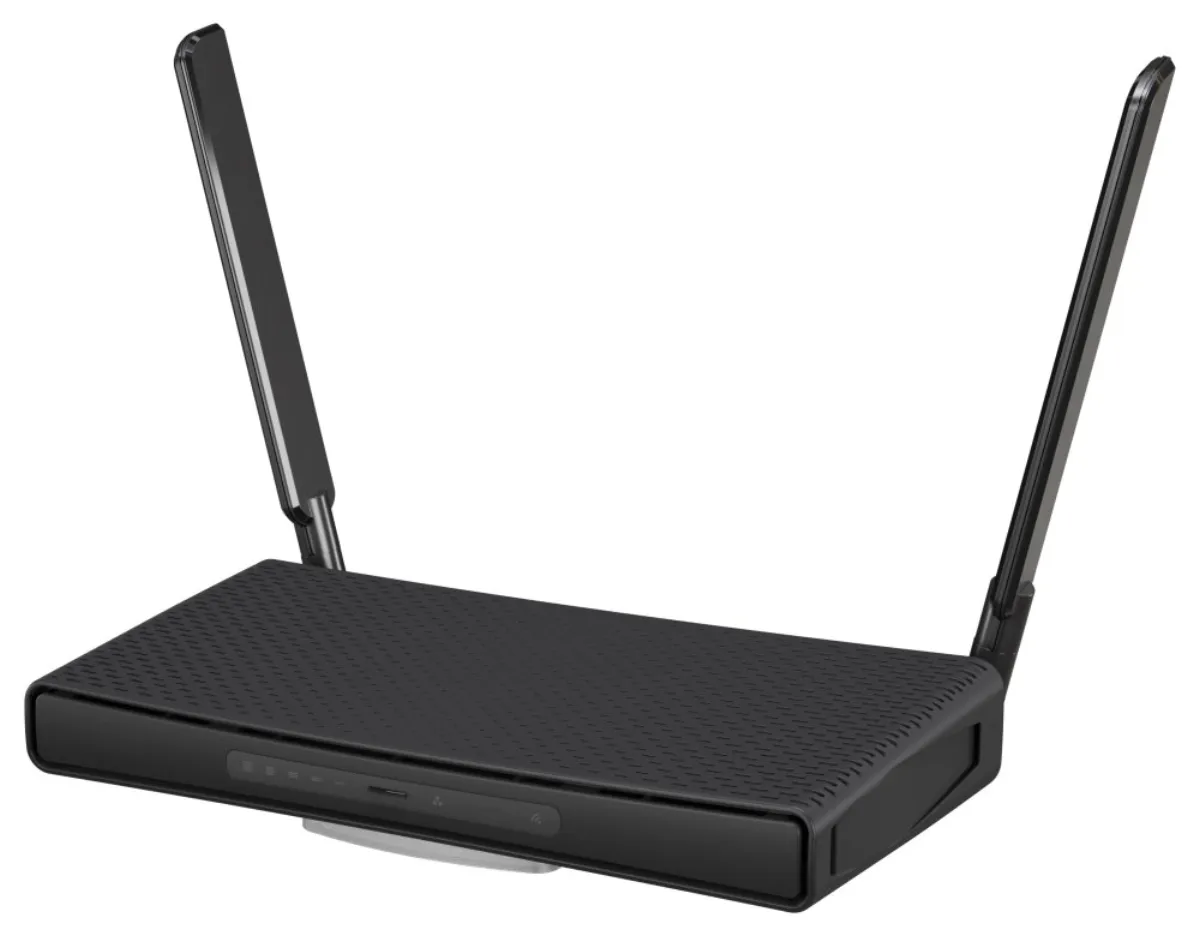

MikroTik hAP ax3

MikroTik hAP ax3 is a top home Wi-Fi 6 access point AX (802.11ax + Wave 2) working in the 2.4 and 5 GHz bands. This Wi-Fi router/AP has four GbE ports and one 2.5G port with PoE-in/out support. Two external antennas with a gain of 3.3 and 5.5 dBi ensure a stable wireless connection and optimal coverage. Another advantage is the possibility of connecting a USB disk or, for example, a 4G/LTE modem via the USB connector. In addition, the first port supports passive PoE input/output, thanks to which the router can power another external device (e.g. a wAP unit). The router also offers high performance in the form of a 4-core ARM processor Qualcomm IPQ-6010 operating at a frequency of 1.8 GHz, 1 GB of RAM and 128 MB of NAND memory. The router comes with RouterOS v7 L6 operating system.

  • A new generation of the perfect home Wi-Fi 6 access point. Wireless standard 802.11ax + Wave 2 support.
  • 4x Gigabit Ethernet port + 1x 2.5G Ethernet port, ARM processor Qualcomm IPQ-6010 (1.8 GHz), 1 GB RAM, 128 MB NAND.
  • The 802.11ax standard brings up to 40% higher speed performance in the 5 GHz band and up to 90% higher speed in the 2.4 GHz band!
  • USB 3.0 can be useful for data storage or backup connection using a 4G/LTE modem

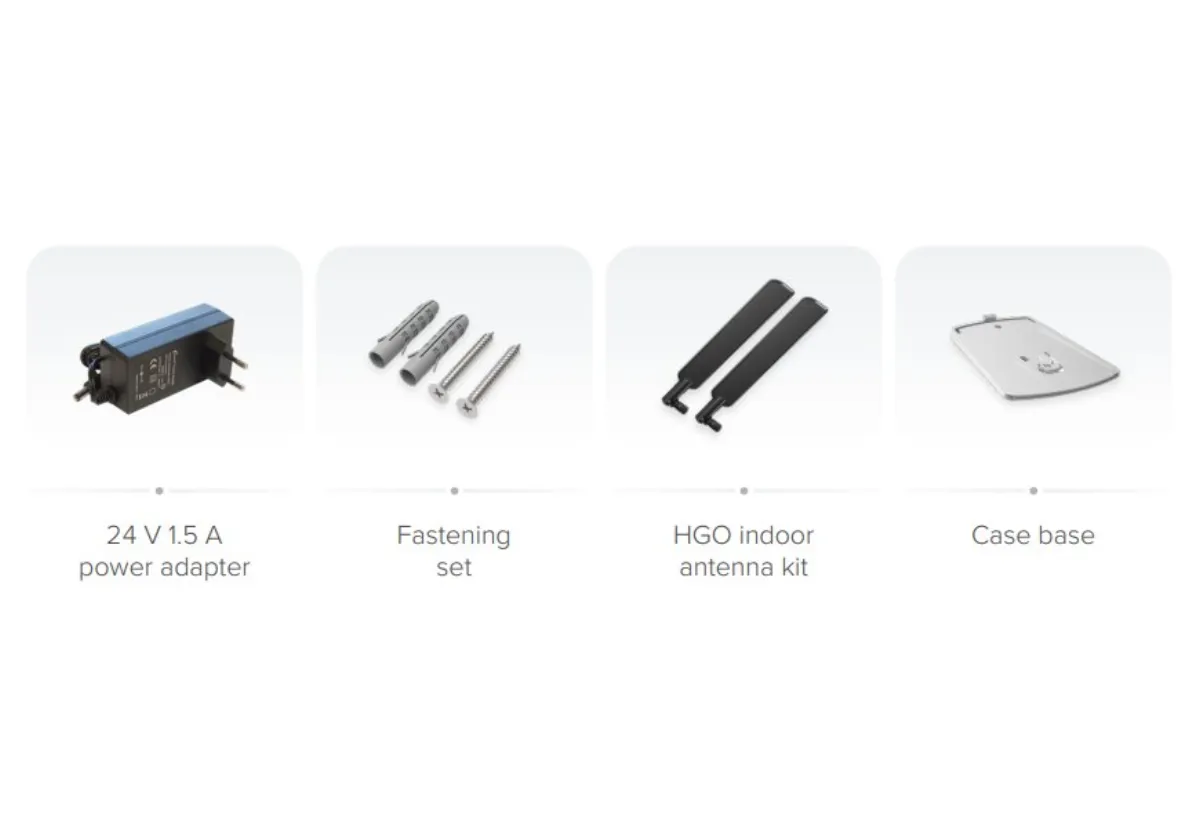

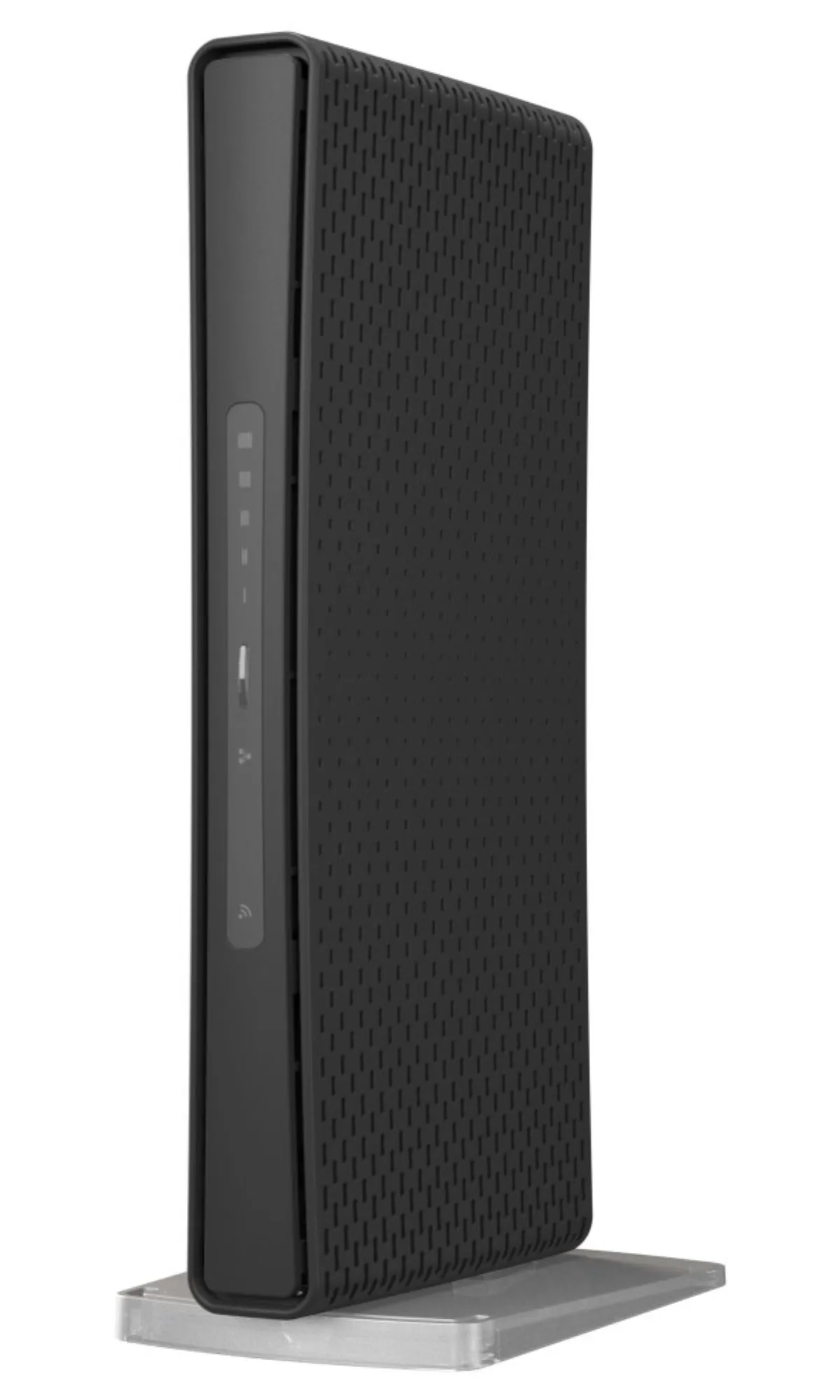

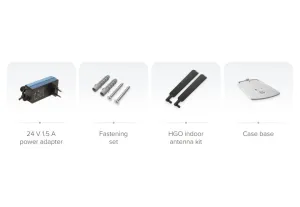

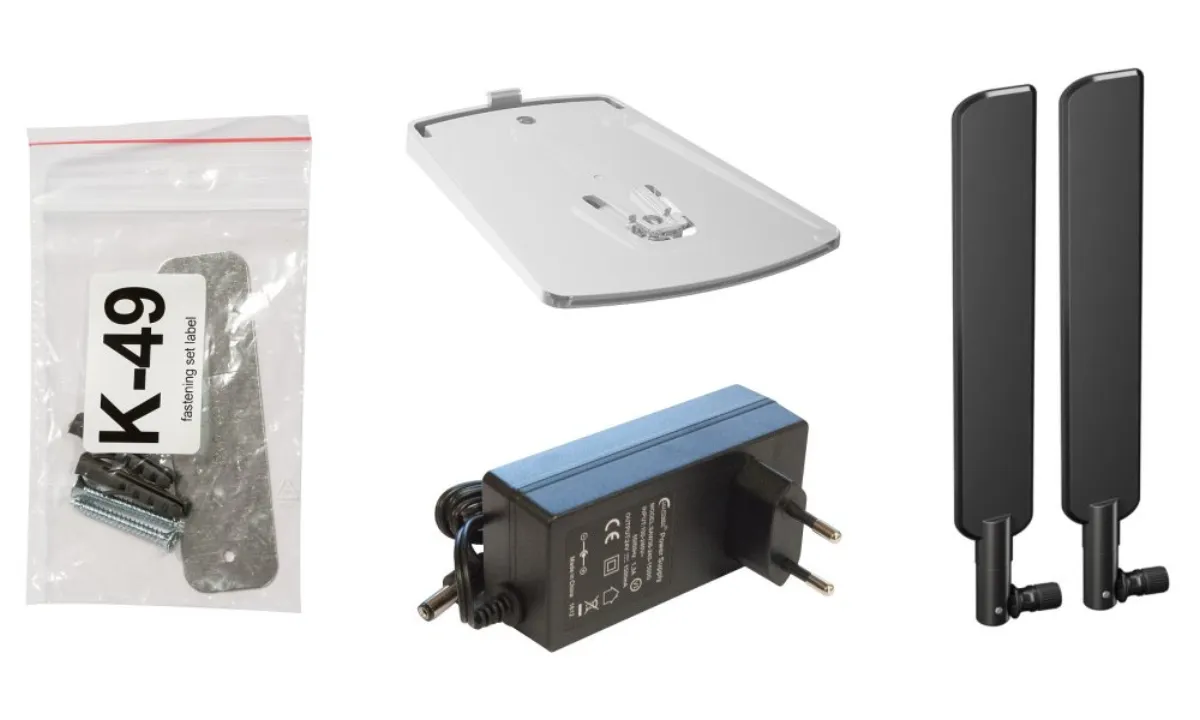

  • The router/AP is supplied with a power supply and a bracket for wall mounting or horizontal/vertical placement.
  • Comprehensive Firewall rules, WPA3, IPsec hardware encryption, Wireguard functions, BGP, advanced routing, multiple VPN tunnels for remote work, etc.
  • RouterOS v7 - VPN, parental supervision/control, QoS (prioritization of traffic for certain needs - e.g. streaming), firewall, HW acceleration IPsec, VLAN, email or SMS notifications, automation of trigger notifications, control + management of bandwidth usage and other functions.

Information about RouterOS MikroTik

  • All RouterBoards have the same RouterOS MikroTik system.
  • All devices with RouterOS MikroTik fully support IPv6, have firewall, Queues, NAT and with L4 license support CAPsMAN server.
  • MikroTik can be set up via the web interface, via the mobile application, or the winbox program, which can be downloaded from mikrotik.com.
  • MikroTik has "Quick Set" ie quick setting option. There are several preset profiles to choose from.

Standard: 802.11a/b/g/n/ac/ax + Wave support

Frequency

  • 2.4 GHz
  • 5 GHz

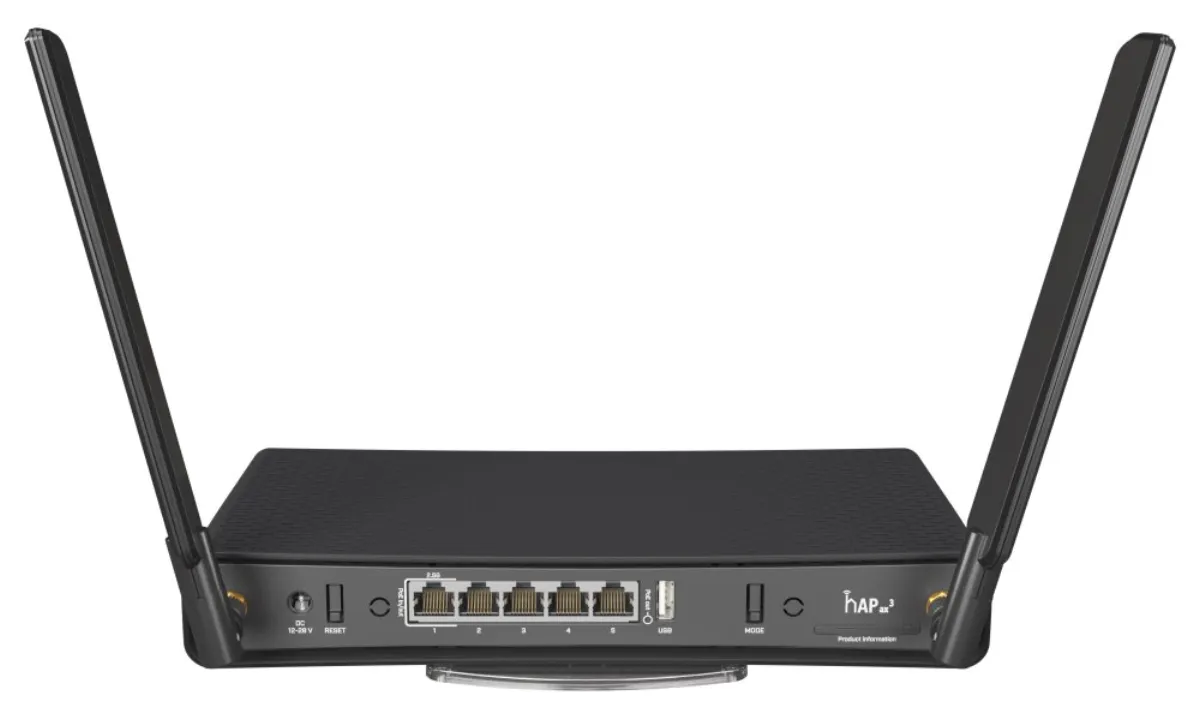

Interfaces (ports)

  • 1x 2.5G RJ-45
  • 4x GbE RJ-45
  • 1x USB 3.0

PoE support

  • yes (passive PoE
  • 1x input/output
  • DC 18-28 V PoE in)

Power supply

  • external adapter DC 12-28 V or PoE
  • consumption 15 W (up to 38 W at max. PoE output)

Dimensions: 251 x 130 x 39 mm

Properties

NameValue
Colorblack
Dimension [mm]251 × 130 × 39 mm
Maximum operating temperature [°C]70
Minimum operating temperature [°C]-40
Default IP192.168.88.1
Memory size [MB]1000
ChipsetQualcomm IPQ-6010
FirewallYes
NAND [MB]128
Power supply min. [V]12
The number of processor cores4
Wi-Fi standard802.11a/b/g/n/ac/ax
SIM slotNo
ProcessorQualcomm IPQ-6010, 1,8 GHz
Power supply max. [V]28
Antenna designremovable
EncryptionWPA3
Consumption [W]15
Gain [dBi]3,3 (2,4GHz), 5,5 (5GHz)
Sensitivity [dBm]-100 (2,4 GHz, 1 Mb/s, Rx), -96 (5 GHz, 6 Mb/s, Rx)
Operating modeAP, Client, WDS, Bridge, WISP, Repeater
Power supply [V]12 - 28 (DC)
Number of connectable antennas2
Standards802.11a/b/g/n/ac/ax, Wave 2
USB 3.0 count1
LicenseL6
InterfaceLAN, Wi-Fi
Wi-Fi frequency2400 MHz/5000 MHz
The default nameon the tag
Port speed1 Gb/s + 2,5 Gb/s
PoE inputpasive
Outdoor useNo
Designfreestanding
PoE outputpasive
