MikroTik cAP ax (cAPGi-5HaxD2HaxD) 2.4 5GHz 802.11b g n ac ax AP HotSpot L4
MIKROTIK | cAPGi-5HaxD2HaxD | 4752224008473
On stock 49 pcs.
Price of goods is 107.92 €.
Weight of goods is 0.95 Kg.
Actual in cart 0 pcs.

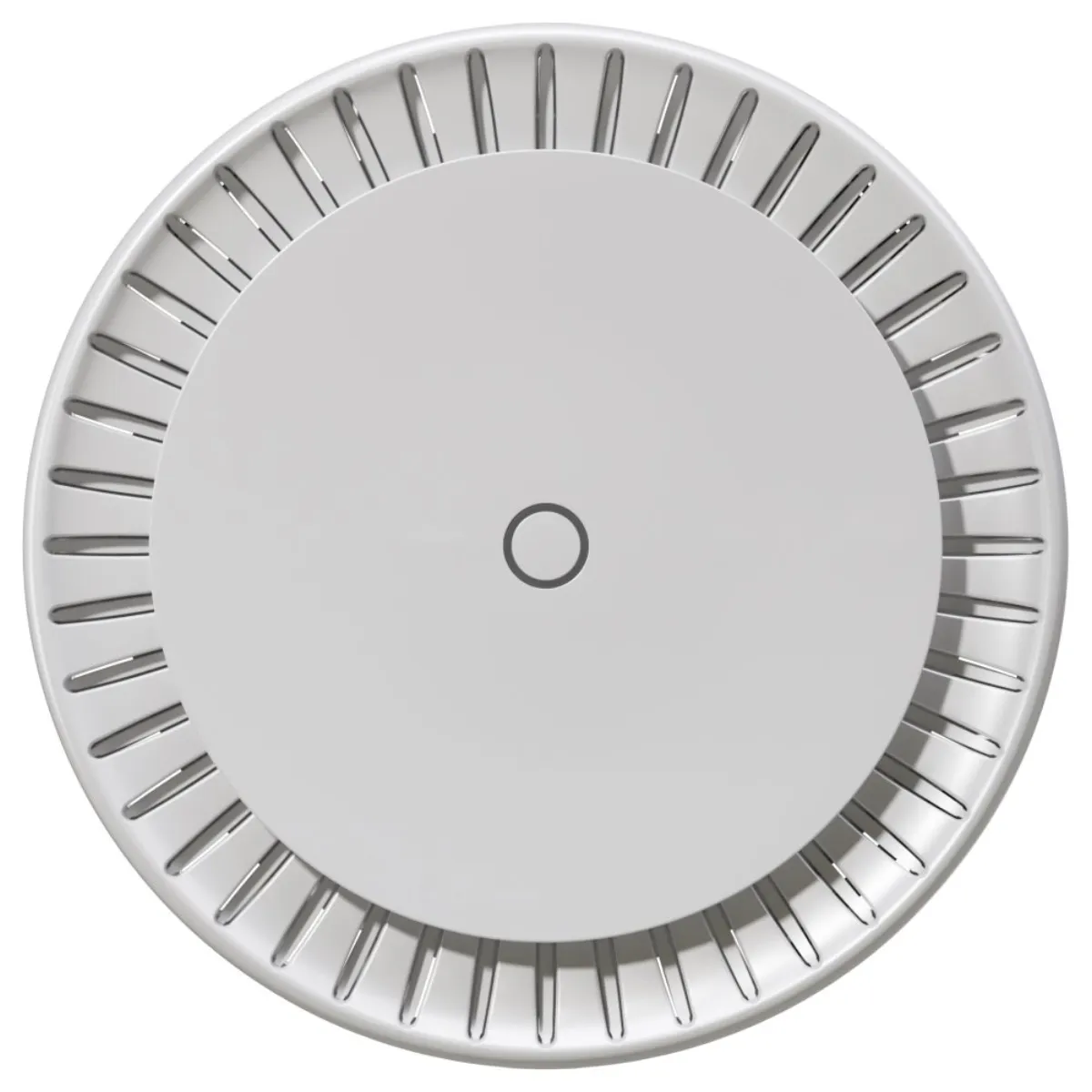

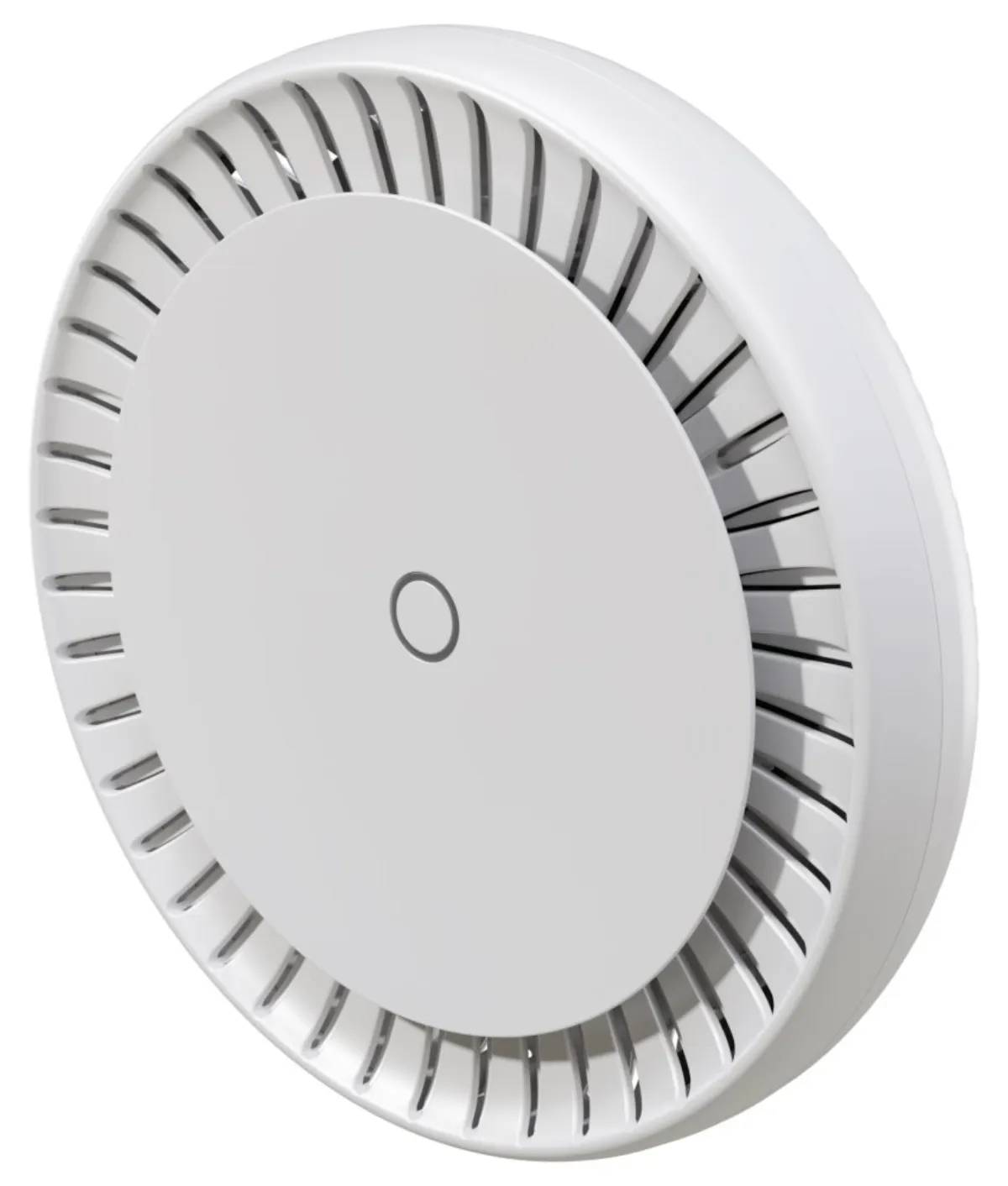

MikroTik cAP ax
The best-selling ceiling access point is back - more powerful than ever! The new generation of excellent wireless connection for offices, hotels, shopping centers, etc
The Excellent Wi-Fi 6 (802.11ax) AP/HotSpot for all-indoor coverage is equipped with high-gain antennas that provide better coverage than previous cAP models. This 2-band access point works on both frequencies at the same time, and is thus intended for all types of phones, tablets, computers and other devices.
The unit supports both 2.4 GHz and 5 GHz frequencies in a 360° range and is suitable for covering halls or vestibules. The internal antenna has a gain of 6 and 5.5 dBi. The unit includes RouterOS v7 MikroTik software with L4 license. MikroTik cAP ax has an integrated PoE+ splitter, so it can be powered directly via an FTP/UTP cable ( PoE+ 802.3af/at). The second port can be used as a passive PoE output (up to 57 V).
- Fast and reliable 802.11ax wireless connection (Wi-Fi 6)
- Modern 4-core processor with a frequency of 1.8 GHz
- 2x gigabit Ethernet port
- PoE input and PoE output for powering other devices (e.g. CCTV cameras!)
- 1 GB of RAM (DDR3L)
- RouterOS v7
- Various power options (PoE or DC jack)
- Compared to the previous generation, cAP ax offers more extended authentication types: OWE, WPA3-PSK, WPA3-EAP and roaming 802.11r
Information about RouterOS MikroTik
- All RouterBoards have the same RouterOS MikroTik system.
- All devices with RouterOS MikroTik fully support IPv6, have firewall, Queues, NAT and with L4 license support CAPsMAN server.
- MikroTik can be set up via the web interface, via the mobile application, or the winbox program, which can be downloaded from mikrotik.com.
- MikroTik has "Quick Set" ie quick setting option. There are several preset profiles to choose from.
Frequency
- 2.4 and 5 GHz
- 802.11a/b/g/n/ac/a
Processor
- Qualcomm IPQ-6010 (1.8 GHz
- 4 core)
Antenna
- internal
- 6 dBi (2.4 GHz)
- 5.5 dBi (5 GHz)
Connectivity: 2x GbE RJ-45
PoE support
- yes
- PoE/PoE+ 802.3af/at input
- passive PoE output (up to 57 V)
Operating system: RouterOS v7 (Level 4 license)
Power supply: DC 48 V adapter or PoE/PoE+ 802.3af/at (18-57 V)
| Name | Value | |
|---|---|---|
| PoE output | pasive | |
| Color | white | |
| Dimension [mm] | 191 × 191 × 42 mm | |
| Maximum operating temperature [°C] | 70 | |
| Port speed | 1 Gb/s | |
| Minimum operating temperature [°C] | -40 | |
| The number of processor cores | 4 | |
| PoE input | 802.3af/at | |
| Design | on the ceiling | |
| PoE output count | 1 | |
| Conformity | CE, FCC, IC, EAC, RoHS | |
| MicroSD card support | No | |
| Consumption [W] | 9 | |
| Transmission speed [Mbps] | 574 (2,4GHz), 1200 (5GHz) | |
| Max. output power [dBm] | 24 | |
| Memory size [MB] | 1000 | |
| Power supply [V] | 48 (DC) | |
| Wi-Fi standard | 802.11a/b/g/n/ac/ax | |
| Sensitivity [dBm] | -100 (2,4 GHz, 1 Mb/s), -96 (5 GHz, 6 Mb/s) | |
| Wi-Fi frequency | 2400 MHz/5000 MHz | |
| Antenna design | internal | |
| Indoor use | Yes | |
| License | L4 | |
| Processor | Qualcomm IPQ-6010, 1,8 GHz | |
| NAND [MB] | 128 | |
| SIM slot | No | |
| Gain [dBi] | 6 (2,4GHz), 5,5 (5GHz) | |
| PoE support | Yes | |
