MikroTik hAP ax2 5x GLAN 2.4+5Ghz 802.11b g n ac ax Wi-Fi 6 PoE in out ROS 7 L4 PSU indoor
MIKROTIK | C52iG-5HaxD2HaxD-TC | 4752224007124
On stock 49 pcs.
Price of goods is 85.51 €.
Weight of goods is 0.41 Kg.
Actual in cart 0 pcs.

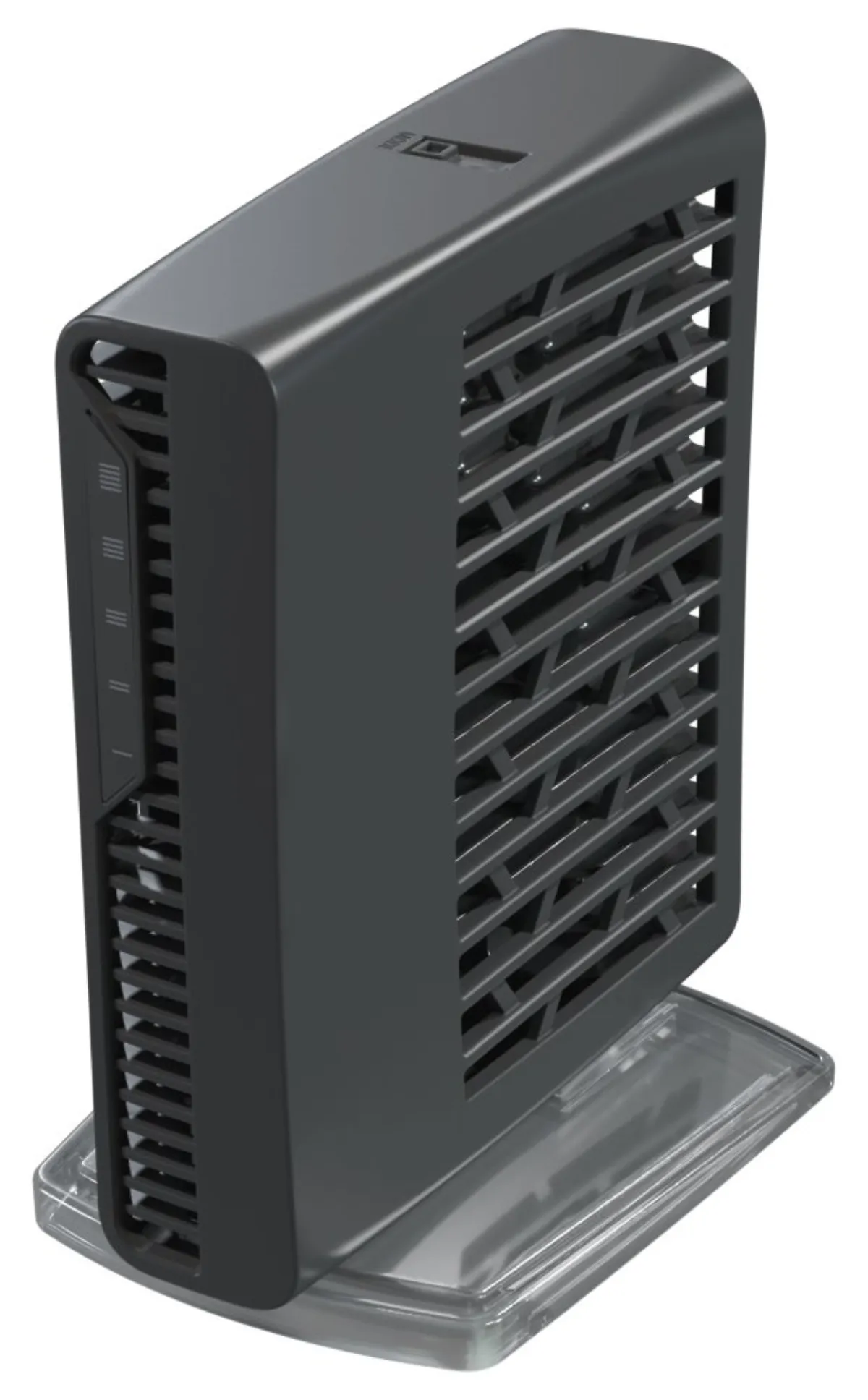

MikroTik hAP ax2
MikroTik hAP ax2 is a dual-band Wi-Fi 6 router with five gigabit RJ-45 ports and support for PoE input/output on 1. port, thanks to which the router can power another external device (e.g. a wAP unit). The elegant and futuristic design makes it an excellent router for home and office use. The main advantage is support for the 2.4 GHz and 5 GHz bands, in the latest 802.11ax + Wave2 standard. The router also offers high performance in the form of a 4-core ARM processor Qualcomm IPQ-6010 operating at a frequency of 864 MHz, 1 GB of RAM and 128 MB of NAND storage.
A modern quad-core processor operating at 864 MHz combined with a decent RAM capacity represents sufficient performance when it comes to demanding operations such as complex firewall rules, IPsec hardware encryption, using multiple threads or experimenting with various advanced features of RouterOS. And with the addition of advanced WPA3 encryption, you're more secure than ever.
- A new generation of the perfect home access point. The smallest full-featured ax router on the market! This is the ideal device for 99% of households.
- Like previous models, the hAP ax2 router can be mounted vertically, horizontally, or even on a wall - without compromising signal quality.
- Dual wireless (dual-chain) connection (4 and 4.5 dBi internal antennas) with Wave2 support
- The 802.11ax standard brings up to 40% higher speed performance in the 5 GHz band and up to 90% higher speed in the 2.4 GHz band!
Information about RouterOS MikroTik
- All RouterBoards have the same RouterOS MikroTik system.
- All devices with RouterOS MikroTik fully support IPv6, have firewall, Queues, NAT and with L4 license support CAPsMAN server.
- MikroTik can be set up via the web interface, via the mobile application, or the winbox program, which can be downloaded from mikrotik.com.
- MikroTik has "Quick Set" ie quick setting option. There are several preset profiles to choose from.
Frequency
- 2.4 GHz
- 5 GHz
Standard: 802.11a/b/g/n/ac/ax + Wave2

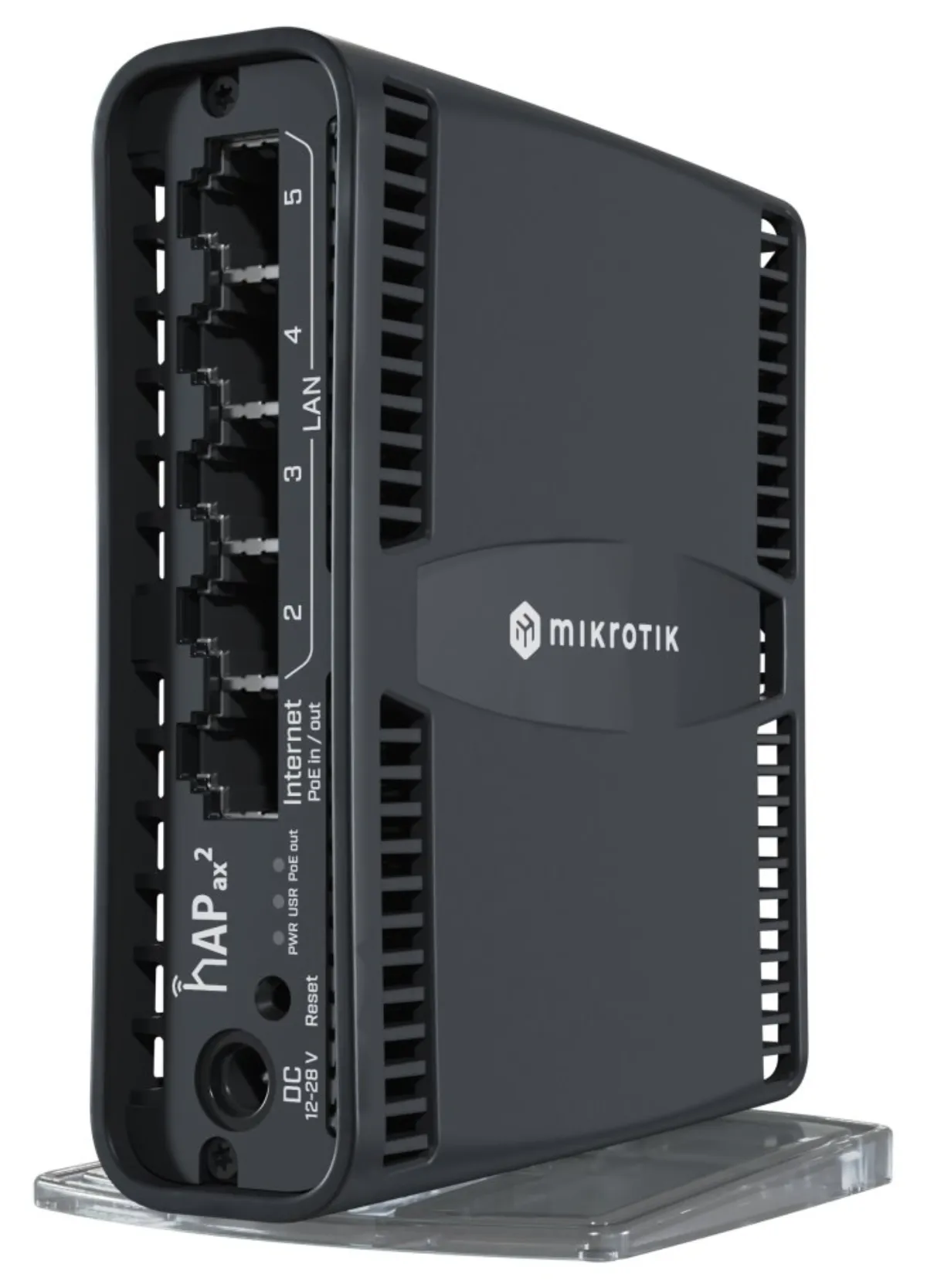

Interface: 5x GbE RJ-45
PoE support
- yes (passive PoE
- 1x input/output
- DC 18-28 V PoE in)
Dimensions: 120 x 101 x 37 mm
| Name | Value | |
|---|---|---|
| Color | black | |
| Dimension [mm] | 120 × 101 × 37 mm | |
| Maximum operating temperature [°C] | 50 | |
| Minimum operating temperature [°C] | -40 | |
| Default IP | 192.168.88.1 | |
| Bridge mode | Yes | |
| Memory size [MB] | 1000 | |
| Chipset | Qualcomm IPQ-6010 | |
| Default password | on the tag | |
| Firewall | Yes | |
| NAND [MB] | 128 | |
| Power supply min. [V] | 12 | |
| Max. output power [dBm] | 24 | |
| The number of processor cores | 4 | |
| Wi-Fi standard | 802.11a/b/g/n/ac/ax | |
| RS-232 port | No | |
| Processor | Qualcomm IPQ-6010, 864 MHz | |
| Power supply max. [V] | 28 | |
| Antenna design | internal | |
| Encryption | WPA3 | |
| Consumption [W] | 27 | |
| Output to ext. the antenna | No | |
| Gain [dBi] | 4,5 (2,4GHz), 4 (5GHz) | |
| Sensitivity [dBm] | -100 (2,4 GHz, 1 Mb/s, Rx), -96 (5 GHz, 6 Mb/s, Rx) | |
| Operating mode | AP, Client, WDS, Bridge, WISP, Repeater | |
| Power supply [V] | 18 - 28 (PoE) | |
| Standards | 802.11a/b/g/n/ac/ax, Wave 2 | |
| License | L4 | |
| Interface | LAN, Wi-Fi | |
| Wi-Fi frequency | 2400 MHz/5000 MHz | |
| The default name | on the tag | |
| PoE output count | 1 | |
| Port speed | 1 Gb/s | |
| PoE input | pasive | |
| Design | on the wall | |
| PoE output | pasive | |
