Tinycontrol current sensor up to 20 A

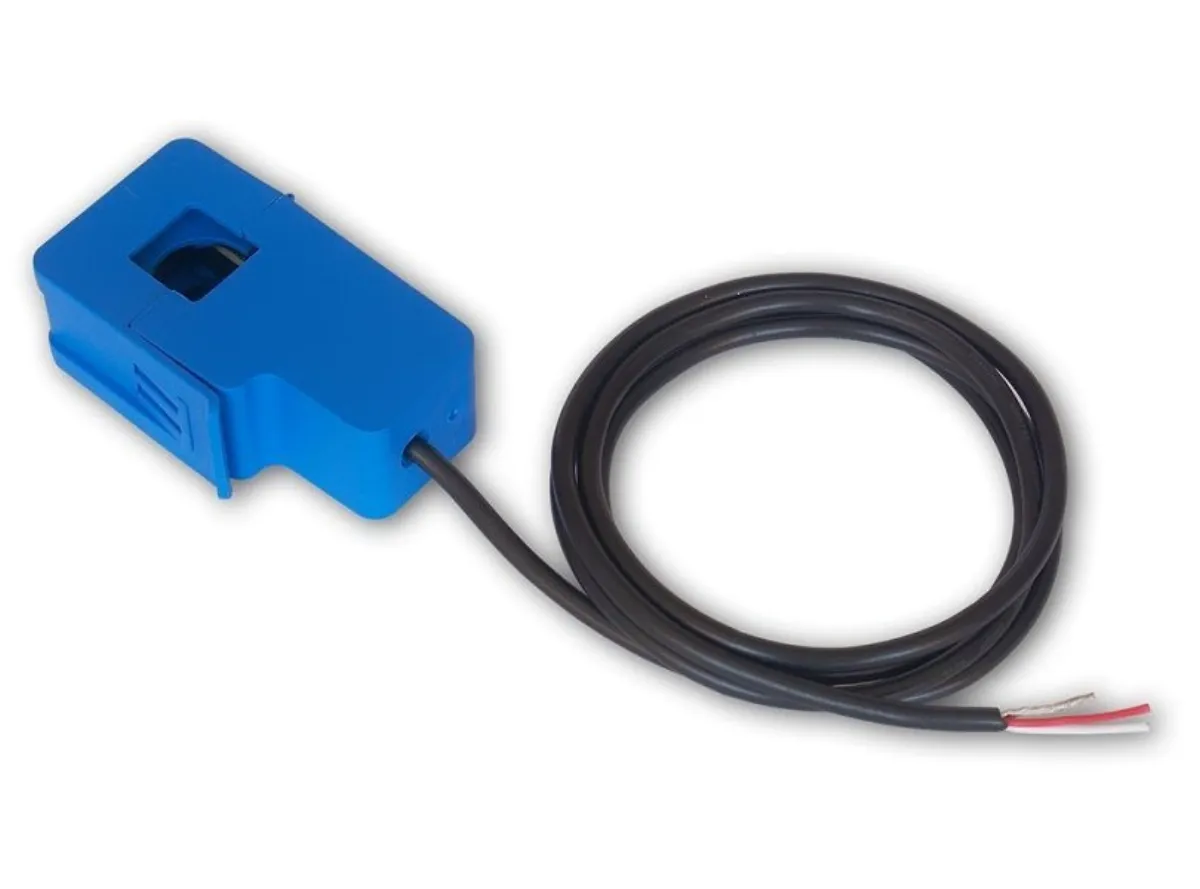

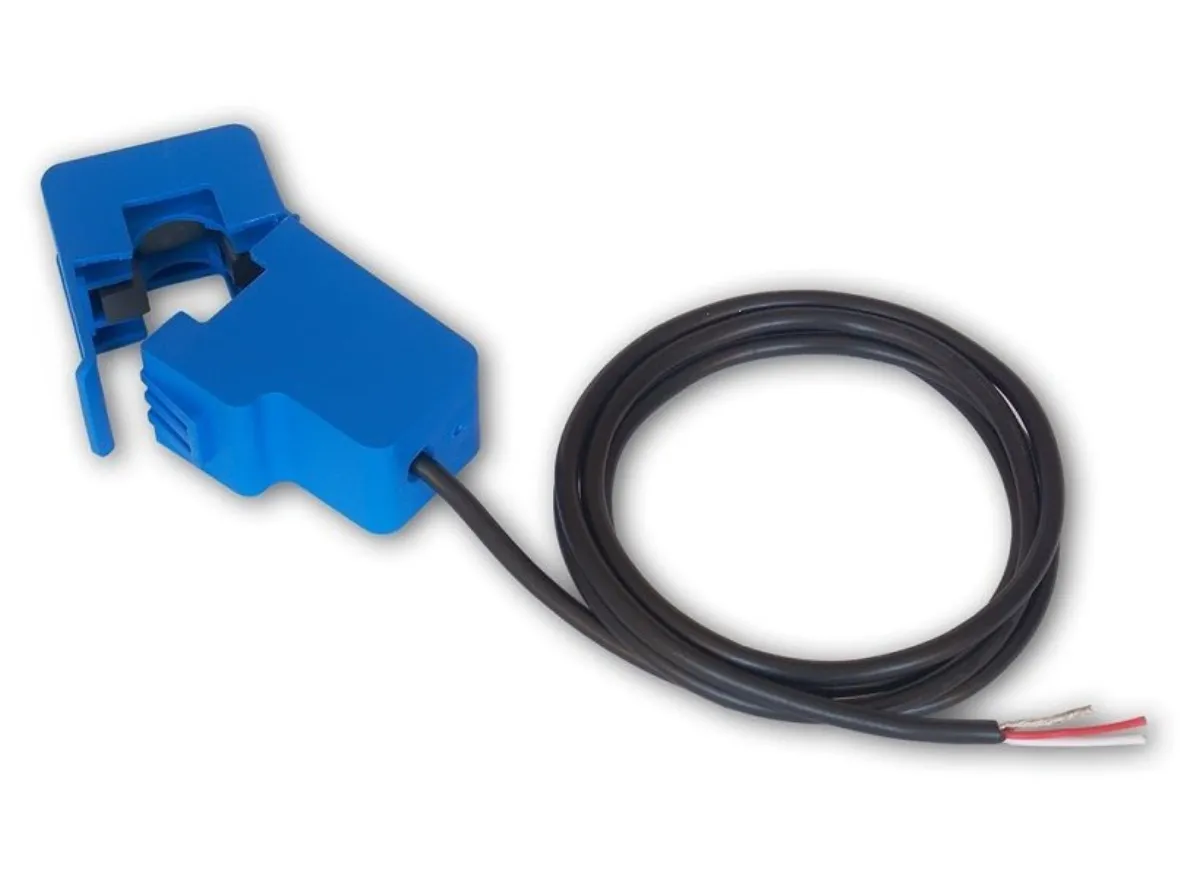

Non-invasive current transformer SCT-013-020 for current measurement by indirect method. The output AC voltage is proportional to the current in the main wire and is intended for LAN controller V3.

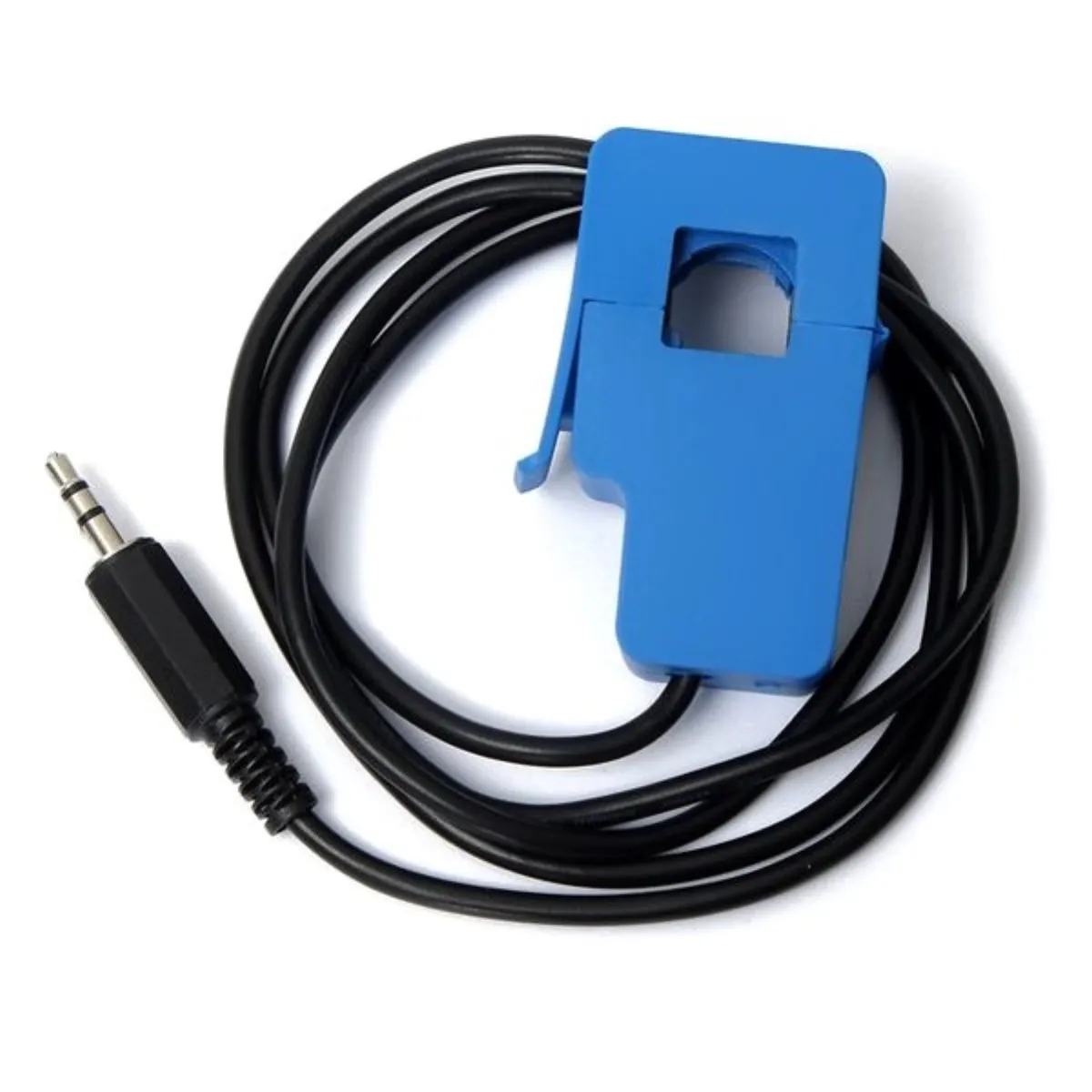

The measurement needs to be done only on one conductor, and not on the entire cable, where the current flows in both directions. The sensor connects to inputs INPA1-4 and GND for these inputs. It is delivered including a 3.5 mm jack connector (male), which can be cut to the required length or a 3.5 mm jack connector (female) can be connected to the LAN controller with the wiring, see photos.
AC current range: 0-20 A (AC
Maximum diameter of measured conductor: 12 mm
Built-in sampling resistor: 62 Ohm
Output Voltage AC: 0-1 V (AC)
Cable length: 1 m
Weight: 45 g
