Ubiquiti UniFi 6 Mesh - Wi-Fi 6 AP 2.4 5GHz to 5.3Gbps 1x Gbit RJ45 PoE 802.3af Indoor Outdoor

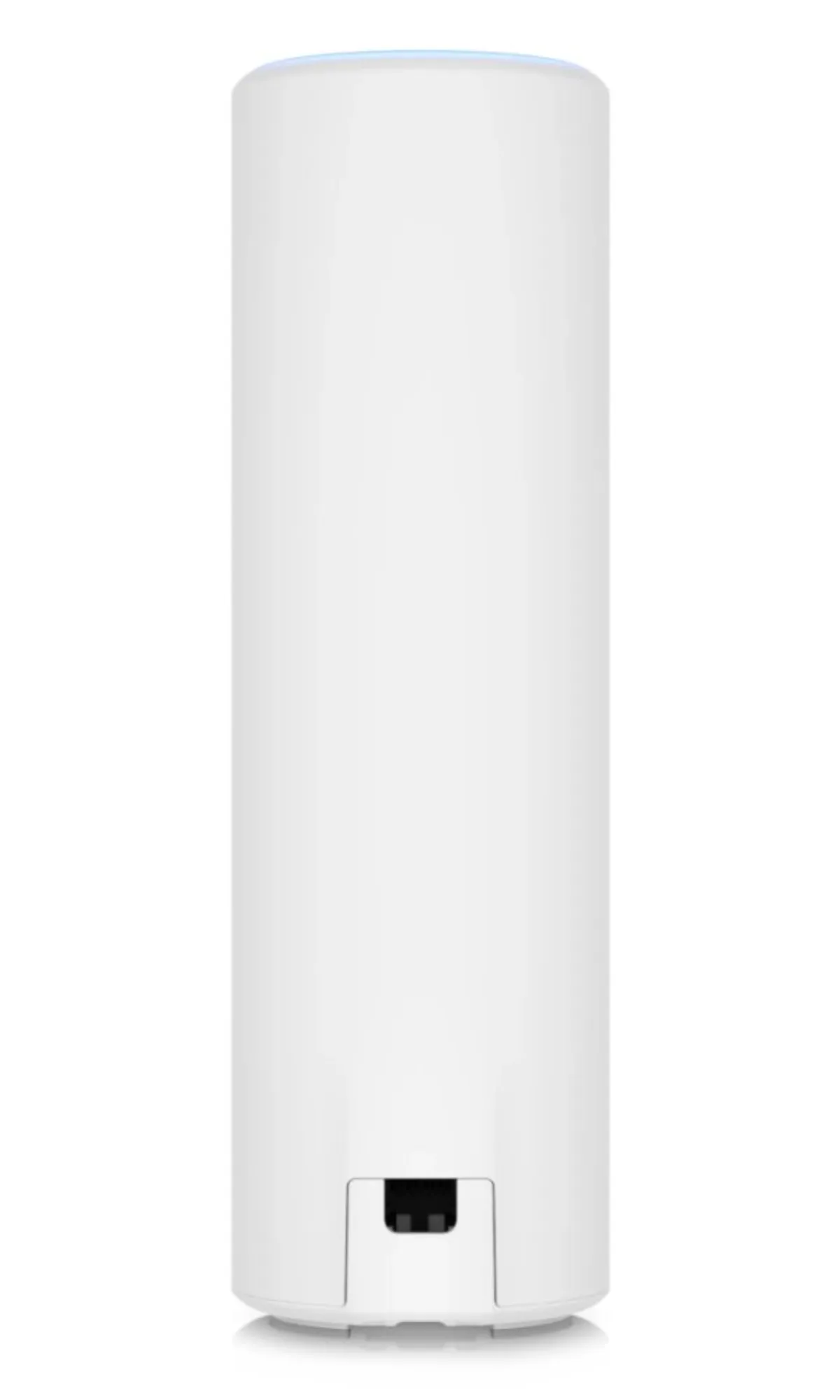

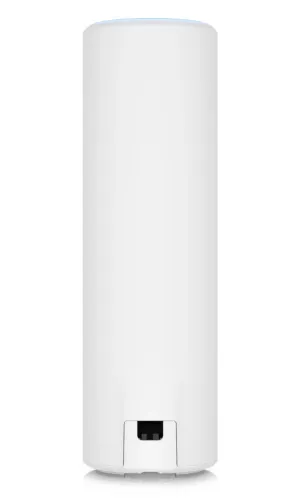

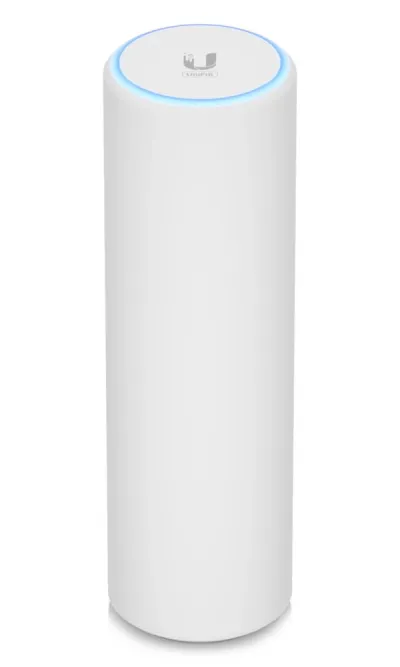

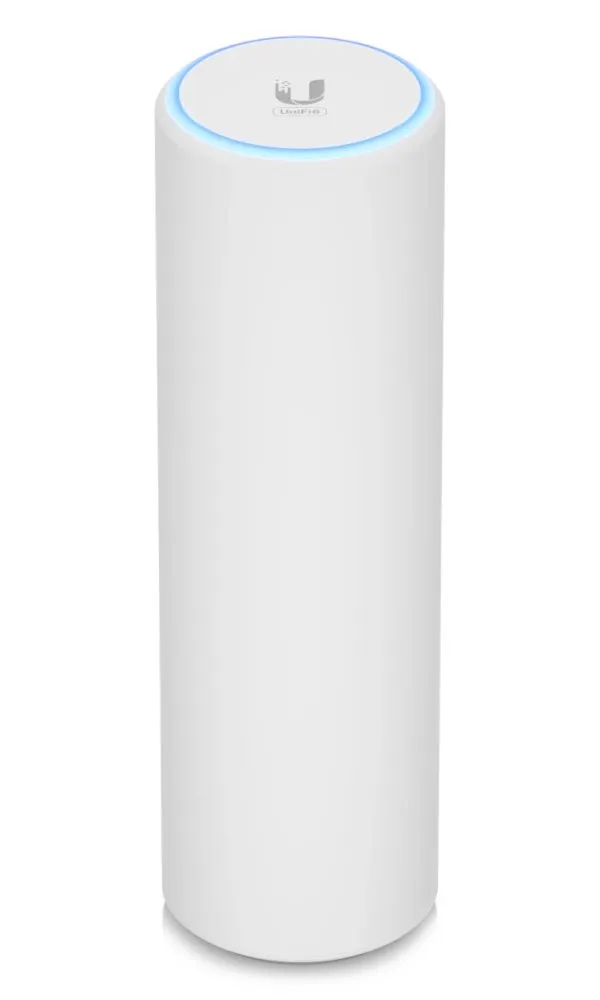

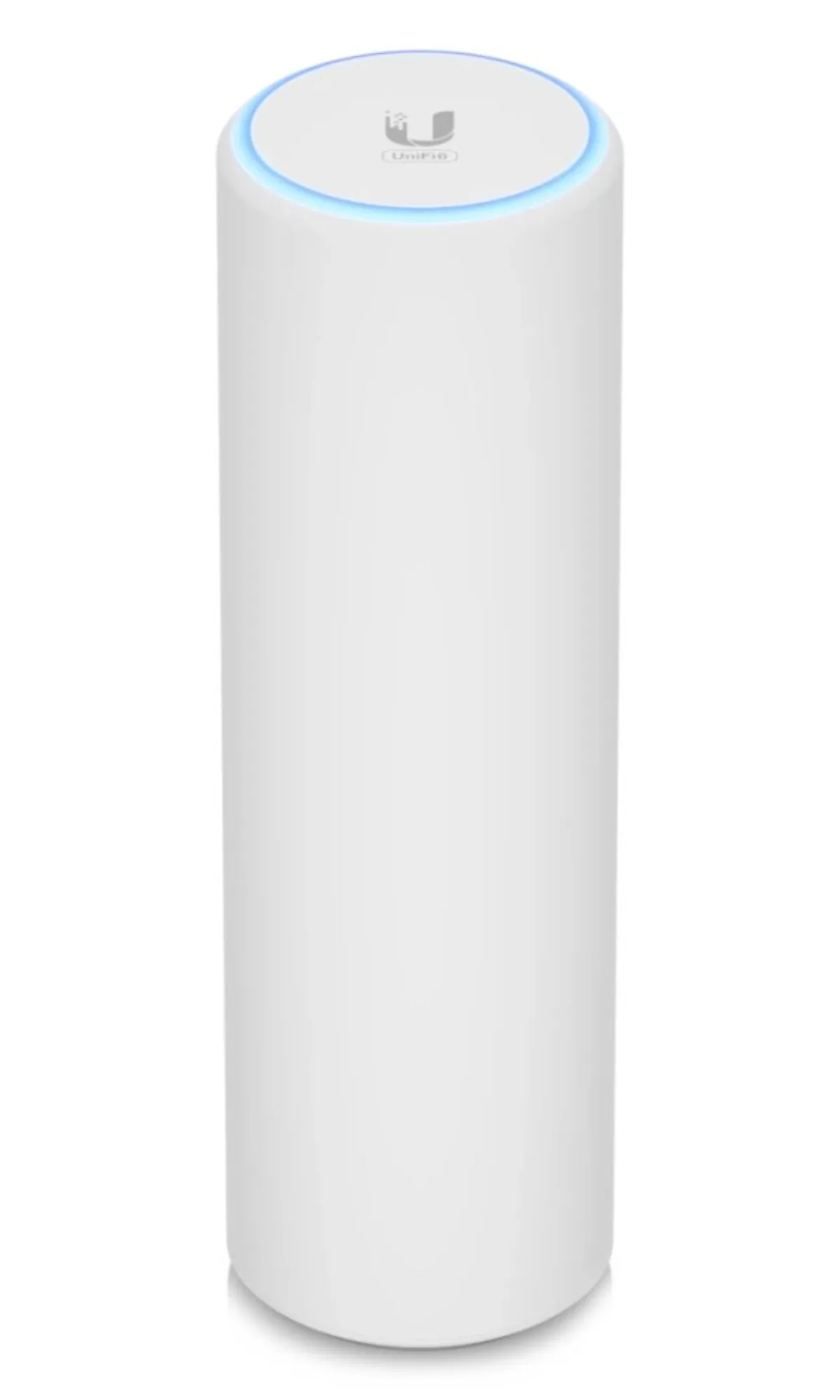

Ubiquiti UniFi 6 Mesh

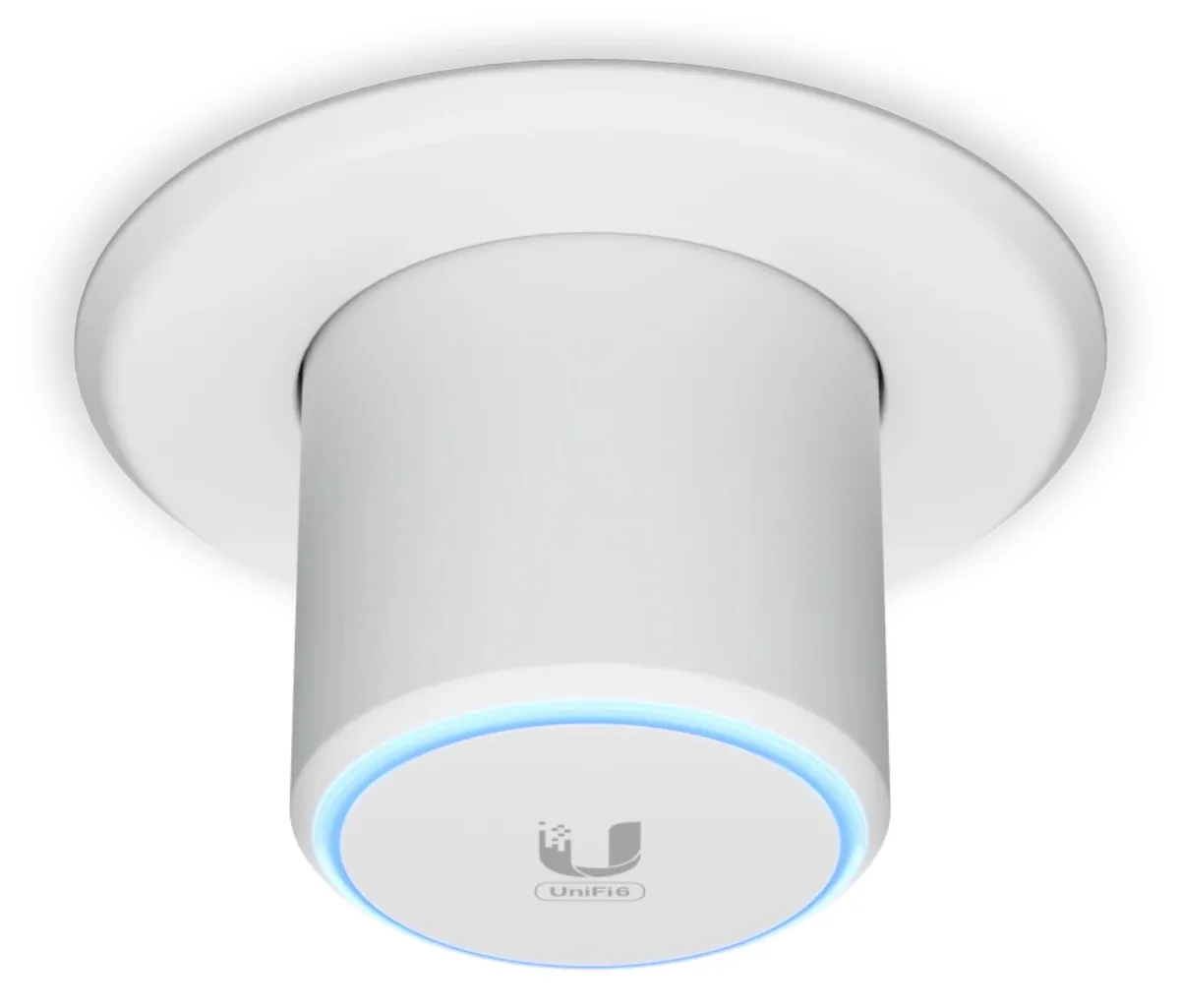

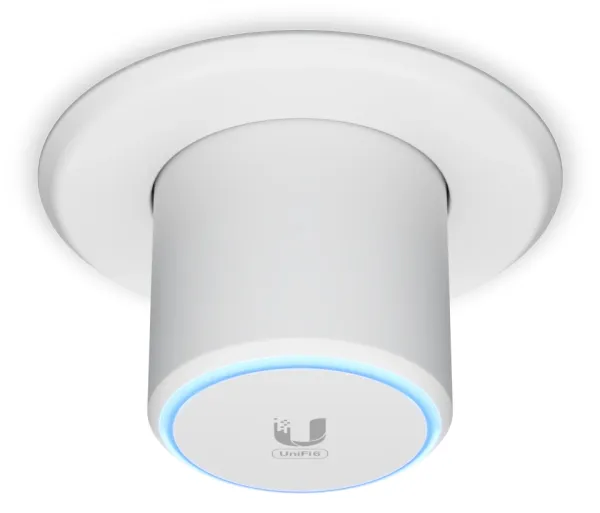

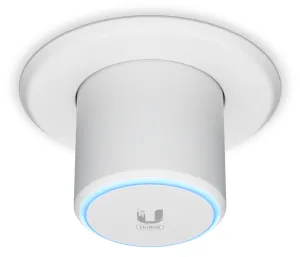

This small, sleek and powerful AP is ideal for businesses and homes. Modern and discreet design allows for placement close to users for optimal performance. Thanks to the support of the 802.11ax DL/UL MU-MIMO 4x4 standard, it reaches a combined transfer rate of up to 5.3 Gbps. The AP has integrated 5 dBi antennas for 5 GHz and 3 dBi antennas for the 2.4 GHz band. Suitable for indoor and outdoor use.

Features and Functions

• Highly efficient 4x4 Wi-Fi 6 (802.11ax)
• 5 GHz band (4x4 MU-MIMO and OFDMA) with a throughput of 4.8 Gb/s
• 2.4 GHz band (2x2 MIMO) with a throughput of 573.5 Mb/s
• Fully supports 4x4 MIMO and 160 MHz bandwidth

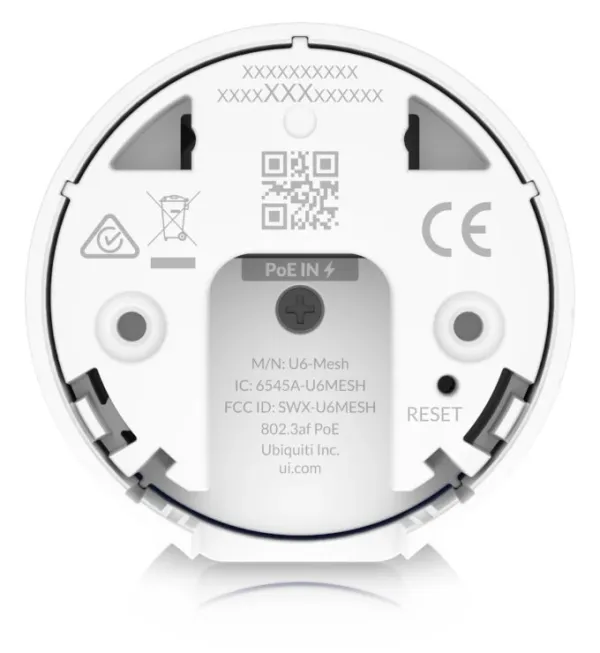

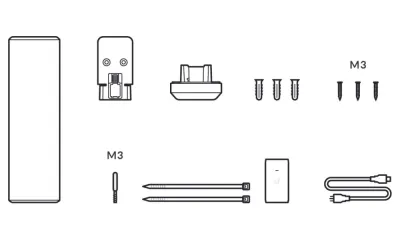

• Powered by PoE 802.3af (PoE adapter is included)

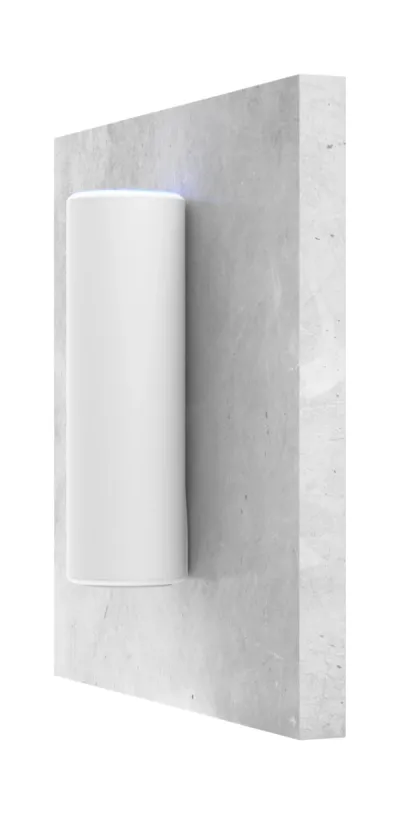

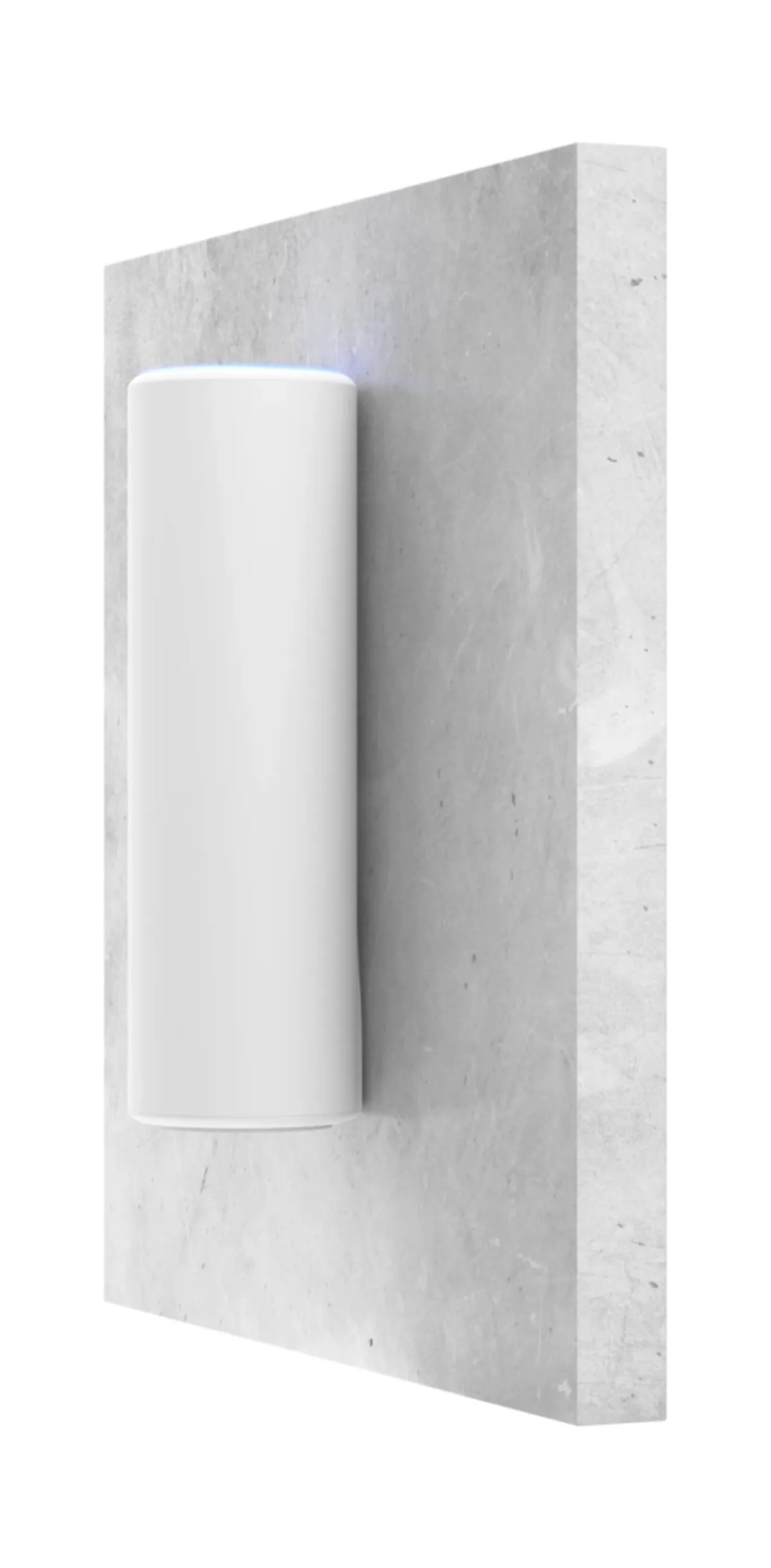

• Housing design - plastic and aluminum, IPX5 protection

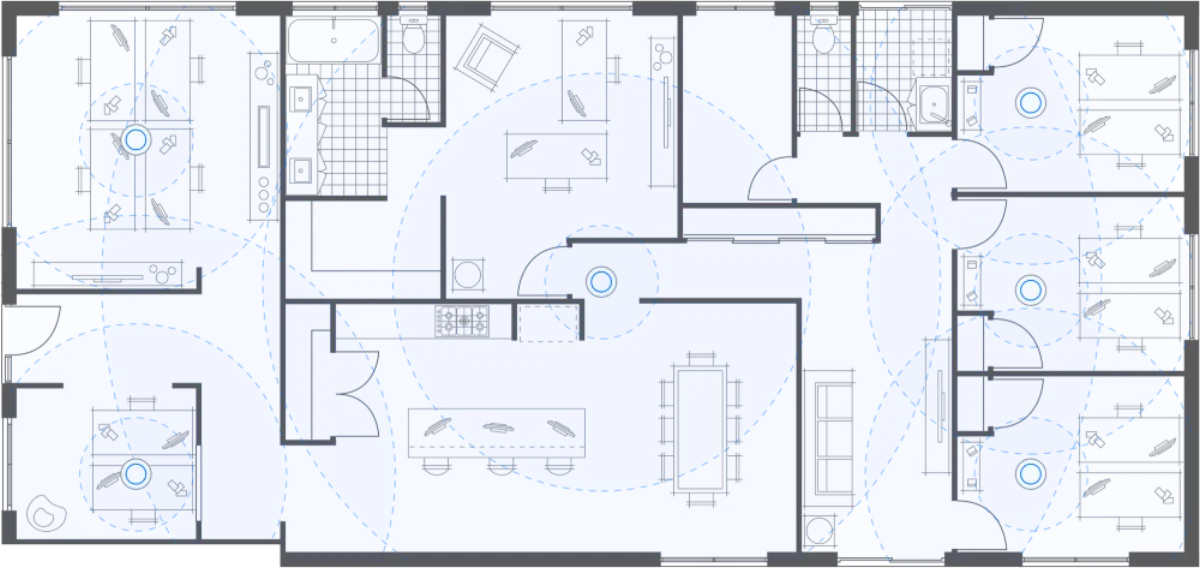

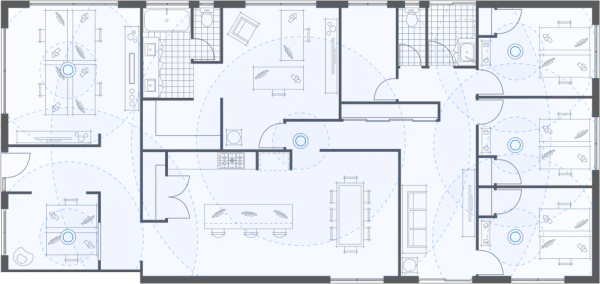

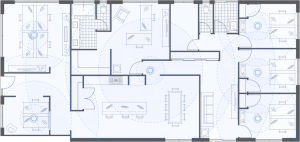

The UniFi unit cooperates with the UniFi Network Application system (version 6.3.51 or later), which allows you to manage the created wireless network via a web browser. On the map, you can plan the placement of UniFi units that communicate with each other, and you can define virtual APs with different permissions, including the ability to redirect to an authentication server.

Create a powerful Mesh network

• UniFi 6 Mesh is ideal for creating a wireless Mesh network, thanks to MIMO 4x4 support it reaches twice the speed compared to regular Mesh solutions.

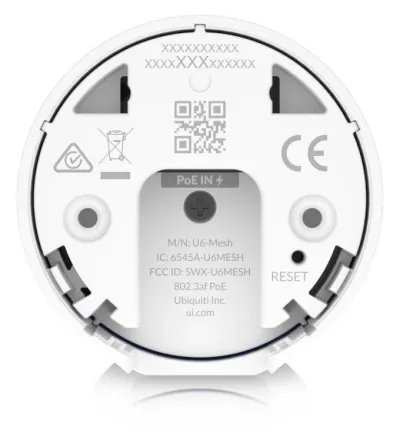

The unit supports active PoE 802.3af power supply (adapter included).

Standard: IEEE 802.11a/b/g/n/ac/a

Data transfer speed

• 5 GHz - 4.8 Gbps
• 2.4 GHz - 573.5 Mbps

Antenna

• 5 dBi 4x4 MU-MIMO (5 GHz)
• 3 dBi 2x2 MU-MIMO (2.4 GHz)

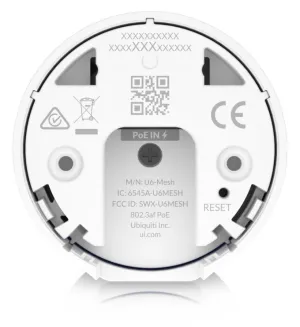

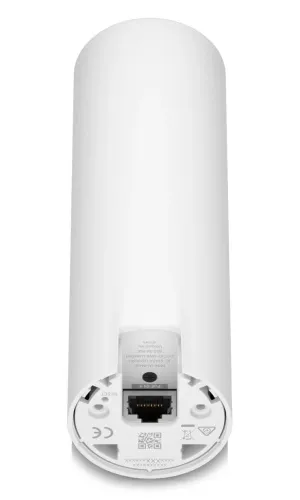

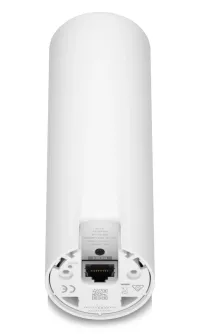

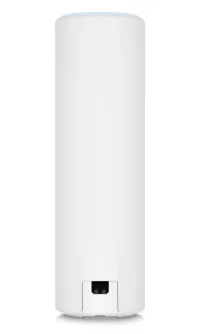

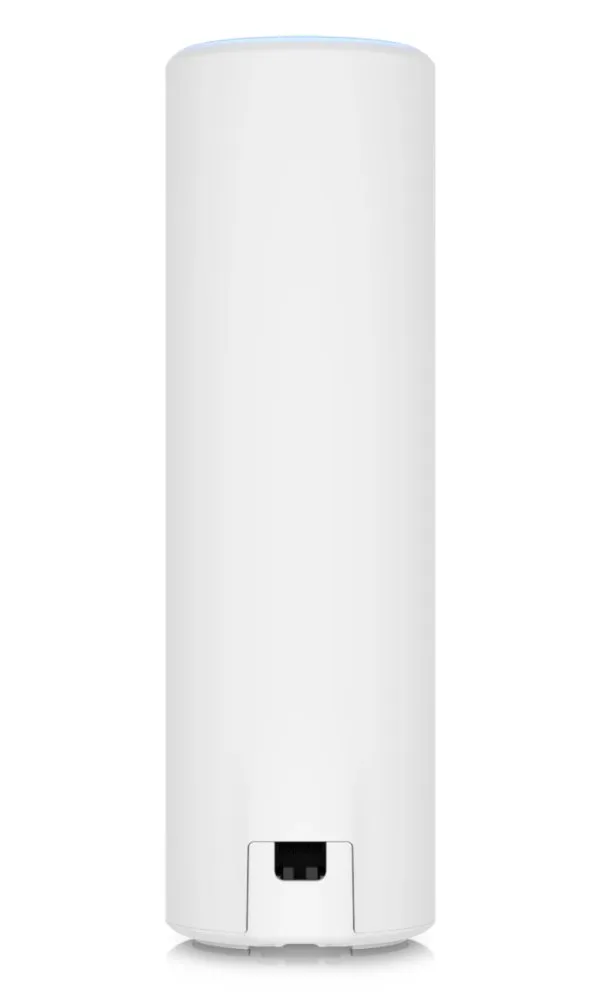

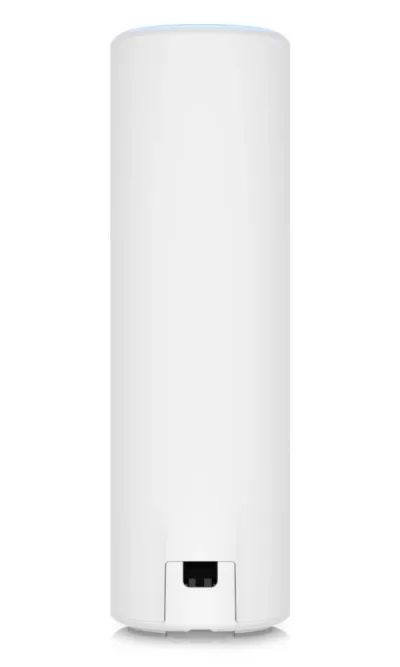

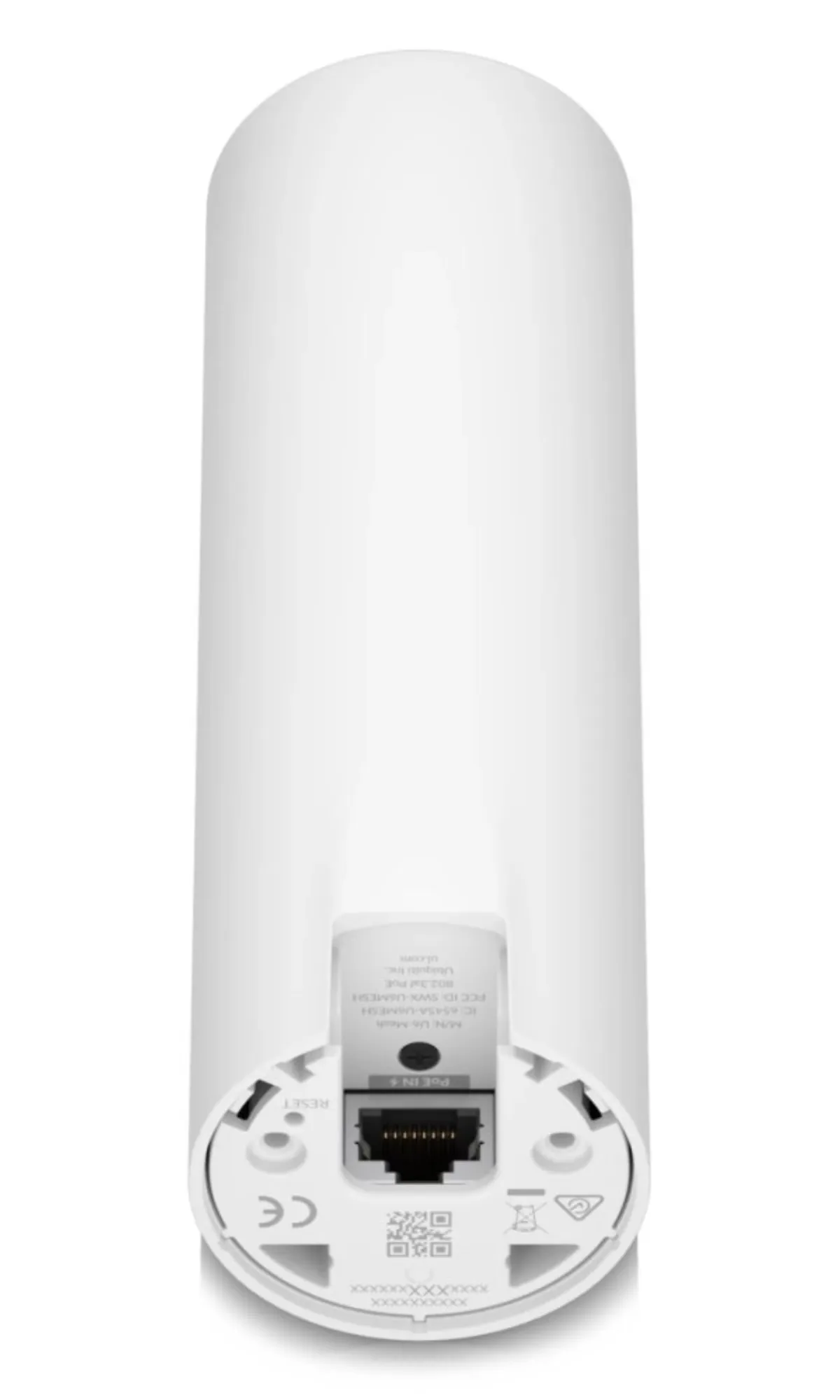

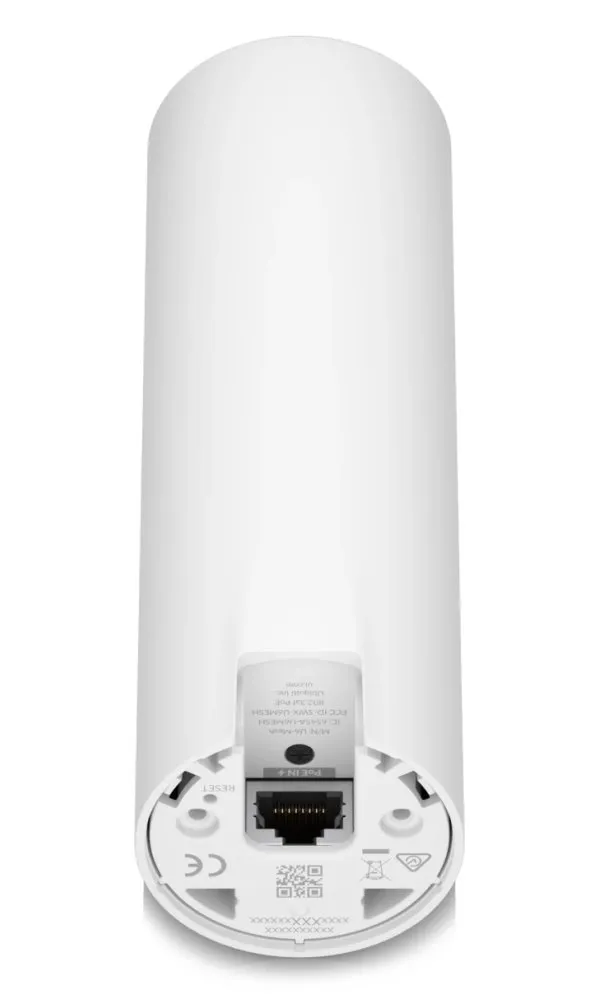

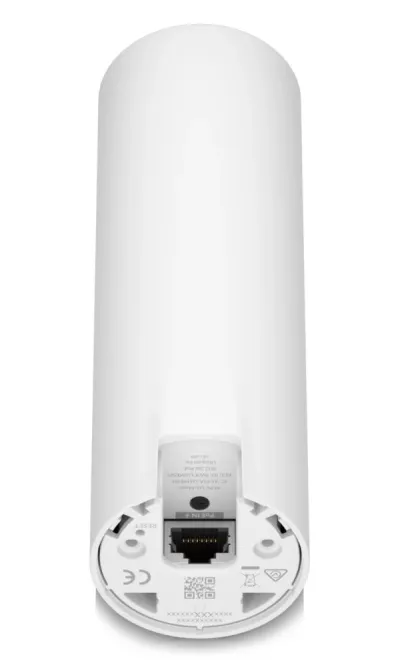

Ports: 1x GbE RJ-45

PoE support

• yes
• PoE 802.3af

Frequency band

• 2.4 GHz
• 5 GHz

Security

• WPA-PSK
• WPA-Enterprise (WPA/WPA2/WPA3)

Dimensions: 159.5 x 48.5 x 48.5 mm

Weight: 400 g
