Ubiquiti UniFi Switch Enterprise 24 PoE - 12x 2.5Gbit RJ45 12x 1Gbit RJ45 2x SFP+ port PoE 802.3af at (PoE bud. 400W)
UBIQUITI | USW-Enterprise-24-PoE | 810010073068
Price of goods is 836.62 €.
Weight of goods is 6.2 Kg.
Actual in cart 0 pcs.

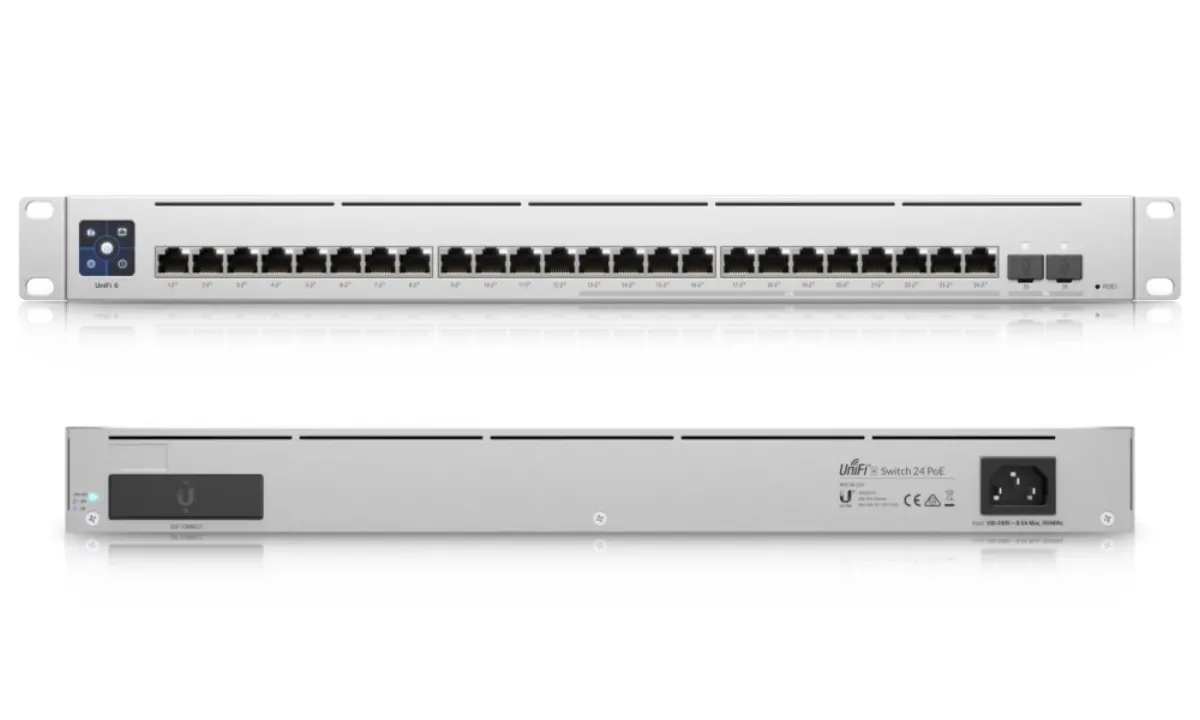

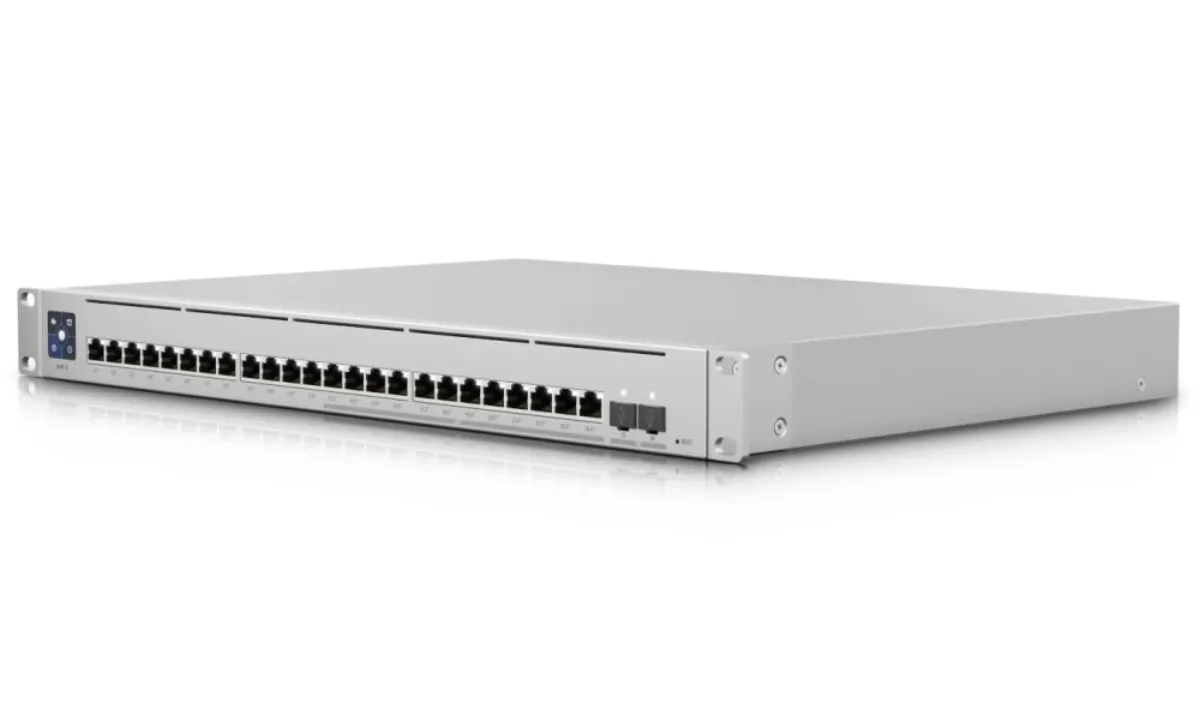

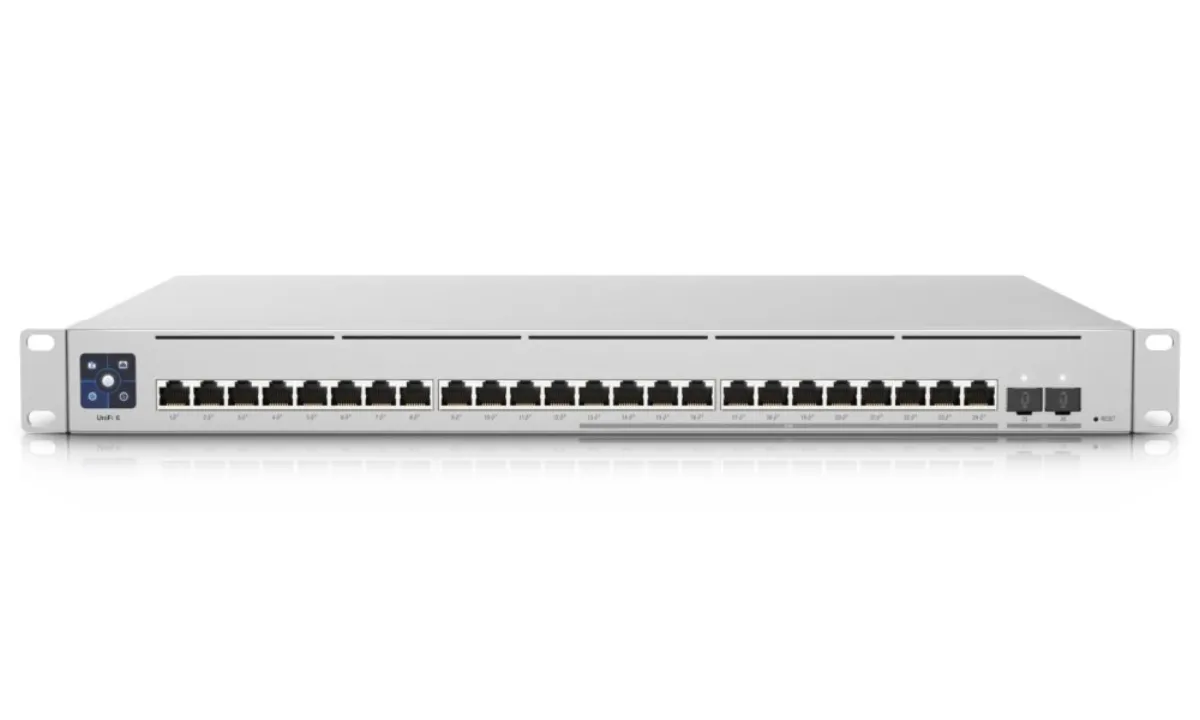

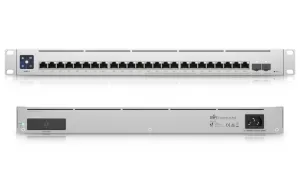

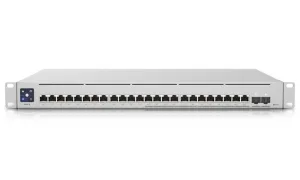

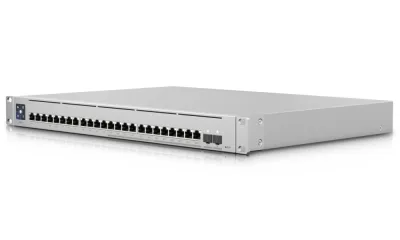

Ubiquiti UniFi Switch Enterprise 24 PoE
UniFi Switch Enterprise 24 PoE is a reliable switch with management in a professional design. It is a configurable powerful L3 switch with a capacity of 124 Gbps, a routing speed of 92.25 Mpps and a 1.3" touch display. The switch is equipped with twelve 2.5G PoE+ RJ-45, twelve 1G PoE+ RJ-45 and two 10G SFP+ slots for uplink. The total PoE+ power supply capacity of the switch is 400 W (802.3af/at). In addition, there is also an RPS DC input that provides redundant power, in case the primary fails.
- 12x 2.5G 802.3af/at PoE+ RJ-45 port
- 12x 1G 802.3af/at PoE+ RJ-45 port
- 2x 10G SFP+ slot
- 400 W PoE capacity (802.3af/at)
- 1.3" touch screen
- Metal design (SGCC steel)

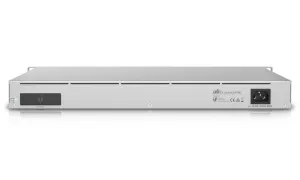

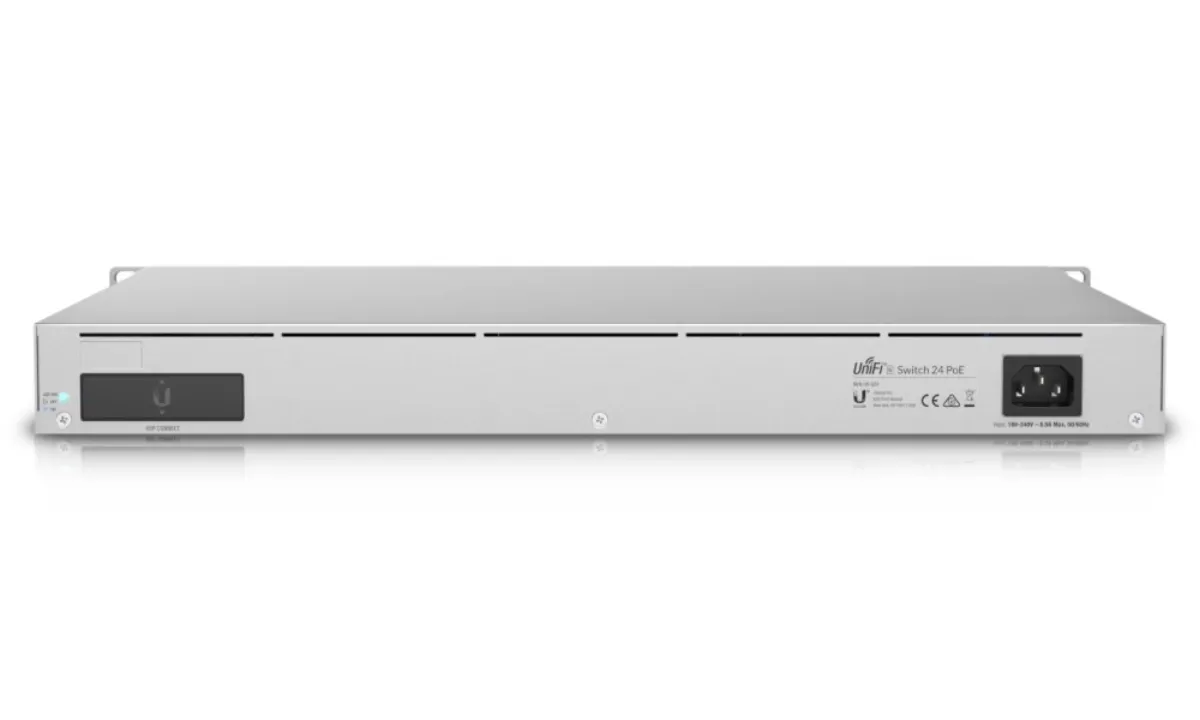

- Redundant power supply - UniFi SmartPower RPS DC input

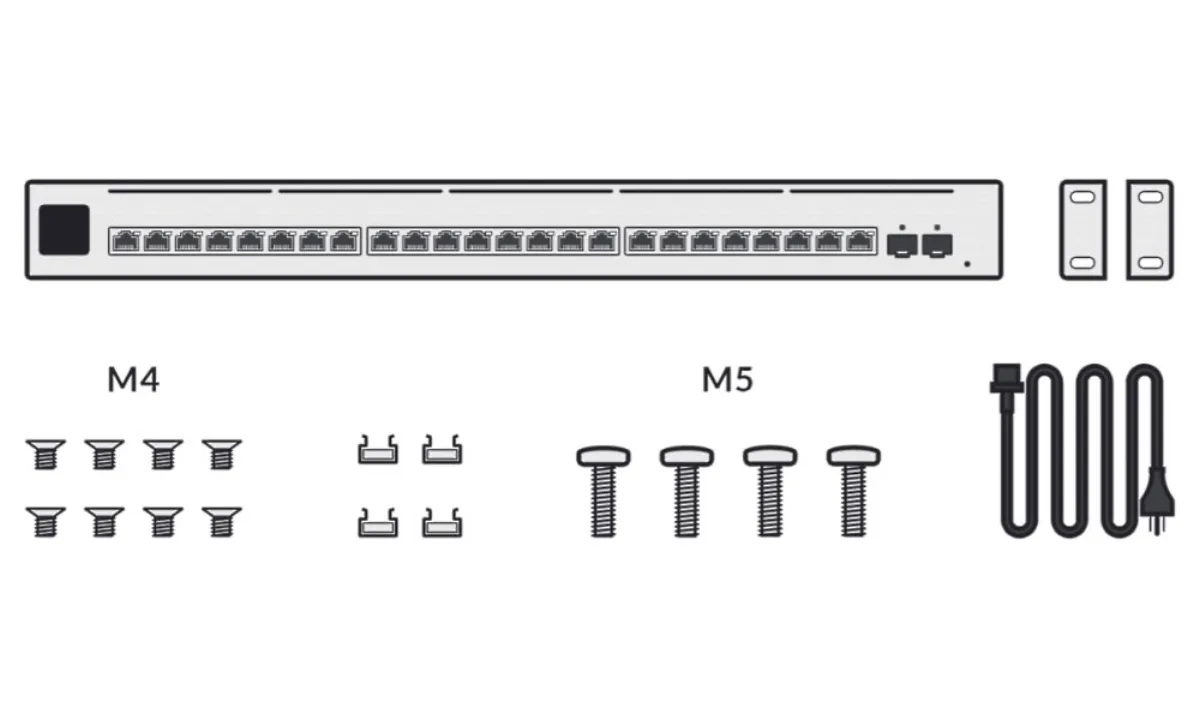

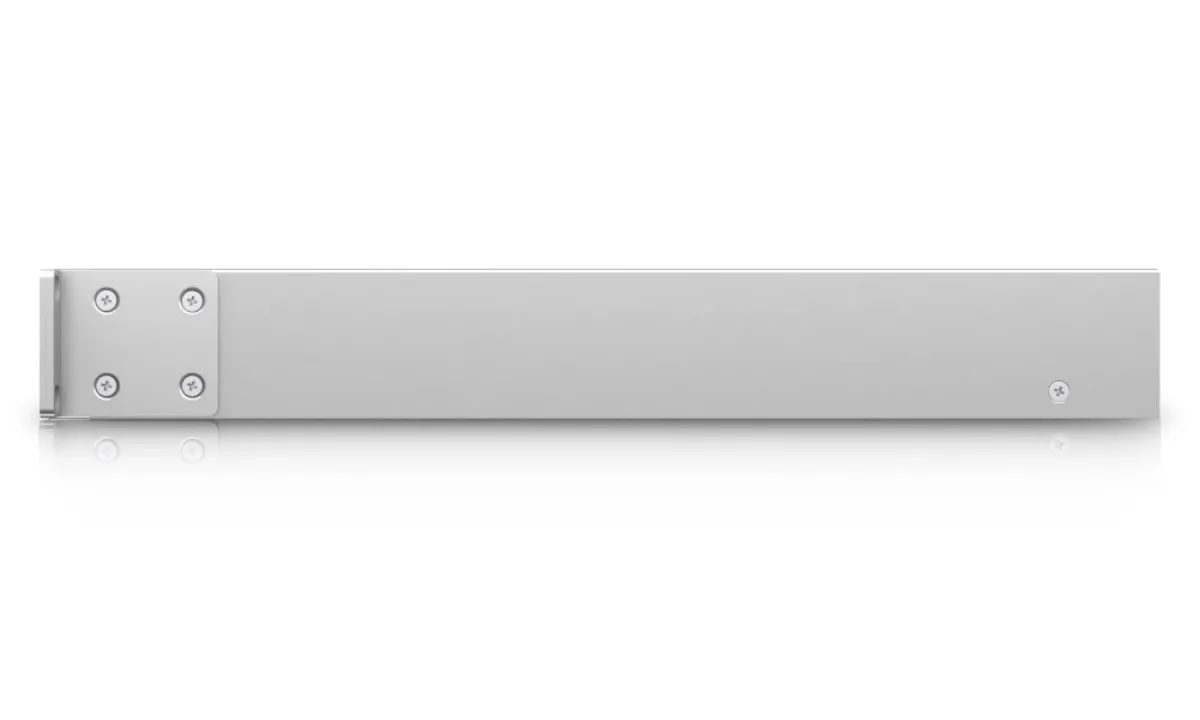

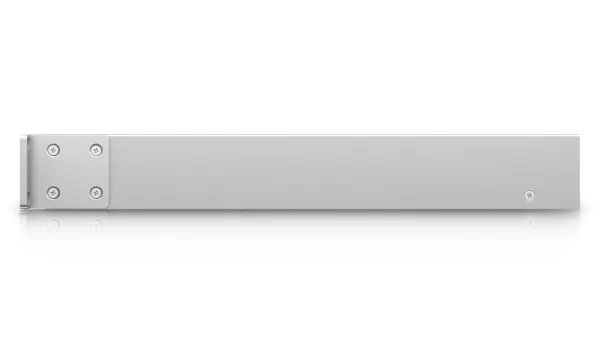

- 1U Rackmountable (mounting kit included)
- UniFi Network Application
UniFi Switches are part of the UniFi SDN (Software-Defined Networking) platform, which enables monitoring and control of end devices in the network, all clearly in the UniFi Network Application graphical interface. The UniFi Network Application provides network monitoring, UniFi device management, maps, statistics display and account settings.
Ports
- 12x 2.5G RJ-45
- 12x 1G RJ-45
- 2x 10G SFP
Switch capacity: 124 Gbps
Routing Speed: 92.25 Mpps
PoE support
- yes (802.3af/at
- 400 W PoE budget)
Dimensions: 442.4 x 325 x 43.7mm
Weight: 5.11 kg (5.2 kg with rack mounts)
| Name | Value | |
|---|---|---|
| Color | silver | |
| Input voltage [V] | 11,5 (DC) | |
| Dimension [mm] | 442,4 × 325 × 43,7 mm | |
| Minimum operating temperature [°C] | -5 | |
| Maximum operating temperature [°C] | 40 | |
| PoE support | Yes | |
| SFP+ count | 2 | |
| MicroSD card support | No | |
| Device power supply | redundant | |
| Conformity | CE, FCC, IC | |
| OSI Layer | L3 static (L2+) | |
| PoE output | 802.3af/at | |
| Port speed | 1 Gb/s + 2,5 Gb/s + 10 Gb/s | |
| Bus capacity (GBps) [Gbps] | 124 | |
| Fanless | No | |
| PoE output count | 24 | |
| Design | rack 19" | |
