Ubiquiti UniFi U7 Pro Max - Wi-Fi 7 AP 2.4 5 6GHz to 15.1 Gbps 1x 2.5GbE PoE+ (without PoE injector)
UBIQUITI | U7-Pro-Max | 8592457264996
On stock 91 pcs.
Price of goods is 277.54 €.
Weight of goods is 1.313 Kg.
Actual in cart 0 pcs.

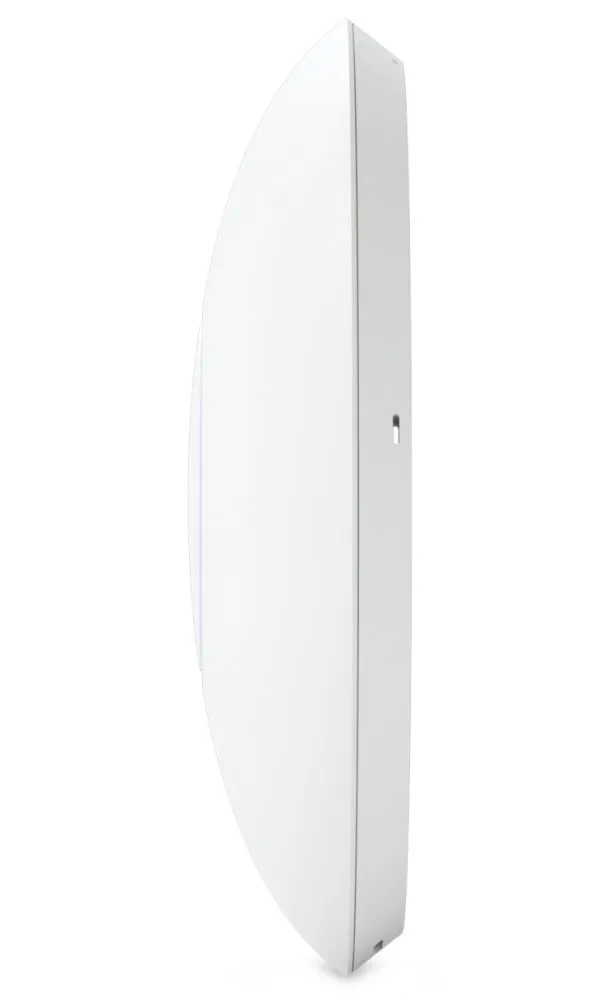

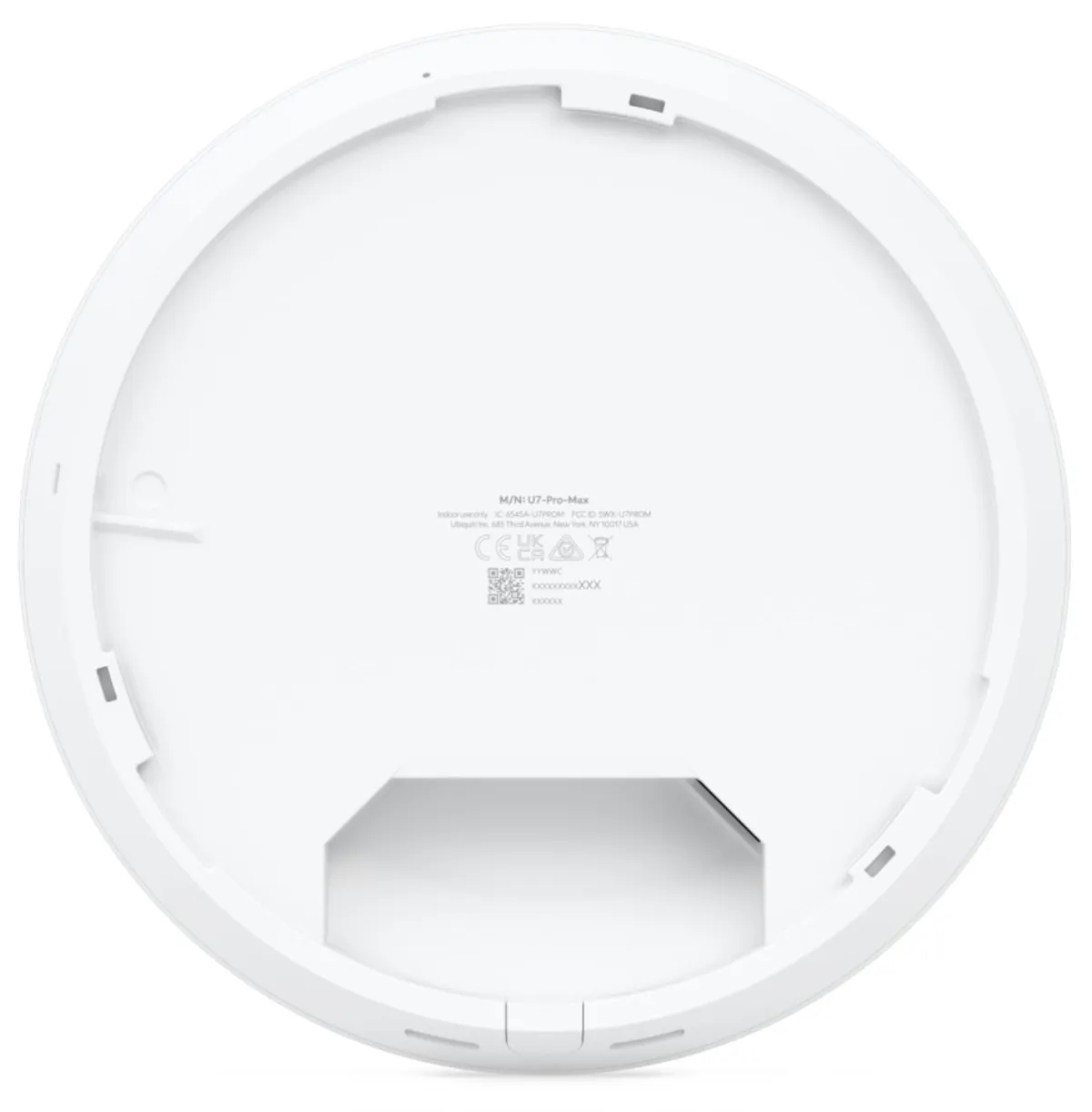

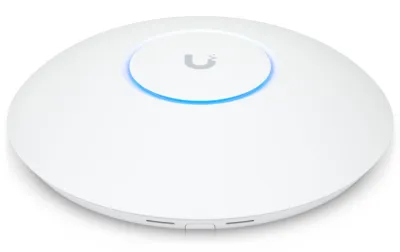

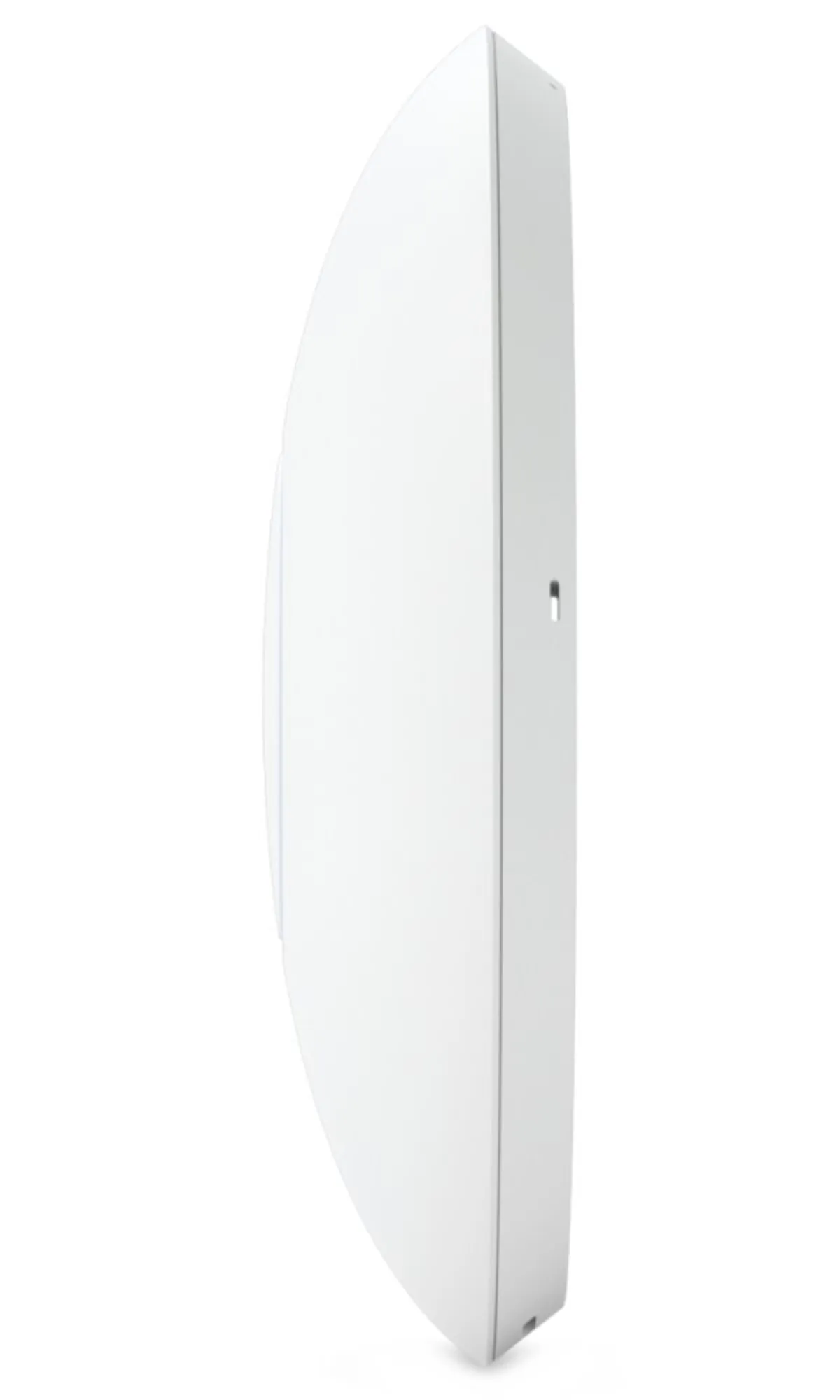

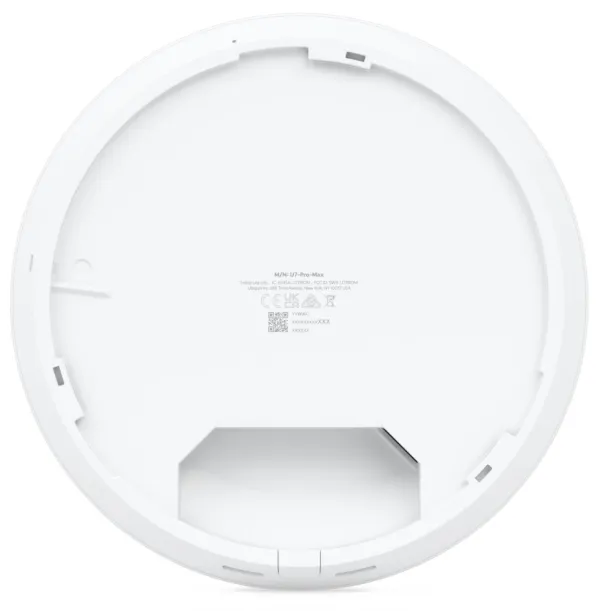

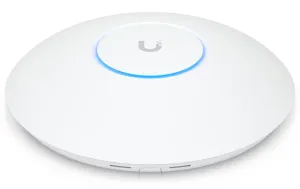

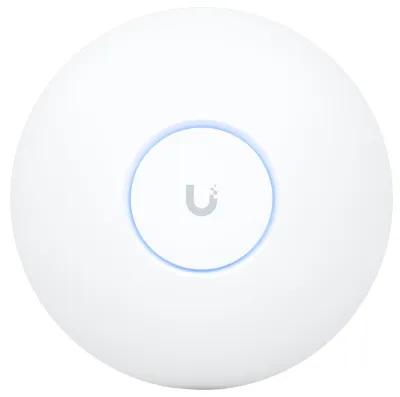

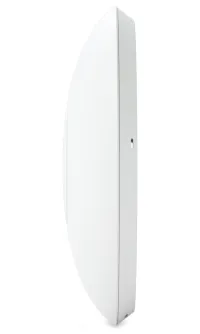

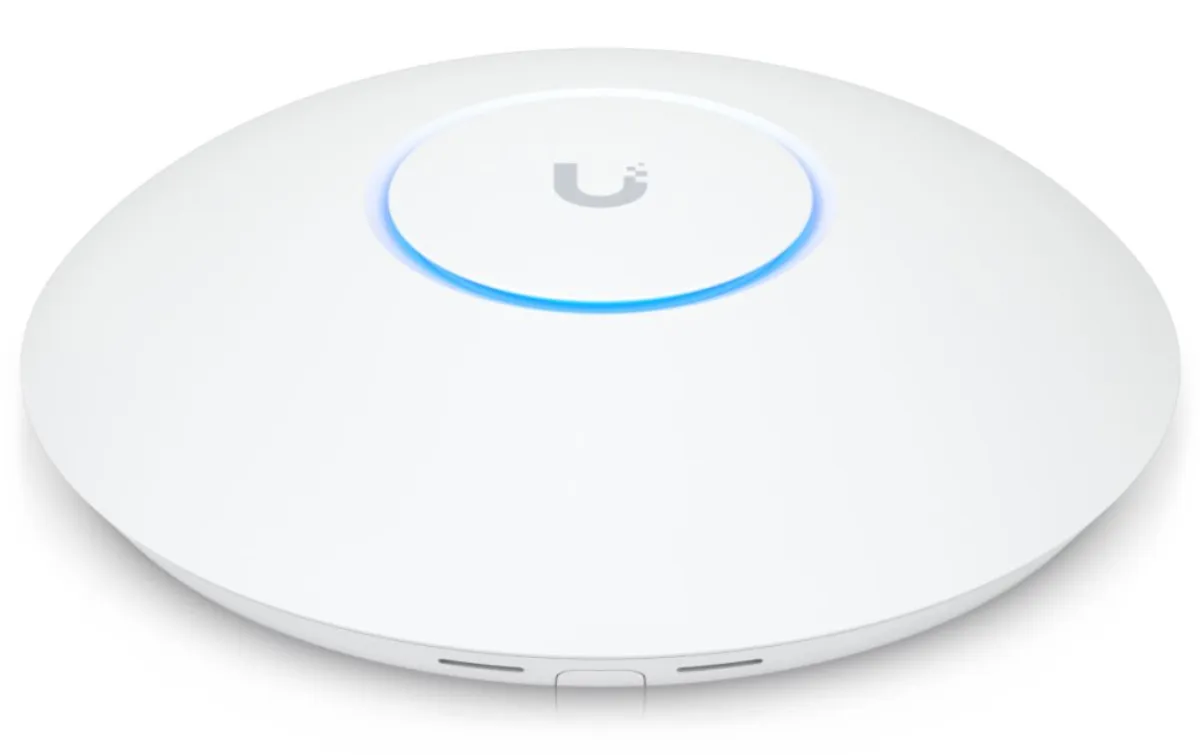

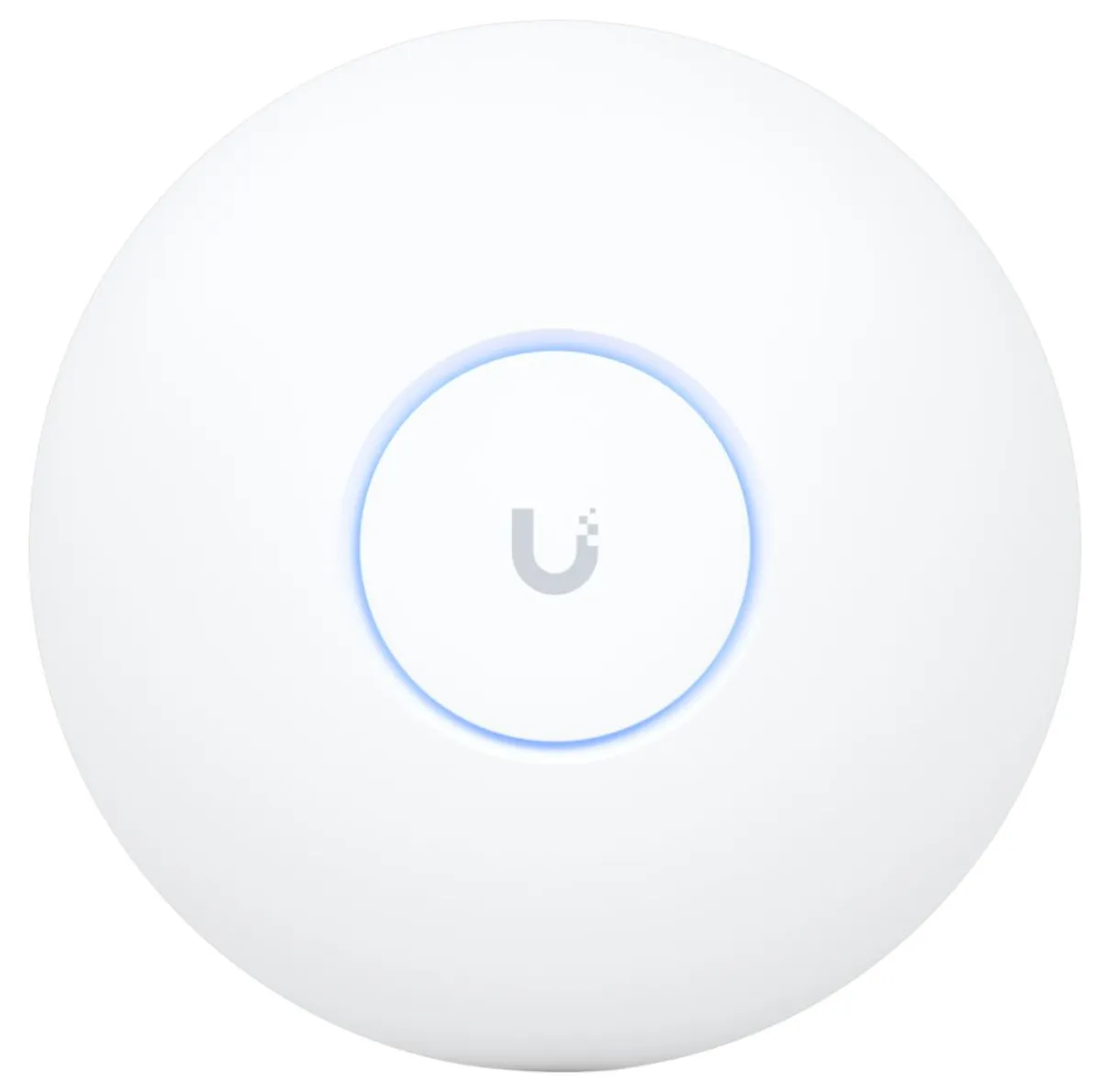

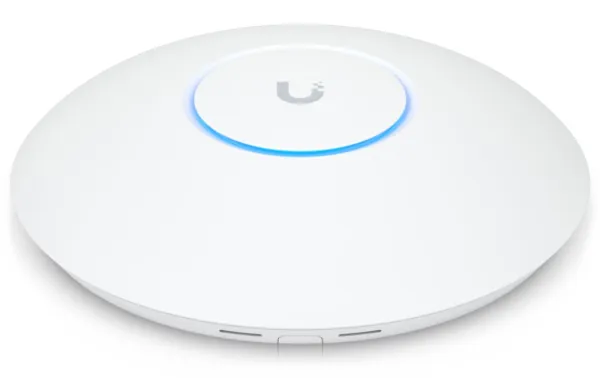

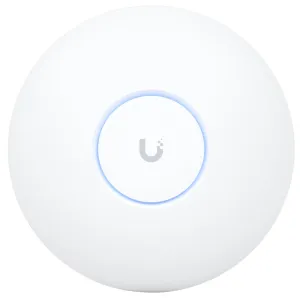

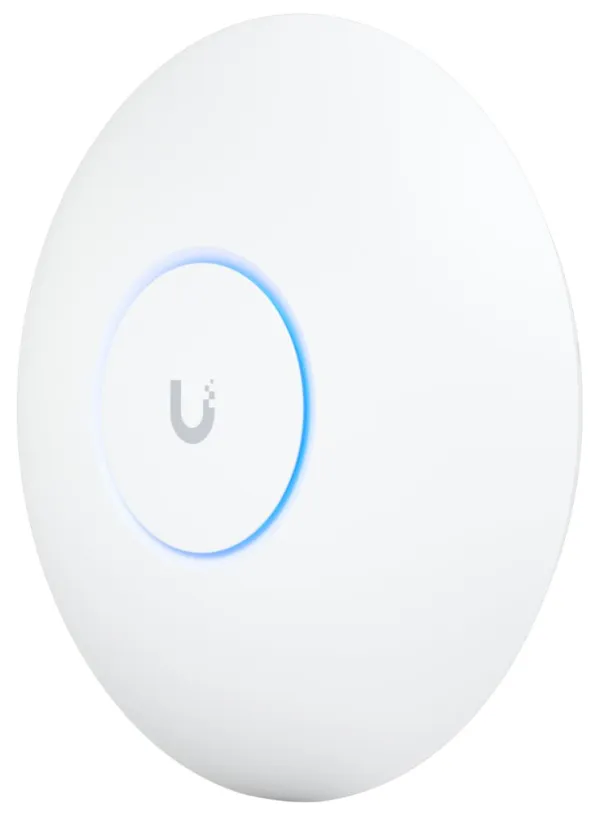

Ubiquiti UniFi U7 Pro Max

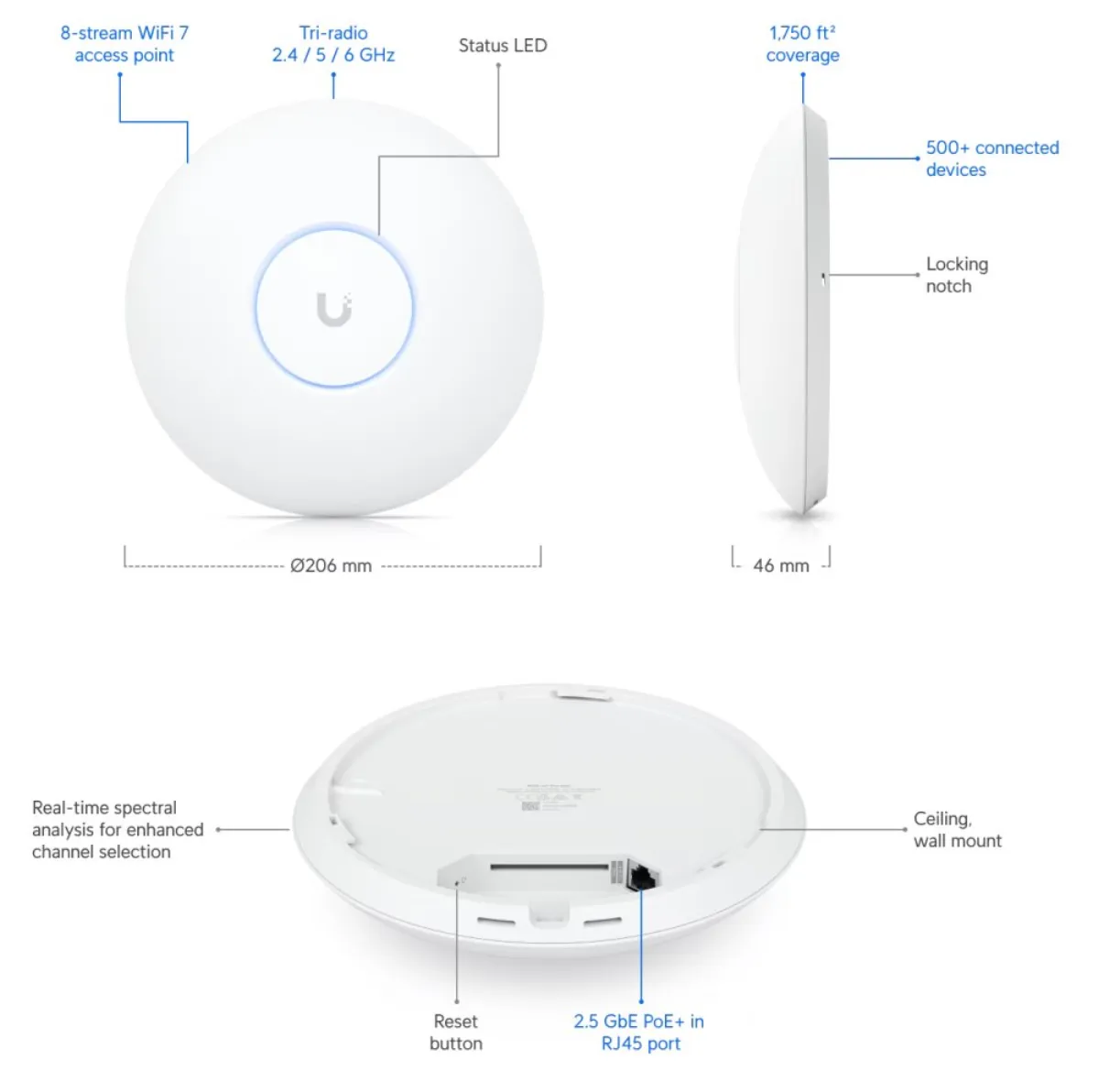

The Ubiquiti UniFi U7 Pro Max unit is a Wi-Fi 7 AP with support for frequency bands 2.4, 5 and 6 GHz and a transmission speed of up to 5765 Mbps for 6 GHz, 8648 Mbps for 5 GHz and 688 Mbps for 2.4 GHz. Designed specifically for professional and enterprise deployments, the U7 Pro Max is ideal for applications requiring flawless Wi-Fi services in demanding, large-scale high-traffic environments. Supports PoE+ power supply.
UniFi U7 Pro Max is a well-designed indoor hotspot solution using the 802.11a/b/g/n/ac/ax/be standard. It is equipped with a MIMO 2×2 (2.4 GHz), MIMO 4×4 (5 GHz) and MIMO 2×2 (6 GHz) antenna system in the form of integrated antennas with a gain of 4 dBi/ 6 dBi/ 5.9 dBi (2.4 GHz/ 5 GHz/ 6 GHz).
- Wi-Fi 7 with 6 GHz support
- 8 data streams
- Real-time spectrum analysis for better channel selection (UniFi Network 8.2.93 and later)
- Covering 160 m2
- WPA3 encryption
- More than 500 connected devices
- Powered by PoE+ (802.3at)
- Operating temperature -30 to +60 °C
- Uplink 2.5 GbE
Standard: 802.11a/b/g/n/ac/ax/b
Antenna: integrated 3-band antenna
Operating frequency
- 2.4 GHz
- 5 GHz
- 6 GHz
Data transfer speed
- 688 Mbps (2.4 GHz)
- 8648 Mbps (5 GHz)
- 5765 Mbps (6 GHz)
PoE
- yes
- active PoE+ 802.3at

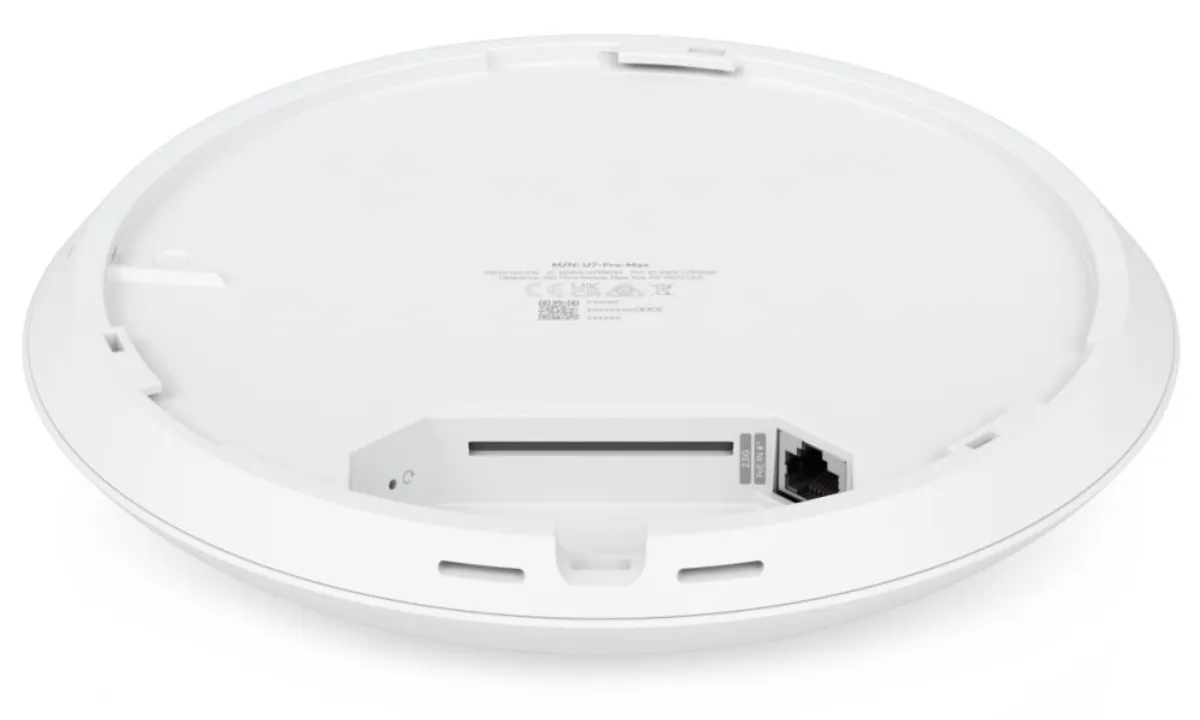

Ports: 1× 2.5 GbE RJ-45

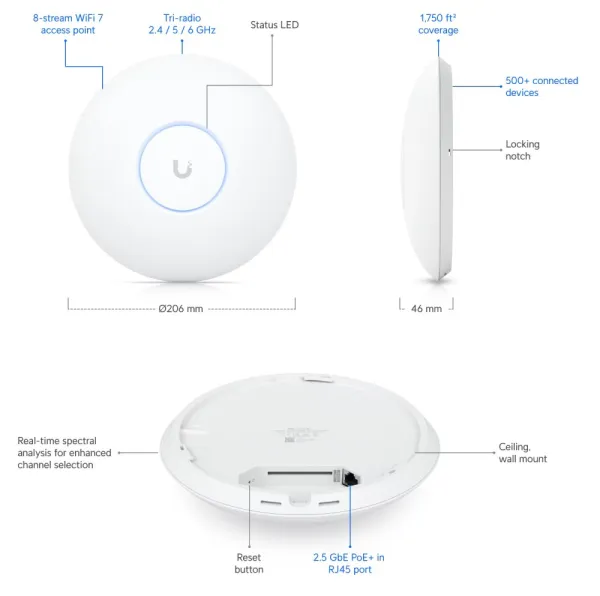

Dimensions: 206 x 206 x 46 mm
Weight: 680 g
| Name | Value | |
|---|---|---|
| Color | white | |
| Dimension [mm] | 206 × 206 × 46 mm | |
| Maximum operating temperature [°C] | 60 | |
| Port speed | 2,5 Gb/s | |
| Minimum operating temperature [°C] | -30 | |
| Design | on the ceiling | |
| Outdoor use | No | |
| Conformity | CE, FCC, IC | |
| Consumption [W] | 22 | |
| Transmission speed [Mbps] | 5765 (6GHz), 8648 (5GHz), 688 (2,4GHz) | |
| Max. output power [dBm] | 23 (2,4GHz), 29 (5GHz), 23 (6GHz) | |
| Encryption | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) | |
| Wi-Fi standard | 802.11a/b/g/n/ac/ax/be | |
| Wi-Fi frequency | 2400 MHz/5000 MHz/6000 MHz | |
| WEP security | No | |
| WPA3 security | Yes | |
| Antenna design | internal | |
| Indoor use | Yes | |
| Gain [dBi] | 4 (2,4GHz), 6 (5GHz), 5,9 (6GHz) | |
