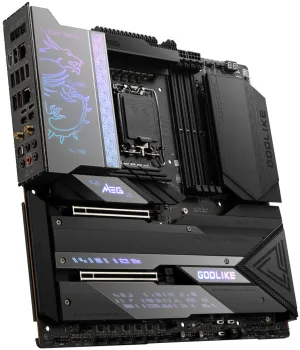

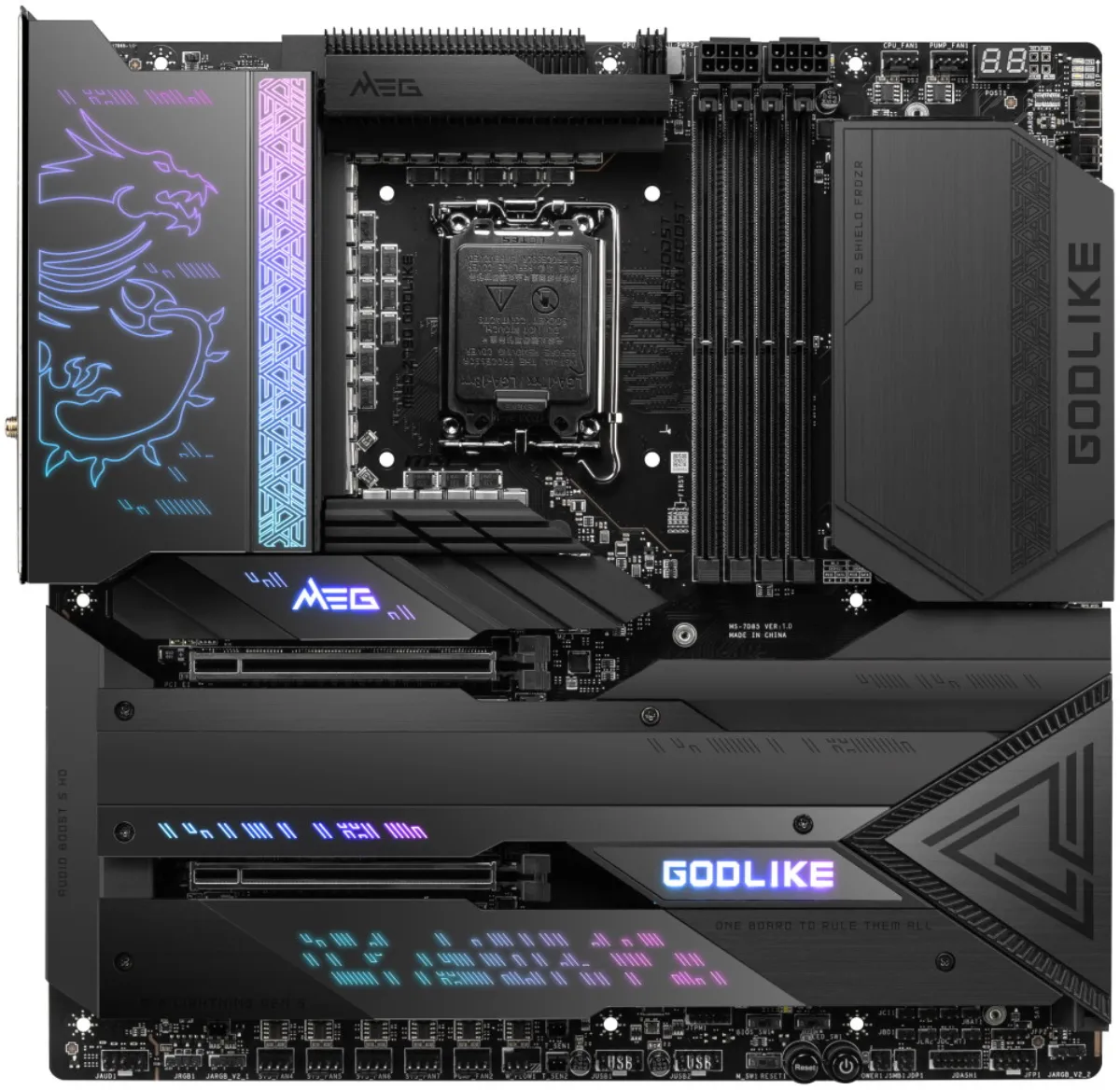

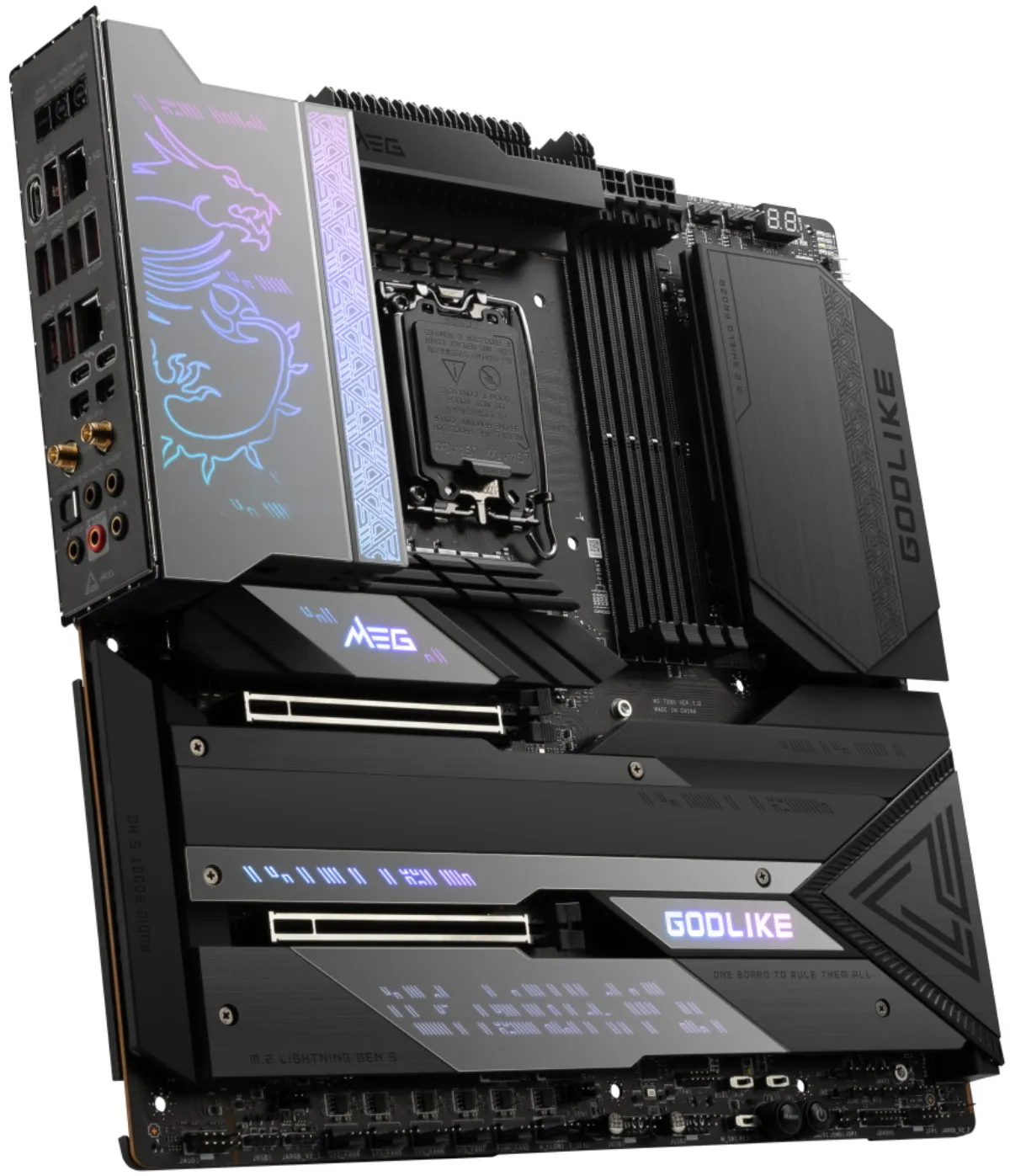

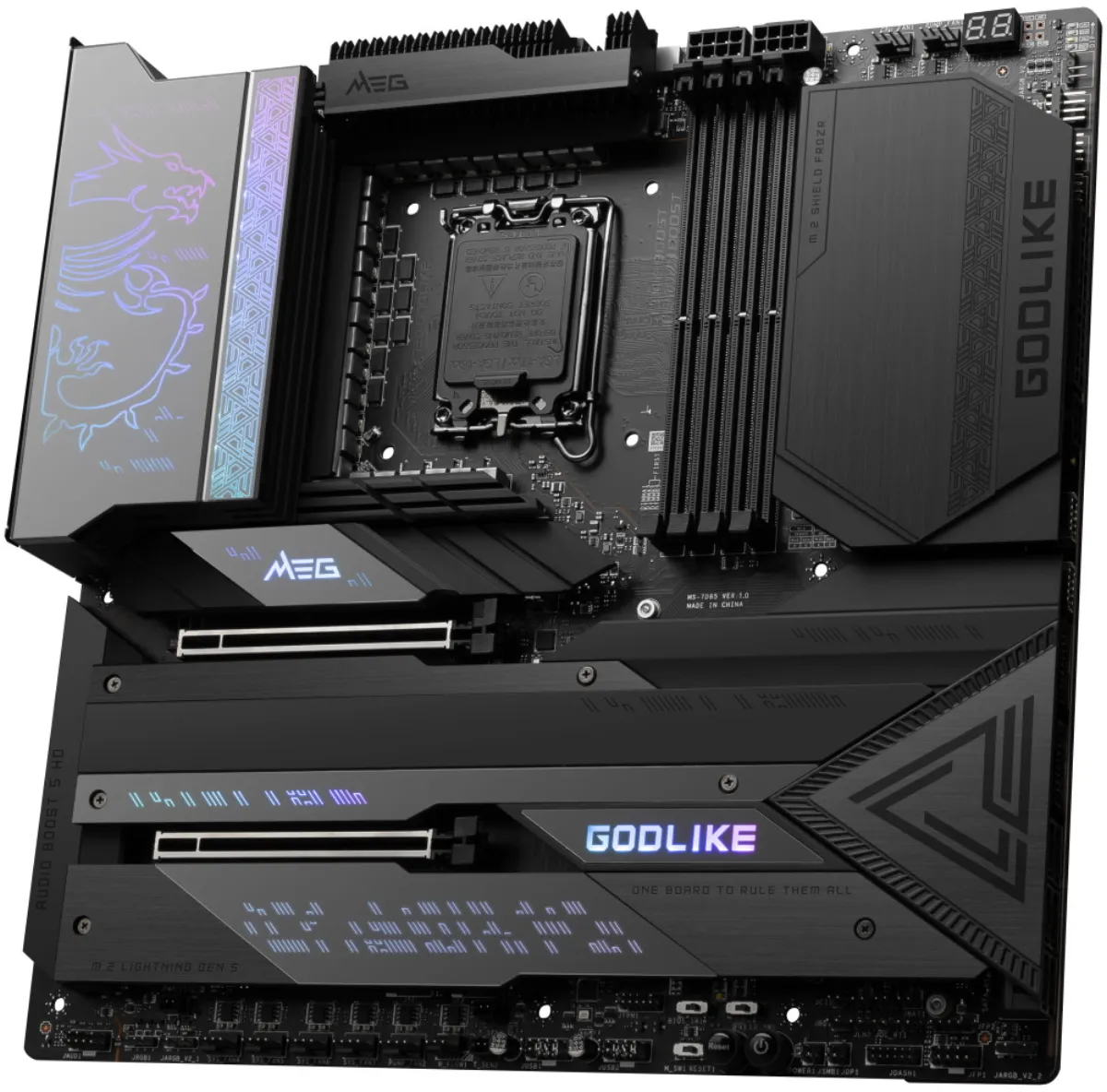

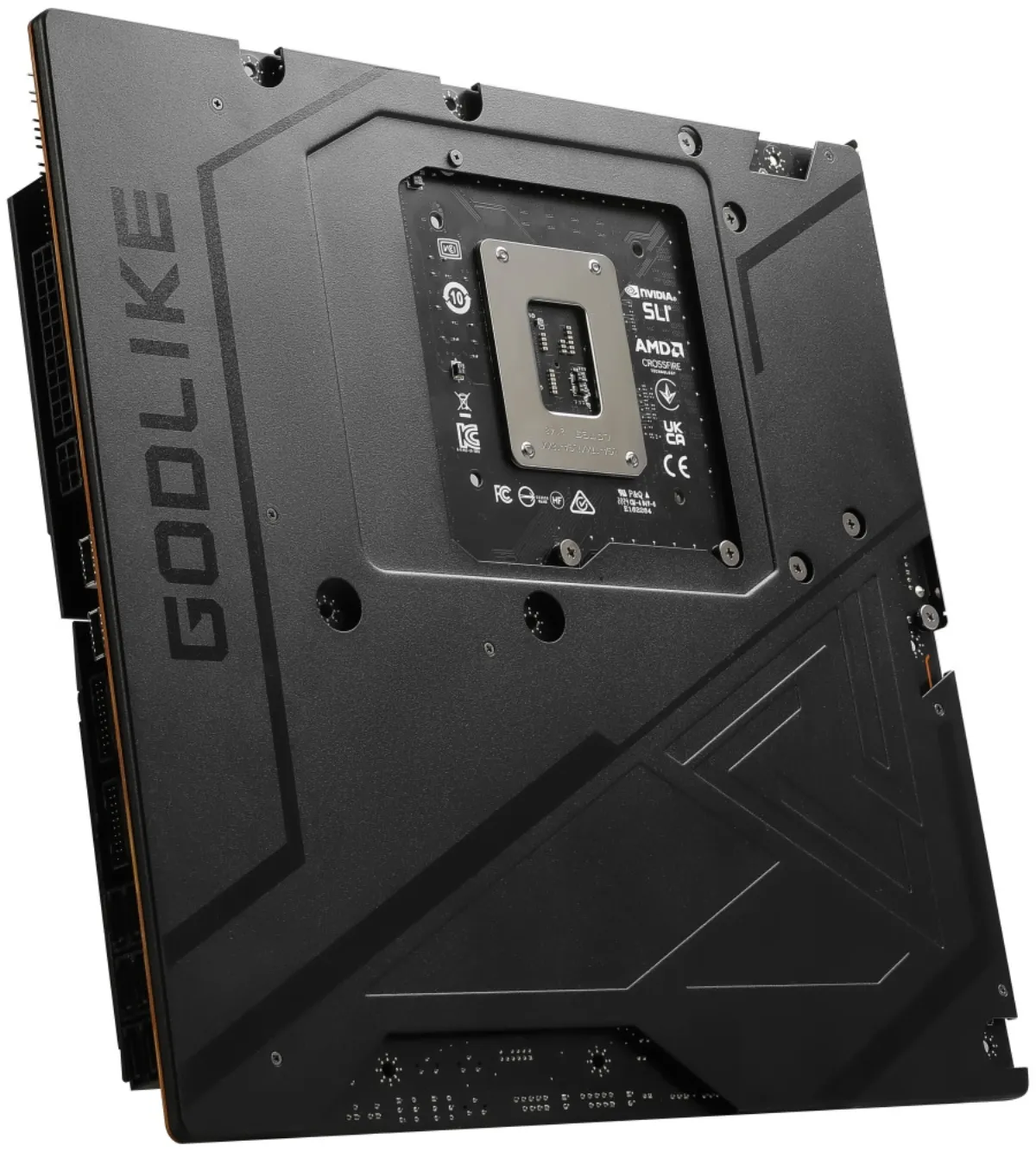

MSI MEG Z790 GODLIKE Intel Z790 LGA1700 4x DDR5 7x M.2 USB-C 2x Mini DP 2x Thunderbolt4 WiFi EATX

MSI MEG Z790 GODLIKE

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 13 . and 12 . generation Intel Core/ Pentium Gold/ Celeron
• Socket LGA1700

Chipset

• Intel Z790

Memory

• 4x DDR5 memory slot, support up to 128 GB
• Support DDR4 7800+ (OC)/ 7600 (OC)/ 7400 (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC) / 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (JEDEC)/ 5400 (JEDEC)/ 5200 (JEDEC)/ 5000 (JEDEC)/ 4800 (JEDEC) MHz
• Dual channel memory architecture
• Non-ECC support, no buffering
• Intel Extreme Memory Profile (XMP 3.0 OC) support

Slots

• 1x PCIe 5.0 x16 slot
• 1× PCIe 5.0 x16 slot (supports x8 mode)

Graphic Design

• 2× Thunderbolt 4 port, supporting max. 8K resolution
• 2x Mini DisplayPort input (for pass-through Thunderbolt)

Multi-GPU

• AMD Multi-GPU technology support
• NVIDIA SLI support

Repository

• 2x SATA 6Gb/s port (without RAID support)
• 1× M.2 slot, M Key, for 2260/2280/22110 type units (PCIe 4.0 x4 mode)
• 1× M.2 slot, M Key, for 2280/22110 type units (PCIe 5.0 x4 mode)
• 4x SATA 6Gb/s port
• 3× M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
• 1× M.2 slot, M Key, for 2260/2280 type units (SATA and PCIe 4.0 x4 mode)
• 1× M.2 slot, M Key, for 2260/2280 type units (SATA and PCIe 3.0 x4 mode)
• RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives
• RAID 0, RAID 1, RAID 5 and RAID 10 support for M.2 NVMe drives

USB

• 4x USB 2.0 port available via internal USB connectors
• 2x USB-C 3.2 Gen2x2 port available via internal USB connectors
• 4x USB 3.2 Gen1 (USB 3.0) port available via internal USB connectors
• 7× USB 3.2 Gen2 (USB 3.1) port on the back panel
• 1× USB-C 3.2 Gen2 (USB 3.1) port on the back panel

Audio

• Realtek ALC4082 Codec
• ESS ES9280AQ Combo DAC/HPA
• 7.1-channel USB High Performance Audio
• S/PDIF output support

HIND

• 1× Marvell AQC113CS-B1-C 10Gigabit LAN controller
• 1× Intel 2.5Gigabit LAN controller

WLAN/ Bluetooth

• Intel Wi-Fi 6E
• Wi-Fi 802.11a/b/g/n/ac/ax
• Triple Band (2.4 GHz, 5 GHz, 6 GHz)
• Support MU-MIMO TX/RX
• Data transfer speed up to 2.4 Gbps
• Bluetooth 5.3

Internal Connectors

• 1× 24pin ATX main power connector
• 2× 8pin +12V power connector
• 1× 6pin PCIe power connector
• 2x USB-C 3.2 Gen2x2 connector
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 2x USB 3.2 Gen1 connector (supports 4x USB 3.2 Gen1 (USB 3.0) port)
• 1× 4pin CPU fan connector
• 2x 4pin water cooling pump fan connector
• 7× 4pin system fan connector
• 1x front panel audio connector
• 2x system panel connector
• 1x cabinet opening detection connector
• 1× 3pin water cooling sensor connector (liquid flow monitoring)
• 2x 2pin temperature sensor connector
• 1× TPM connector
• 1x Tuning controller connector
• 1x Power button
• 1x Reset button
• 1x Clear CMOS jumper
• 1x jumper for Slow mode
• 2x jumper for Low temperature booting
• 1x OC Safe Boot BIOS jumper
• 1x OC Retry jumper
• 1x EZ LED Control switch
• 1x Multi-BIOS switch
• 1x M-Vision switch
• 1× 4pin RGB LED connector
• 3× 3pin connector A-RAINBOW V2 (ARGB Gen2) LED
• 4x EZ Debug LEDs
• 1× 2-digit Debug Code LED

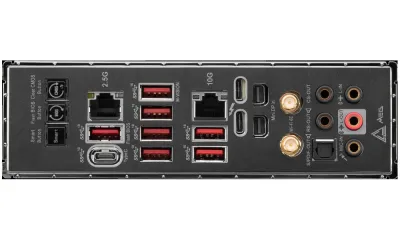

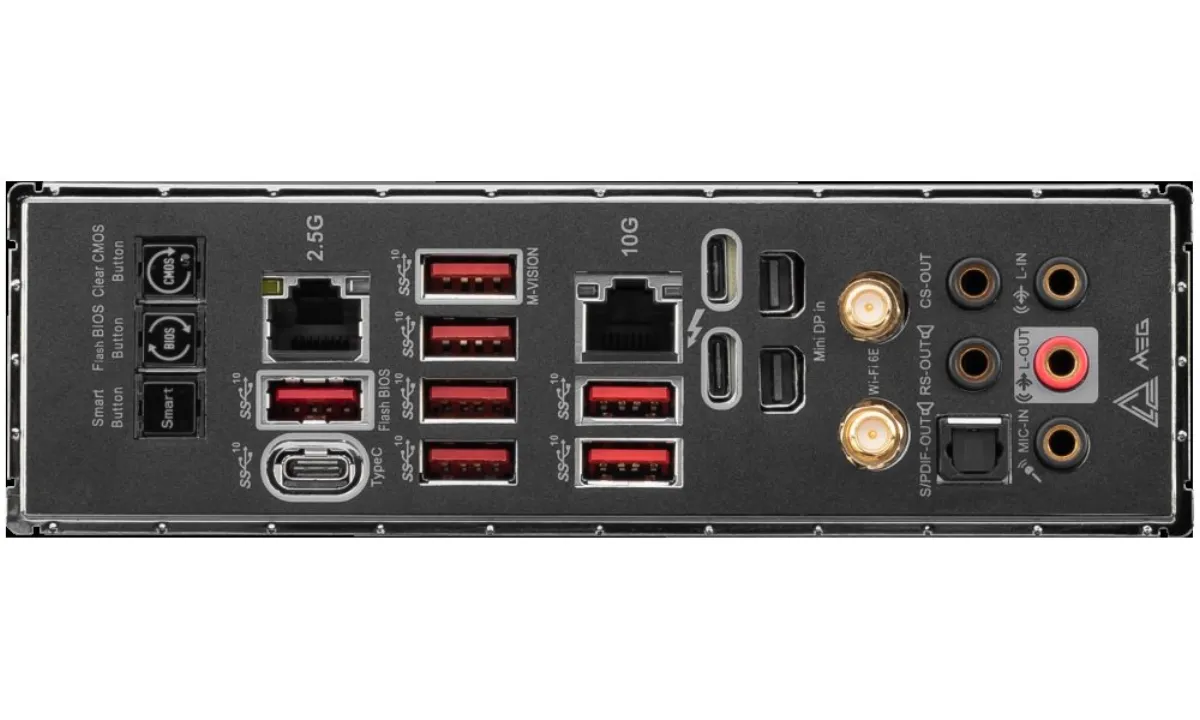

Rear Panel Ports

• 1x Clear CMOS button
• 1x Flash BIOS button
• 1x Smart button
• 2x RJ-45
• 7× USB 3.2 Gen2 (USB 3.1)
• 1× USB-C 3.2 Gen2 (USB 3.1)
• 2x Thunderbolt 4
• 2x Mini DisplayPort
• 2x Wi-Fi antenna connector
• 5x audio jack
• 1x optical S/PDIF output

Dimensions

• 30.48 x 31 cm
• E-ATX format
