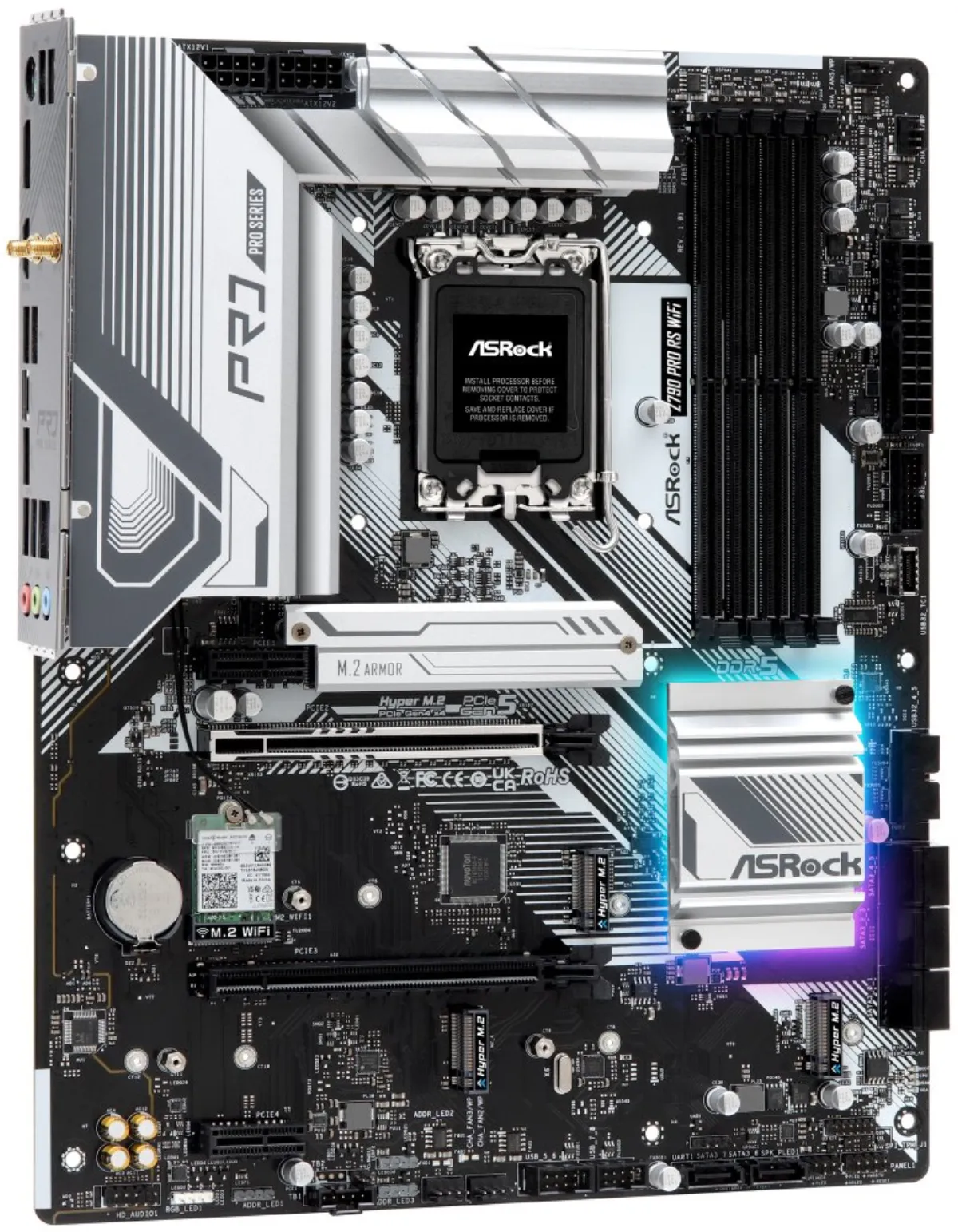

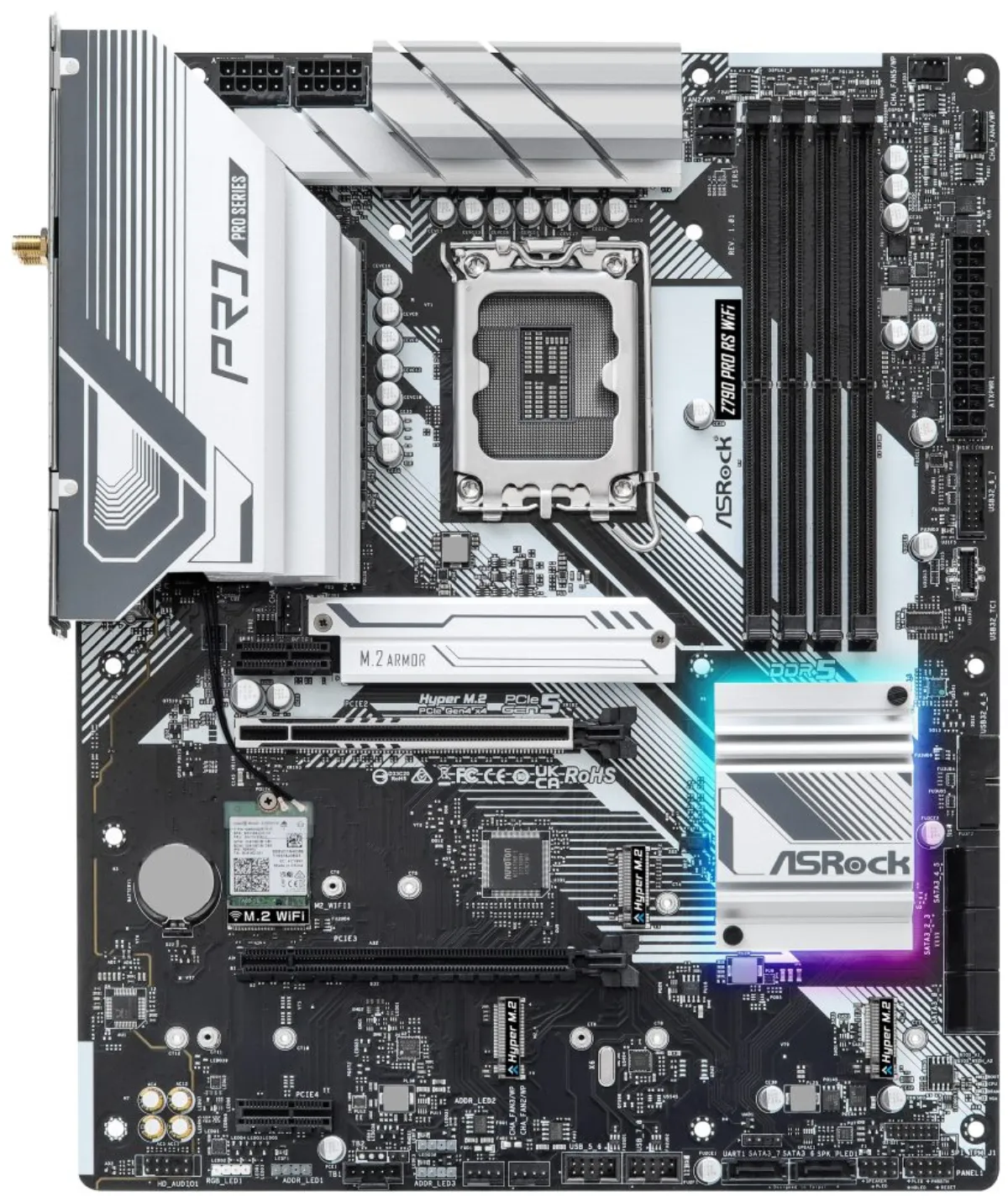

ASRock Z790 Pro RS WiFi Intel Z790 LGA1700 4x DDR5 DIMM 4x M.2 HDMI DP USB-C ATX

ASRock Z790 Pro RS WiFi

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 12 . and 13 . generation Intel Core/ Pentium/ Celeron (socket LGA1700)

Chipset

• Intel Z790

Memory

• 4x DDR5 memory slot, support up to 192 GB
• DDR5 support up to 7200+ (OC) MHz
• Dual channel memory architecture
• Non-ECC support, no buffering
• Intel Extreme Memory Profile (XMP) 3.0 support

Slots

• 1x PCIe 5.0 x16 slot
• 1× PCIe 4.0 x16 slot (supports x4 mode)
• 1x PCIe 3.0 x1 slot

Graphic Design

• 1× eDP port, supporting max. Full HD resolution at 60 Hz
• 1× HDMI port, supporting a maximum resolution of 4K at 60 Hz
• 1× DisplayPort port, supporting max. resolution 8K at 60 Hz, 5K at 120 Hz

Multi-GPU

• AMD CrossFire technology support

Repository

• 1× Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
• 3× Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
• 8x SATA 6 Gb/s port
• Intel Volume Management Device (VMD) support
• RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives
• RAID 0, RAID 1 and RAID 5 support for M.2 NVMe drives

USB

• 1× USB-C 3.2 Gen2x2 port available via an internal USB connector
• 1× USB-C 3.2 Gen2 (USB 3.1) port on the back panel
• 1× USB 3.2 Gen2 (USB 3.1) port on the back panel
• 6× USB 3.2 Gen1 (USB 3.0) port (2 ports on the back panel, 4 ports available via internal USB connectors)
• 8× USB 2.0 port (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek ALC897 Codec
• 7.1 channel High Definition Audio
• Nahimic Audio

HIND

• 1× Dragon RTL8125BG 2.5Gigabit LAN controller

WLAN/ Bluetooth

• Wi-Fi 6E module
• Wi-Fi 802.11a/b/g/n/ac/ax
• Dual Band 2x2 (2.4 GHz, 5 GHz) + 6 GHz
• MU-MIMO support
• Bluetooth

Internal Connectors

• 1x eDP connector
• 1x TPM SPI connector
• 1x speaker connector and Power LED
• 1x RGB LED strip connector
• 3x addressable LED strip connector
• 1× 4pin CPU fan connector
• 1× 4pin CPU fan/water cooling fan connector
• 5× 4pin case fan/water cooling fan connector
• 1× 24pin ATX main power connector
• 2× 8pin 12V power connector
• 1x front panel audio connector
• 1× 5pin Thunderbolt AIC connector (supports ASRock Thunderbolt 4 AIC)
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 2x USB 3.2 Gen1 (USB 3.0) connector (supports 4x USB 3.2 Gen1 port)
• 1× USB-C 3.2 Gen2x2 front panel connector
• 8x SATA 6 Gb/s connector
• 4x Hyper M.2 slot, M Key

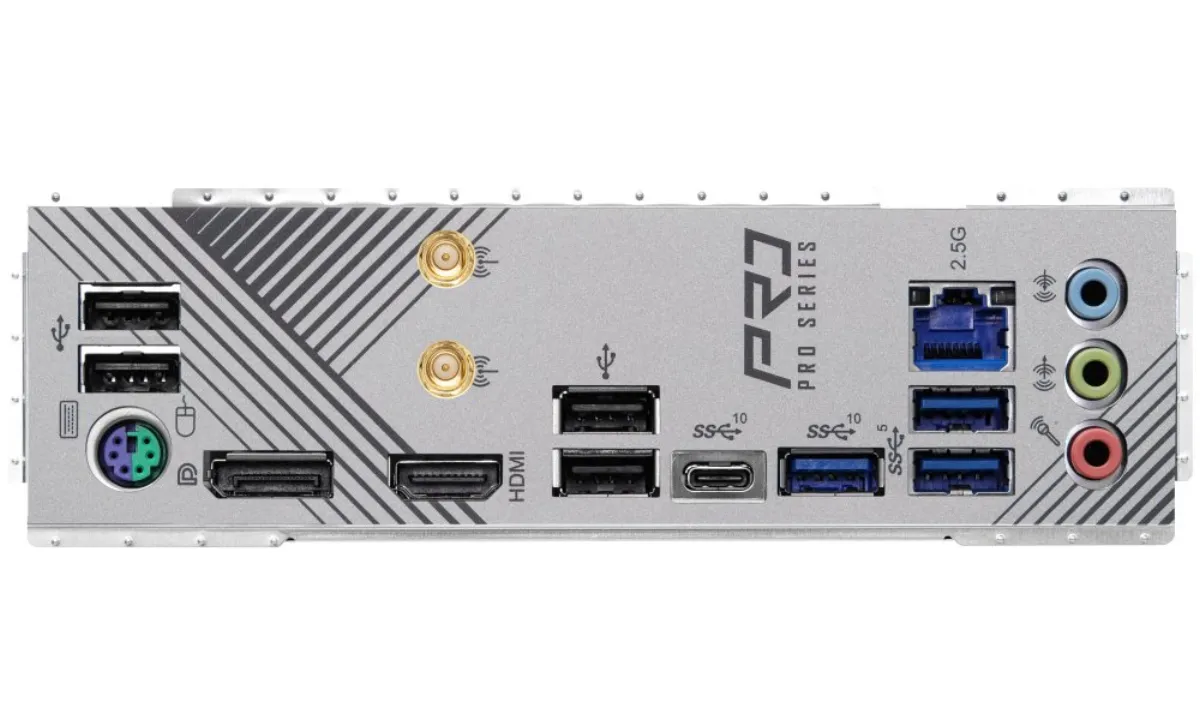

Rear Panel Ports

• 2x Wi-Fi antenna connector
• 1× PS/2 keyboard and mouse combo port
• 1x HDMI
• 1x DisplayPort
• 1× USB-C 3.2 Gen2 (USB 3.1)
• 1× USB 3.2 Gen2 (USB 3.1)
• 2x USB 3.2 Gen1 (USB 3.0)
• 4x USB 2.0
• 1x RJ-45
• 3x audio jack

Dimensions

• 30.5 x 24.4 cm
• ATX format
