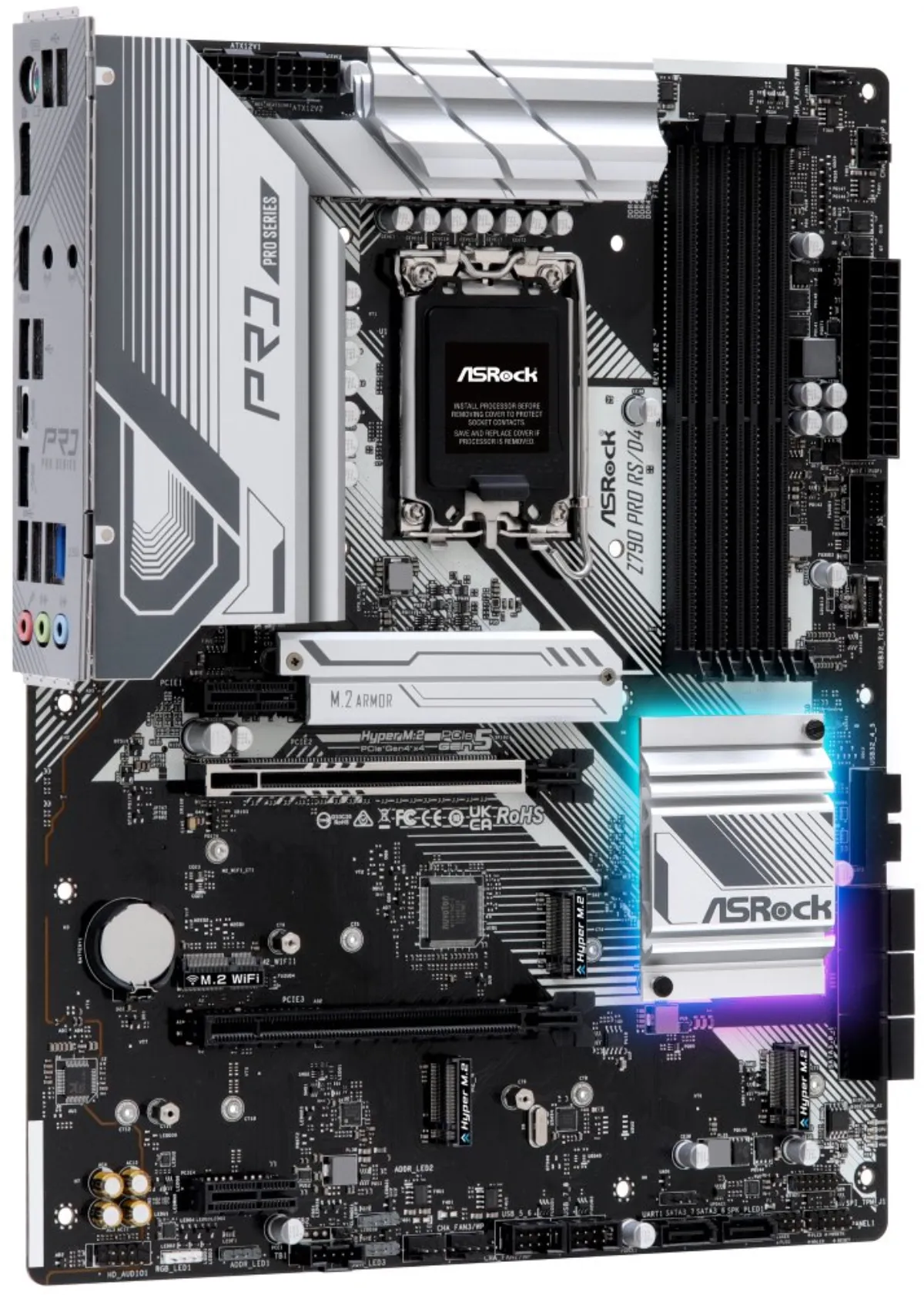

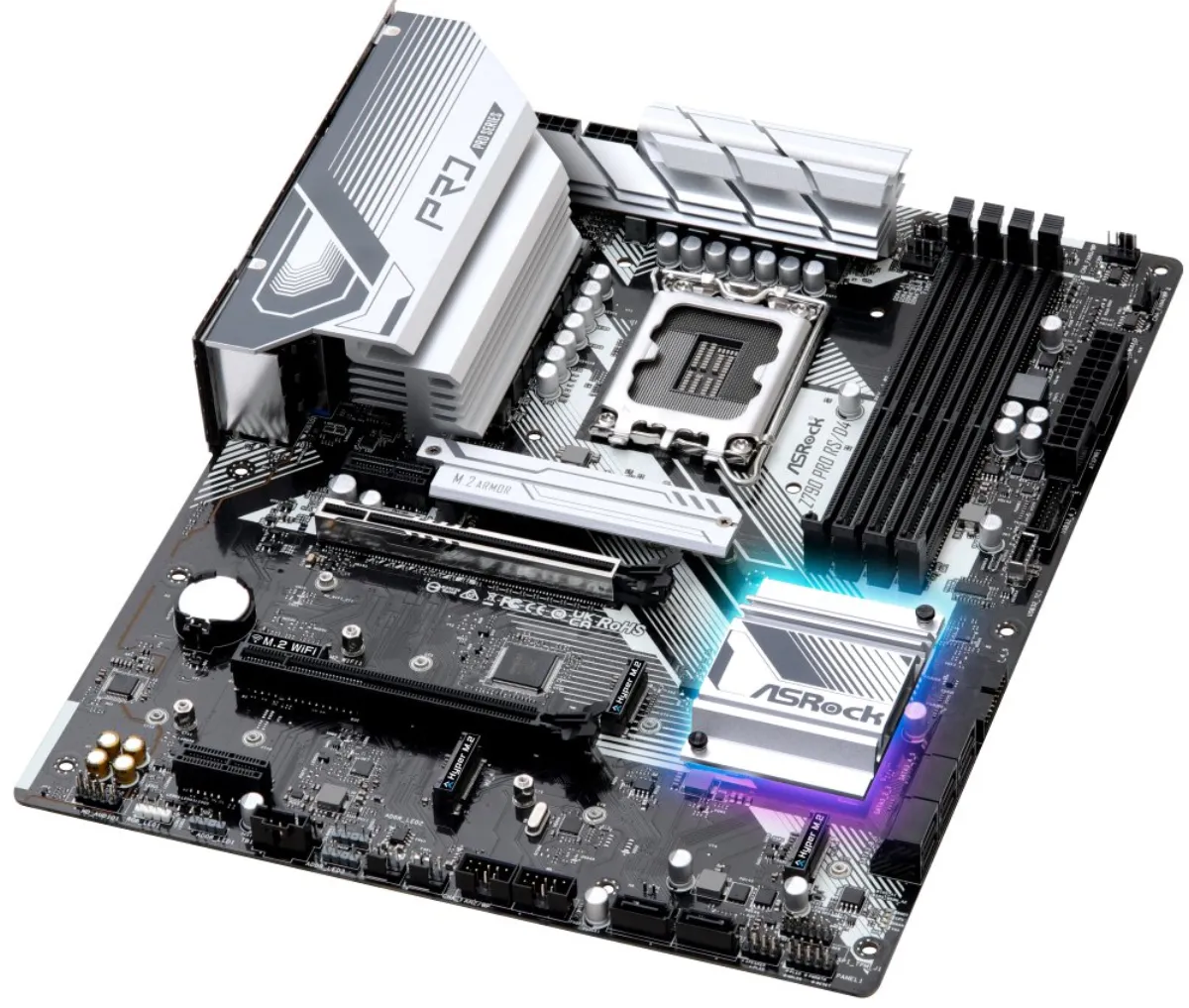

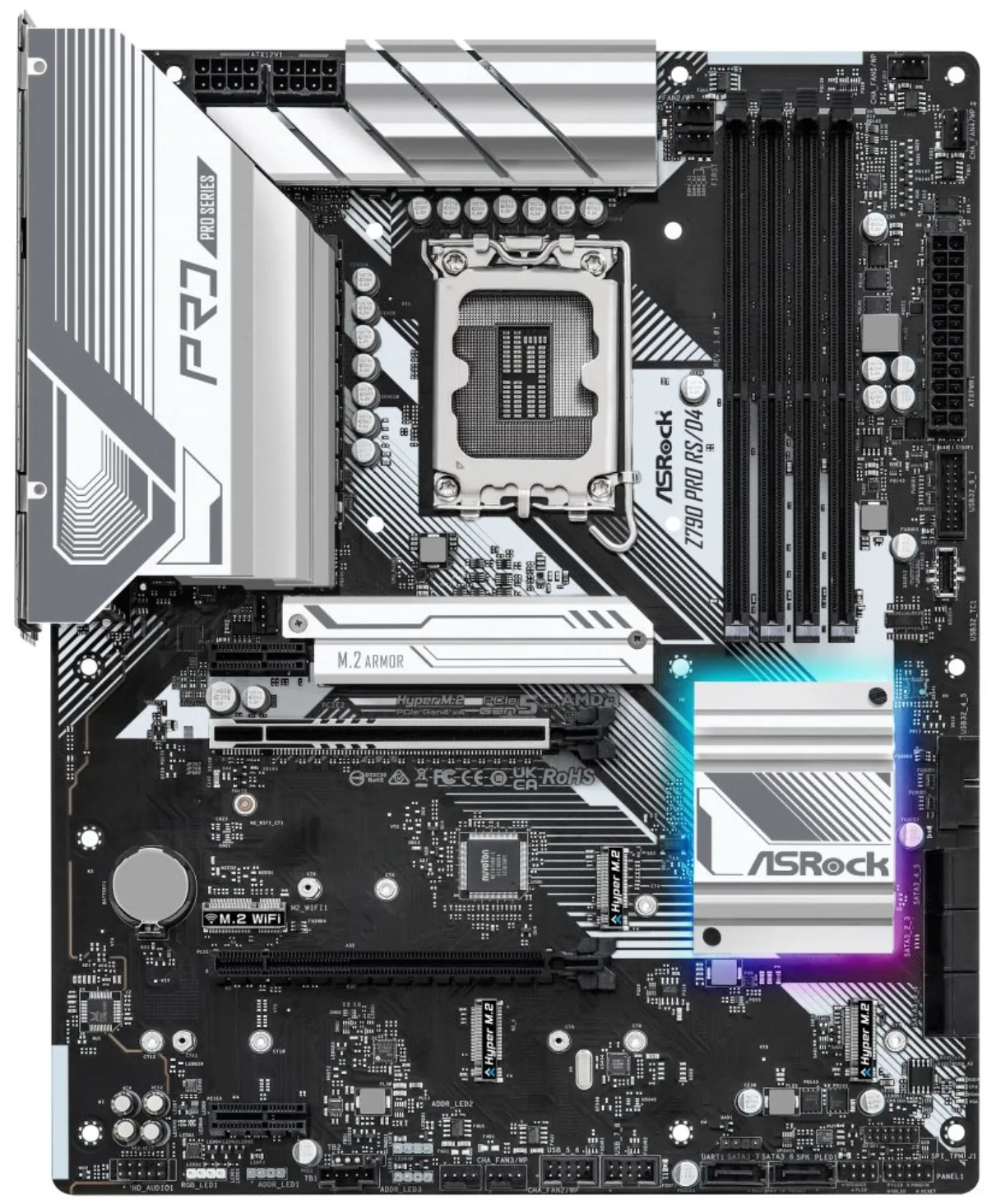

ASRock Z790 Pro RS D4 Intel Z790 LGA1700 4x DDR4 4x M.2 HDMI DP USB-C ATX

ASRock Z790 Pro RS/D4

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 13 . and 12 . generation Intel Core/ Pentium Gold/ Celeron
• Socket LGA1700

Chipset

• Intel Z790

Memory

• 4x DDR4 memory slot, support up to 128 GB
• DDR4 support up to 5333+ (OC) MHz
• Support DDR4 3200 MHz natively
• Dual channel memory architecture
• Non-ECC support, no buffering
• ECC UDIMM memory support (non-ECC mode)
• Intel Extreme Memory Profile (XMP) 2.0 support

Slots

• 1x PCIe 5.0 x16 slot
• 1x PCIe 4.0 x16 slot (supports x4 mode)
• 2x PCIe 3.0 x1 slot

Graphic Design

• 1x HDMI port, supporting a maximum resolution of 4K at 60 Hz
• 1x DisplayPort port, supporting max. resolution 8K at 60 Hz, 5K at 120 Hz
• 1x eDP port, supporting max. Full HD resolution at 60 Hz

Multi-GPU

• AMD CrossFire technology support

Repository

• 1x Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
• 3x Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
• 8x SATA 6Gb/s ports
• Intel Volume Management Device (VMD) support
• RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives
• RAID 0, RAID 1 and RAID 5 support for M.2 NVMe drives

USB

• 1x USB 3.2 Gen2x2 type C port available via an internal USB connector
• 1x USB 3.2 Gen2 type C port on the back panel
• 1x USB 3.2 Gen2 type A port on the back panel
• 6x USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 4 ports available via internal USB connectors)
• 8x USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek ALC897 Codec
• 7.1 channel High Definition Audio
• Nahimic Audio

HIND

• 1x Dragon RTL8125BG 2.5Gigabit LAN controller
• Support Dragon 2.5G LAN Software

Internal Connectors

• 1x eDP connector
• 1x SPI TPM connector
• 1x speaker connector and Power LED
• 1x RGB LED strip connector
• 3x addressable LED strip connector
• 1x 4-pin CPU fan connector
• 1x 4-pin CPU fan/CPU water cooling fan connector
• 5x 4-pin case fan/CPU water cooling fan connector
• 1x 24-pin ATX main power connector
• 2x 8-pin 12V power connector
• 8x SATA 6Gb/s connector
• 4x M.2 slot, M Key
• 1x M.2 slot, E key for Wi-Fi and Intel CNVio/ CNVio2 module (not included)
• 1x front panel audio connector
• 1x 5-pin Thunderbolt AIC connector (supports ASRock Thunderbolt 4 AIC)
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 2x USB 3.2 Gen1 (USB 3.0) connector (supports 4x USB 3.2 Gen1 port)
• 1x USB 3.2 Gen2x2 Type C front panel connector

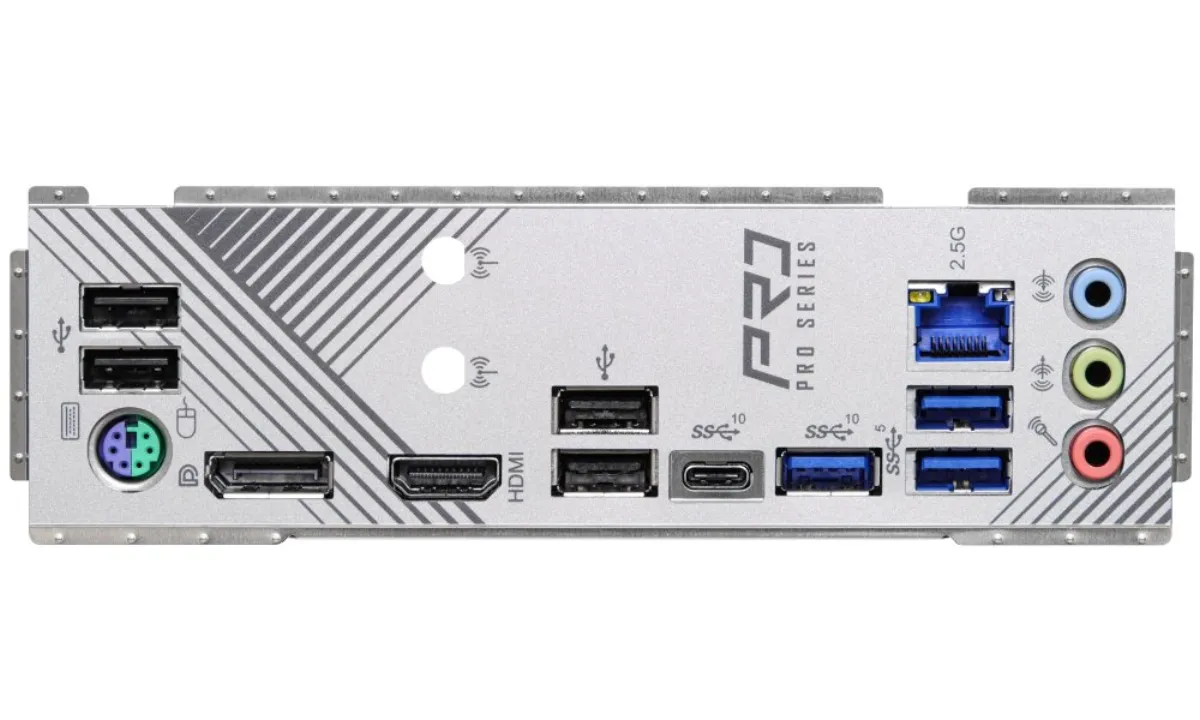

Rear Panel Ports

• 1x PS/2 keyboard and mouse combo port
• 1x HDMI
• 1 x DisplayPort
• 1x USB 3.2 Gen2 (USB 3.1 Gen2) type A
• 1x USB 3.2 Gen2 (USB 3.1 Gen2) type C
• 2x USB 3.2 Gen1 (USB 3.0)
• 4x USB 2.0
• 1x RJ-45
• 3x audio jack

Dimensions

• 30.5 x 24.4 cm
• ATX format
