ASRock Z790 PG Lightning Intel Z790 LGA1700 4x DDR5 4x M.2 HDMI USB-C ATX

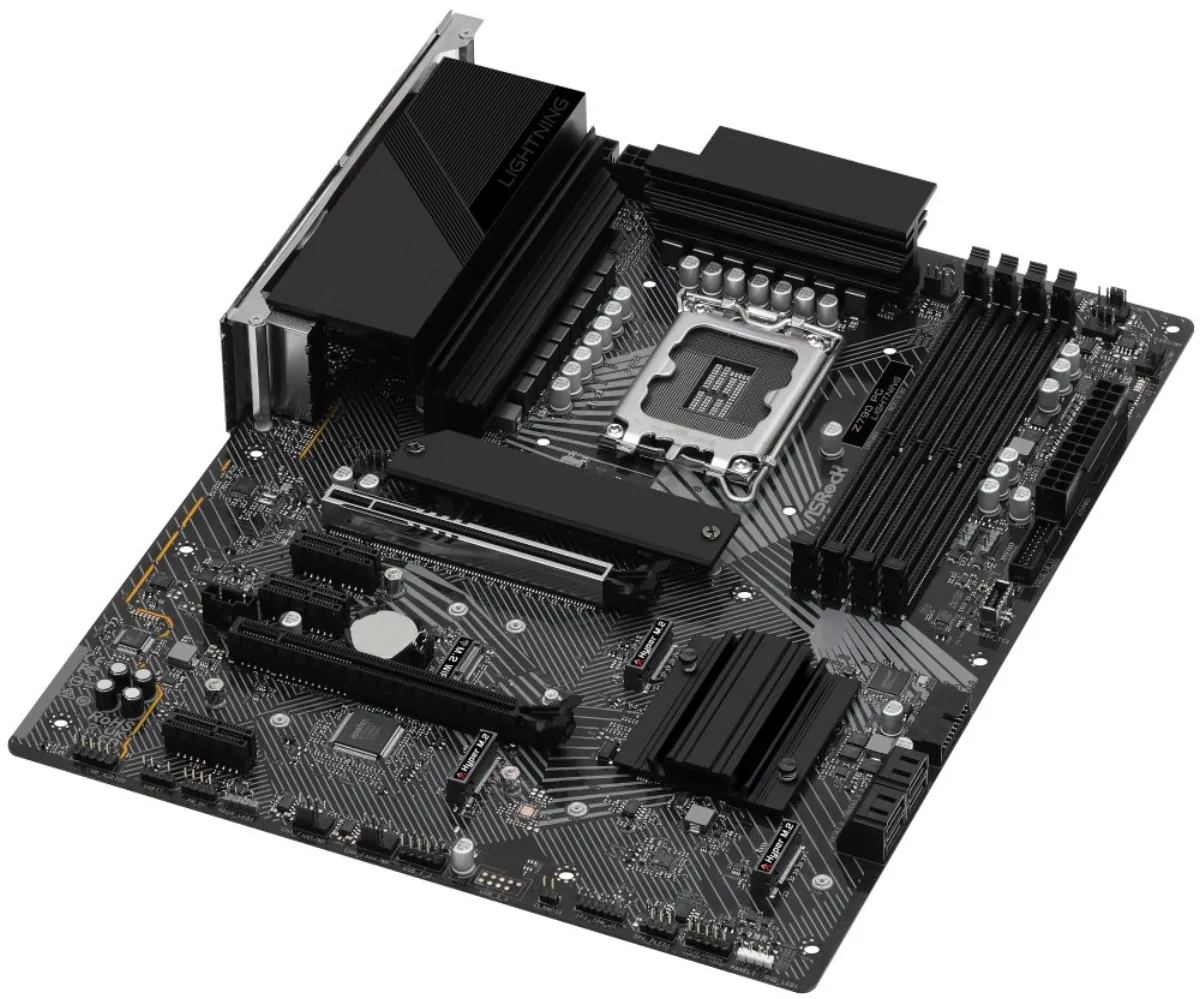

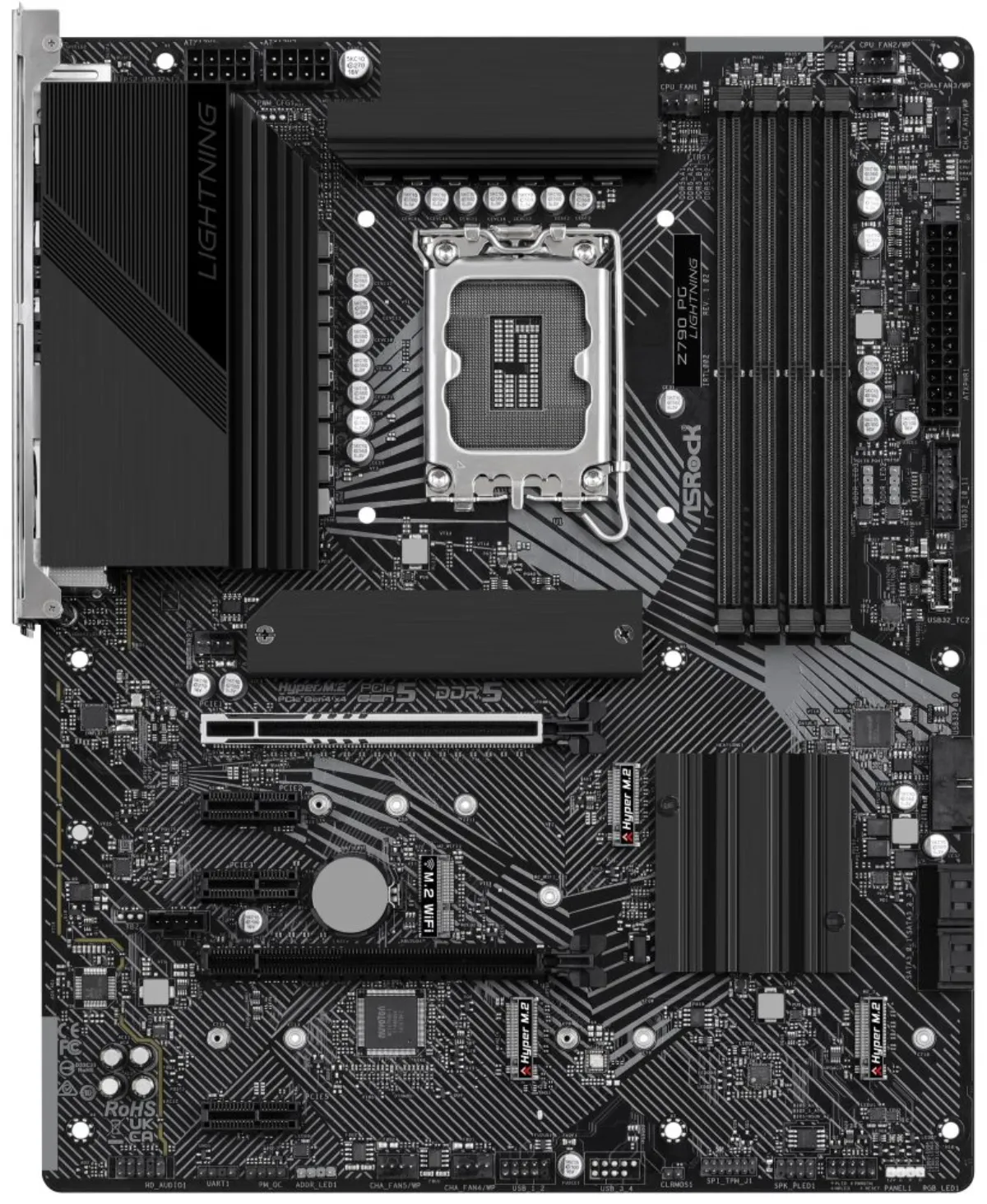

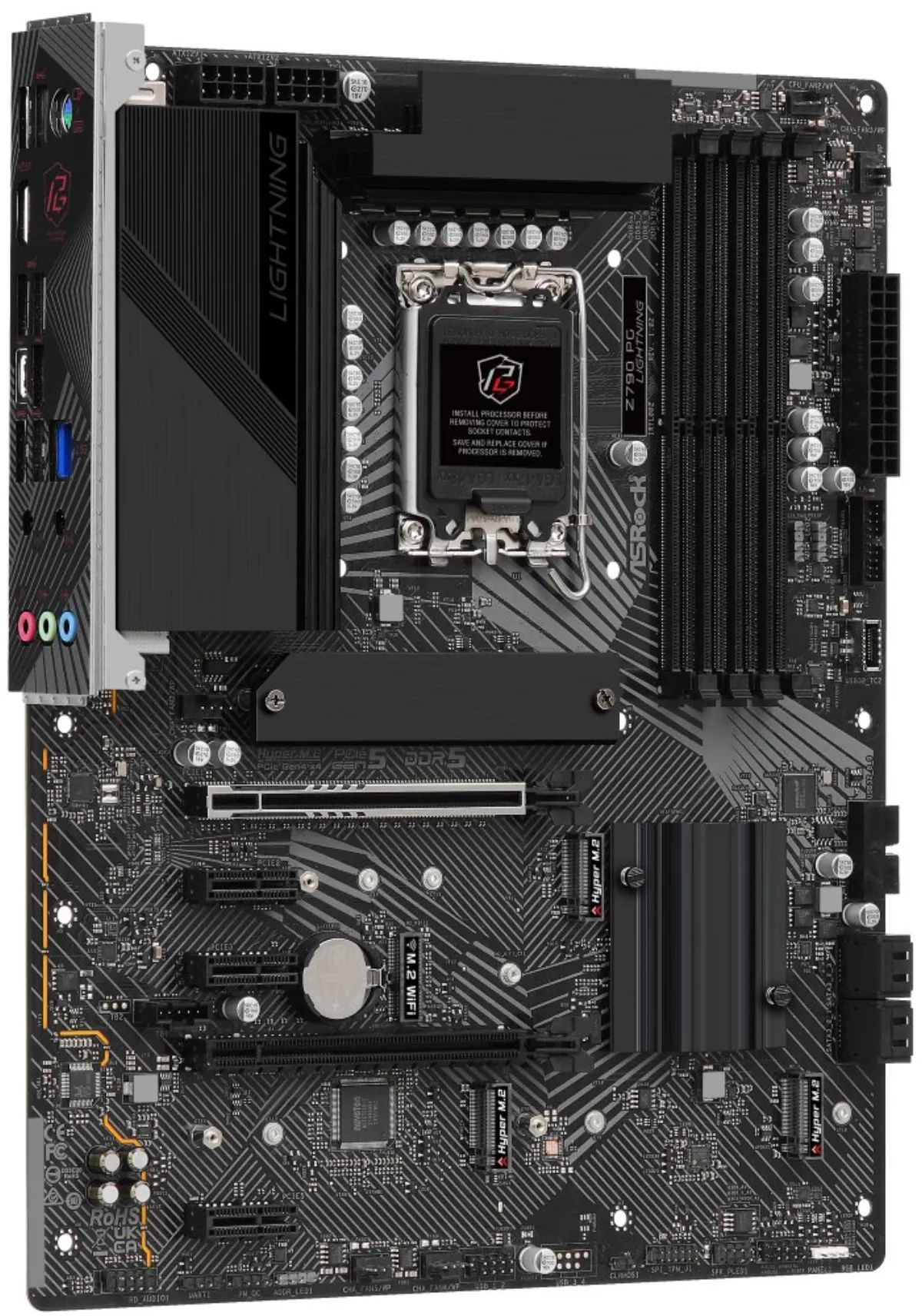

ASRock Z790 PG Lightning

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 13 . and 12 . generation Intel Core/ Pentium Gold/ Celeron
• Socket LGA1700

Chipset

• Intel Z790

Memory

• 4x DDR5 memory slot, support up to 128 GB
• DDR5 support up to 6800+ (OC) MHz
• Dual channel memory architecture
• Non-ECC support, no buffering
• Intel Extreme Memory Profile (XMP) 3.0 support

Slots

• 1x PCIe 5.0 x16 slot
• 1x PCIe 4.0 x16 slot (supports x4 mode)
• 3x PCIe 3.0 x1 slot

Graphic Design

• 1x HDMI port, supporting a maximum resolution of 4K at 60 Hz
• 1x eDP port, supporting max. Full HD resolution at 60 Hz

Multi-GPU

• AMD CrossFire technology support

Repository

• 1x Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
• 1x Hyper M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)
• 1x Hyper M.2 slot, M Key, for 2260/2280 type units (SATA and PCIe 4.0 x4 mode)
• 1x Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
• 4x SATA 6Gb/s port
• Intel Volume Management Device (VMD) support
• RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives
• RAID 0, RAID 1 and RAID 5 support for M.2 NVMe drives

USB

• 1x USB 3.2 Gen2x2 type C port on the back panel
• 1x USB 3.2 Gen2 type A port on the back panel
• 1x USB 3.2 Gen1 type C port available via an internal USB connector
• 9x USB 3.2 Gen1 (USB 3.0) ports (5 ports on the rear panel, 4 ports available via internal USB connectors)
• 3x USB 2.0 ports (1 port on the rear panel, 2 ports available via the internal USB connector)

Audio

• Realtek ALC897 Codec
• 7.1 channel High Definition Audio
• Nahimic Audio

HIND

• 1x Dragon RTL8125BG 2.5Gigabit LAN controller
• Phantom Gaming LAN Software support

Internal Connectors

• 1x eDP connector
• 1x SPI TPM connector
• 1x speaker connector and Power LED
• 1x RGB LED strip connector
• 3x addressable LED strip connector
• 1x 4-pin CPU fan connector
• 1x 4-pin CPU fan/CPU water cooling fan connector
• 5x 4-pin case fan/CPU water cooling fan connector
• 1x 24-pin ATX main power connector
• 2x 8-pin 12V power connector
• 4x SATA 6Gb/s connector
• 4x M.2 slot, M Key
• 1x M.2 slot, E key for Wi-Fi and Intel CNVio/ CNVio2 module (not included)
• 1x front panel audio connector
• 1x 5-pin Thunderbolt AIC connector (supports ASRock Thunderbolt 4 AIC)
• 1x USB 2.0 connector (supports 2x USB 2.0 port)
• 2x USB 3.2 Gen1 (USB 3.0) connector (supports 4x USB 3.2 Gen1 port)
• 1x USB 3.2 Gen1 Type C front panel connector

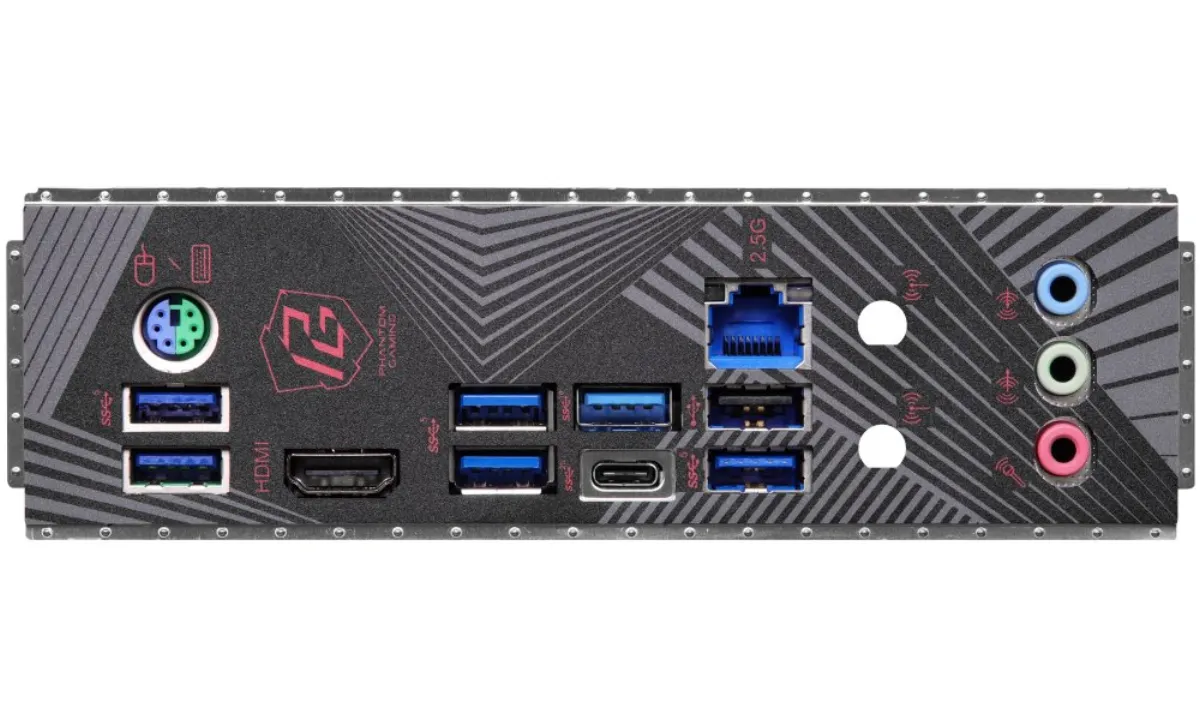

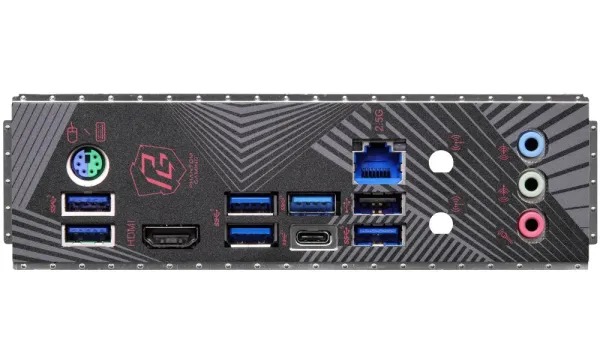

Rear Panel Ports

• 1x PS/2 keyboard and mouse combo port
• 1x HDMI
• 1x USB 3.2 Gen2 (USB 3.1 Gen2) type A
• 1x USB 3.2 Gen2x2 Type C
• 5x USB 3.2 Gen1 (USB 3.0)
• 1 x USB 2.0
• 1x RJ-45
• 3x audio jack

Dimensions

• 30.5 x 24.4 cm
• ATX format
