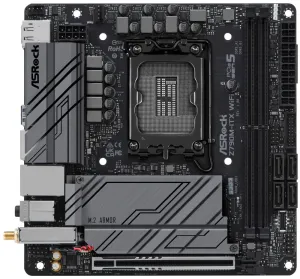

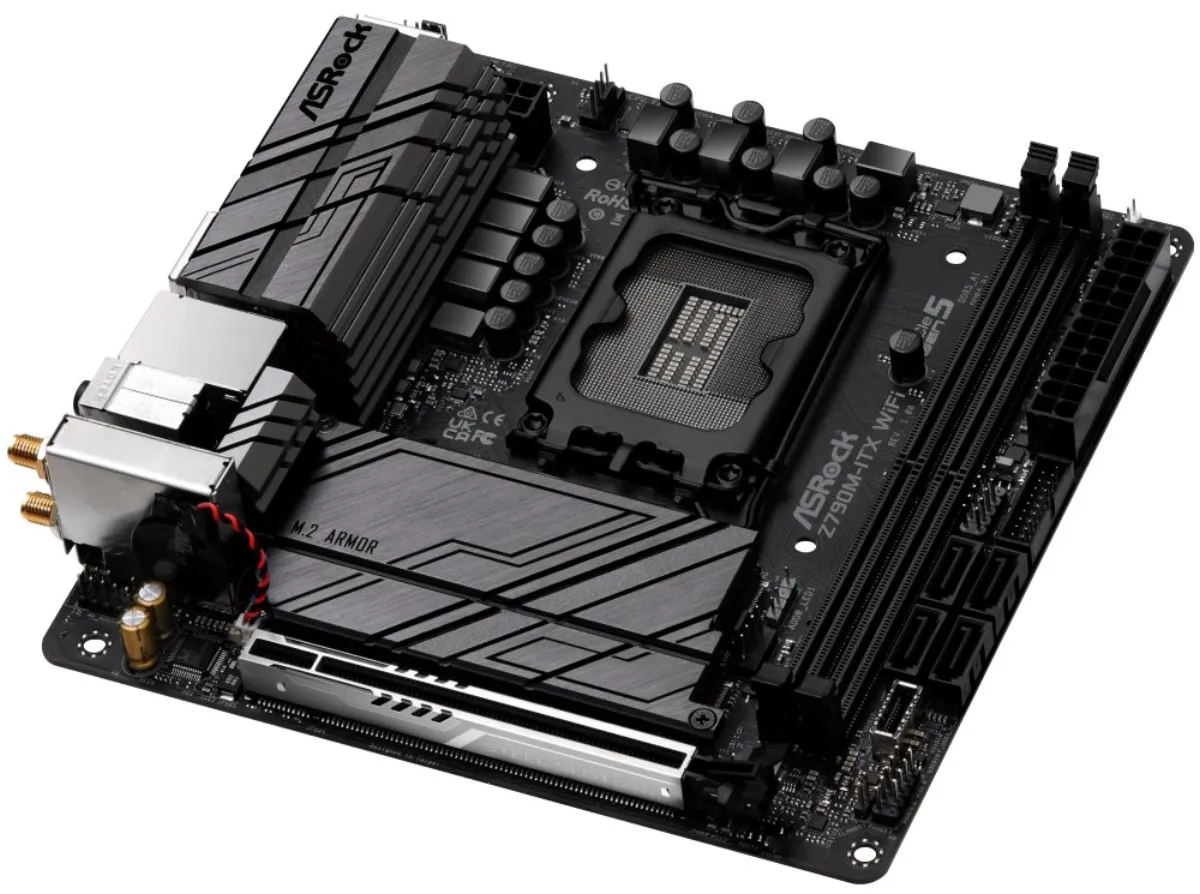

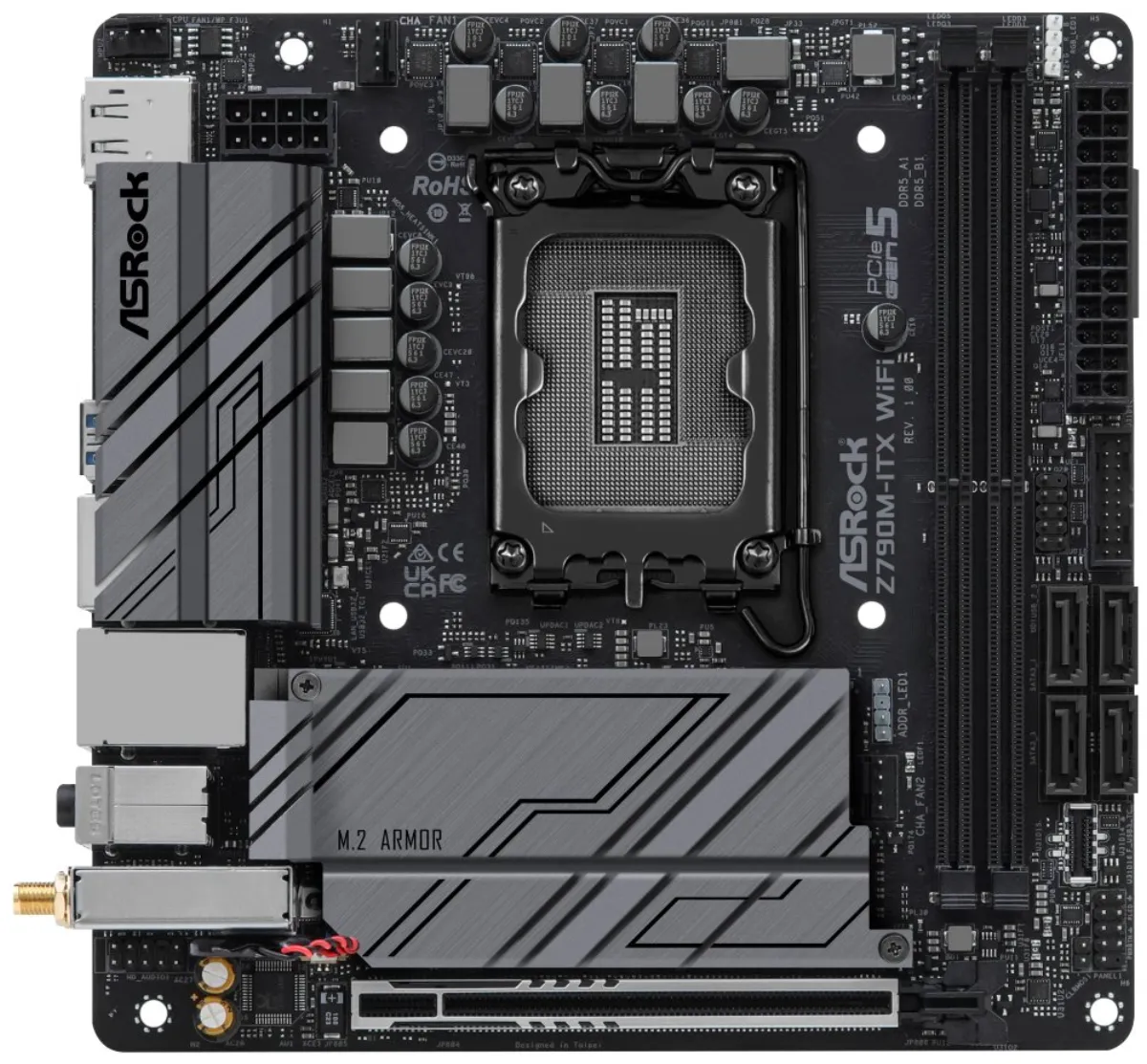

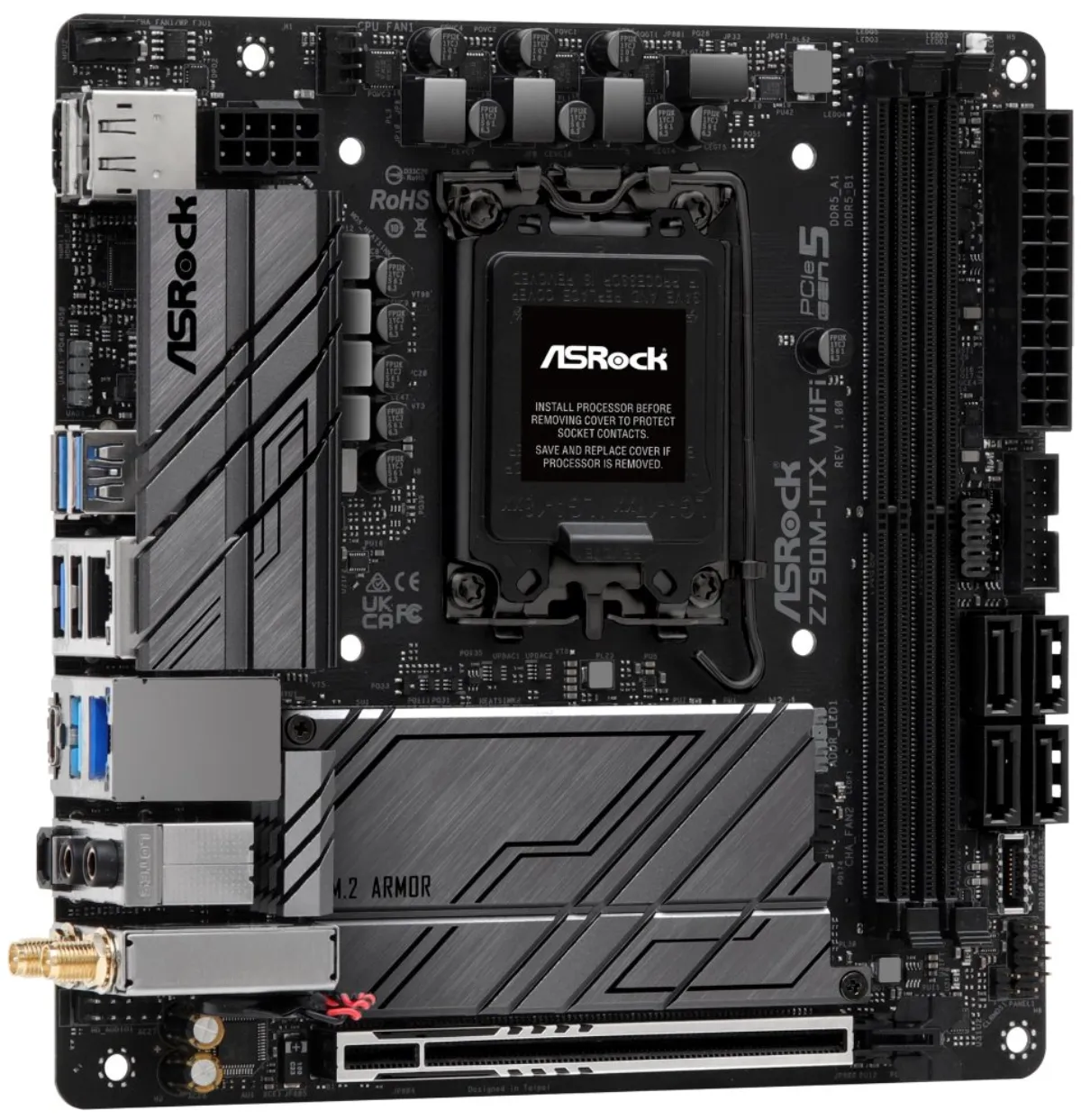

ASRock Z790M-ITX WIFI Intel Z790 LGA1700 2x DDR5 2x M.2 HDMI DP USB-C WiFi Mini-ITX

ASRock Z790M-ITX WIFI

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 12 . and 13 . generation Intel Core/ Pentium Gold/ Celeron
• Socket LGA1700

Chipset

• Intel Z790

Memory

• 2x DDR5 memory slot, support up to 64 GB
• DDR5 support up to 6800+ (OC) MHz
• Support DDR5 5600 MHz natively
• Dual channel memory architecture
• Non-ECC support, no buffering
• Intel Extreme Memory Profile (XMP) 3.0 support

Slots

• 1x PCIe 5.0 x16 slot

Graphic Design

• 1x HDMI port, supporting a maximum resolution of 4K at 60 Hz
• 1x DisplayPort port, supporting max. resolution 8K at 60 Hz, 5K at 120 Hz
• 1x eDP port, supporting max. Full HD resolution at 60 Hz

Repository

• 1x Hyper M.2 slot, M Key, for type 2280 units (PCIe 4.0 x4 mode)
• 4x SATA 6Gb/s port
• 1x Hyper M.2 slot, M Key, for type 2280 units (SATA and PCIe 4.0 x4 mode)
• Intel Volume Management Device (VMD) support
• RAID 0, RAID 1 and RAID 5 support for M.2 NVMe drives
• RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives

USB

• 2x USB 3.2 Gen 2x2 Type C port (1 port on the back panel, 1 port available via the internal USB connector)
• 4x USB 3.2 Gen2 type A port on the back panel
• 2x USB 3.2 Gen1 (USB 3.0) port available via an internal USB connector
• 3x USB 2.0 ports (1 port on the rear panel, 2 ports available via the internal USB connector)

Audio

• Realtek ALC897 Codec
• 7.1 channel High Definition Audio
• Nahimic Audio

HIND

• 1x Intel I226V 2.5Gigabit LAN controller
• 1x Intel I219V Gigabit LAN controller

WLAN/ Bluetooth

• Intel Wi-Fi 6E
• Wi-Fi 802.11a/b/g/n/ac/ax
• Dual Band (2.4 GHz, 5 GHz, 6 GHz)
• MU-MIMO support
• Bluetooth

Internal Connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin 12V power connector
• 1x eDP connector
• 1x RGB LED strip connector
• 1x addressable LED strip connector
• 1x 4-pin CPU fan/water cooling pump fan connector
• 2x 4-pin case fan connector
• 1x front panel audio connector
• 1x USB 2.0 connector (supports 2x USB 2.0 port)
• 1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)
• 1x USB 3.2 Gen2x2 Type C front panel connector

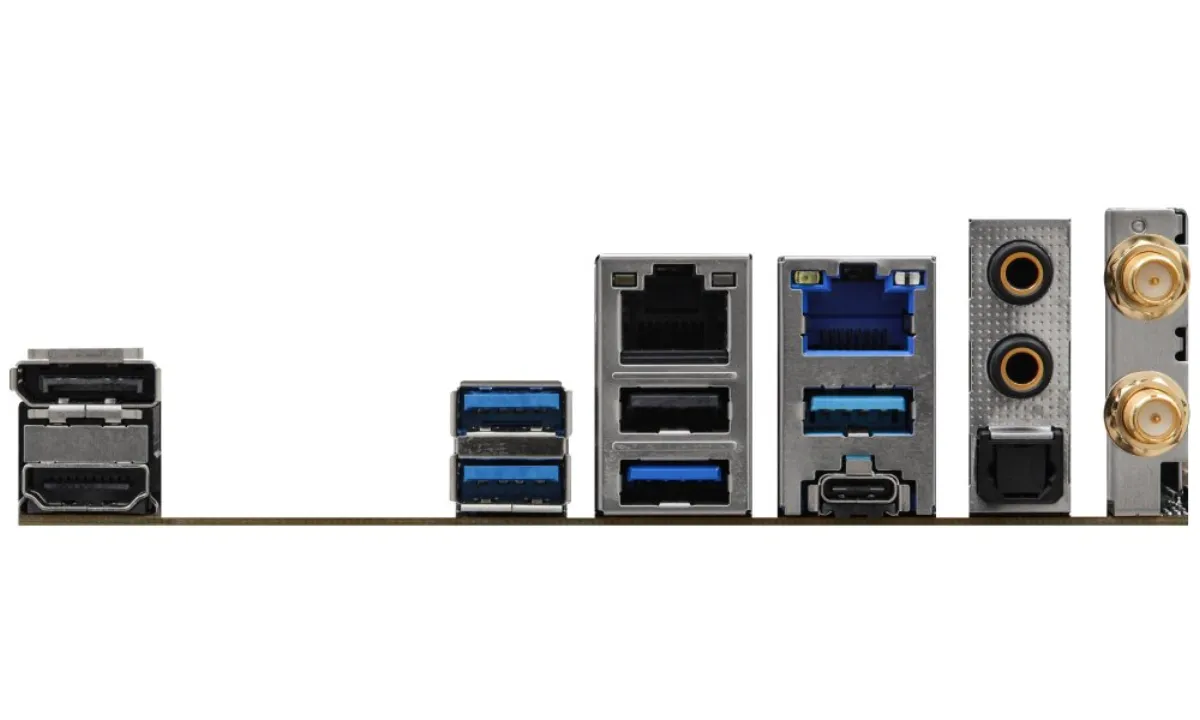

Rear Panel Ports

• 2x Wi-Fi antenna connector
• 1x HDMI
• 1 x DisplayPort
• 1x optical S/PDIF output
• 1x USB 3.2 Gen2x2 Type C
• 4x USB 3.2 Gen2 type A
• 1 x USB 2.0
• 2x RJ-45
• 2x audio jack

Dimensions

• 17 x 17 cm
• Mini-ITX format
