ASRock Z790 Taichi Lite Intel Z790 LGA1700 4x DDR5 5x M.2 HDMI Thunderbolt 4 USB-C WiFi EATX

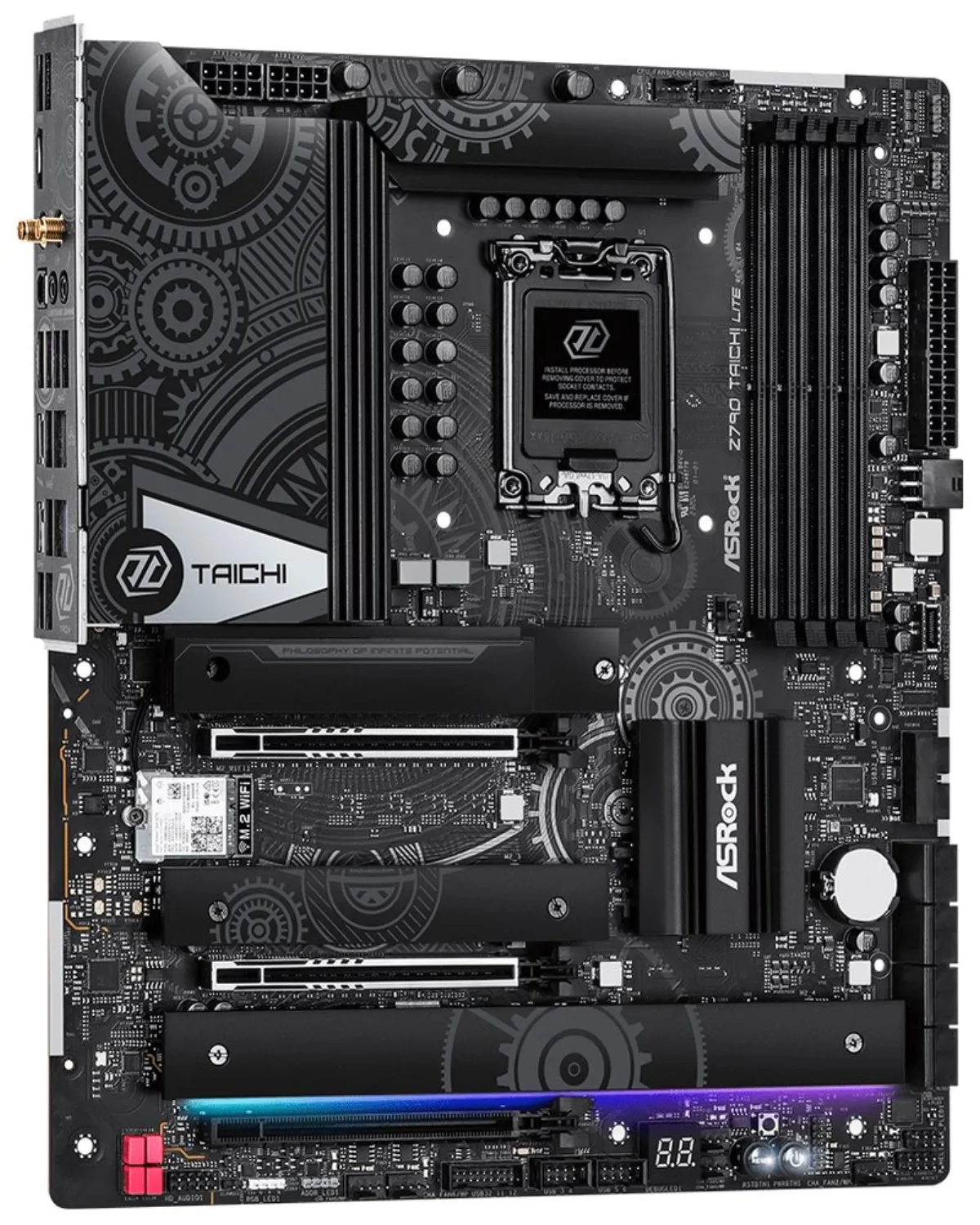

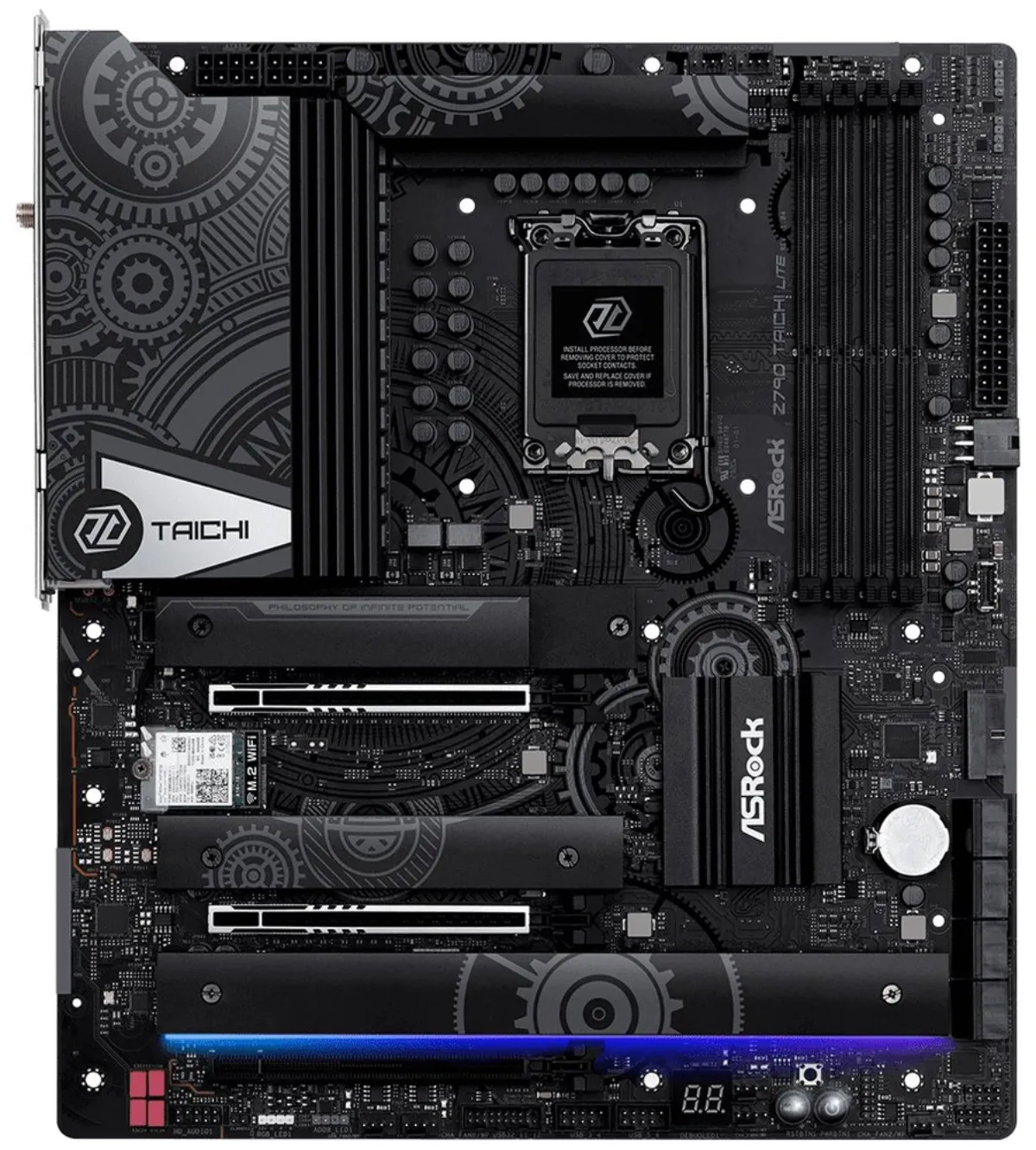

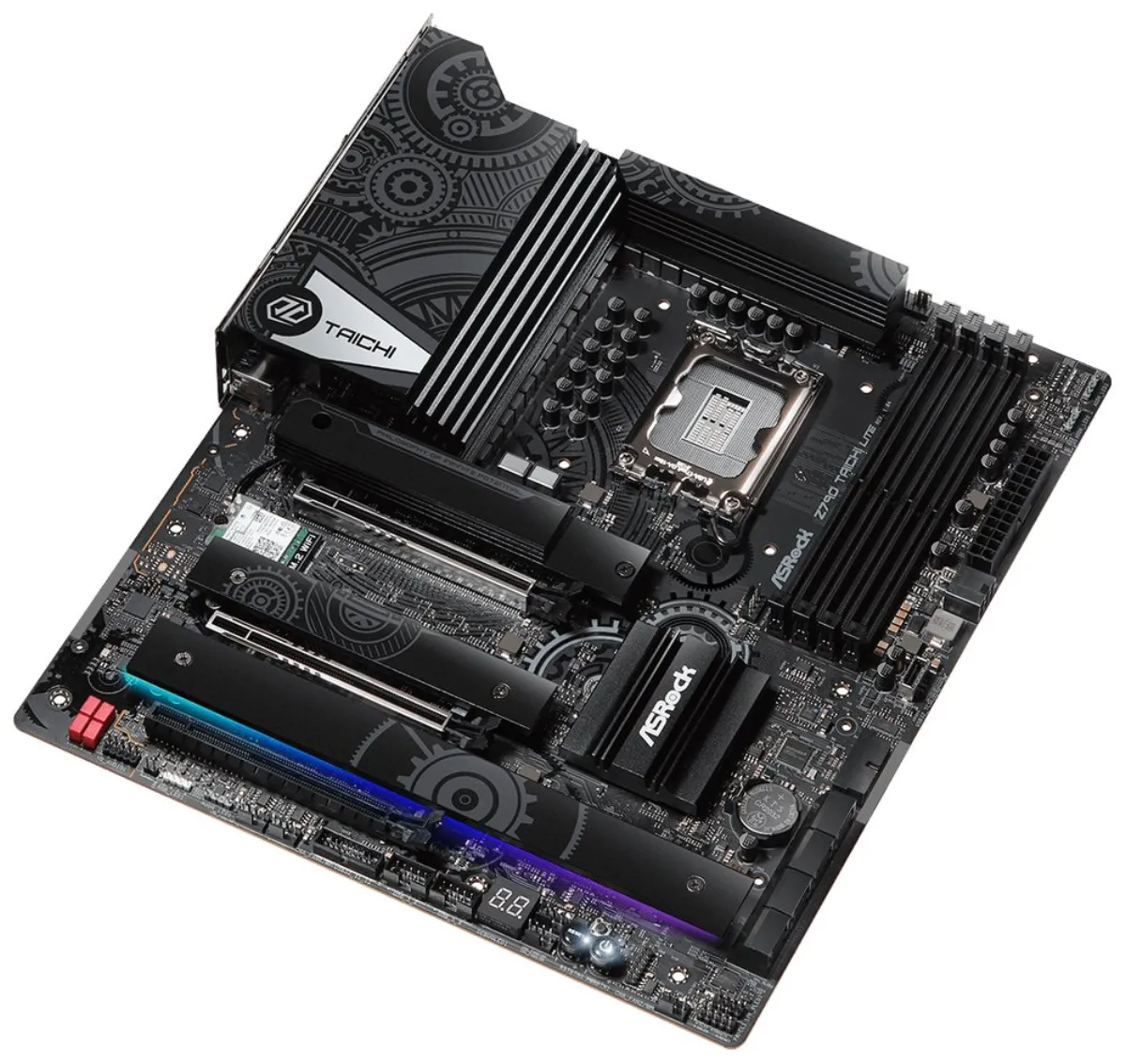

ASRock Z790 Taichi Lite

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 13 . and 12 . generation Intel Core/ Pentium Gold/ Celeron
• Socket LGA1700

Chipset

• Intel Z790

Memory

• 4x DDR5 memory slot, support up to 192 GB
• DDR5 support up to 7200+ (OC) MHz
• Dual channel memory architecture
• Non-ECC support, no buffering
• Intel Extreme Memory Profile (XMP) 3.0 support

Slots

• 2× PCIe 5.0 x16 slot (supports x16 or x8/x8 mode)
• 1× PCIe 4.0 x16 slot (supports x4 mode)

Graphic Design

• 1× HDMI port, supporting a maximum resolution of 4K at 60 Hz
• 2× Thunderbolt 4 port, supporting max. 8K resolution at 60 Hz

Multi-GPU

• AMD CrossFire technology support

Repository

• 1× Blazing M.2 slot, M Key, for 2280 type units (PCIe 5.0 x4 mode)
• 1× Hyper M.2 slot, M Key, for 2280 type units (PCIe 4.0 x4 mode)
• 3× Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
• 8x SATA 6Gb/s port
• Intel Volume Management Device (VMD) support
• RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives
• RAID 0, RAID 1 and RAID 5 support for M.2 NVMe drives

USB

• 2× Thunderbolt 4 (USB-C) port on the back panel
• 1× USB-C 3.2 Gen2x2 port available via an internal USB connector
• 2x USB 3.2 Gen2 port on the back panel
• 10× USB 3.2 Gen1 (USB 3.0) port (6 ports on the back panel, 4 ports available via internal USB connectors)
• 6× USB 2.0 port (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek ALC4082 Codec
• 5.1 channel High Definition Audio
• ESS SABER9218 Front Panel DAC (130dB SNR)
• Nahimic audio

HIND

• 1× Killer E3100G 2.5Gigabit LAN controller
• Killer DoubleShot Pro support
• 1× Intel I219V Gigabit LAN controller

WLAN/ Bluetooth

• Killer Wi-Fi 6E
• Wi-Fi 802.11a/b/g/n/ac/ax
• Dual-Band 2x2 160 MHz (2.4 GHz, 5 GHz, 6 GHz)
• MU-MIMO support
• Killer DoubleShot Pro support
• Bluetooth 5.3

Internal Connectors

• 1x TPM SPI connector
• 1x speaker connector and Power LED
• 1x RGB LED strip connector
• 3x addressable LED strip connector
• 1× 4pin CPU fan connector
• 1× 4pin CPU fan/water cooling pump fan connector
• 6× 4pin case fan/water cooling pump fan connector
• 1× 24pin ATX main power connector
• 2× 8pin 12V power connector
• 1× 6pin 12V power connector
• 1x front panel audio connector
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 2x USB 3.2 Gen1 (USB 3.0) connector (supports 4x USB 3.2 Gen1 port)
• 1× USB-C 3.2 Gen2x2 front panel connector
• 1x Clear CMOS button
• 1× Dr. Debug with LED
• 1x Power button with LED
• 1x Reset button with LED

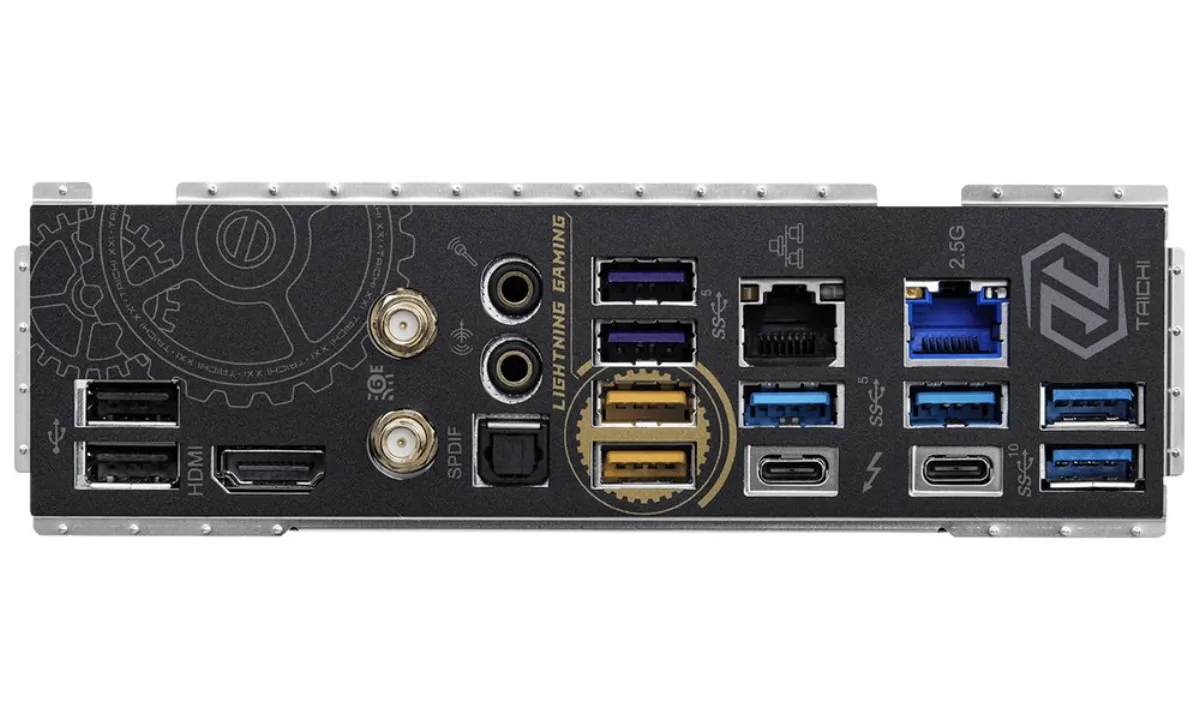

Rear Panel Ports

• 2x Wi-Fi antenna connector
• 1x HDMI
• 1x optical S/PDIF output
• 2x Thunderbolt 4 (USB-C)
• 2x USB 3.2 Gen2 (USB 3.1 Gen2)
• 6x USB 3.2 Gen1 (USB 3.0)
• 2x USB 2.0
• 2x RJ-45
• 2x audio jack

Dimensions

• 30.5 x 26.7 cm
• E-ATX format
