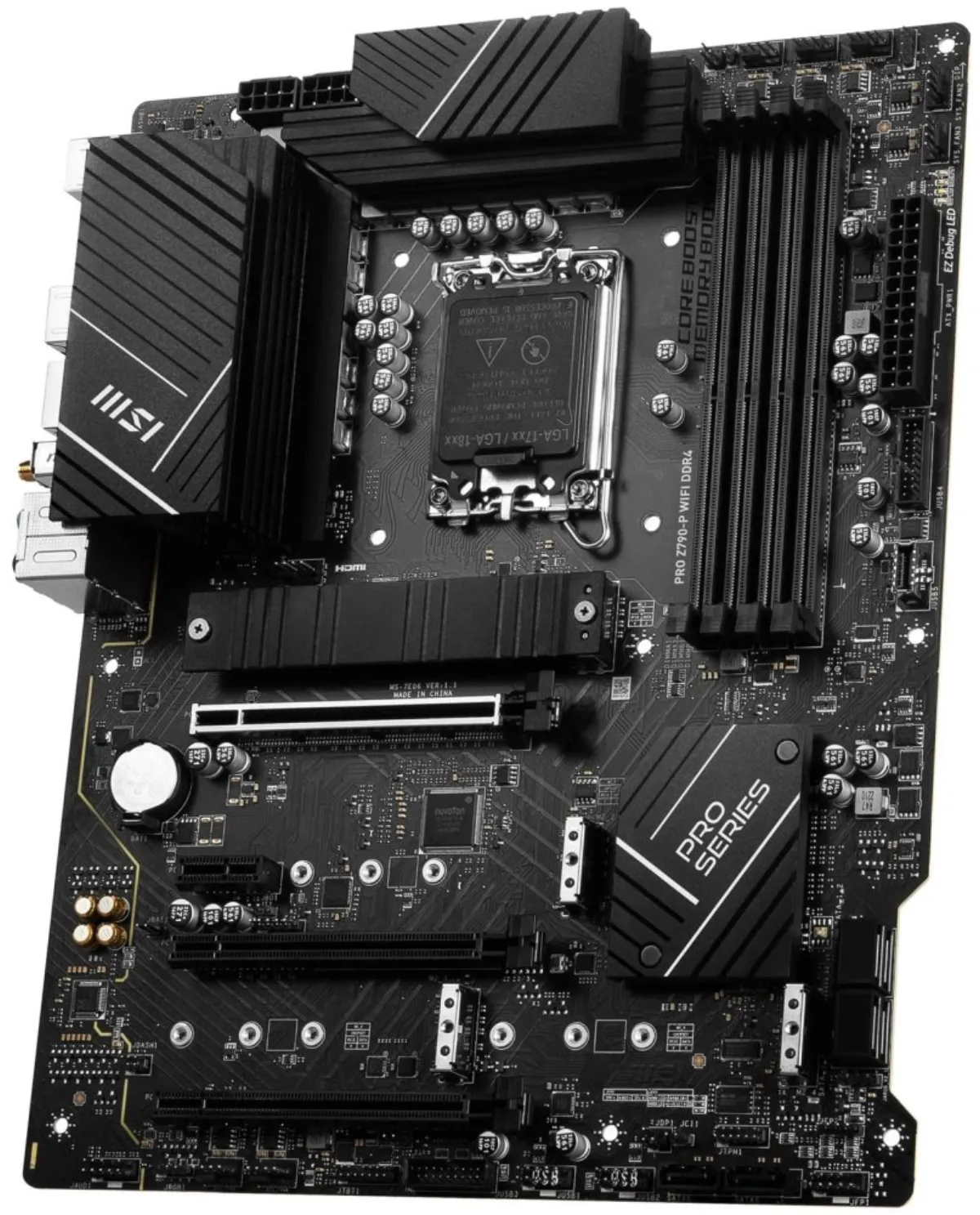

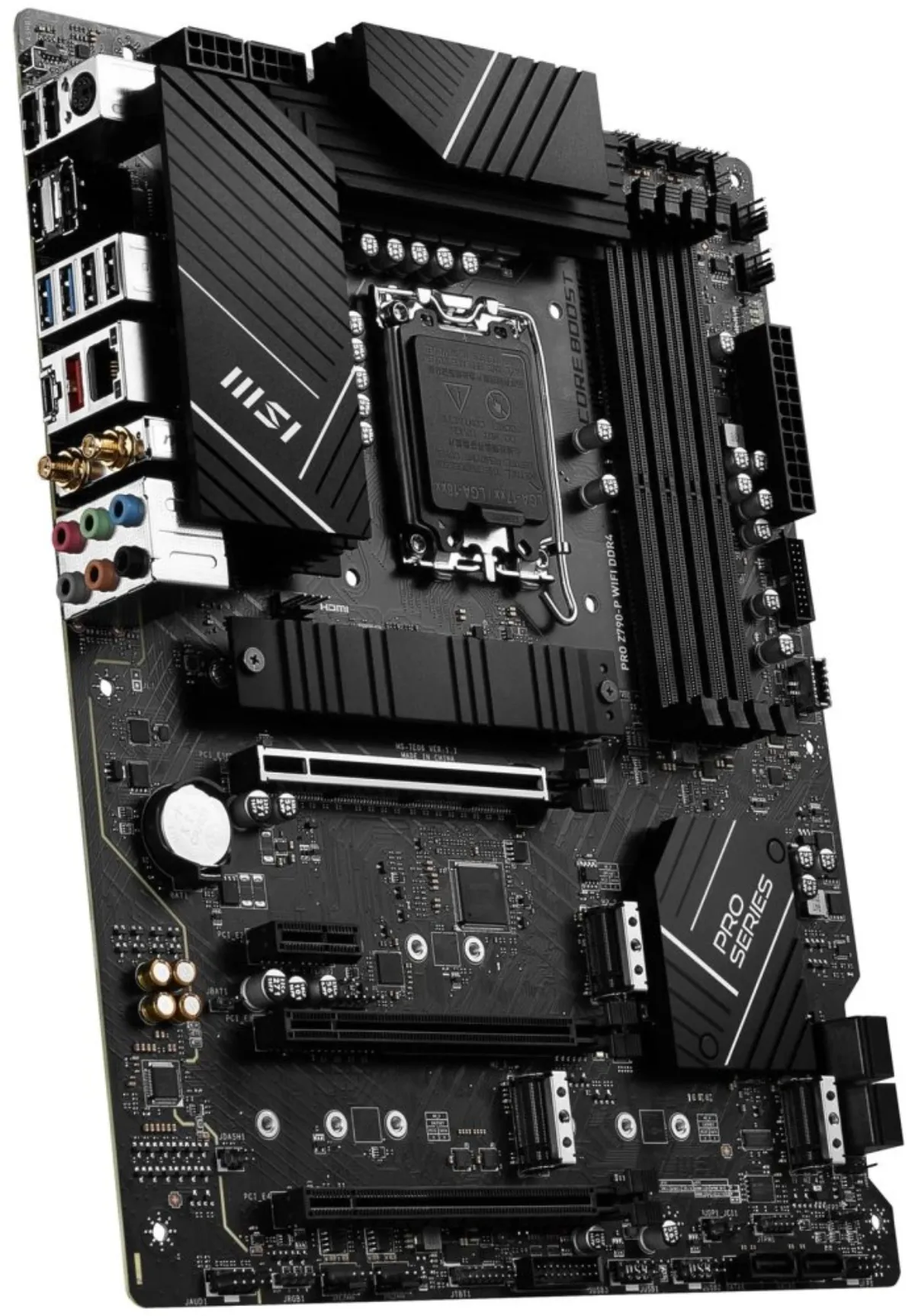

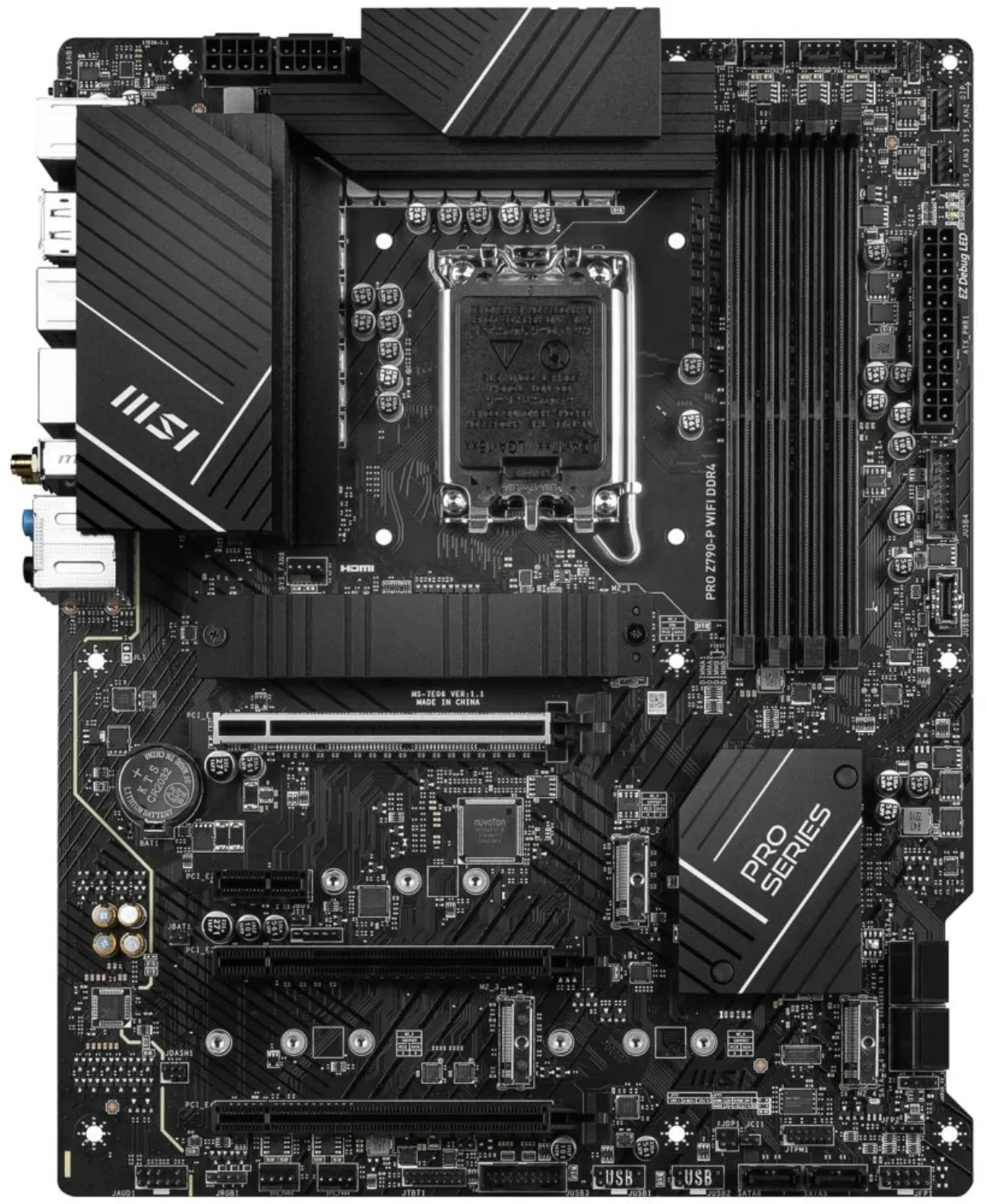

MSI PRO Z790-P WIFI DDR4 Intel Z790 LGA1700 4x DDR4 4x M.2 HDMI DP USB-C WiFi ATX

MSI PRO Z790-P WIFI DDR4

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 12 . and 13 . generation Intel Core/ Pentium Gold/ Celeron
• Socket LGA1700

Chipset

• Intel Z790

Memory

• 4x DDR4 memory slot, support up to 128 GB
• Support DDR4 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333 (OC)/ 3200/ 3000/ 2933/ 2800/ 2 666/ 2400/ 2133 (JEDEC and POR)
• Dual channel memory architecture
• Non-ECC support, no buffering
• Intel Extreme Memory Profile (XMP) support

Slots

• 1x PCIe 5.0 x16 slot
• 1x PCIe 4.0 x16 slot (supports x4 mode)
• 1x PCIe 3.0 x16 slot (supports x1 mode)
• 1x PCIe 3.0 x1 slot

Graphic Design

• 1x HDMI port, supporting a maximum resolution of 4K at 60 Hz
• 1x DisplayPort port, supporting a maximum resolution of 4K at 60 Hz

Repository

• 1x M.2 slot, M Key, for units of type 22110/2280/2260/2242 (PCIe 4.0 x4 mode)
• 6x SATA 6Gb/s port
• 1x M.2 slot, M Key, for units of type 2280/2260/2242 (PCIe 4.0 x4 mode)
• 2x M.2 slot, M Key, for 2280/2260/2242 type units (SATA and PCIe 4.0 x4 mode)
• RAID 0, RAID 1, RAID 5 and RAID 10 support for both SATA and M.2 NVMe drives

USB

• 8x USB 2.0 ports (4 ports on the back panel, 4 ports available via internal USB connectors)
• 6x USB 3.2 Gen1 (USB 3.0) ports (2 ports on the back panel, 4 ports available via internal USB connectors)
• 1x USB 3.2 Gen2 type A port on the back panel
• 1x USB 3.2 Gen2 type C port available via an internal USB connector
• 1x USB 3.2 Gen 2x2 type C on the back panel

Audio

• Realtek ALC897 Codec
• 7.1 channel High Definition Audio

HIND

• 1x Intel 2.5Gigabit LAN controller

WLAN/ Bluetooth

• Intel Wi-Fi 6E
• Wi-Fi 802.11a/b/g/n/ac/ax
• Dual Band (2.4 GHz, 5 GHz, 6 GHz)
• Support MU-MIMO TX/RX
• Data transfer speed up to 2.4 Gbps
• Bluetooth 5.3

Internal Connectors

• 1x 24-pin ATX main power connector
• 2x 8-pin 12V power connector
• 1x 4-pin CPU fan connector
• 1x 4-pin water cooling pump fan connector
• 6x 4-pin system fan connector
• 1x front panel audio connector
• 2x system panel connector
• 1x cabinet opening detection connector
• 1x TPM connector (supports TPM 2.0)
• 1x Tuning controller connector
• 1x TBT connector (supports RTD3)
• 4x EZ Debug LEDs
• 2x 3-pin connector A-RAINBOW V2 ARGB LED
• 1x 4-pin RGB LED connector
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 2x USB 3.2 Gen1 (USB 3.0) connector (supports 4x USB 3.2 Gen1 port)
• 1x USB 3.2 Gen2 type C connector
• 1x Clear CMOS jumper

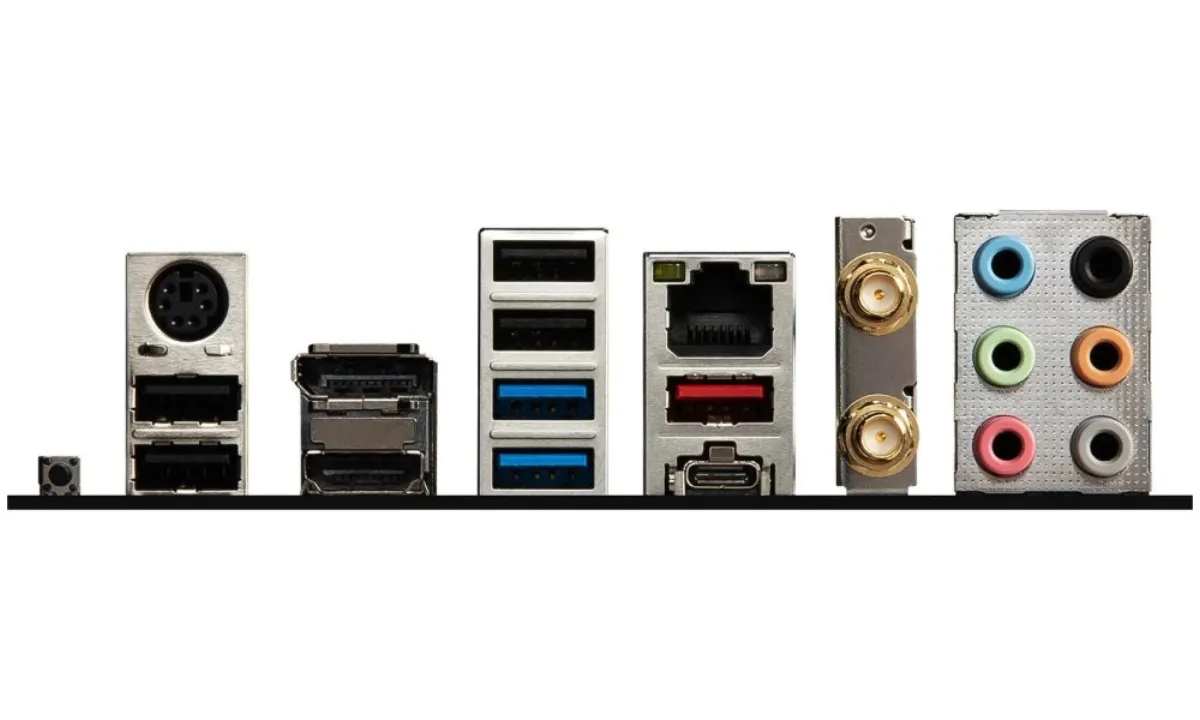

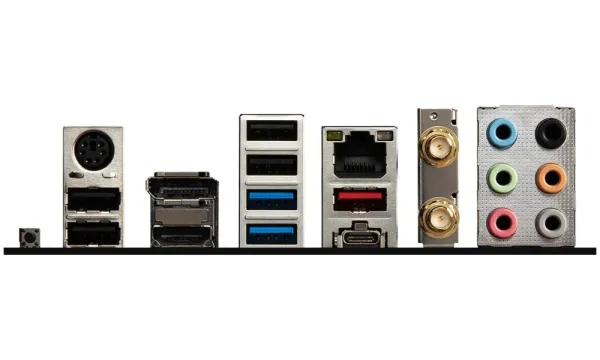

Rear Panel Ports

• 1x Flash BIOS button
• 4x USB 2.0
• 1x PS/2
• 1 x DisplayPort
• 1x HDMI
• 2x USB 3.2 Gen1 (USB 3.0)
• 1x RJ-45
• 1x USB 3.2 Gen2 (USB 3.1 Gen2) type A
• 1x USB 3.2 Gen2x2 Type C
• 2x Wi-Fi antenna connector
• 6x audio jack

Dimensions

• 30.48 x 24.384 cm
• ATX format
