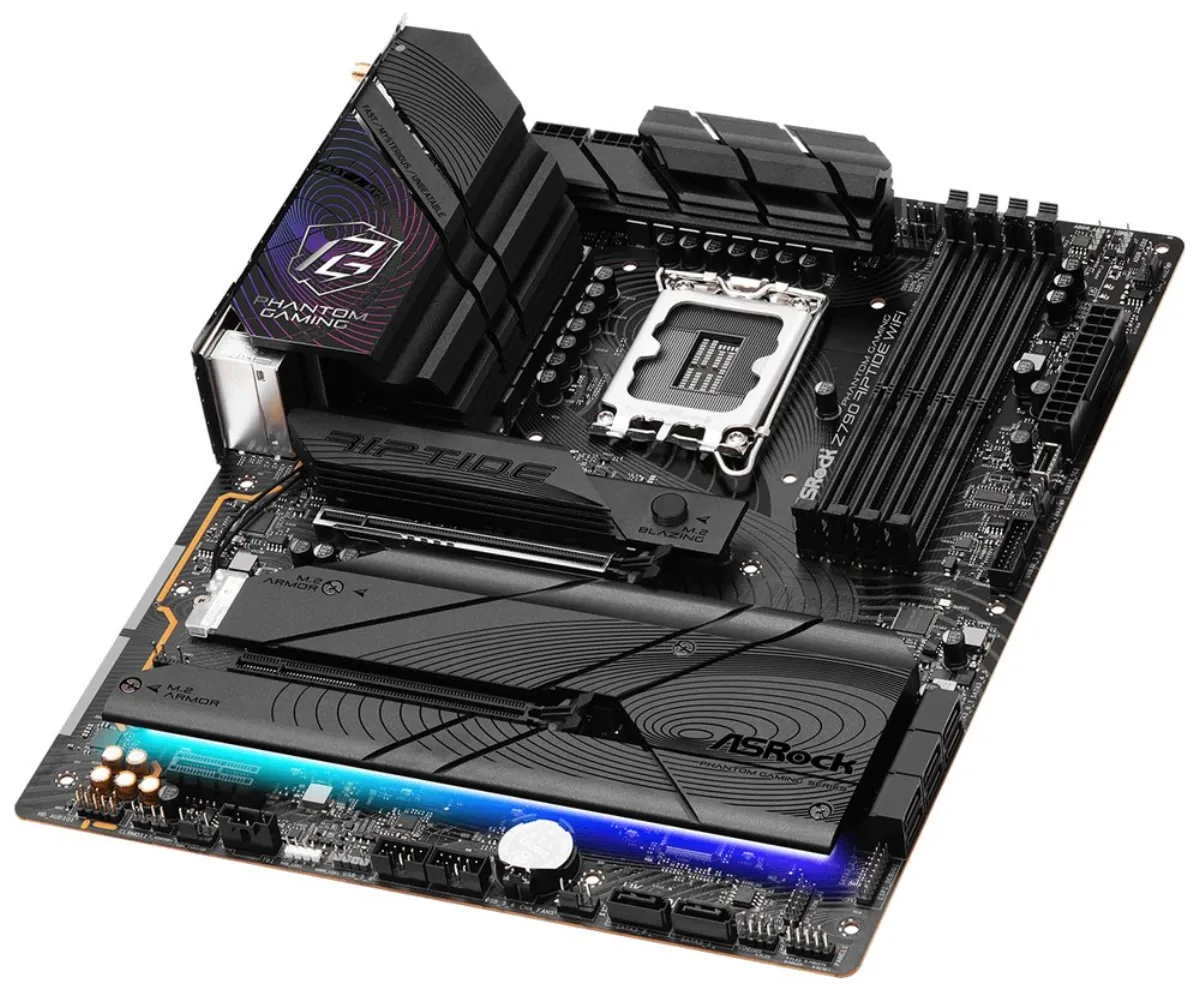

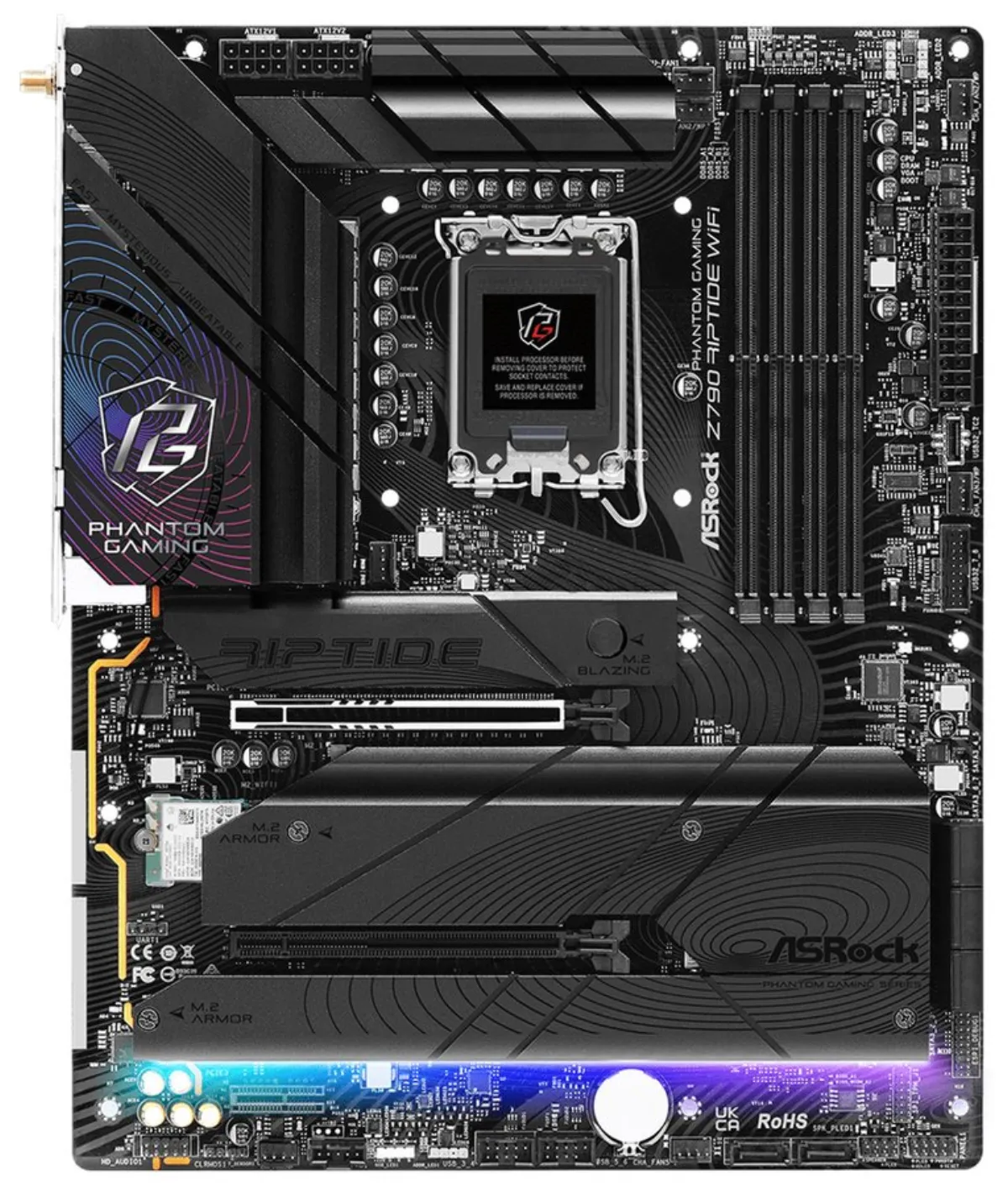

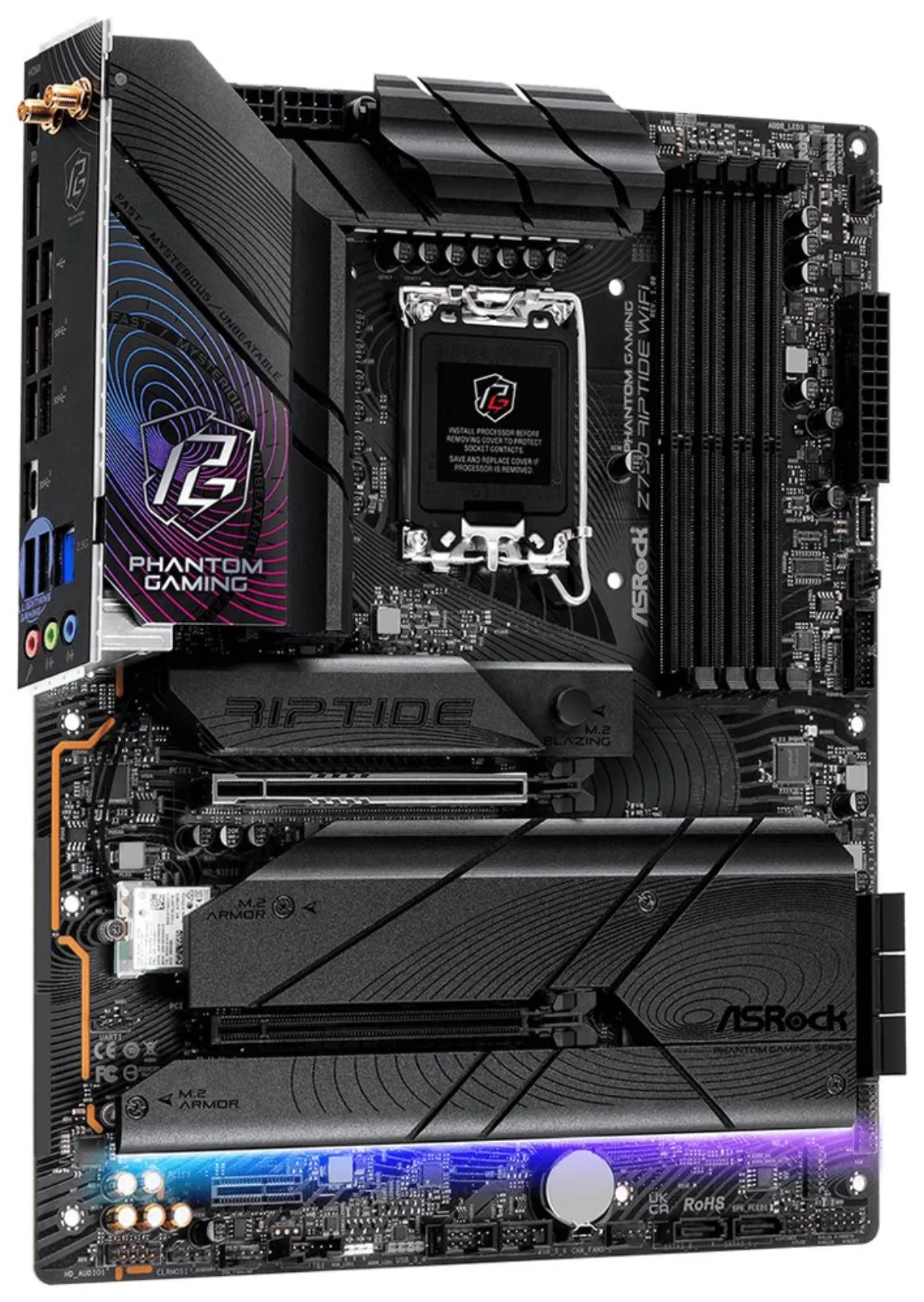

ASRock Phantom Gaming Z790 RIPTIDE WiFi Intel Z790 LGA1700 4x DDR5 DIMM 5x M.2 HDMI DP USB-C ATX

ASRock Z790 RIPTIDE WiFi

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 14., 13 . and 12 . generation Intel Core/ Pentium Gold/ Celeron
• Support for Intel Hybrid technology
• Support for Intel Turbo Boost Max 3.0 technology
• Intel Thermal Velocity Boost (TVB) support
• Intel Adaptive Boost Technology (ABT) support
• Socket LGA1700

Chipset

• Intel Z790

Memory

• 4x DDR5 memory slot, support up to 192 GB
• Support DDR5 up to 8000+ (OC) MHz
• Dual channel memory architecture
• Non-ECC support, no buffering
• Intel Extreme Memory Profile (XMP) 3.0 support

Slots

• 1x PCIe 5.0 x16 slot
• 1× PCIe 4.0 ×16 slot (supports ×4 mode)
• 1x PCIe 3.0 x1 slot

Graphic Design

• 1× eDP port, supporting max. Full HD resolution at 60 Hz
• 1× HDMI port, supporting a maximum resolution of 4K at 60 Hz
• 1× DisplayPort port, supporting max. resolution 8K at 60 Hz, 5K at 120 Hz

Multi-GPU

• AMD CrossFire technology support

Intel CPU

• 1× Blazing M.2 slot, M Key, for 2280 type units (PCIe 5.0 ×4 mode)
• 1× Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 ×4 mode)
• 3x Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 ×4 mode)
• 8x SATA 6Gb/s port
• Intel Volume Management Device (VMD) support
• RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives
• RAID 0, RAID 1 support. RAID 5 and RAID 10 for M.2 NVMe drives

USB

• 1× USB-C 3.2 Gen2x2 port available via an internal USB connector
• 2x USB 3.2 Gen2 port on the back panel
• 1× USB-C 3.2 Gen1 (USB 3.0) port on the back panel
• 6× USB 3.2 Gen1 (USB 3.0) port (4 ports on the back panel, 2 ports available via the internal USB connector)
• 6× USB 2.0 port (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek Realtek ALC1220
• 7.1 channel High Definition Audio
• Impedance sensing on the rear output port
• Nahimic audio

LAN

• 1× Killer E3100G 2.5Gigabit LAN controller

WLAN/Bluetooth

• Wi-Fi 7
• Wi-Fi 802.11a/b/g/n/ac/ax/be
• Triple Band (2.4 GHz, 5 GHz, 6 GHz)
• MU-MIMO support
• Bluetooth 5.4

Internal connectors

• 1× eDP connector
• 1x connector for the thermistor cable
• 1× SPI TPM connector
• 1x speaker connector and Power LED
• 1x RGB LED strip connector
• 3x addressable LED strip connector
• 1× 4pin CPU fan connector
• 1× 4pin CPU fan/ water cooling fan connector
• 1× 4pin case fan connector
• 4x 4pin case fan/water cooling fan connector
• 1× 24pin ATX main power connector
• 2× 8pin 12V power connector
• 1x front panel audio connector
• 1× 5pin Thunderbolt AIC connector (supports ASRock Thunderbolt 4 AIC)
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 port)
• 1× USB-C 3.2 Gen2x2 front panel connector
• 1× M.2 slot, E key for Wi-Fi and Intel CNVio/ CNVio2 module

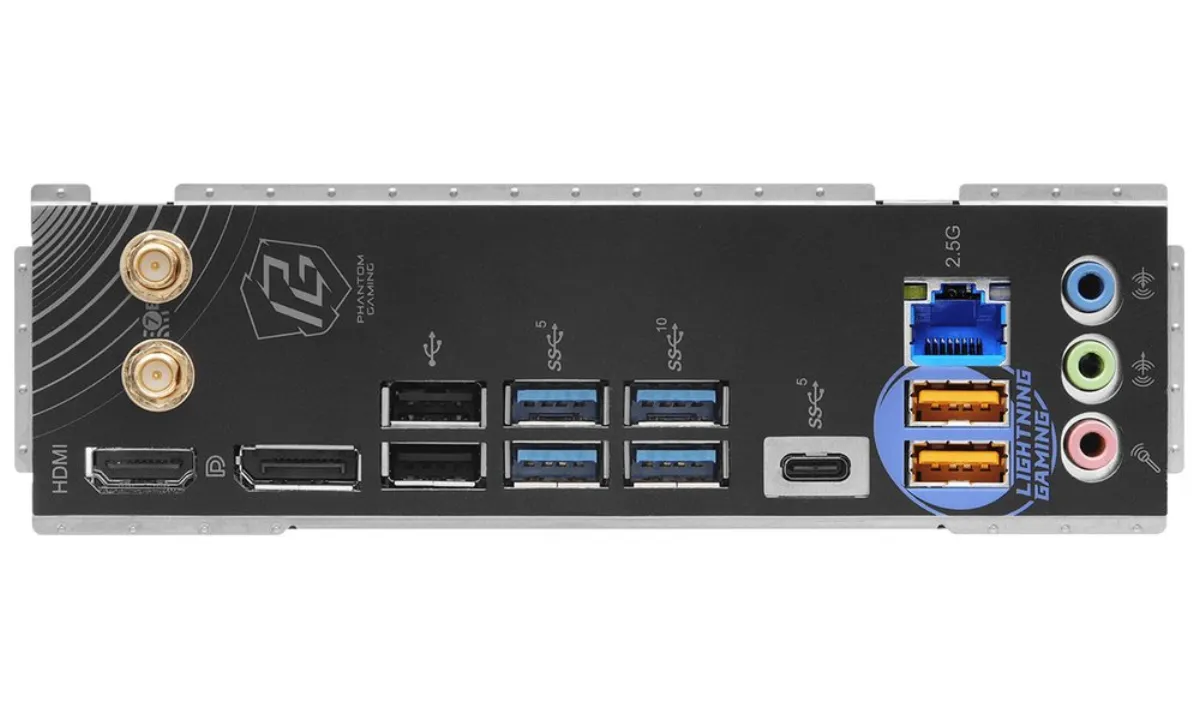

Rear panel ports

• 2x Wi-Fi antenna connector
• 1x HDMI
• 1x DisplayPort
• 2x USB 3.2 Gen2 (USB 3.1)
• 1× USB-C 3.2 Gen1 (USB 3.0)
• 4x USB 3.2 Gen1 (USB 3.0)
• 2x USB 2.0
• 1x RJ-45
• 3x audio jack

Dimensions

• 30.5 x 24.4 cm
• ATX format
