GIGABYTE Z790 AORUS ELITE AX Intel Z790 LGA1700 4x DDR5 4x M.2 HDMI DP USB-C WiFi ATX

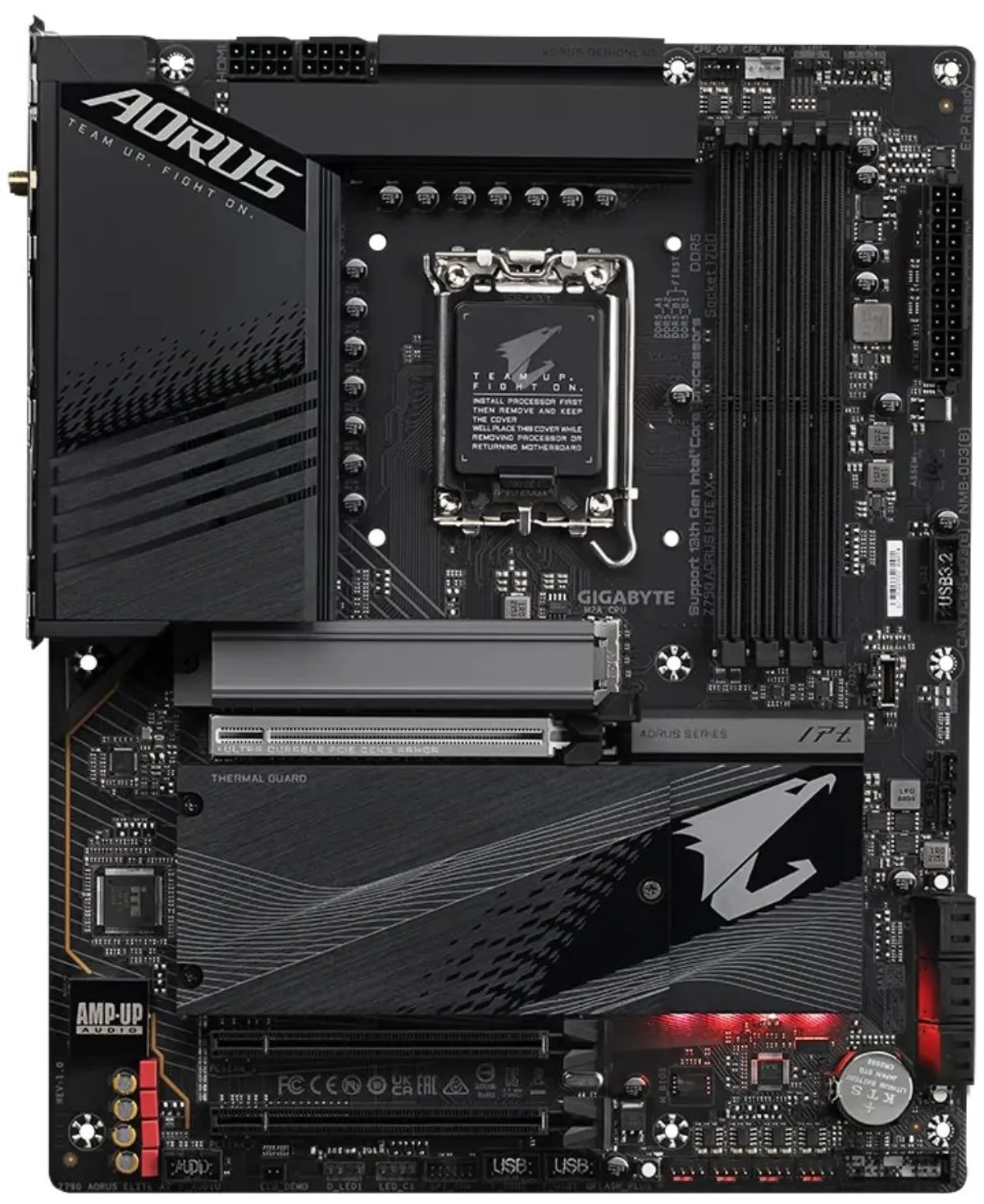

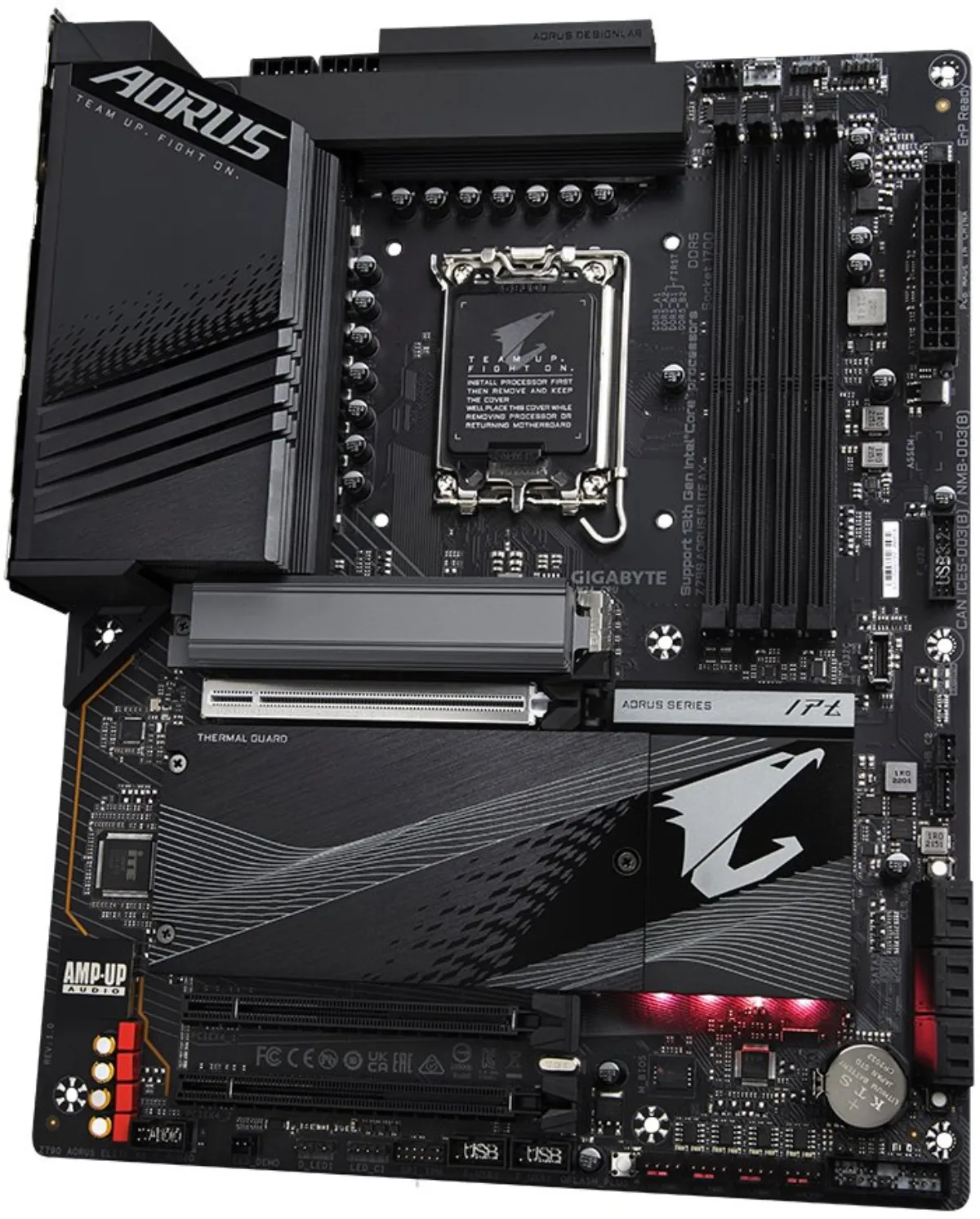

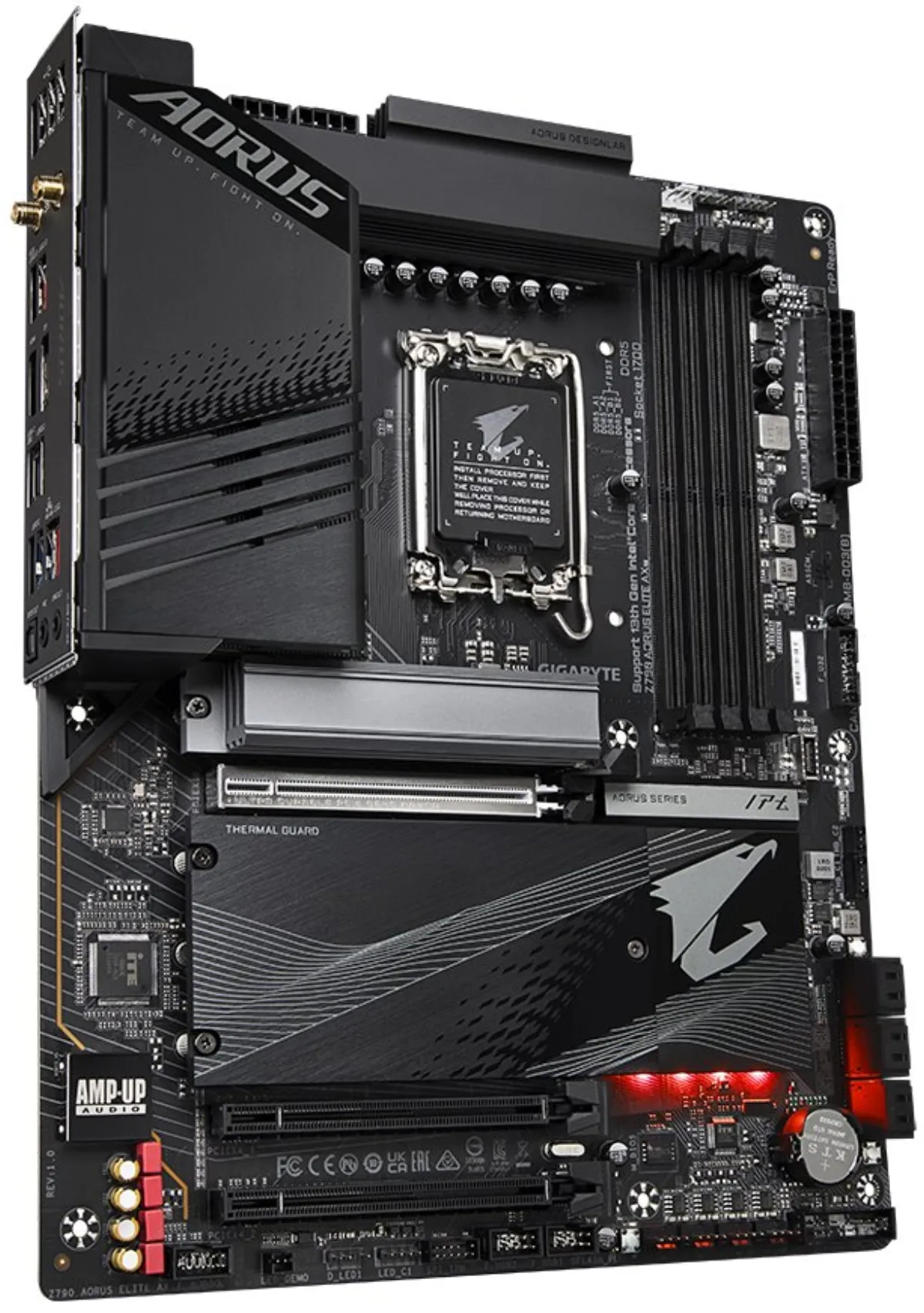

GIGABYTE Z790 AORUS ELITE AX

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 13 . and 12 . generation Intel Core/ Pentium Gold/ Celeron
• Socket LGA1700

Chipset

• Intel Z790

Memory

• 4x DDR5 memory slot, support up to 128 GB
• Support DDR5 7600 (OC)/ 7400 (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC) )/ 5600 (OC)/ 5400 (OC)/ 5200 (OC)/ 4800/ 4000 MHz
• Dual channel memory architecture
• Support non-ECC, unbuffered, 1Rx8 / 2Rx8 / 1Rx16
• ECC memory support (non-ECC mode), 1Rx8 / 2Rx8
• Intel Extreme Memory Profile (XMP) support

Slots

• 1x PCIe 5.0 x16 slot
• 2× PCIe 4.0 x16 slot (supports x4 mode)

Graphic Design

• 1× DisplayPort port, supporting a maximum resolution of 4096 × 2304 at 60 Hz
• 1× HDMI port, supporting a maximum resolution of 4096 × 2160 at 60 Hz

Multi-GPU

• AMD CrossFire technology support

Repository

Intel CPU

• 1× M.2 slot, M Key, for 2280/22110 type units (PCIe 4.0 x4/x2 mode)
• 2× M.2 slot, M Key, for 2280/22110 type units (PCIe 4.0 x4/x2 mode)
• 1× M.2 slot, M Key, for 2280/22110 type units (SATA and PCIe 4.0 x4 mode)
• 6x SATA 6Gb/s port
• RAID 0, RAID 1, RAID 5 and RAID 10 support for both SATA and NVMe SSDs

USB

• 1× USB 3.2 Gen2x2 type C port on the back panel
• 1× USB 3.2 Gen2 type C port available via an internal USB connector
• 2× USB 3.2 Gen2 type A port on the back panel
• 5× USB 3.2 Gen1 (USB 3.0) port (3 ports on the back panel, 2 ports available via the internal USB connector)
• 8× USB 2.0 port (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek Audio Codec
• 2/4/5.1/7.1 channel High Definition Audio
• S/PDIF output support

HIND

• 1× Realtek 2.5Gigabit LAN controller

WLAN/ Bluetooth

• Intel Wi-Fi 6E AX211
• Wi-Fi 802.11a/b/g/n/ac/ax
• Triple Band (2.4 GHz, 5 GHz, 6 GHz)
• Data transfer speed up to 2.4 Gbps
• Bluetooth 5.3

Internal Connectors

• 1× 24-pin ATX main power connector
• 2× 8-pin ATX 12V power connector
• 1x CPU fan connector
• 1x CPU water cooling fan connector
• 3x system fan connector
• 1x system fan/ water cooling pump connector
• 2x addressable LED strip connector
• 2x RGB LED strip connector
• 4x M.2 slot, M Key
• 6x SATA 6Gb/s connector
• 1x front panel connector
• 1x front panel audio connector
• 1× USB 3.2 Gen2 type C connector
• 1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 port)
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 2x Thunderbolt AIC connector
• 1× TPM connector (only supports GC-TPM2.0 SPI and GC-TPM2.0 SPI 2.0 modules)
• 1x Reset button
• 1× Q-Flash Plus button
• 1x Clear CMOS button
• 1× Reset jumper
• 1 Clear CMOS jumper

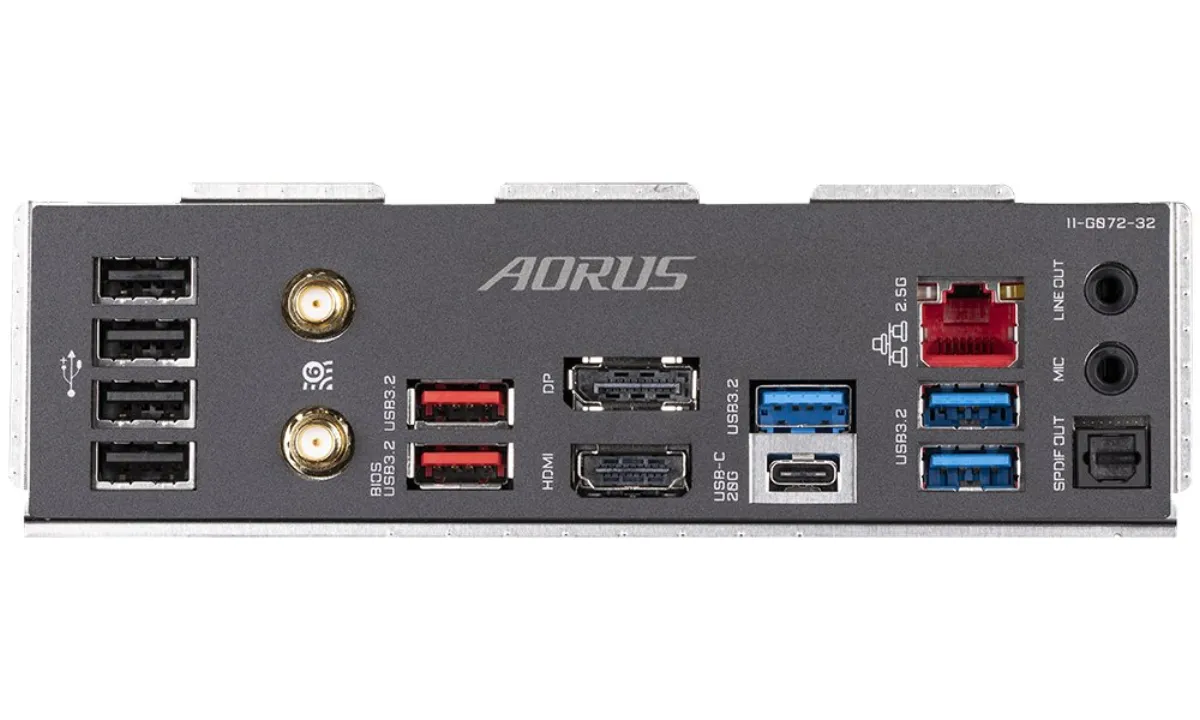

Rear Panel Ports

• 1× USB 3.2 Gen2x2 type C
• 2x USB 3.2 Gen2 (USB 3.1 Gen2)
• 3x USB 3.2 Gen1 (USB 3.0)
• 4x USB 2.0
• 2x Wi-Fi antenna connector
• 1x HDMI
• 1x DisplayPort
• 1x RJ-45
• 1x optical S/PDIF output
• 2x audio jack

Dimensions

• 30.5 x 24.4 cm
• ATX format
