ASRock Z790 Taichi Intel Z790 LGA1700 4x DDR5 5x M.2 HDMI Thunderbolt USB-C WiFi EATX

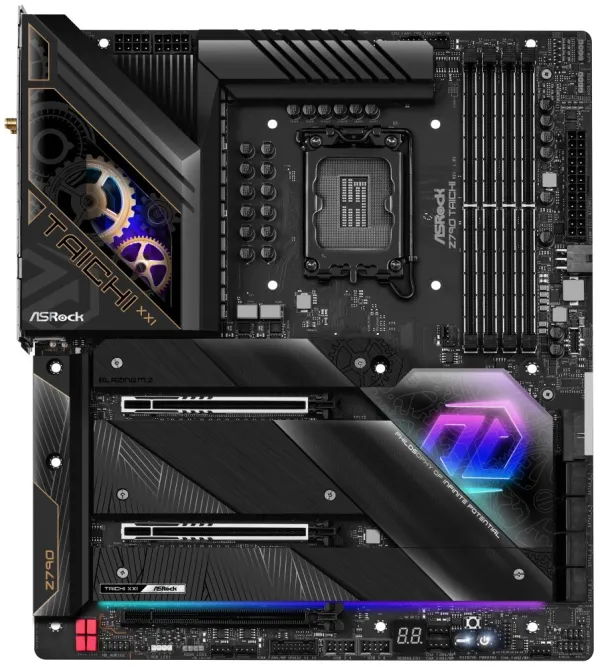

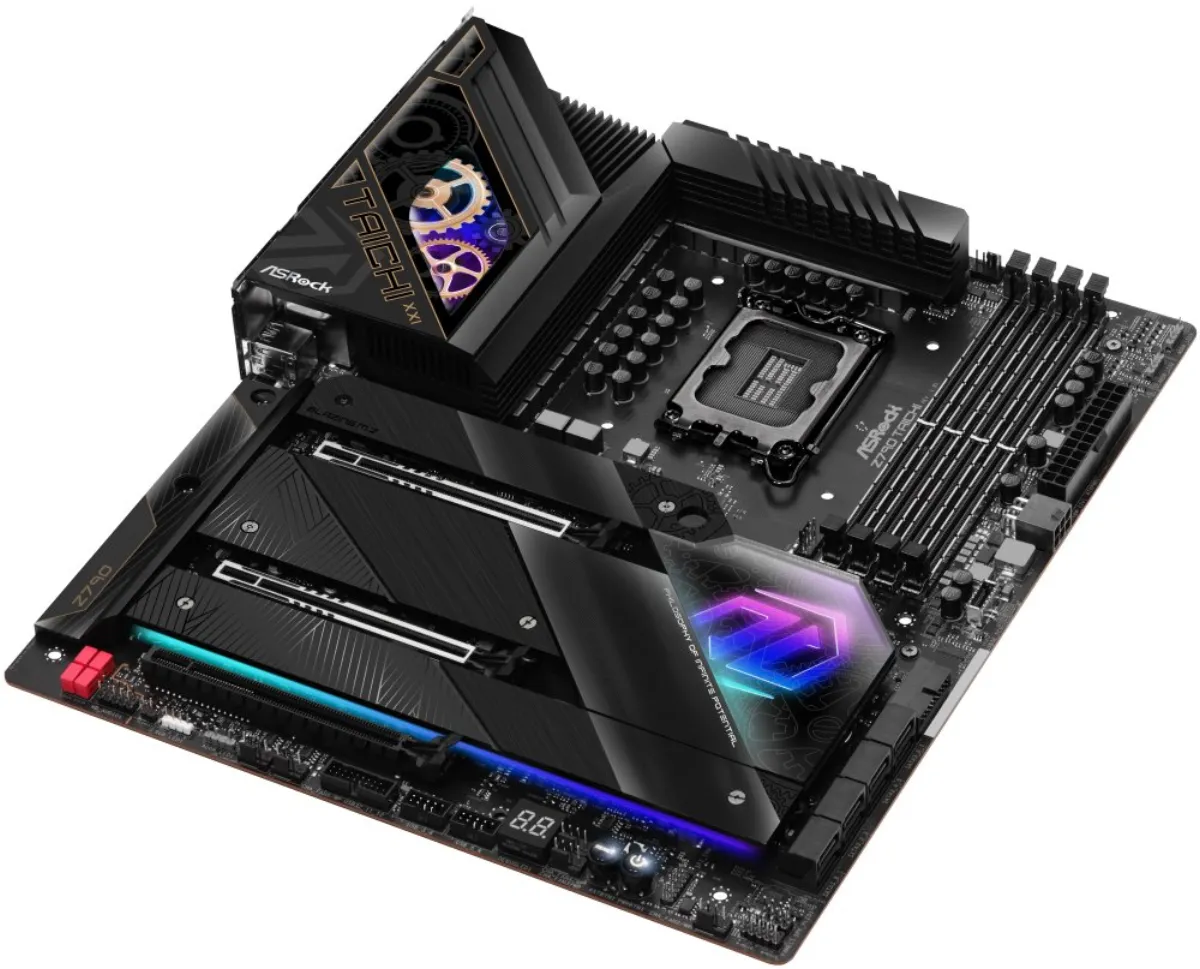

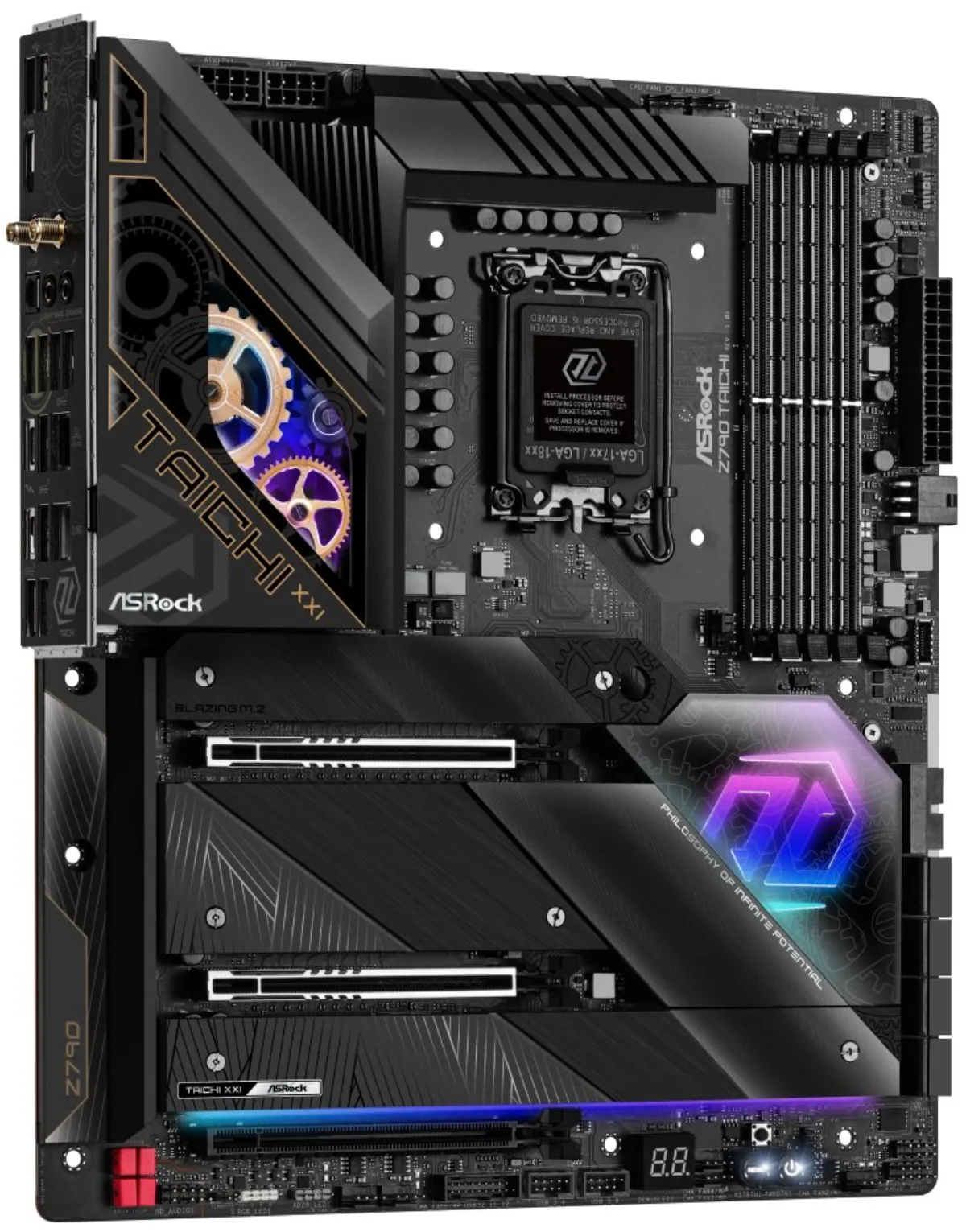

ASRock Z790 Taichi

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 13 . and 12 . generation Intel Core/ Pentium Gold/ Celeron
• Socket LGA1700

Chipset

• Intel Z790

Memory

• 4x DDR5 memory slot, support up to 128 GB
• DDR5 support up to 7000+ (OC) MHz
• Dual channel memory architecture
• Non-ECC support, no buffering
• Intel Extreme Memory Profile (XMP) 3.0 support

Slots

• 2x PCIe 5.0 x16 slot (supports x16 or x8/x8 mode)
• 1x PCIe 4.0 x16 slot (supports x4 mode)

Graphic Design

• 1x HDMI port, supporting a maximum resolution of 4K at 60 Hz
• 2x Thunderbolt 4 (USB type C) port, supporting a maximum resolution of 8K at 60 Hz

Multi-GPU

• AMD CrossFire technology support

Repository

• 1x Blazing M.2 slot, M Key, for type 2280 units (PCIe 5.0 x4 mode)
• 1x Hyper M.2 slot, M Key, for type 2280 units (PCIe 4.0 x4 mode)
• 3x Hyper M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
• 8x SATA 6Gb/s ports
• Intel Volume Management Device (VMD) support
• RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives
• RAID 0, RAID 1 and RAID 5 support for M.2 NVMe drives

USB

• 2x Thunderbolt 4 (USB Type C) port on the back panel
• 1x USB 3.2 Gen2x2 type C port available via an internal USB connector
• 2x USB 3.2 Gen2 type A port on the back panel
• 10x USB 3.2 Gen1 (USB 3.0) port (6 ports on the back panel, 4 ports available via internal USB connectors)
• 6x USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek ALC4082 Codec
• 5.1 channel High Definition Audio
• ESS SABER9218 Front Panel DAC (130dB SNR)
• Nahimic audio

HIND

• 1x Killer E3100G 2.5Gigabit LAN controller
• Killer DoubleShot Pro support
• 1x Intel I219V Gigabit LAN controller

WLAN/ Bluetooth

• Killer Wi-Fi 6E
• Wi-Fi 802.11a/b/g/n/ac/ax
• Dual-Band 2x2 160 MHz (2.4 GHz, 5 GHz, 6 GHz)
• MU-MIMO support
• Killer DoubleShot Pro support
• Bluetooth 5.3

Internal Connectors

• 1x SPI TPM connector
• 1x speaker connector and Power LED
• 1x RGB LED strip connector
• 3x addressable LED strip connector
• 1x 4-pin CPU fan connector
• 1x 4-pin CPU/water cooling fan connector
• 6x 4-pin case fan/water cooling connector
• 1x 24-pin ATX main power connector
• 2x 8-pin 12V power connector
• 1x 6-pin 12V power connector
• 1x front panel audio connector
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 2x USB 3.2 Gen1 (USB 3.0) connector (supports 4x USB 3.2 Gen1 port)
• 1x USB 3.2 Gen2x2 Type C front panel connector
• 1x Clear CMOS button
• 1x Dr. Debug with LED
• 1x Power button with LED
• 1x Reset button with LED

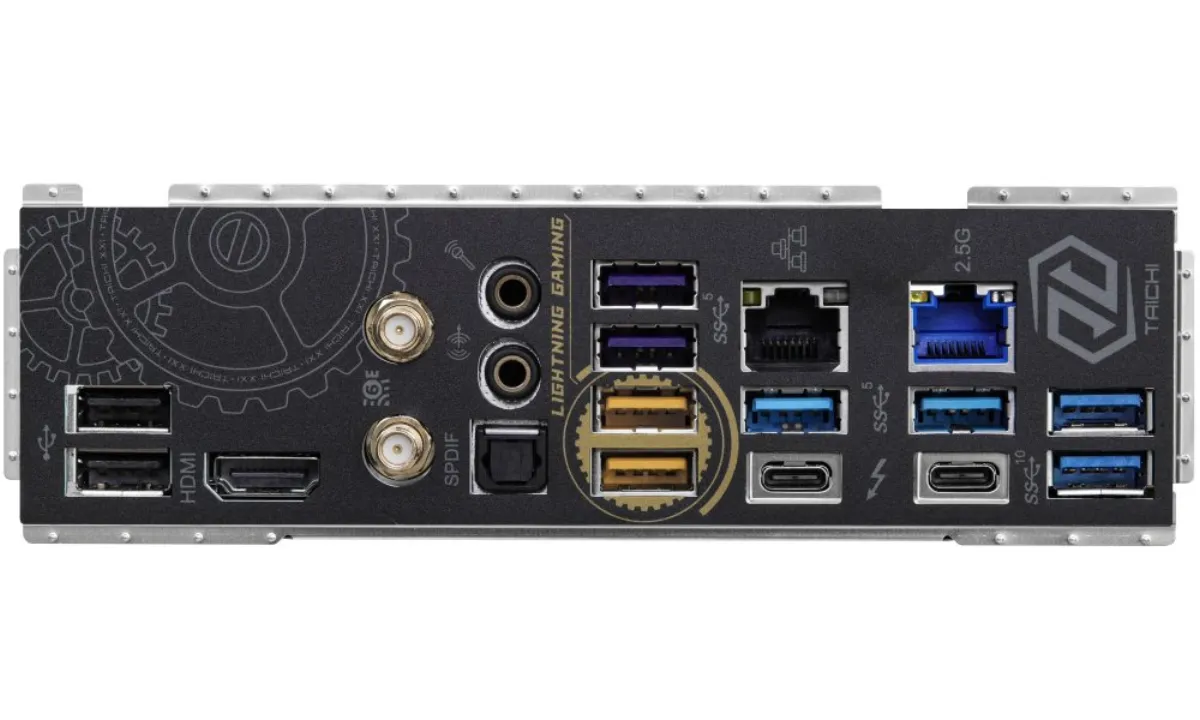

Rear Panel Ports

• 2x Wi-Fi antenna connector
• 1x HDMI
• 1x optical S/PDIF output
• 2x Thunderbolt 4 (USB Type C)
• 2x USB 3.2 Gen2 (USB 3.1 Gen2) type A
• 6x USB 3.2 Gen1 (USB 3.0)
• 2x USB 2.0
• 2x RJ-45
• 2x audio jack

Dimensions

• 30.5 x 26.7 cm
• E-ATX format
