MSI PRO Z790-A WIFI DDR4 Intel Z790 LGA1700 4x DDR4 4x M.2 HDMI DP USB-C WiFi ATX

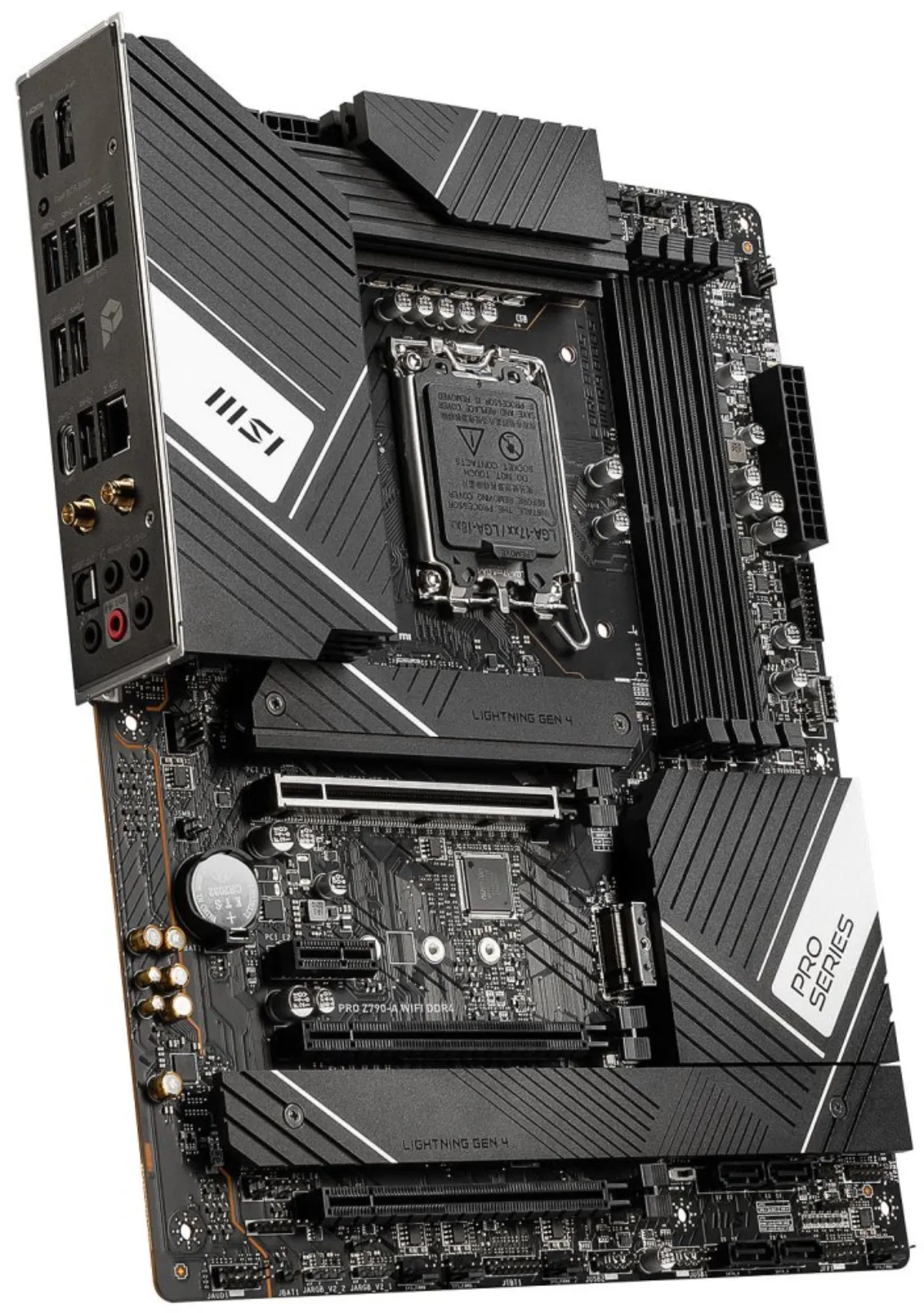

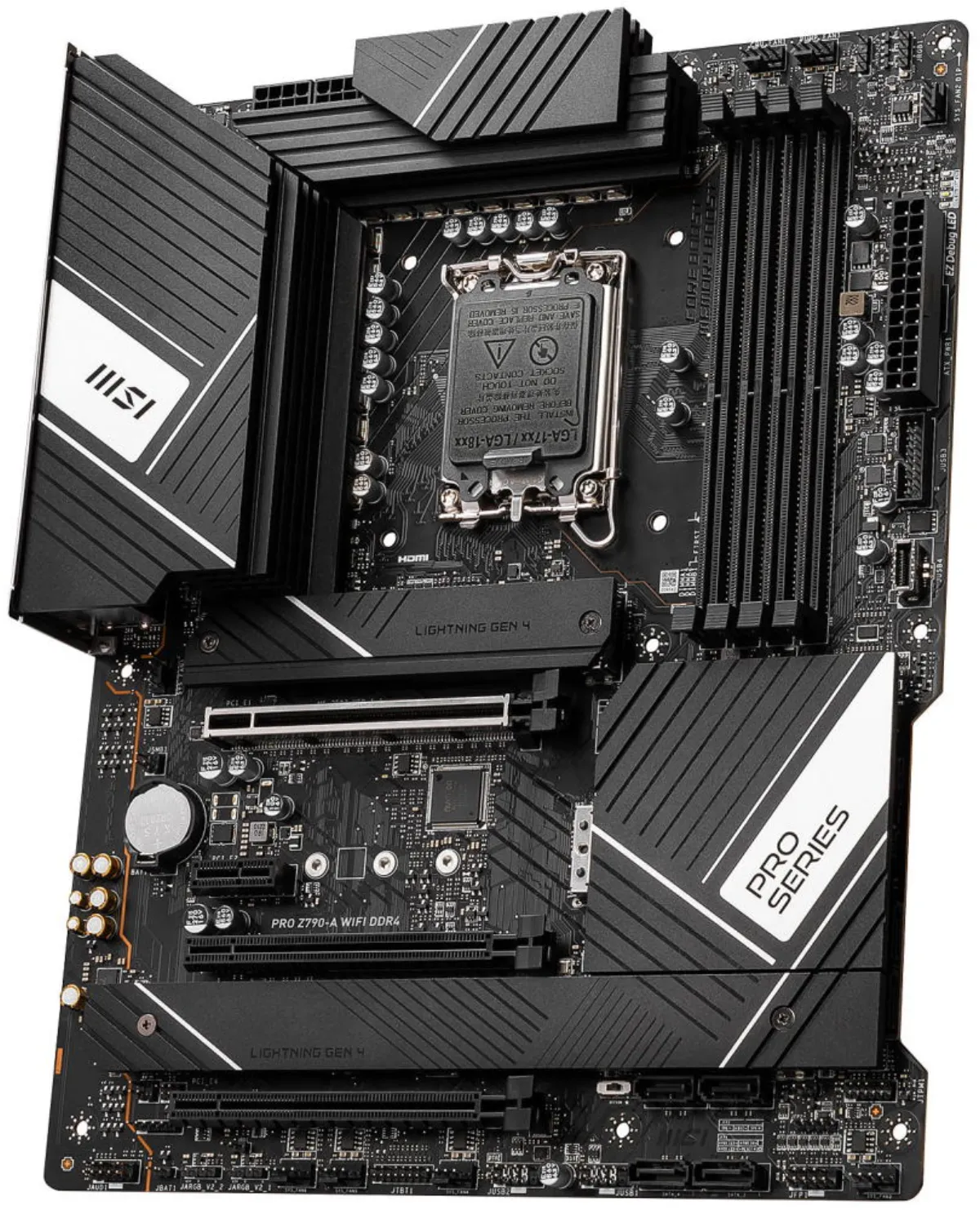

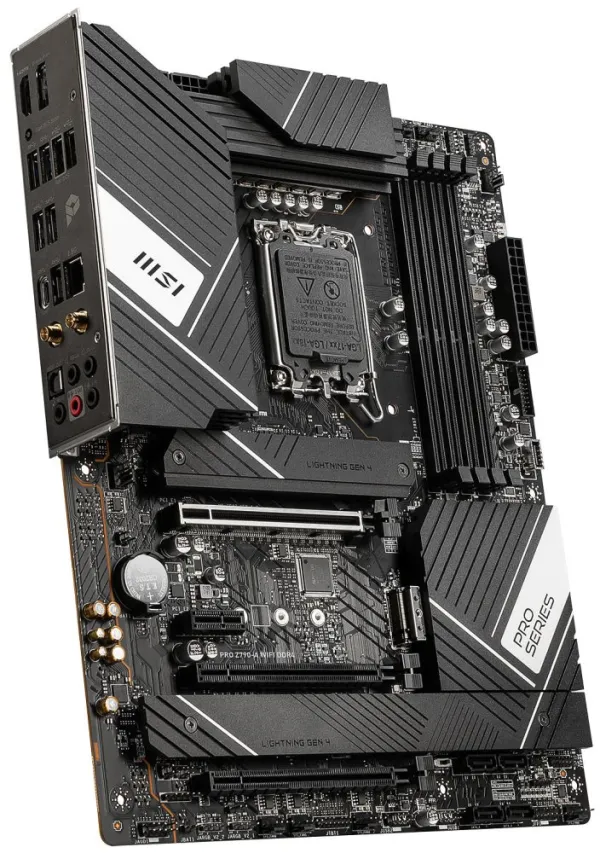

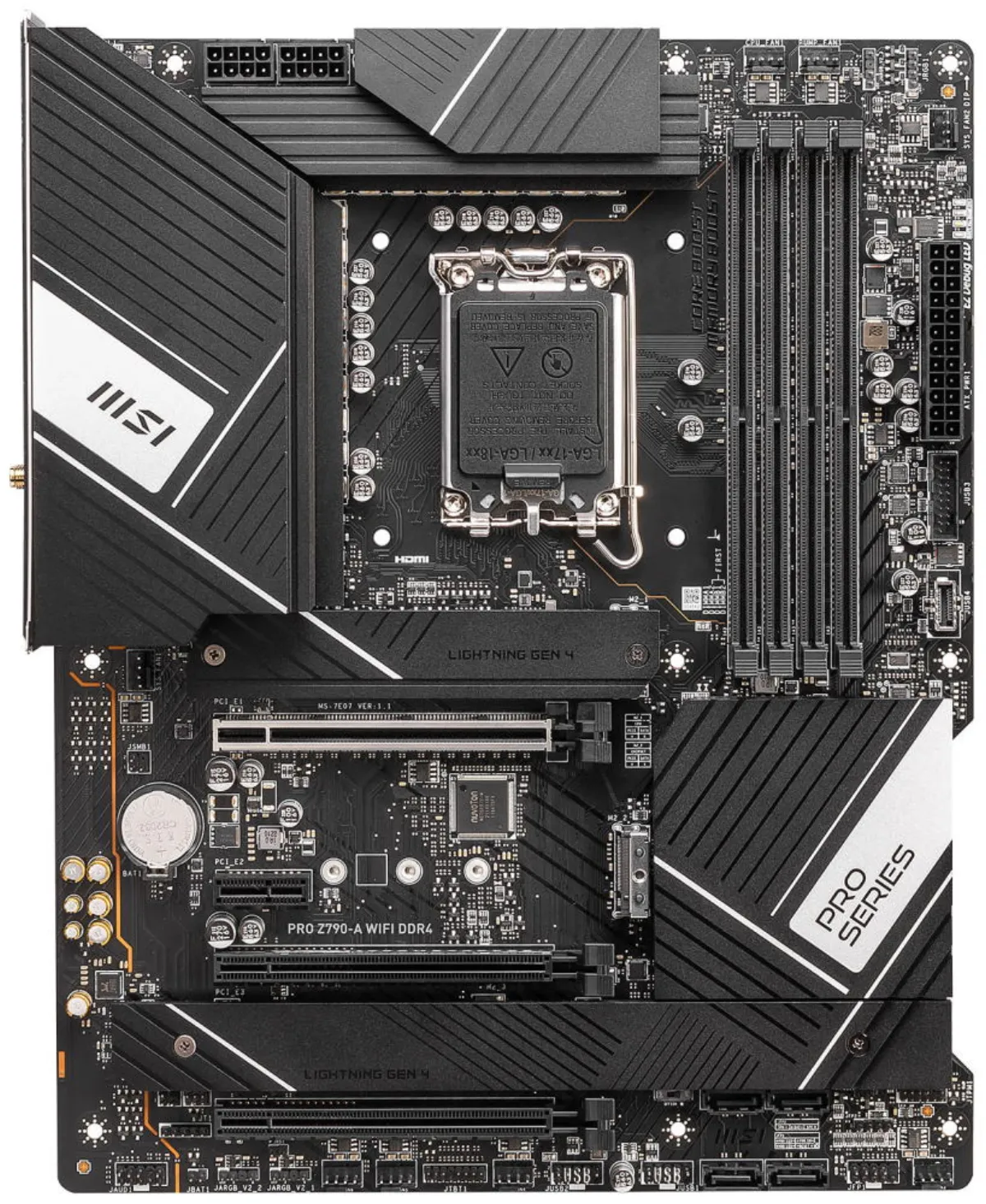

MSI PRO Z790-A WIFI DDR4

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 13 . and 12 . generation Intel Core/ Pentium Gold/ Celeron
• Socket LGA1700

Chipset

• Intel Z790

Memory

• 4x DDR4 memory slot, support up to 128 GB
• Support DDR4 5333 (OC)/ 5200 (OC)/ 5066 (OC)/ 5000 (OC)/ 4800 (OC)/ 4600 (OC)/ 4533 (OC)/ 4400 (OC)/ 4266 (OC)/ 4000 (OC) )/ 3866 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3333 (OC)/ 3200 (JEDEC)/ 3000 (JEDEC)/ 2933 (JEDEC)/ 2800 (JEDEC)/ 2666 (JEDEC) )/ 2400 (JEDEC)/ 2133 (JEDEC) MHz
• Dual channel memory architecture
• Non-ECC support, no buffering
• Intel Extreme Memory Profile (XMP) support

Slots

• 1x PCIe 5.0 x16 slot
• 1x PCIe 4.0 x16 slot (supports x4 mode)
• 1x PCIe 3.0 x16 slot (supports x1 mode)
• 1x PCIe 3.0 x1 slot

Graphic Design

• 1x HDMI port, supporting a maximum resolution of 4K at 60 Hz
• 1x DisplayPort port, supporting a maximum resolution of 8K at 60 Hz

Repository

• 1x M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 4.0 x4 mode)
• 6x SATA 6Gb/s port
• 1x M.2 slot, M Key, for units of type 2242/2260/2280 (PCIe 4.0 x4 mode)
• 2x M.2 slot, M key, for 2242/2260/2280 type units (SATA and PCIe 4.0 x4 mode)
• RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives
• RAID 0, RAID 1, RAID 5 and RAID 10 support for M.2 NVMe drives

USB

• 1x USB 3.2 Gen2x2 type C port on the back panel
• 1x USB 3.2 Gen2 type C port available via an internal USB connector
• 3x USB 3.2 Gen2 type A port on the back panel
• 4x USB 3.2 Gen1 (USB 3.0) port (2 ports on the back panel, 2 ports available via the internal USB connector)
• 6x USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek ALC4080 Codec
• 7.1-channel USB High Performance Audio
• S/PDIF output support

HIND

• 1x Intel 2.5Gigabit LAN controller

WLAN/ Bluetooth

• Intel Wi-Fi 6E
• Wi-Fi 802.11a/b/g/n/ac/ax
• Triple Band (2.4 GHz, 5 GHz, 6 GHz)
• Support MU-MIMO TX/RX
• Data transfer speed up to 2.4 Gbps
• Bluetooth 5.3

Internal Connectors

• 1x 24-pin ATX main power connector
• 2x 8-pin 12V power connector
• 6x SATA 6Gb/s connector
• 4x M.2 slot, M Key
• 1x USB 3.2 Gen2 type C connector
• 1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 1x 4-pin CPU fan connector
• 1x 4-pin water cooling fan connector
• 6x 4-pin system fan connector
• 1x front panel audio connector
• 2x system panel connector
• 1x cabinet opening detection connector
• 1x connector for TPM module
• 1x Tuning controller connector
• 1x TBT connector (supports RTD3)
• 1x Clear CMOS jumper
• 1x 4-pin RGB LED connector
• 3x 3-pin connector ARGB _V2 LED
• 4x EZ Debug LEDs

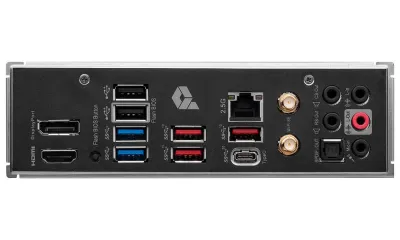

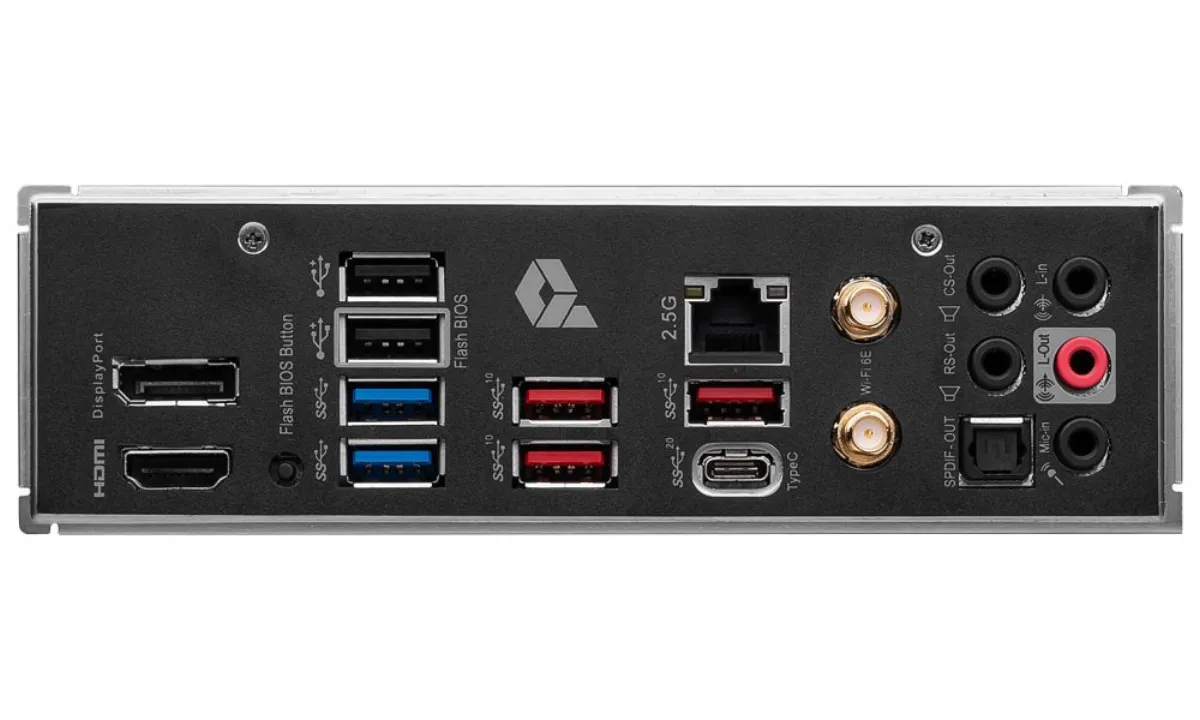

Rear Panel Ports

• 1 x DisplayPort
• 1x HDMI
• 1x Flash BIOS button
• 2x USB 2.0
• 2x USB 3.2 Gen1 (USB 3.0)
• 3x USB 3.2 Gen2 (USB 3.1 Gen2)
• 1x USB 3.2 Gen2x2 (USB 3.2) type C
• 1x RJ-45
• 2x Wi-Fi antenna connector
• 5x audio jack
• 1x optical S/PDIF output

Dimensions

• 30.5 x 24.4 cm
• ATX format
