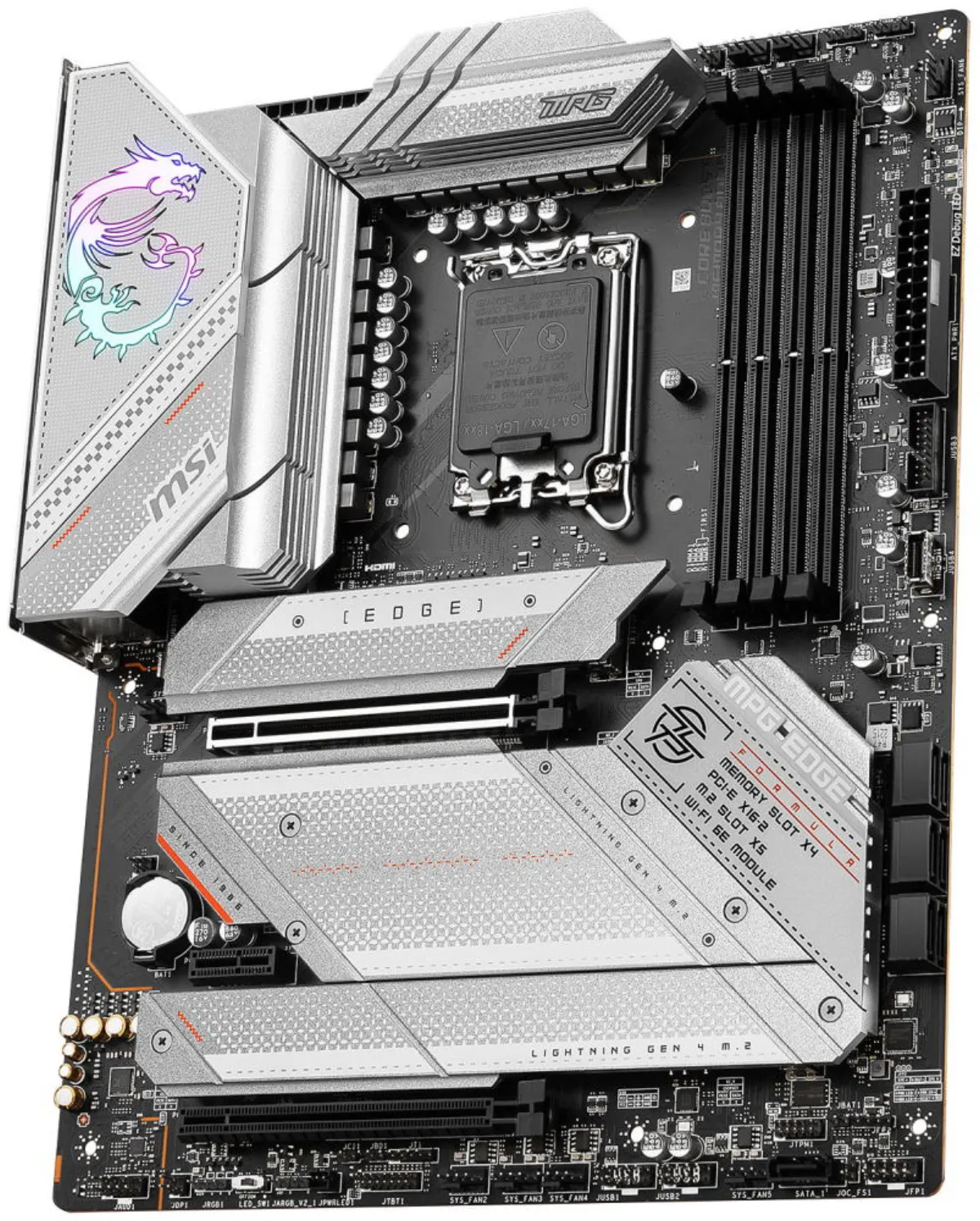

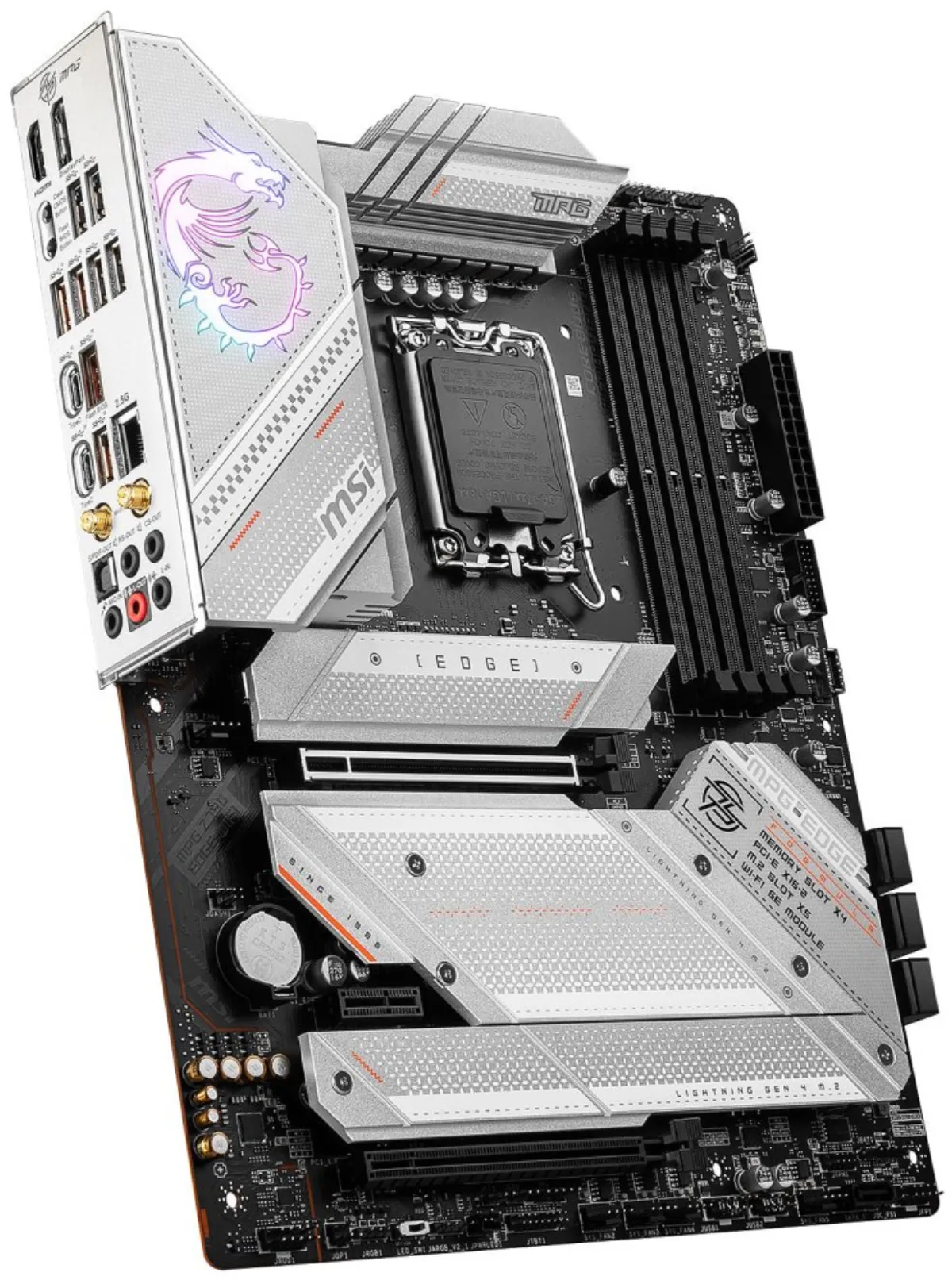

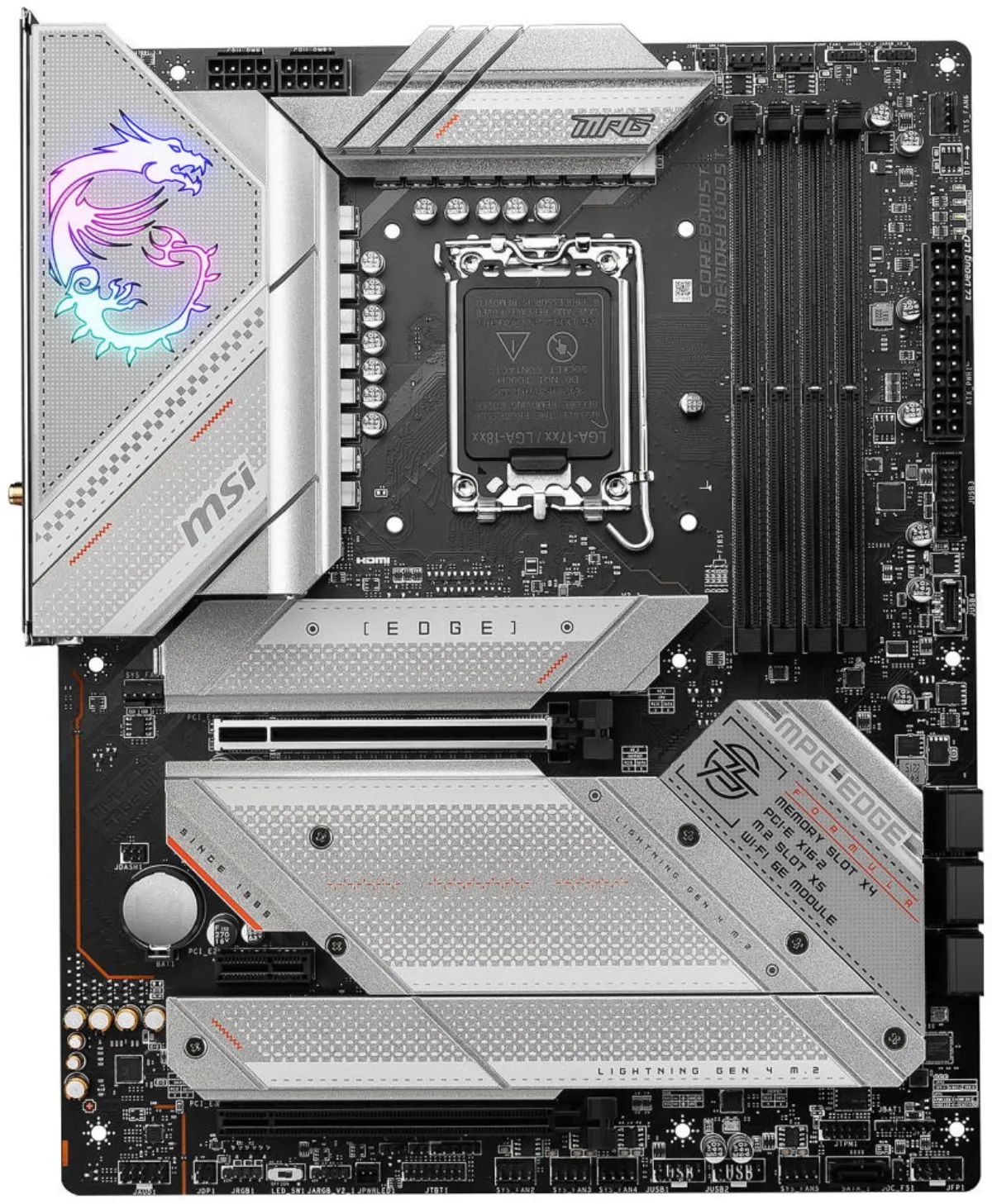

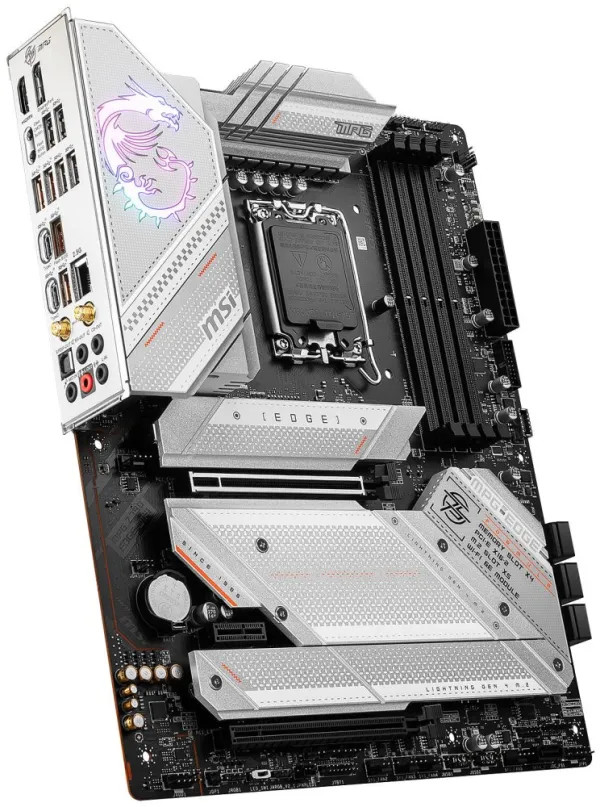

MSI MPG Z790 EDGE WIFI Intel Z790 LGA1700 4x DDR5 5x M.2 HDMI DP USB-C WiFi ATX

MSI MPG Z790 EDGE WIFI

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 12 . and 13 . generation Intel Core/ Pentium Gold/ Celeron
• Socket LGA1700

Chipset

• Intel Z790

Memory

• 4x DDR5 memory slot, support up to 128 GB
• Support DDR5 7200+ (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (JEDEC)/ 5400 ( JEDEC)/ 5200 (JEDEC)/ 5000 (JEDEC)/ 4800 (JEDEC) MHz
• Dual channel memory architecture
• Non-ECC support, no buffering
• Intel Extreme Memory Profile (XMP) 3.0 OC support

Slots

• 1x PCIe 5.0 x16 slot
• 1x PCIe 4.0 x16 slot (supports x4 mode)
• 1x PCIe 3.0 x1 slot

Graphic Design

• 1x HDMI port, supporting a maximum resolution of 4K at 60 Hz
• 1x DisplayPort port, supporting a maximum resolution of 8K at 60 Hz

Repository

• 1x M.2 slot, M Key, for units of type 22110/2280/2260 (PCIe 4.0 x4 mode)
• 2x SATA 6Gb/s port (without RAID support)
• 5x SATA 6Gb/s port
• 2x M.2 slot, M Key, for 2280/2260 type units (PCIe 4.0 x4 mode)
• 1x M.2 slot, M Key, for units of type 2280/2260/2242 (PCIe 4.0 x4 mode)
• 1x M.2 slot, M Key, for 2280/2260/2242 type units (SATA and PCIe 4.0 x4 mode)
• RAID 0, RAID 1, RAID 5 and RAID 10 support for both SATA and M.2 NVMe drives

USB

• 4x USB 2.0 port available via internal USB connectors
• 6x USB 3.2 Gen1 (USB 3.0) port (4 ports on the back panel, 2 ports available via the internal USB connector)
• 4x USB 3.2 Gen2 type A port on the back panel
• 2x USB 3.2 Gen 2 Type C port (1 port on the back panel, 1 port available via the internal USB connector)
• 1x USB 3.2 Gen2x2 type C port on the back panel

Audio

• Realtek ALC4080 Codec
• 7.1-channel USB High Performance Audio

HIND

• 1x Intel 2.5Gigabit LAN controller

WLAN/ Bluetooth

• Intel Wi-Fi 6E
• Wi-Fi 802.11a/b/g/n/ac/ax
• Dual Band (2.4 GHz, 5 GHz, 6 GHz)
• Support MU-MIMO TX/RX
• Data transfer speed up to 2.4 Gbps
• Bluetooth 5.3, FIPS, FISMA

Internal Connectors

• 1x 24-pin ATX main power connector
• 2x 8-pin 12V power connector
• 1x CPU fan connector
• 1x water cooling pump fan connector
• 6x system fan connector
• 2x front panel connector
• 1x cabinet opening detection connector
• 1x front panel audio connector
• 1x TBT connector (supports RTD3)
• 1x Tuning controller connector
• 3x V2 ARGB LED connector
• 1x RGB LED connector
• 1x TPM connector (supports TPM 2.0)
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)
• 1x USB 3.2 Gen2 type C connector
• 4x EZ Debug LEDs
• 1x EZ LED Control switch

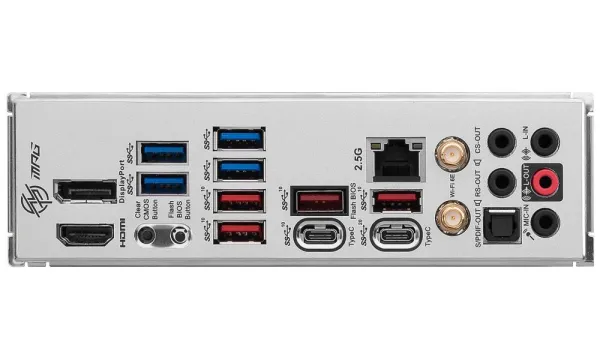

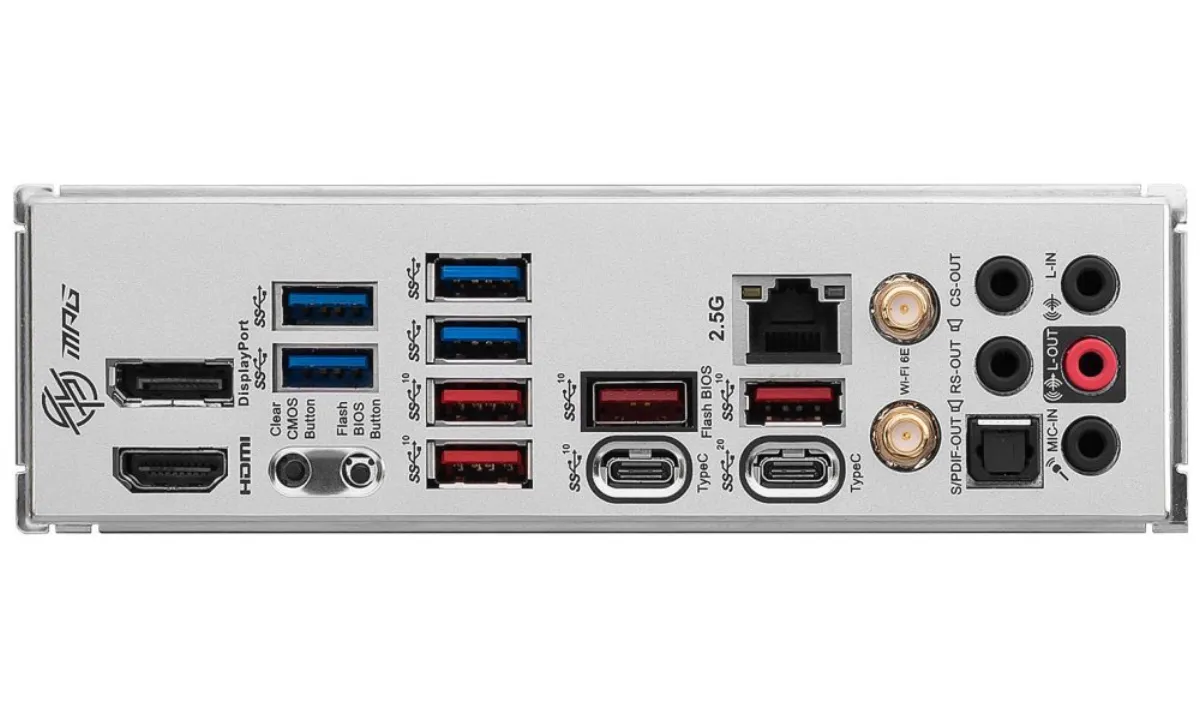

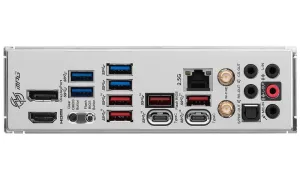

Rear Panel Ports

• 1 x DisplayPort
• 1x HDMI
• 4x USB 3.2 Gen1 (USB 3.0)
• 4x USB 3.2 Gen2 (USB 3.1 Gen2) type A
• 1x Clear CMOS button
• 1x Flash BIOS button
• 1x USB 3.2 Gen2 type C
• 1x USB 3.2 Gen2x2 Type C
• 1x RJ-45
• 2x Wi-Fi antenna connector
• 5x audio jack
• 1x optical S/PDIF output

Dimensions

• 30.48 x 24.384 cm
• ATX format
