ASRock Z790 PG-ITX TB4 Intel Z790 LGA1700 2x DDR5 3x M.2 HDMI DP 2x Thunderbolt WiFi Mini-ITX

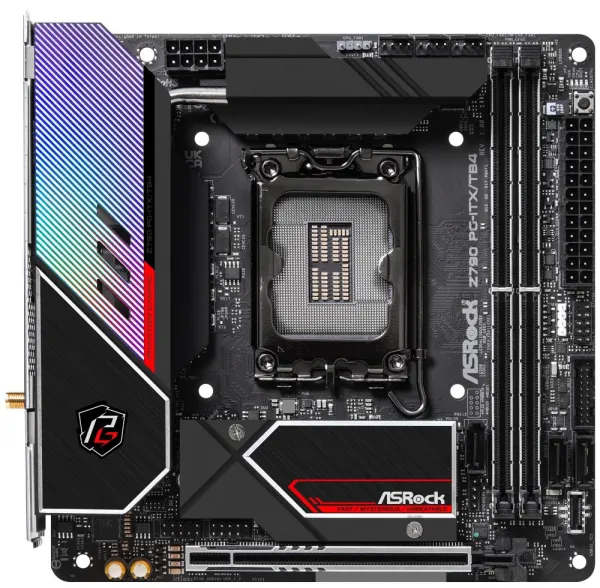

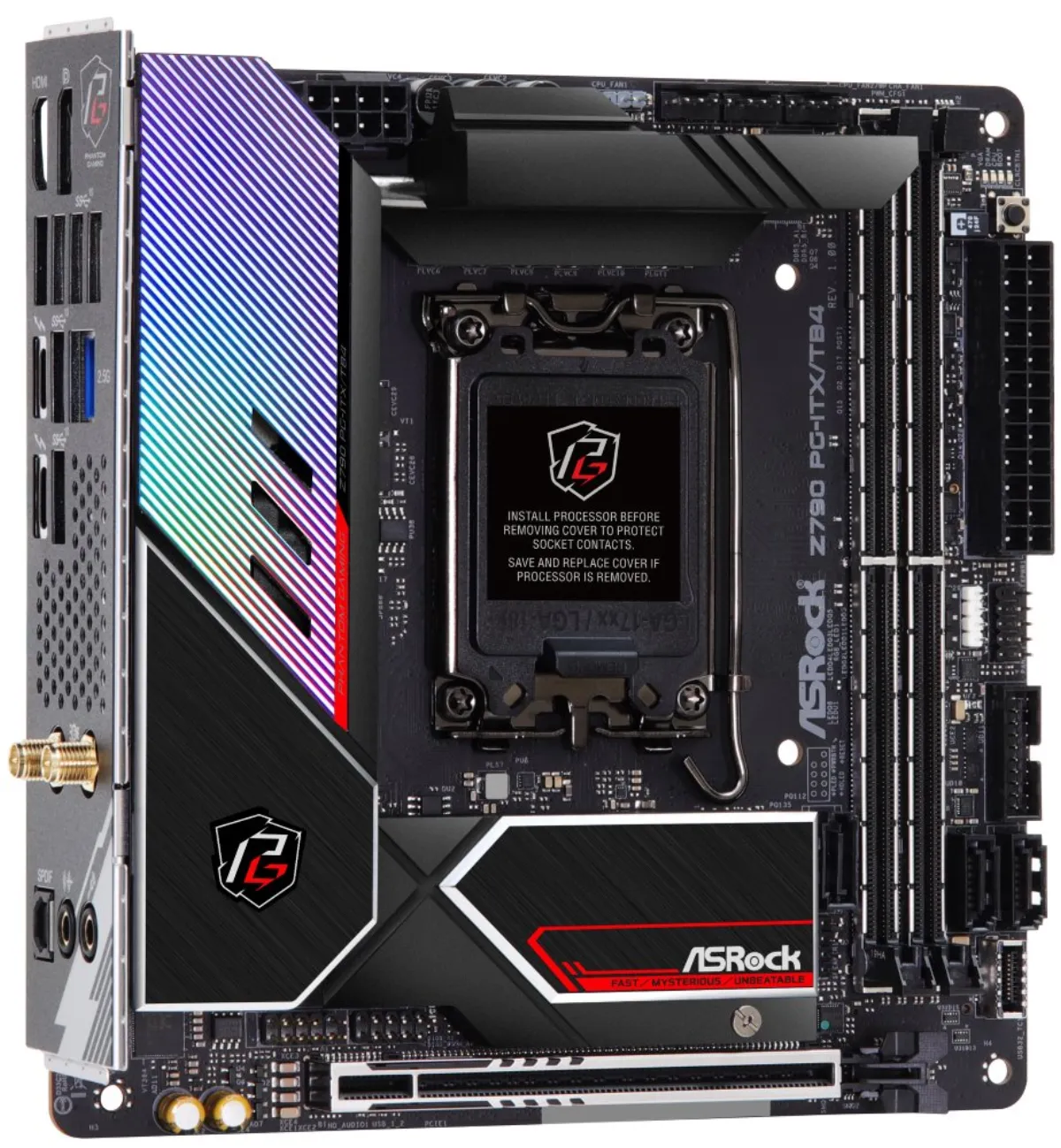

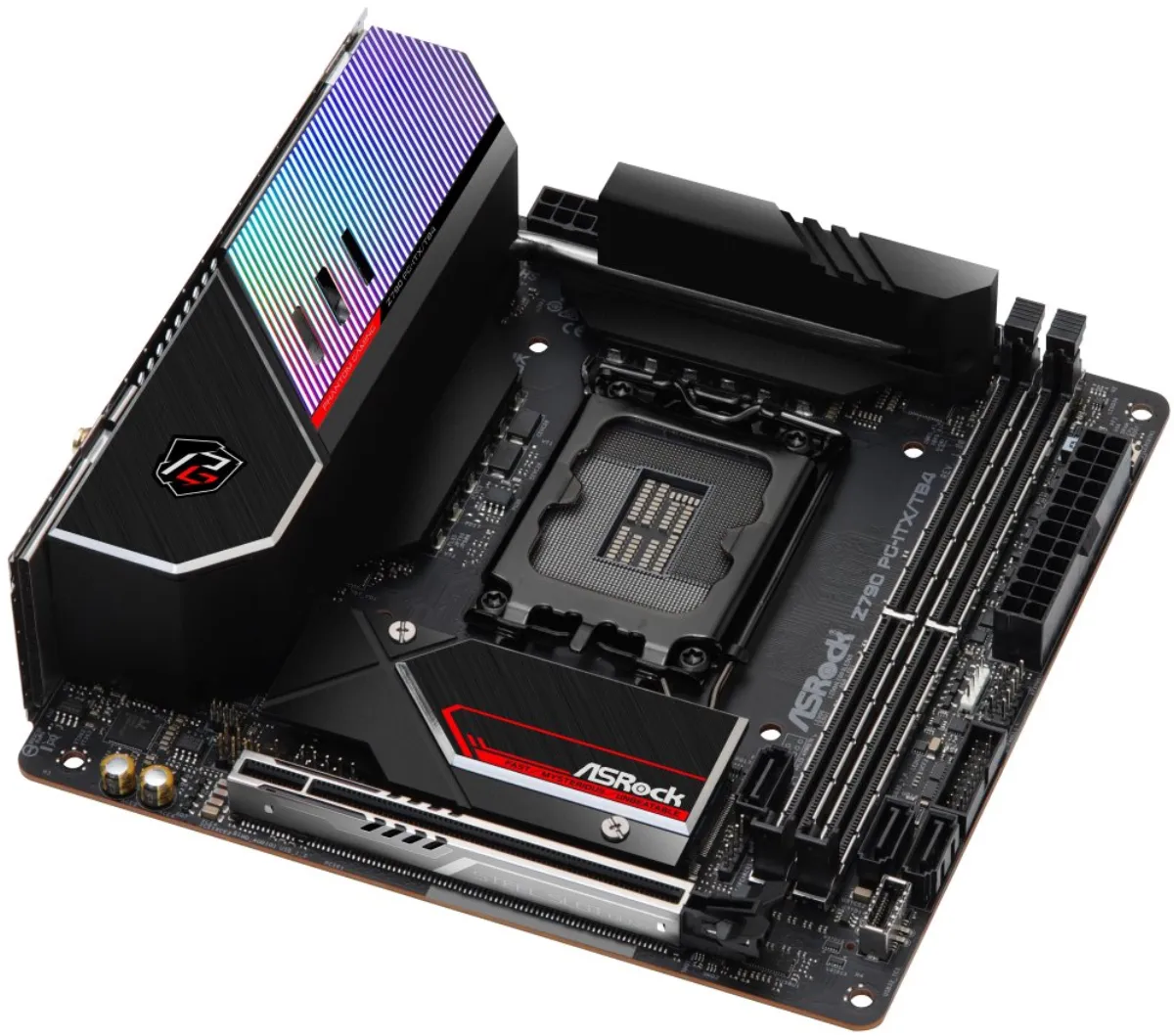

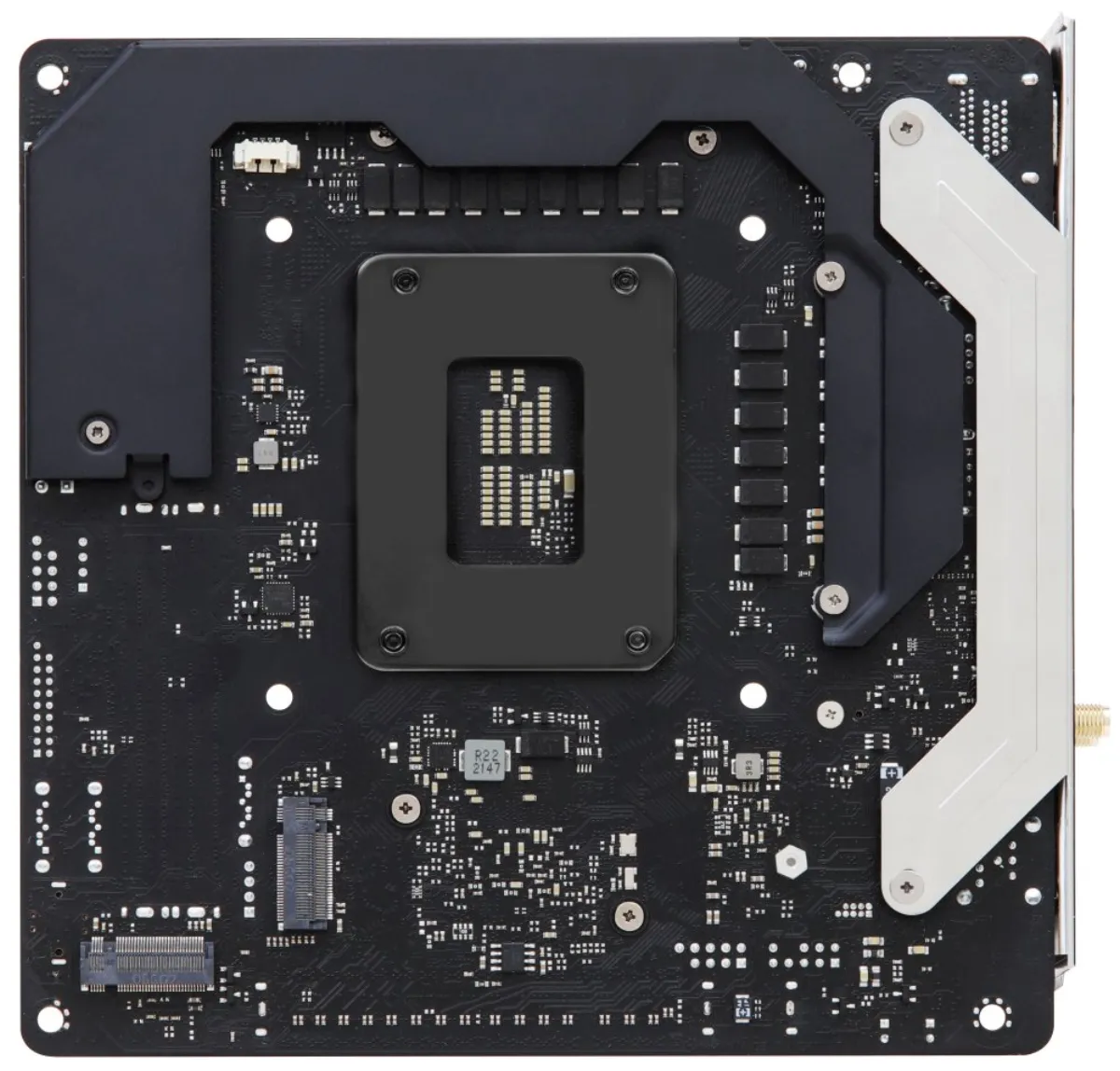

ASRock Z790 PG-ITX/TB4

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 12 . and 13 . generation Intel Core/ Pentium Gold/ Celeron
• Socket LGA1700

Chipset

• Intel Z790

Memory

• 2x DDR5 memory slot, support up to 64 GB
• DDR5 support up to 6800+ (OC) MHz
• Support DDR5 5600 MHz natively
• Non-ECC support, no buffering
• Intel Extreme Memory Profile (XMP) 3.0 support

Slots

• 1x PCIe 5.0 x16 slot

Graphic Design

• 1x HDMI port, supporting a maximum resolution of 4K at 60 Hz
• 1x DisplayPort port, supporting max. resolution 8K at 60 Hz, 5K at 120 Hz
• 2x Thunderbolt 4 port, supporting max. 8K resolution at 60 Hz (supports 1x 8K or 2x 4K display)

Repository

• 1x Hyper M.2 slot, M Key, for type 2280 units (PCIe 4.0 x4 mode)
• 3x SATA 6Gb/s port
• 1x Hyper M.2 slot, M Key, for type 2280 units (PCIe 4.0 x4 mode)
• 1x Hyper M.2 slot, M Key, for type 2280 units (SATA and PCIe 4.0 x4 mode)
• Intel Volume Management Device (VMD) support
• RAID 0, RAID 1 and RAID 5 support for both SATA and M.2 NVMe drives

USB

• 2x Thunderbolt 4 port on the back panel
• 1x USB 3.2 Gen 2x2 type C port available via internal USB connector
• 6x USB 3.2 Gen2 type A port on the back panel
• 2x USB 3.2 Gen1 (USB 3.0) port available via an internal USB connector
• 2x USB 2.0 port available via internal USB connector

Audio

• Realtek ALC4082 Codec
• 7.1 channel High Definition Audio
• Nahimic Audio

HIND

• 1x Killer E3100X 2.5Gigabit LAN controller
• Killer DoubleShot Pro support

WLAN/ Bluetooth

• Intel Wi-Fi 6E
• Wi-Fi 802.11a/b/g/n/ac/ax
• Dual Band (2.4 GHz, 5 GHz, 6 GHz)
• MU-MIMO support
• Bluetooth

Internal Connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin 12V power connector
• 1x RGB LED strip connector
• 1x addressable LED strip connector
• 1x 4-pin CPU fan connector
• 1x 4-pin CPU fan/water cooling pump fan connector
• 1x 4-pin case fan connector
• 1x front panel audio connector
• 1x USB 2.0 connector (supports 2x USB 2.0 port)
• 1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)
• 1x USB 3.2 Gen2x2 Type C front panel connector
• 1x Clear CMOS button

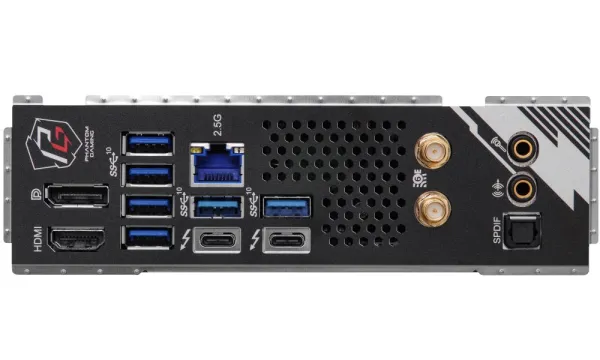

Rear Panel Ports

• 2x Wi-Fi antenna connector
• 1x HDMI
• 1 x DisplayPort
• 2 x Thunderbolt 4
• 6x USB 3.2 Gen2 (USB 3.1 Gen2) type A
• 1x RJ-45
• 2x audio jack
• 1x optical S/PDIF output

Dimensions

• 17 x 17 cm
• Mini-ITX format
